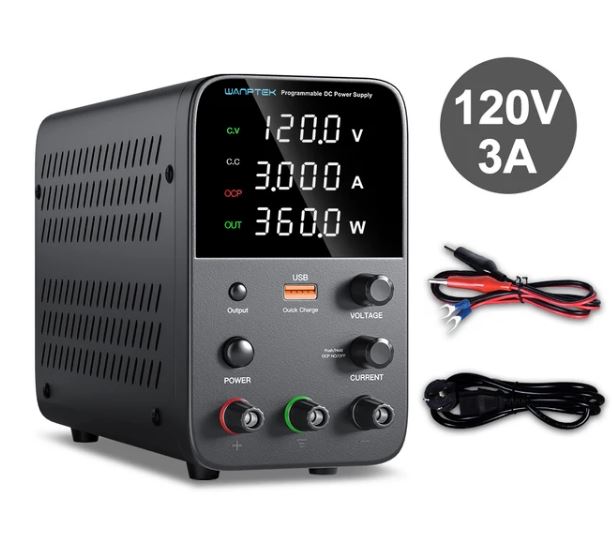

Wanptek Adjustable DC Power Supply 120V 3A USB Digital Lab Bench Power Supply
Wanptek Adjustable DC Power Supply 120V 3A USB Digital Lab Bench Power Supply
Wanptek WPS1203H Adjustable DC 120v 3Amp Power Supply (10004769)

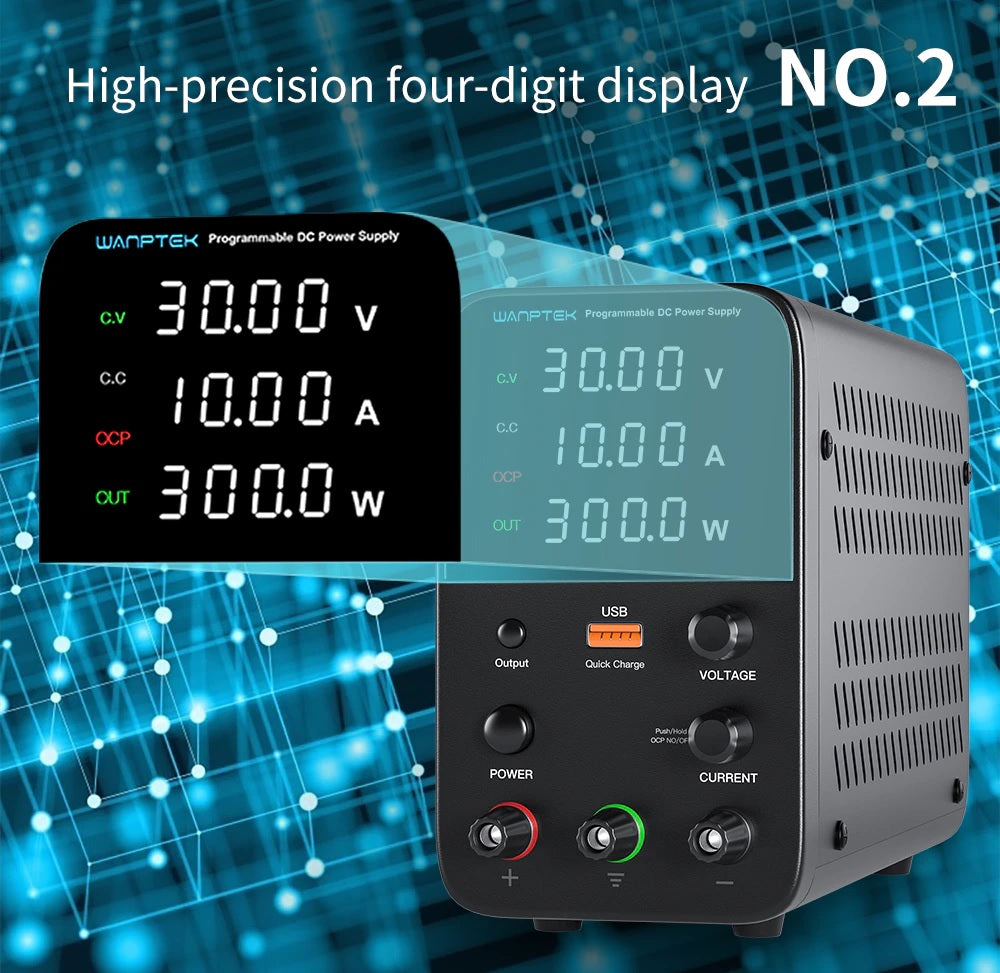

Four-digit display 0.01 V/0.001A WPS3010H/B Programmable DC power supply with power display 120V 3A
Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

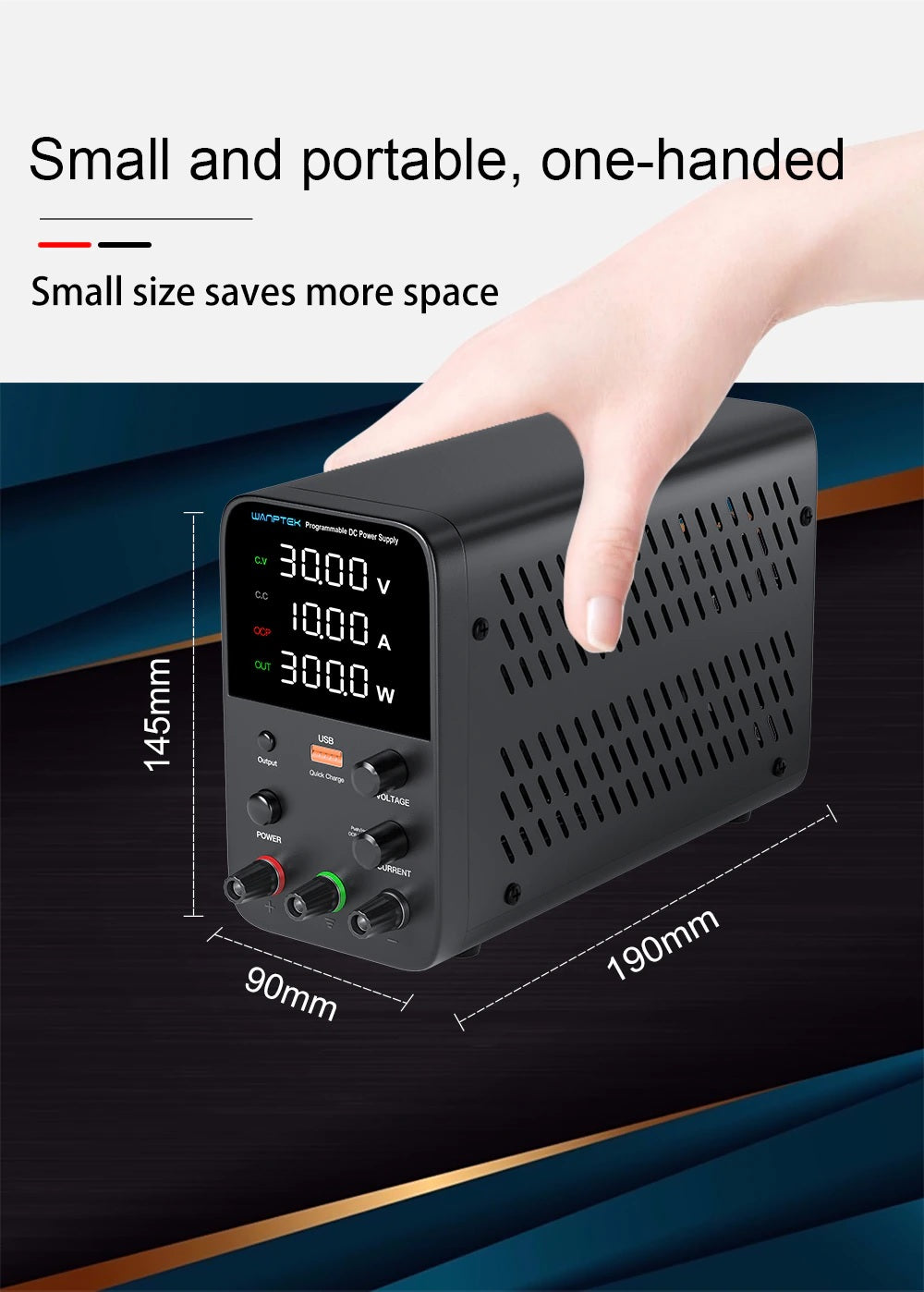

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.

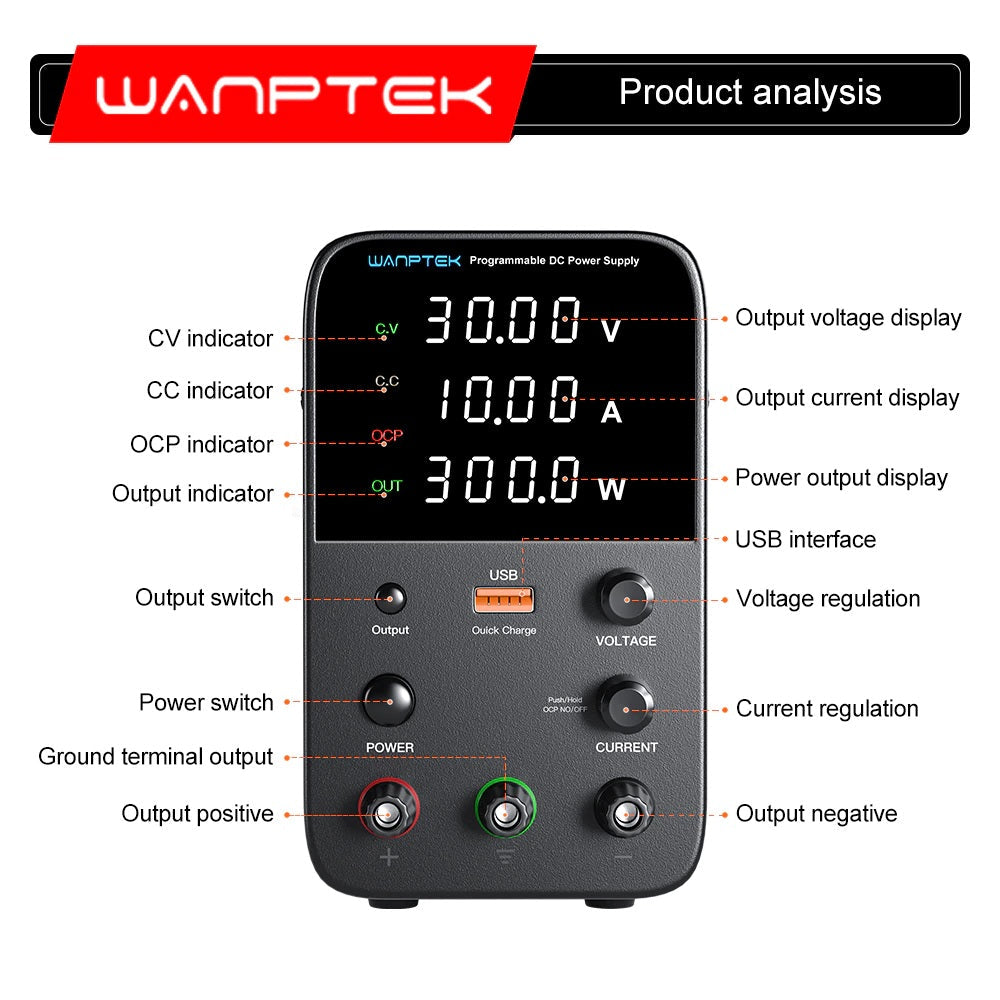

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

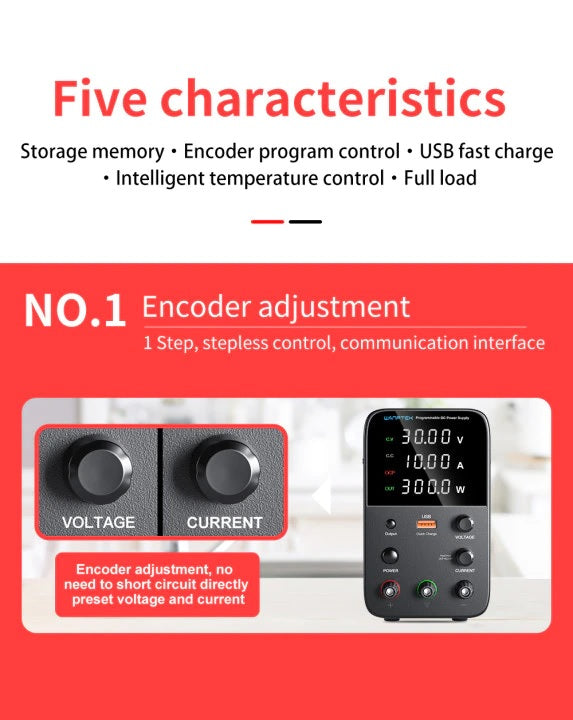

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously
5.adjusted between 0 and nominal value with fine regulating and coarse regulating

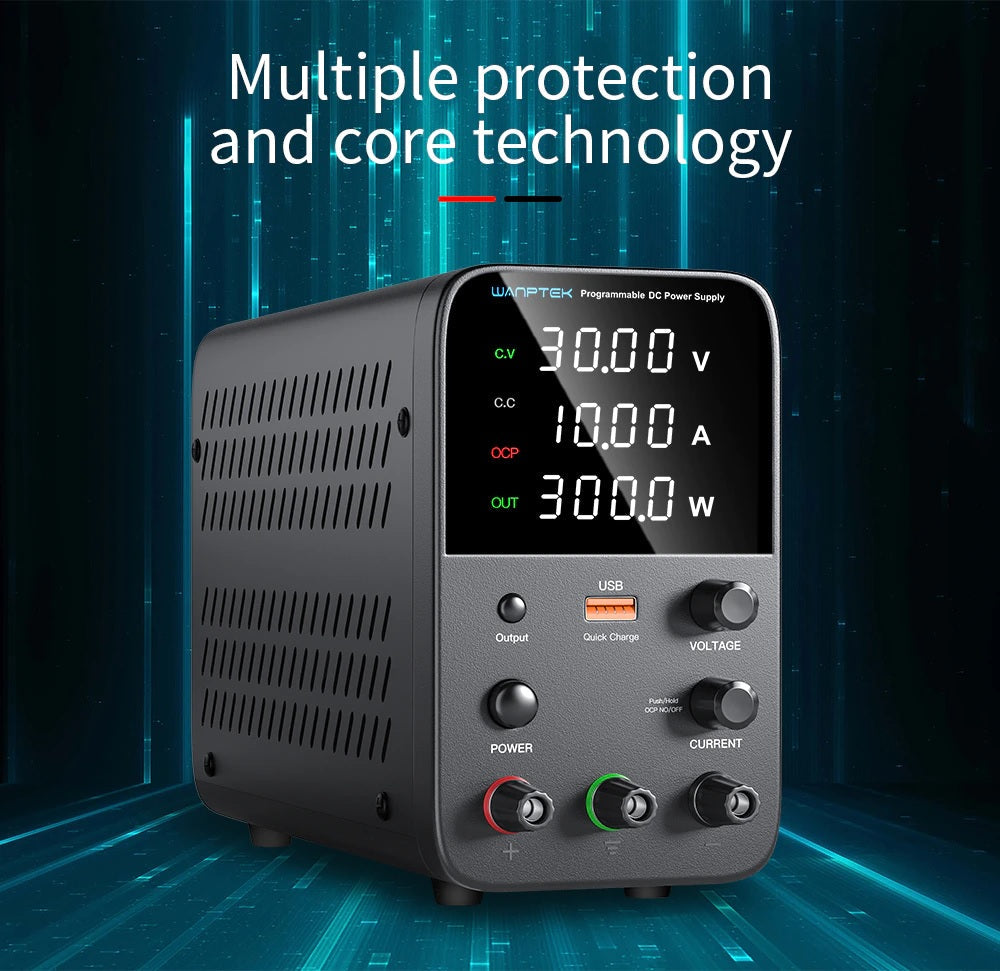

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

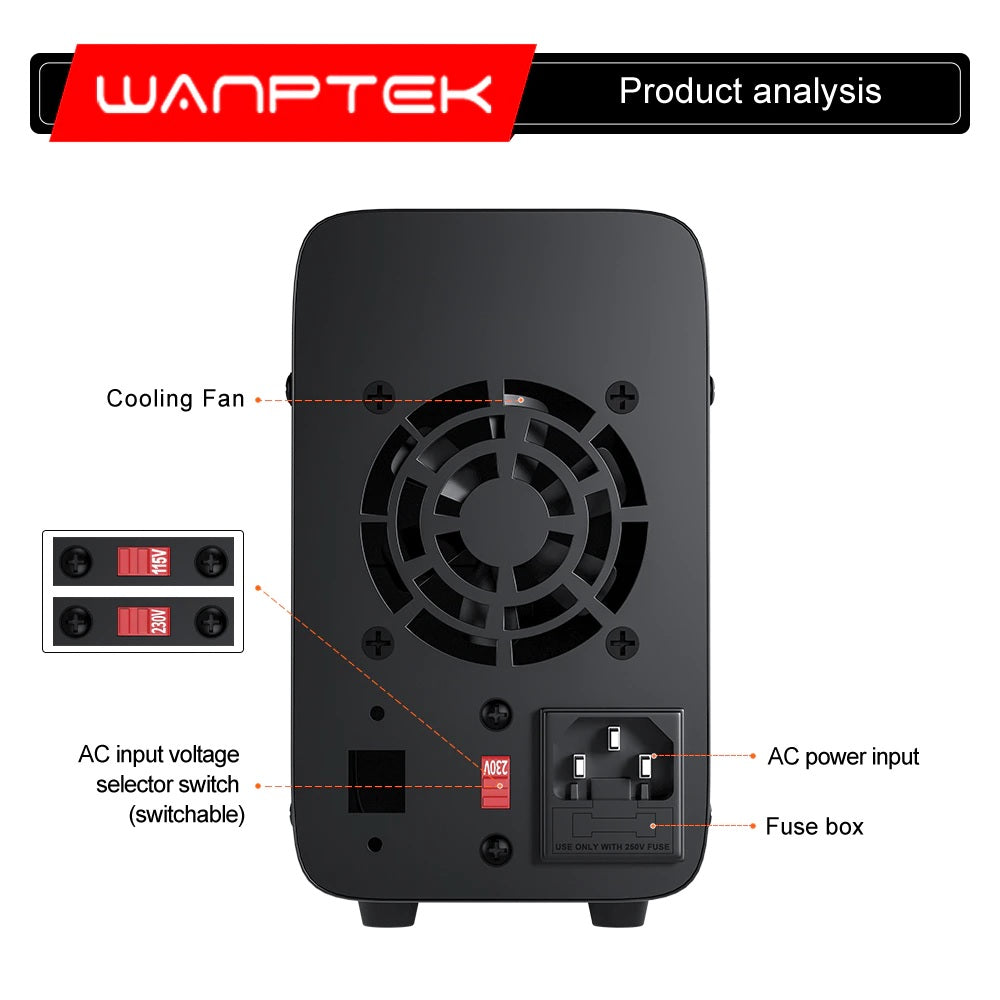

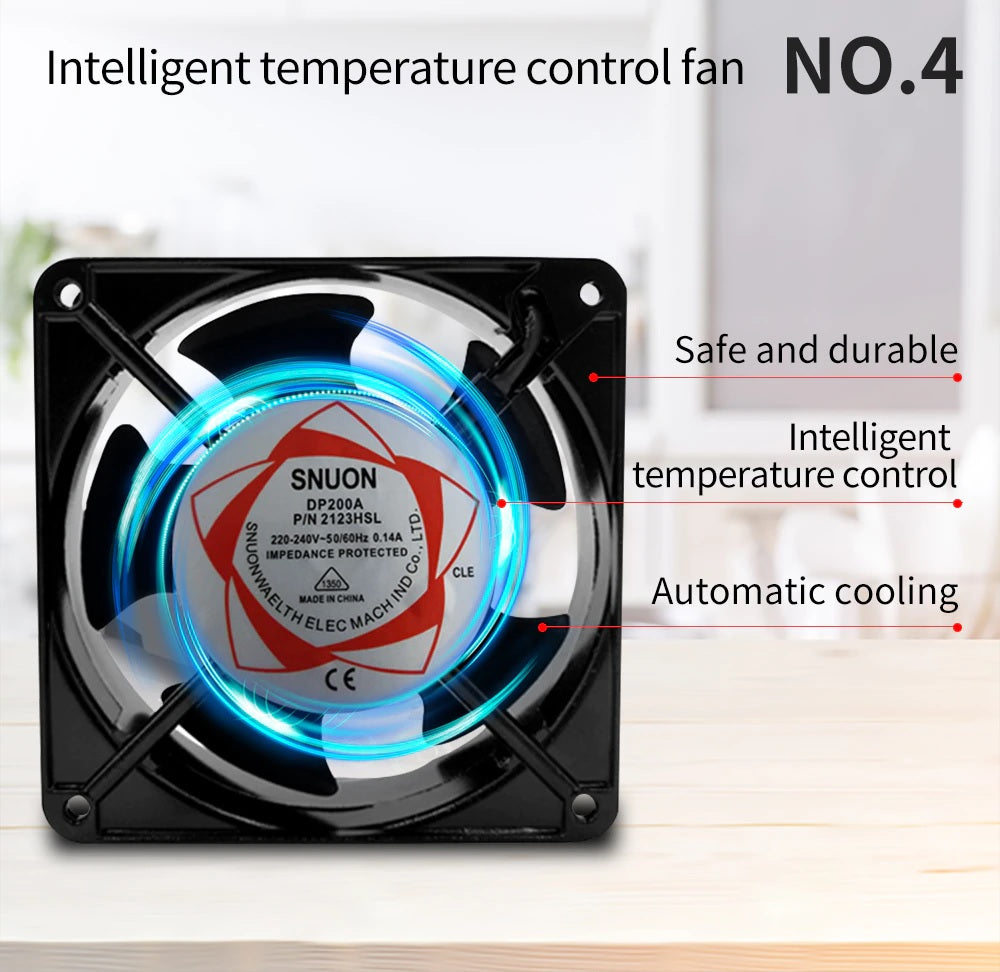

7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220v can work , rest assured to choose.
12. Programmable DC power supply

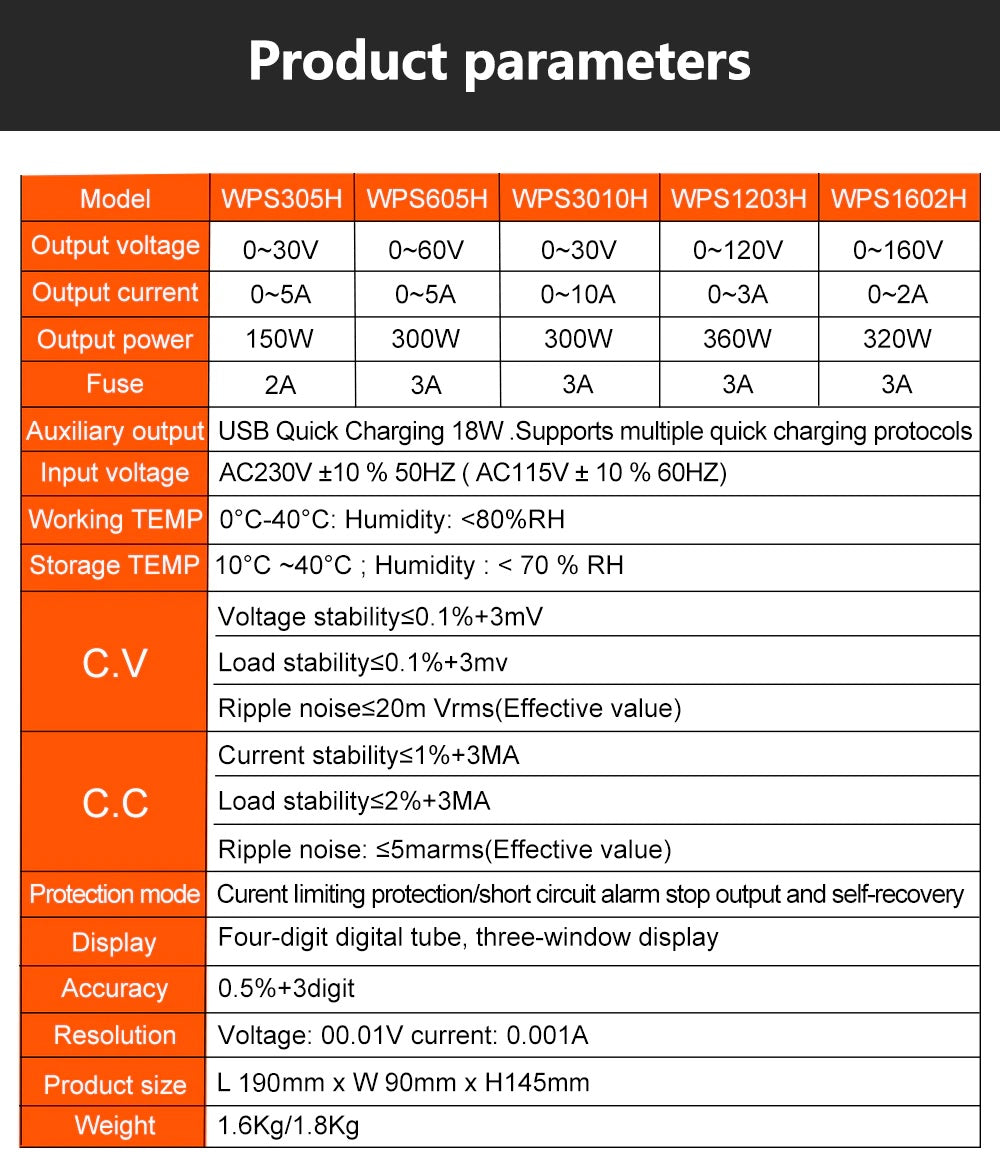

| Output Power |
306W |
| Output voltage |
0~120V |
| Output current |
0~3A |
| working environment | |
| input voltage: AC 230V/115V±10%;50Hz/60Hz | |
| Working temperature:0℃～40℃;relative humidity:<80%RH | |
| Storage temperature:-10℃～70℃;relative humidity:<70%RH | |
| Constant voltage CV | |
| Voltage stability:0.1%±3mV | |
| Load stability: 0.2%±3mV | |
| Ripple voltage:≤0.5% Vp-p | |
| 0 to rated voltage continuously adjustable | |
| constant current CC | |
| Current stability:0.1%±3mA | |
| Load stability: 0.2%±3mA | |
| Ripple current:≤0.5% Vp-p | |
| Recovery time:≤500μS | |
| Temperature coefficient:≤100ppm/℃ | |
| 0 to rated current continuously adjustable | |
1. Production line test.
2. Mobile phone maintenance, computer maintenance, electrical appliance maintenance, Car DVD, car audio.
3. Product aging, electroplating, such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching, factory, maintenance power supply. School laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

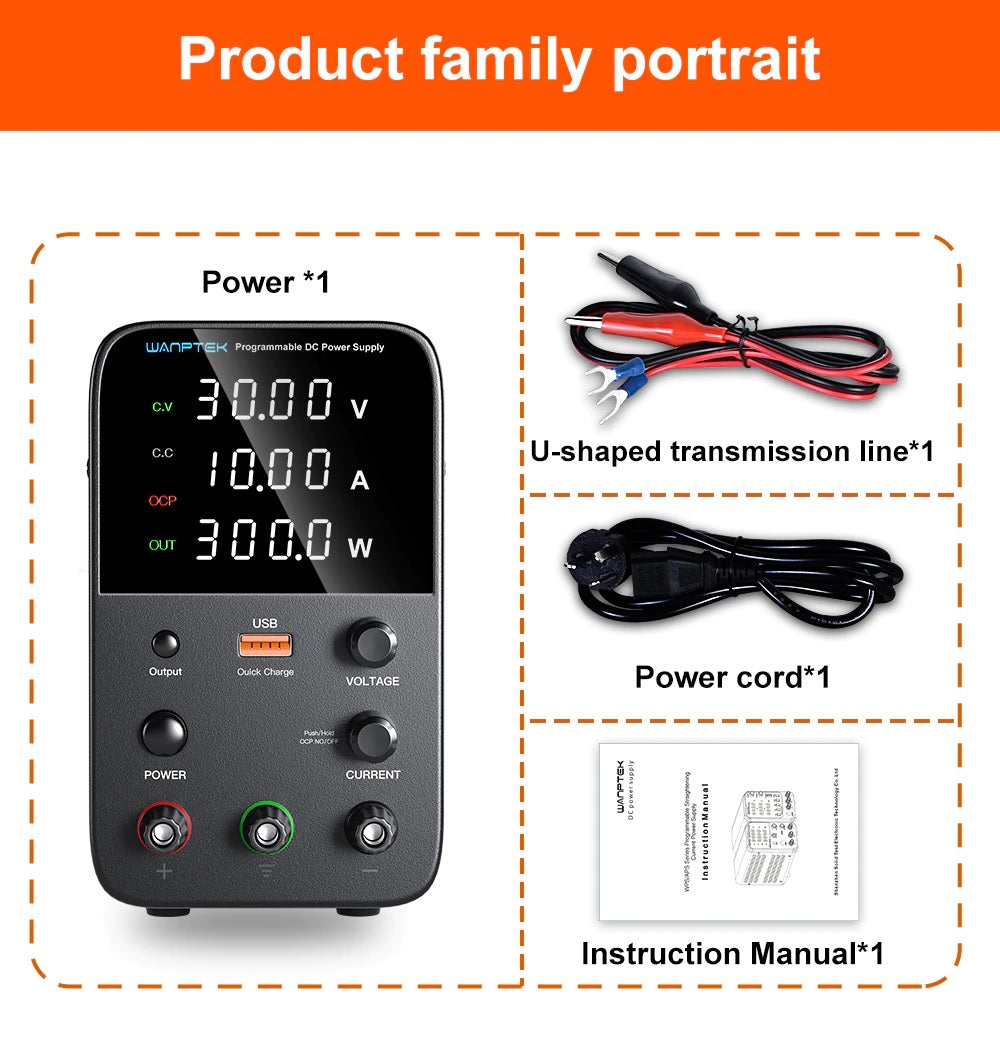

1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line
1x Instructions
