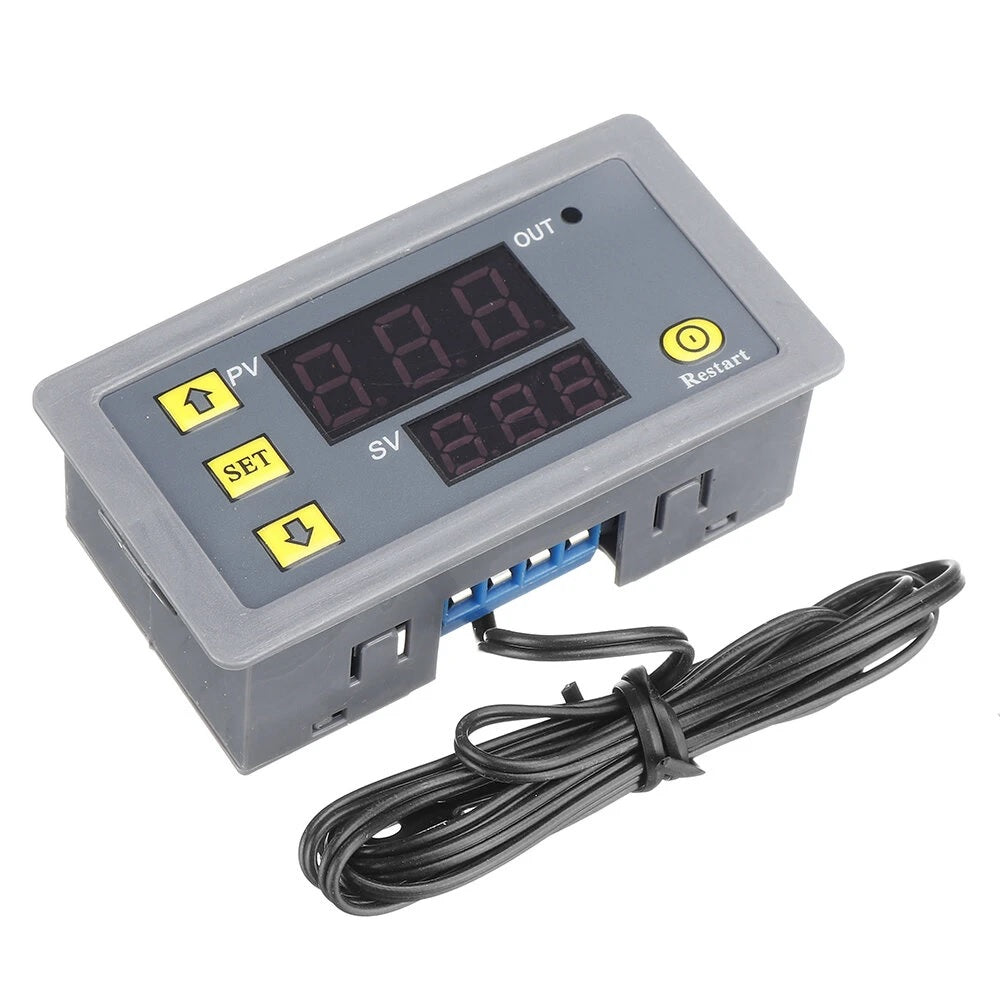

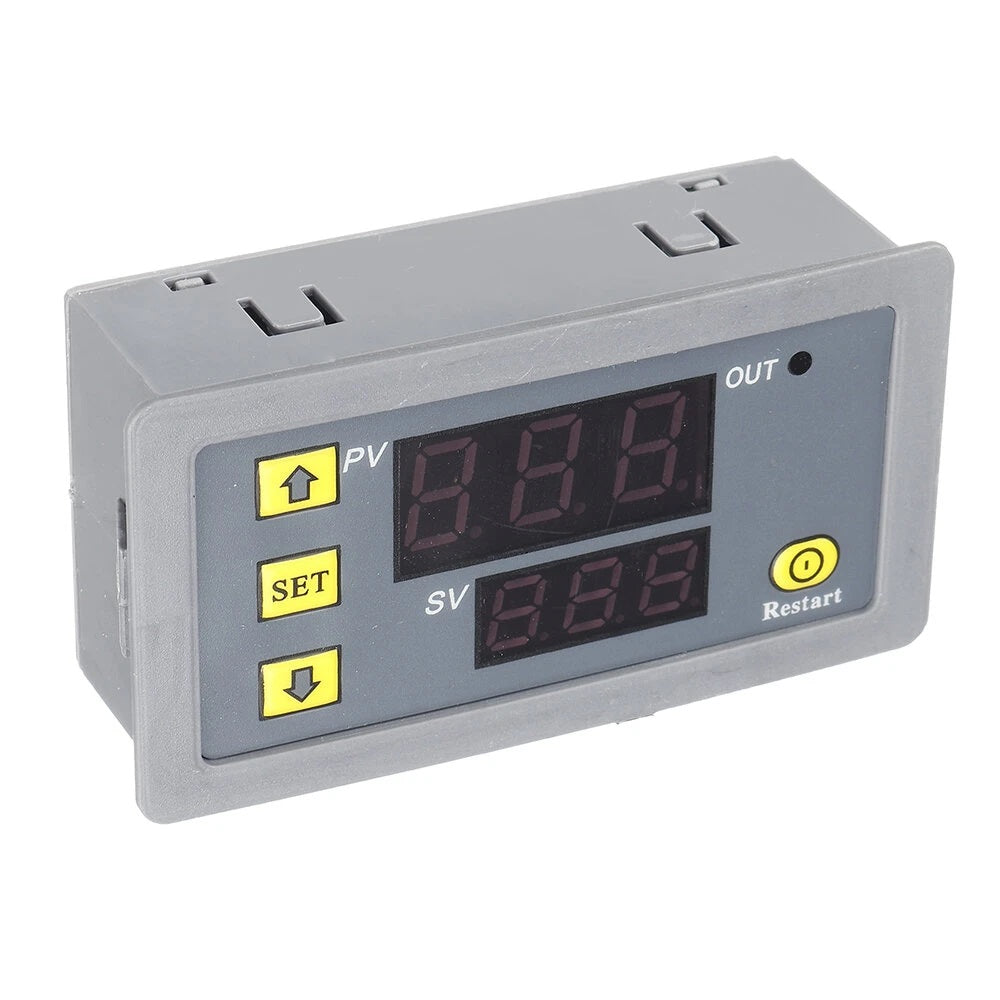

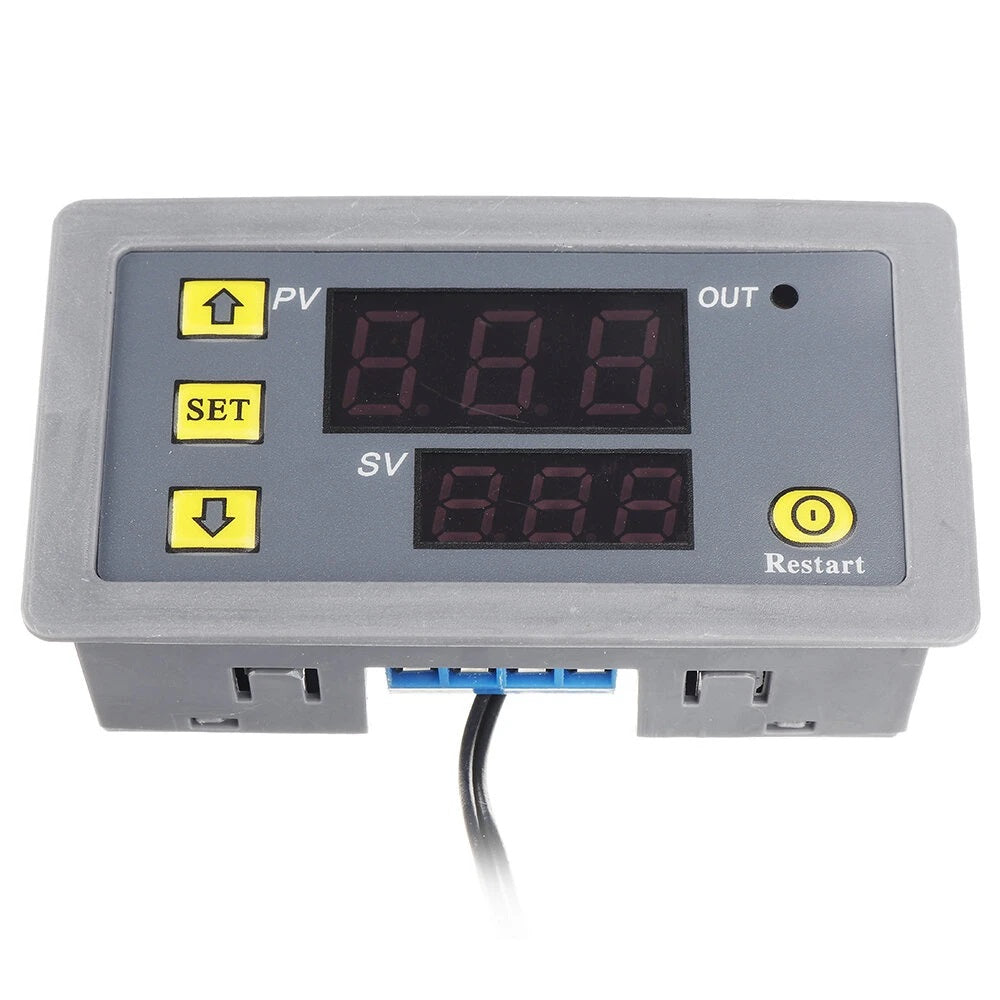

W3231 DC 12v LED Digital Thermostat Temperature Controller Regulator Heating Cooling Control Switch (10004252)
Specification:
Dual Display Temperature Controller
Temperature control range: -55°C~120°C/-67°F~ 248°F
Temperature control accuracy: 0.1 °C / 0.1 °F
Display color: red + blue
Working power supply: DC 12v
Sensor: NTC 10K 1 Meter (with probe)
Product Size: 79.2mm×41.9mm×26.3mm
Hole Size: 72.1mm×39.2mm

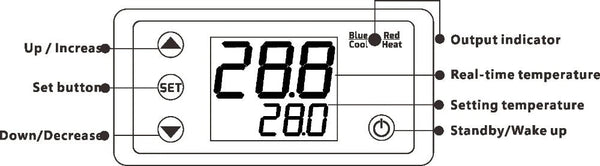

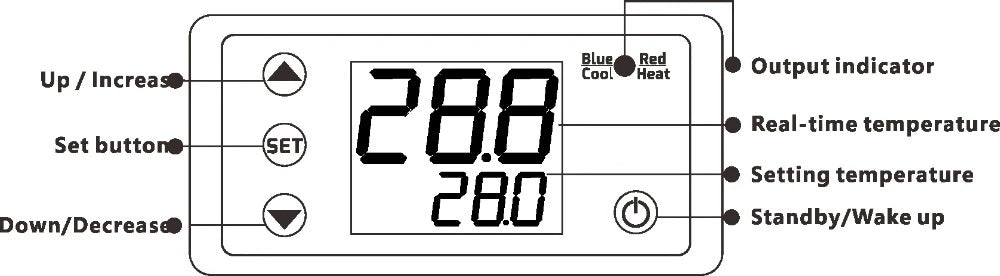

Operation guide
1. Short press “SET” small digital tube to flash, press “△” or “▽” to set the target temperature, press “Standby” button or no operation to save the setting within 3 seconds.
2. Press and hold “SET” to enter the code setting mode, press “△” or “▽” to switch the code. After selecting, press “SET” to enter the code setting. After setting, press “Standby” button or no operation to save the setting within 3 seconds. .
3. The last parameter setting is saved by default after shutdown.
4, Recover the factory settings: press and hold "SET" to power on.
5. When the module is powered on, it will start directly. After power-on, press and hold the “standby” button, the module will enter “sleep” or “wake up”; if the power failure, the module will run automatically after power recovery, no need to start manually.
Package Contents:

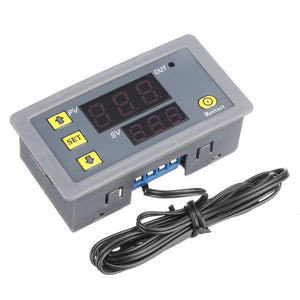

1 x Digital Thermostat Temperature Controller
