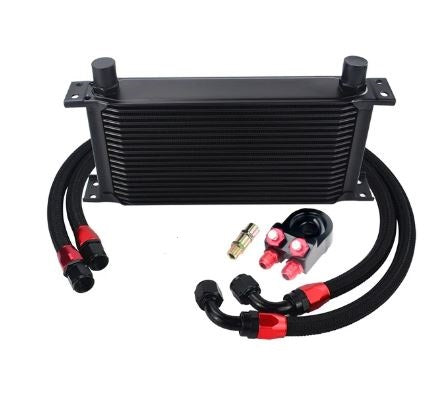

The Universal 19 Rows Oil Cooler Kit is a high-quality cooling system for your vehicle, including an oil filter sandwich and stainless steel braided AN10 hose for maximum performance and durability. Keep your engine running smoothly with this reliable kit.
Application:
19 Rows Oil cooler:
- Inlet / Outlet Size: AN-10.
- Made with High Quality T-6061 Aluminum.
- Potentially Reduces Oil Temperature up to 50°F.
- Powder-Coated and Oxidized for Durability and Protection.
- Helps Reducing Coolant Temperature and Extends Engine Life.
- Excellent for Modified Street Vehicles, which are Driven Hardly with Minimal Track Use.
- Professional Installer is Highly Recommended (No Instruction Included).
AN FITTING& BRAIDED HOSE LINE SIZE:
- Length: 1M(0-90DEGREE)
- Length: 1.2M(0-90DEGREE)
- Size: 10 AN
- Inside Diameter: 0.56" / 14.27mm
- Outside Diameter: 0.82" / 20.83mm
Oil filter adapter: 6721:
- Size: 10.5 x 7.4 x 3.2 (Height x diameter x Wide) (Approx)
- By-Pass Port Mounting Nut Spec: 3/4-16 UNF// M20 x 1.5
- Material: Made of Aluminum Alloy
6723:
- Material: Made of Aluminum Alloy
- 10-AN Fittings Inlet / Outlet
- 1/8 " NPT Additional outlet
- 7/8" x 14 Thread outlet
- Screws size: 3/4-16 UNF,M20*1.5
6746:
- Height: 100mm
- Thicknes:30mm
- O-ring OD: 64.5mm
- Fitting: 3/4-16 UNF,M20*1.5 AN10
- Made from High quality aluminum and anodized.
Package Contents:
