40*40MM High Thermal Conductivity For Industrial Equipment Heat Energy Conversion Power
The output power in thermoelectric performance test:
|
Temperature difference/℃ |
| Resistance |
20 |
30 |
40 |
50 |
60 |
80 |
| 2 |
0.0459 |
0.099 |
0.1866 |
0.2548 |
0.4507 |
0.5999 |
| 3 |
0.0508 |
0.1033 |
0.2067 |
0.2808 |
0.4988 |
0.681 |
| 5 |
0.0441 |
0.1033 |
0.2028 |
0.2737 |
0.4836 |
0.6811 |
| 7 |
0.0386 |
0.0916 |
0.1846 |
0.2607 |
0.4528 |
0.6474 |
Output power under variable load:
| Temperature difference/℃ |
Resistance |
| 0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
| 20 |
0.0227 |
0.0342 |
0.0405 |
0.0459 |
0.0455 |
0.0508 |
| 30 |
0.0499 |
0.0756 |
0.0895 |
0.099 |
0.104 |
0.1033 |
| 40 |
0.0916 |
0.1417 |
0.169 |
0.1866 |
0.201 |
0.2067 |
| Temperature difference/℃ |
Resistance |
| 5 |
6 |
7 |
8 |
9 |
10 |
| 20 |
0.0441 |
0.042 |
0.0386 |
0.04 |
0.0356 |
0.0369 |
| 30 |
0.1033 |
0.103 |
0.0916 |
0.0872 |
0.0819 |
0.0846 |
| 40 |
0.2028 |
0.1962 |
0.1846 |
0.1683 |
0.1621 |
0.1526 |
Output power under variable load conditions:
|
Cold end/℃ |
| Hot end/℃ |
10 |
20 |
30 |
40 |
| 30 |
0.078192 |
|
|
|
| 40 |
0.178462 |
0.089086 |
|
|
| 50 |
0.32891 |
0.18813 |
0.064986 |
0.023112 |
| 60 |
0.500059 |
0.326759 |
0.157332 |
0.081107 |
| 70 |
0.738641 |
0.508002 |
0.298401 |
0.186028 |
| 80 |
1.007529 |
0.724403 |
0.493534 |
0.308973 |
| 90 |
1.32805 |
0.993603 |
0.7091 |
0.476235 |
| 100 |
1.64804 |
1.312761 |
0.97671 |
0.692804 |
| 110 |
2.102329 |
1.624719 |
1.247846 |
0.958769 |
| 120 |
2.517268 |
1.954394 |
1.599027 |
1.22758 |
| 130 |
2.992686 |
2.32714 |
1.947085 |
1.550767 |
| 140 |
3.417593 |
2.726115 |
2.297209 |
1.984817 |
Note:

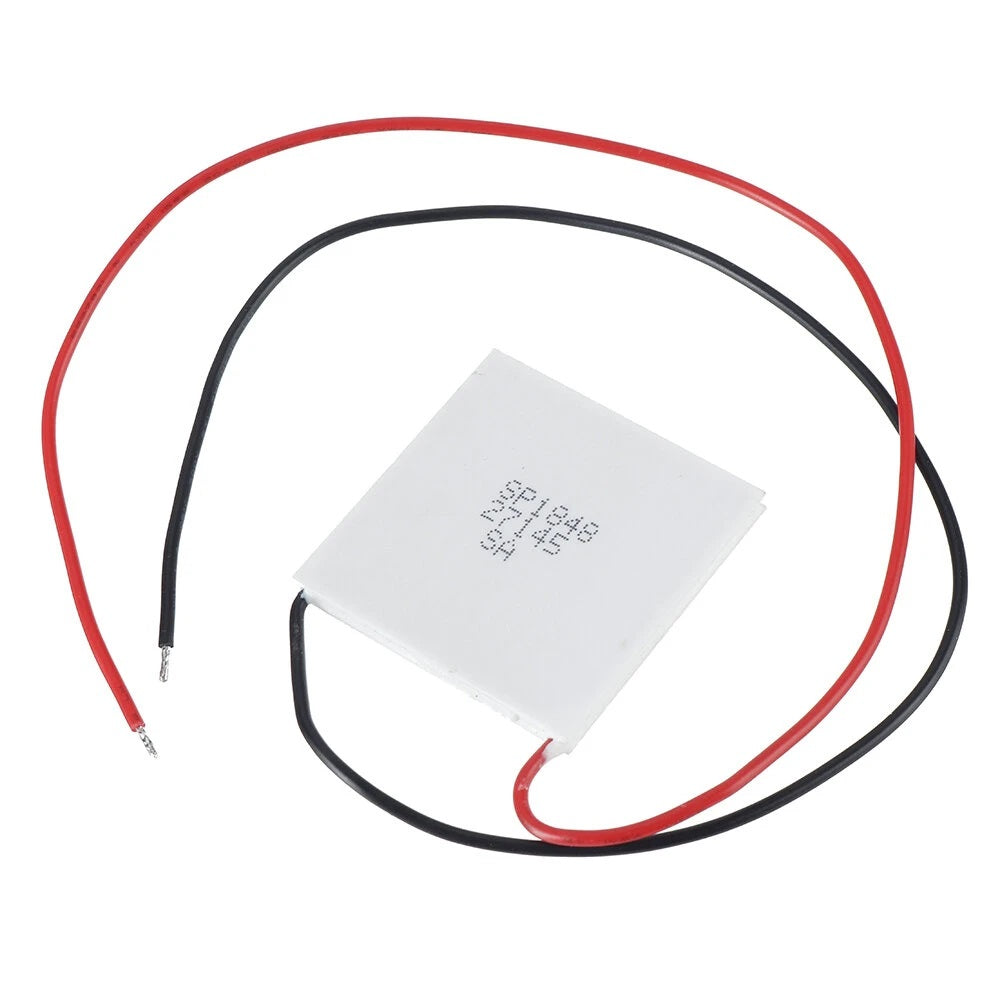

The experimental data in this group uses a matching resistance of 4.21 ohms to achieve maximum output power. The side with words is cooling, and the side without words is heat dissipation.

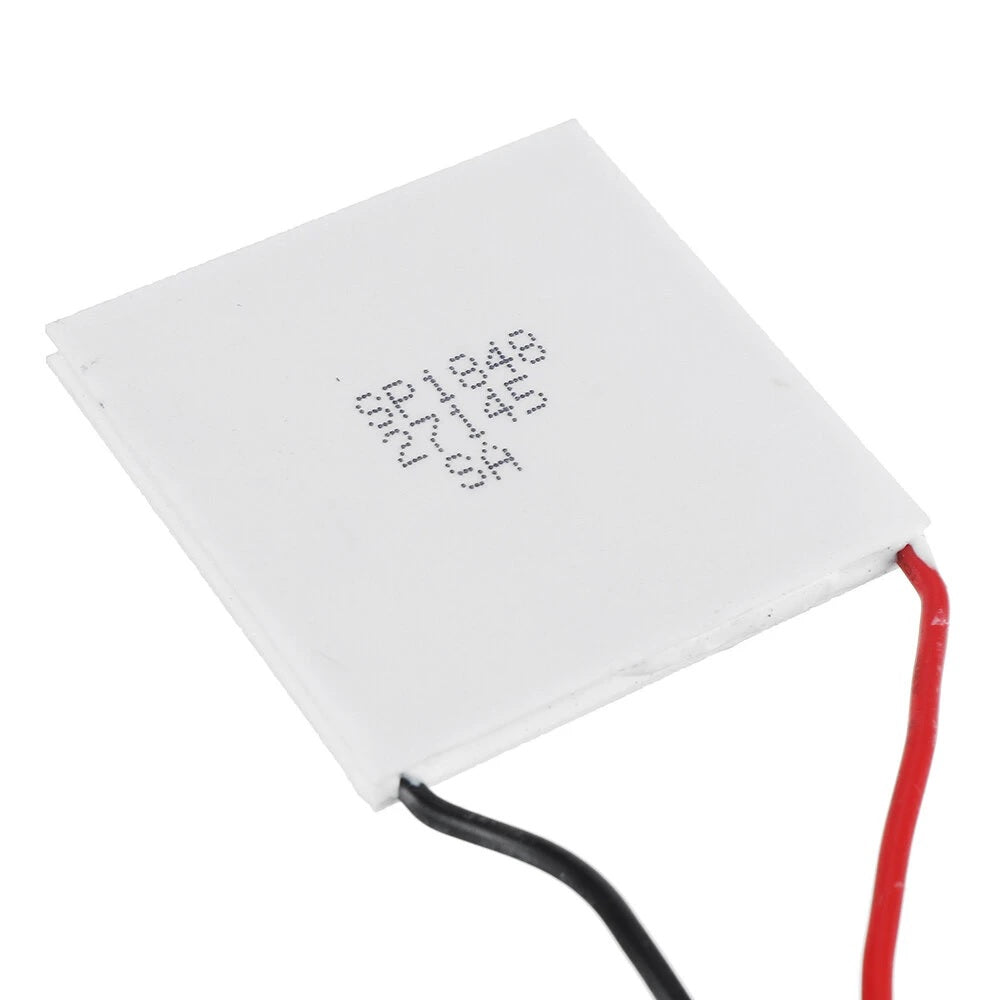

SP1848-27145 parameters are as follows:
Temperature difference of 20 degrees: open circuit voltage 0.97V, generating current: 225MA Temperature difference of 40 degrees: open circuit voltage 1.8V, generating current: 368MA Temperature difference of 60 degrees: open circuit voltage 2.4V, generating current: 469MA Temperature difference of 80 degrees: open circuit voltage 3.6V, generating current: 558MA Temperature difference of 100 degrees: open circuit voltage 4.8V, generating current: 669MA The above values are for reference only. There will be loss of current when wiring and booster board in actual use. Because this product is one piece and a ceramic body, it transfers heat very quickly. The temperature difference between the cold and hot ends needs to be studied and controlled.
Thermoelectric parameters:
Thermoelectromotive force (a): ＞190×μV/℃
Conductivity (σ): 850～1250Ω-1.cm-1
Thermal conductivity (K): 15～16×10-3-W/℃cm
Merit value (Z): 2.5～3.0×10-3W/℃

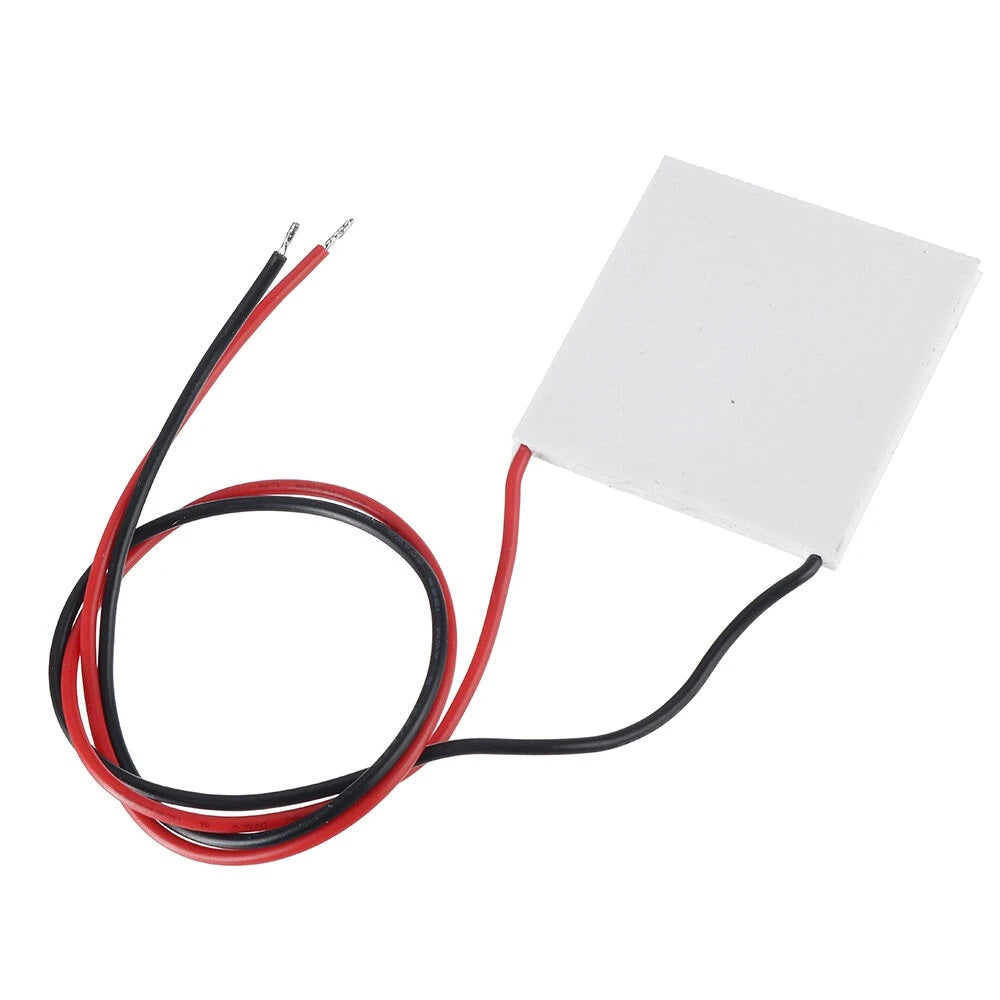

Package Contentss: 1 x Thermoelectric chip
