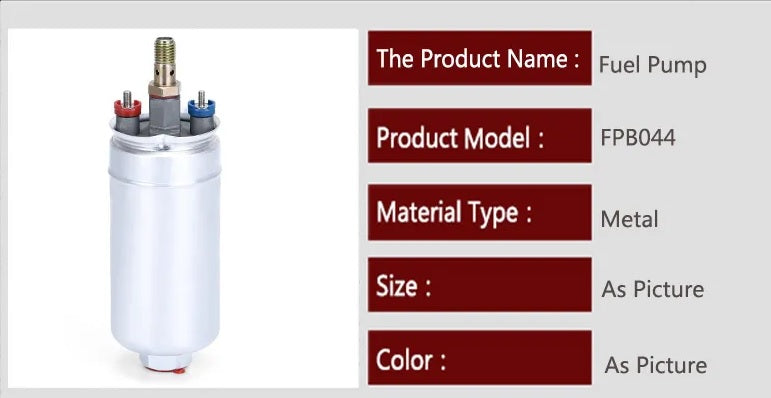

External 044 High Flow Fuel Pump - 300lph (10006603)

Application:

• Universal

Features and Benefits:

• These brand new and high performance pumps deliver flow about 300lph at 12v and 45psi matching maximum 750hp naturally aspirated engines and 650hp turbo/Supercharged ones separately.
• The Flow rate is same to 044 pumps.
• Mont in rear center of the car or truck.

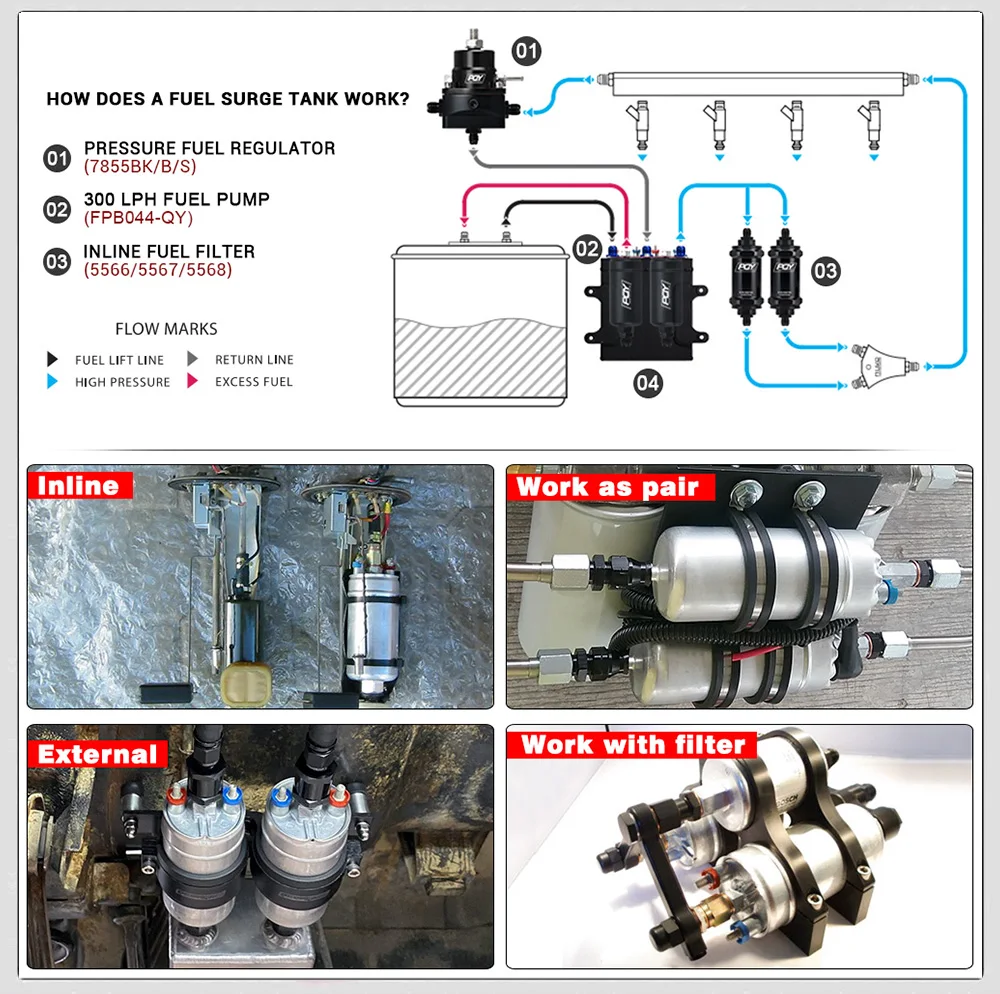

• Can be installed along with a high performance  in-tank fuel pump or alone.
• Positive terminal is M6, ground terminal is M5.

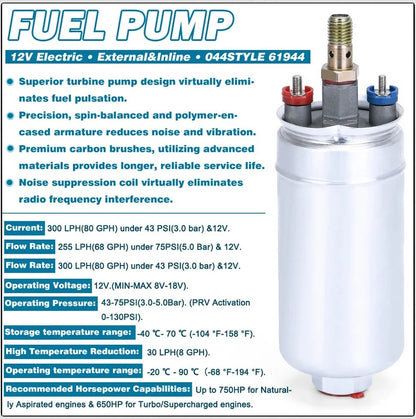

Technical Data:

• Operating Voltage:12V
• Min Voltage:8V
• Max Voltage:18V
• Operating Pressure: 75PSI (5.0Bar)
• PRV Activation0-130PSI)
• Flow rate: 200 LPH(53 GPH) under 75PSI (5.0 Bar) & 12V
• Flow rate: 300 LPH(80 GPH) under 43 PSI (3.0 bar) &12V
• Flow rate: 300LPH(80 GPH) under 75PSI (5.0Bab) & 13.5V
• Current:15A under 75PSI/12V
• High Temperature Reduction: 30 LPH(8 GPH)
• Operating temperature range: -20 - 90 -68 °F-194 °F)
• Storage temperature range: -40- 70 (-104 °F-158 °F)
• Recommended Horsepower Capabilities: up to 750HP for Naturally Aspirated engines & 650HP for Turbo/Supercharged engines

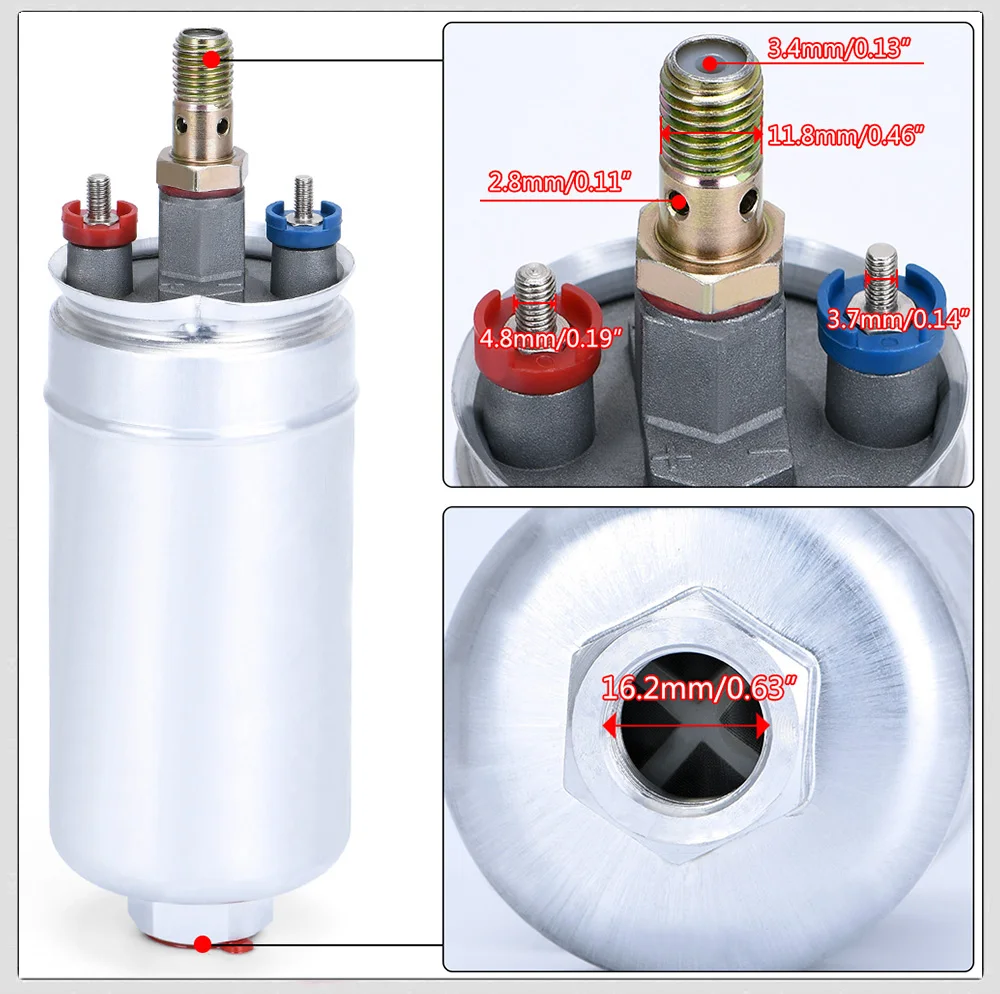

Dimensions& Material:

• Length : 196mm
• Diameter : 60mm
• Inlet : M18x1.5 Metric Thread
• Outlet : M12x1.5 Metric Thread
• Weight:1,100 g
• Color: silver
• Made of High quality Aluminum& metal

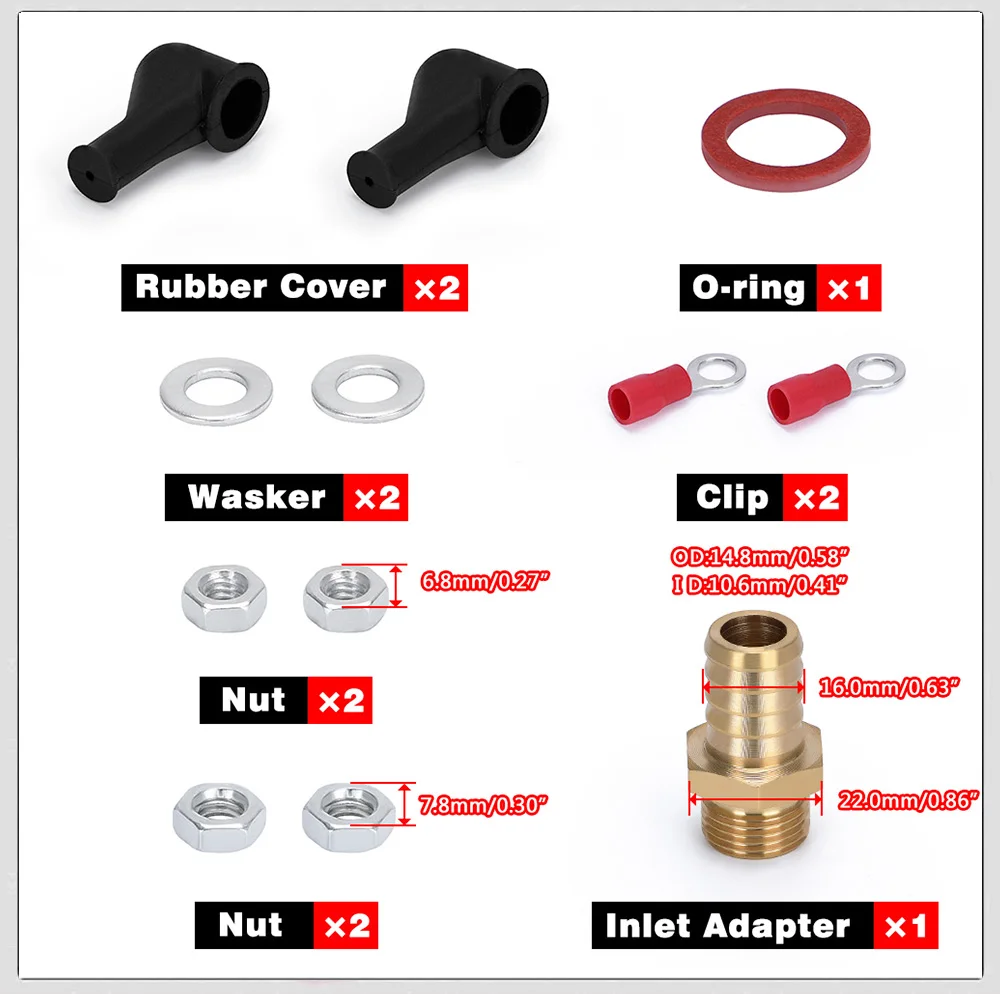

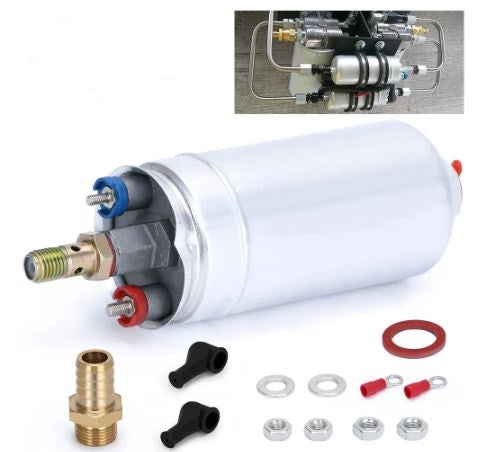

Package Contents:

• 1 x Fuel Pump
• 1x Internal Fuel Filter (already fitted )
• 2x Rubber connection covers
• 2x Clips
• 2x Nuts
• 2x Washers
• 1x Inlet Adapter
