7S 24v 20Amp Lithium 18650 Battery Protection Board and Balancer

R 295.00 ~~R 395.00~~

Quantity

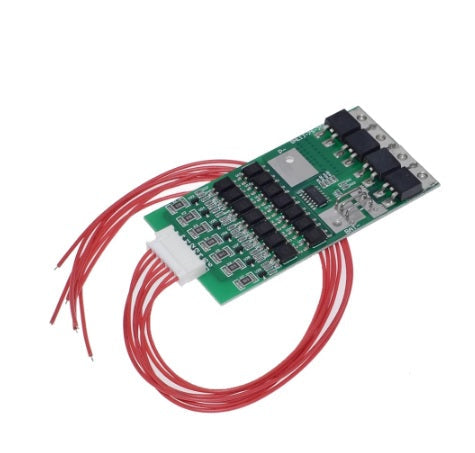

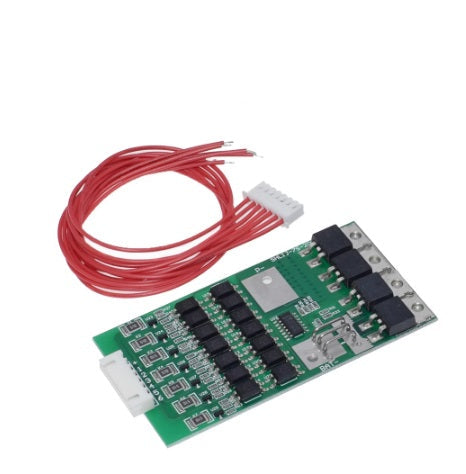

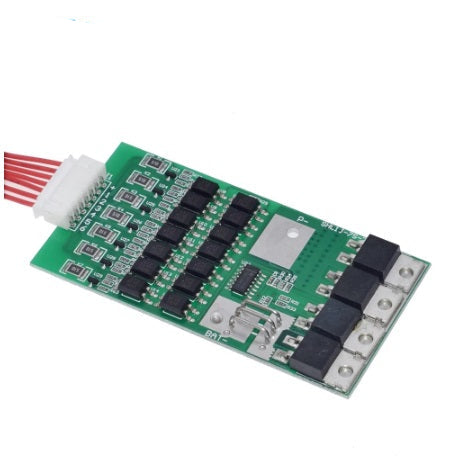

7S 24v 20Amp Lithium 18650 Battery Protection Board and Battery Balancer (10004804)

100% brand new and high quality Material: Electrical components Color: See pictures Equilibrium current: 80 mA(VCELL=4.20V) Supported battery type: 7 cells 4.2V Lithium ion battery Balancing the locus of control: 4.18±0.03 V Overcharge threshold: 4.3±0.05 V Overcharge time delay: 75mS Overcharge release: 4.1±0.05 V Discharge threshold: 2.4±0.08 V Discharge delay: 5mS Working current: 20 A Over current threshold: 30 A Static power: ＜500uA Overcharge protection function: Yes Discharge protection function: Yes Over current protection function: Yes Balanced protection function: Yes Over-current release: Disconnect the load release Short circuit protection function: Yes(Disconnect the load can be recovery.)

Feature:

This Lithium ion battery protection PCB protect single Lithium ion batteries.20A continuous current.

Suitable for electric drills, motors, or aircraft models which require heavy current load.
