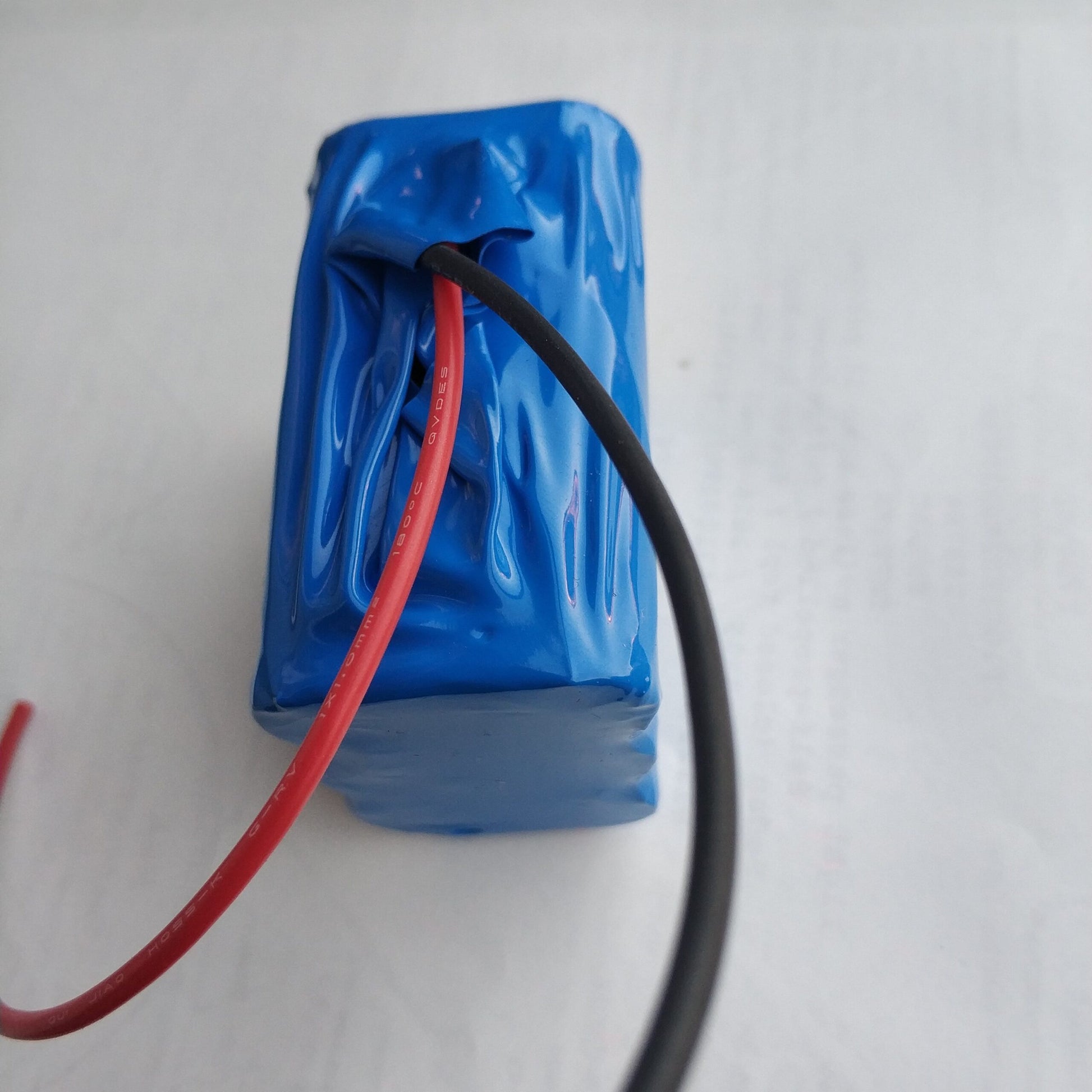

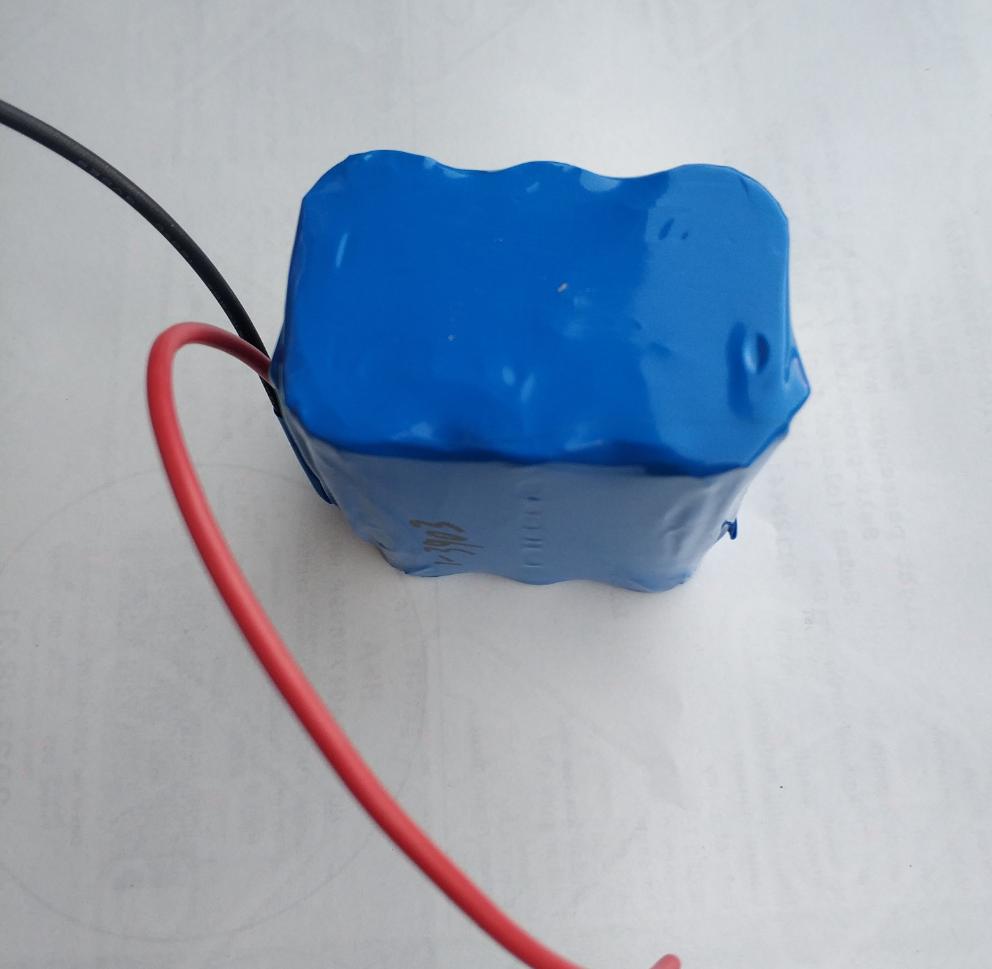

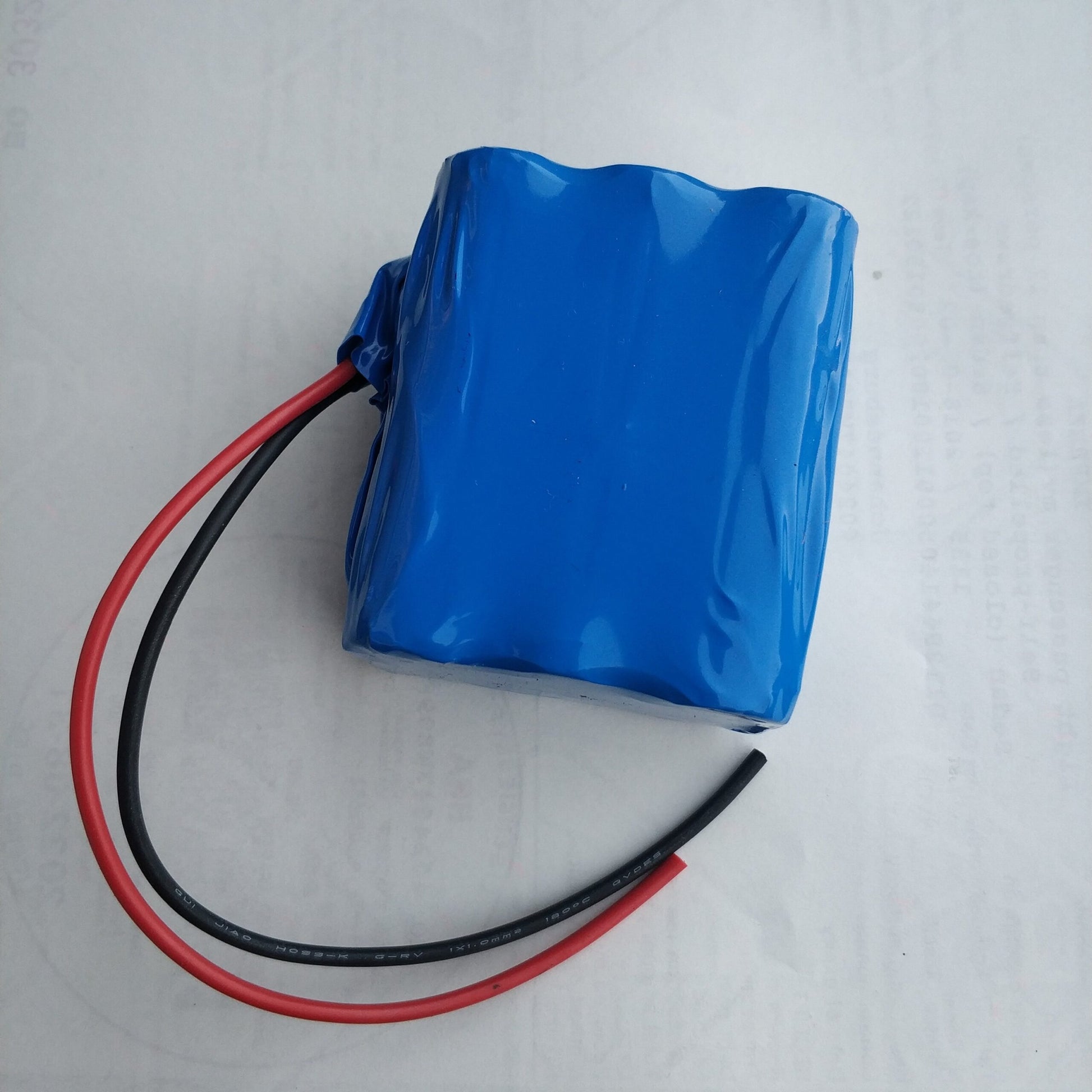

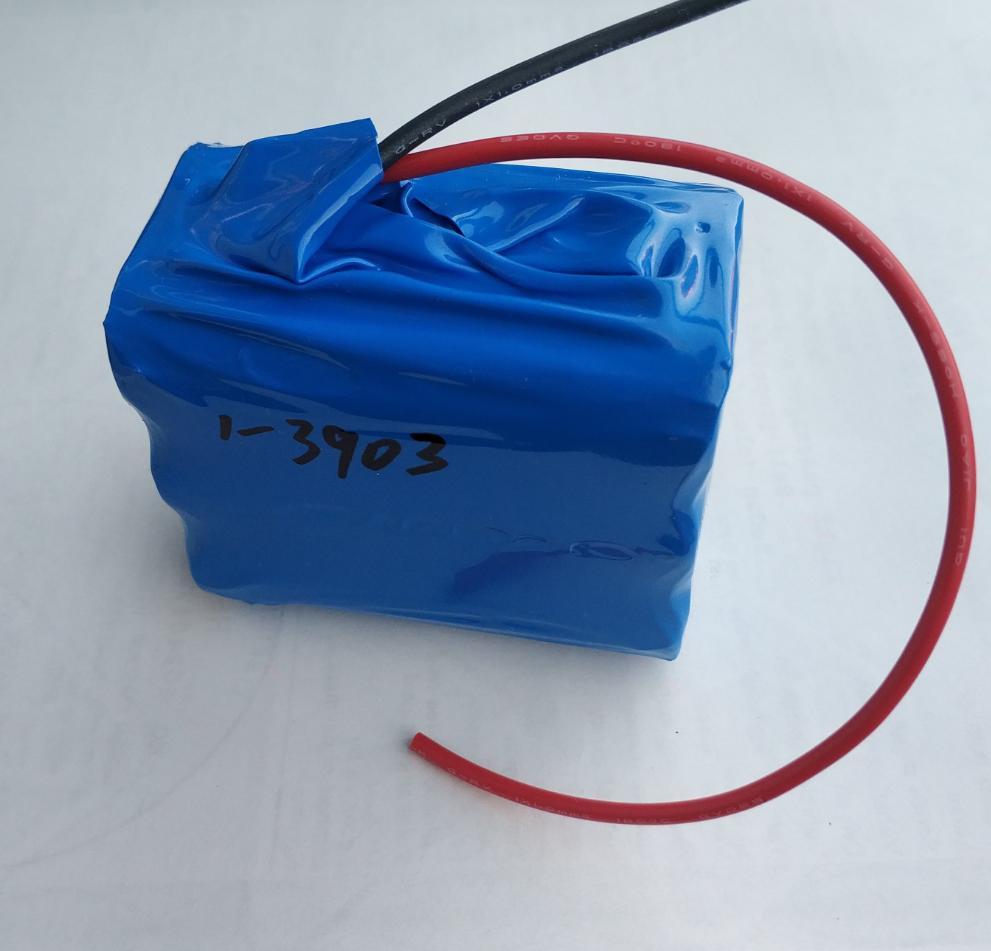

7.4V 6600mah 3Amp Lithium Battery (10003903)
PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!
Specifications:
Nominal Voltage - 7.2v
Type: Voltage Regulator
Supply Voltage: 8.4V
Application: 18650 lithium battery
Overcharge voltage range: 4.25-4.35v±0.05V
Over-discharge voltage range: 2.5-3.0v±0.05V
Working current: 0-3A
Working temperature: -40---+50 °C
Instantaneous current: 3A
Storage conditions: -40-- +80 ° C
Quiescent current: less than 5uA
Effective life: more than 50,000 hours
Internal resistance: less than 300mΩ
Short circuit protection: protection, charge recovery
Max Charge voltage: 8.4V
The main function: Overcharge protection, over discharge protection, short circuit protection, overcurrent protection.
Dimensions: 70mm X 20mm X 40mm
