3S 20A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V Cell
Regular price
R 60.00
3S 20A Li-ion Lithium Battery 18650 Charger PCB BMS Protection Board 12.6V Cell (10003489)
Features:
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

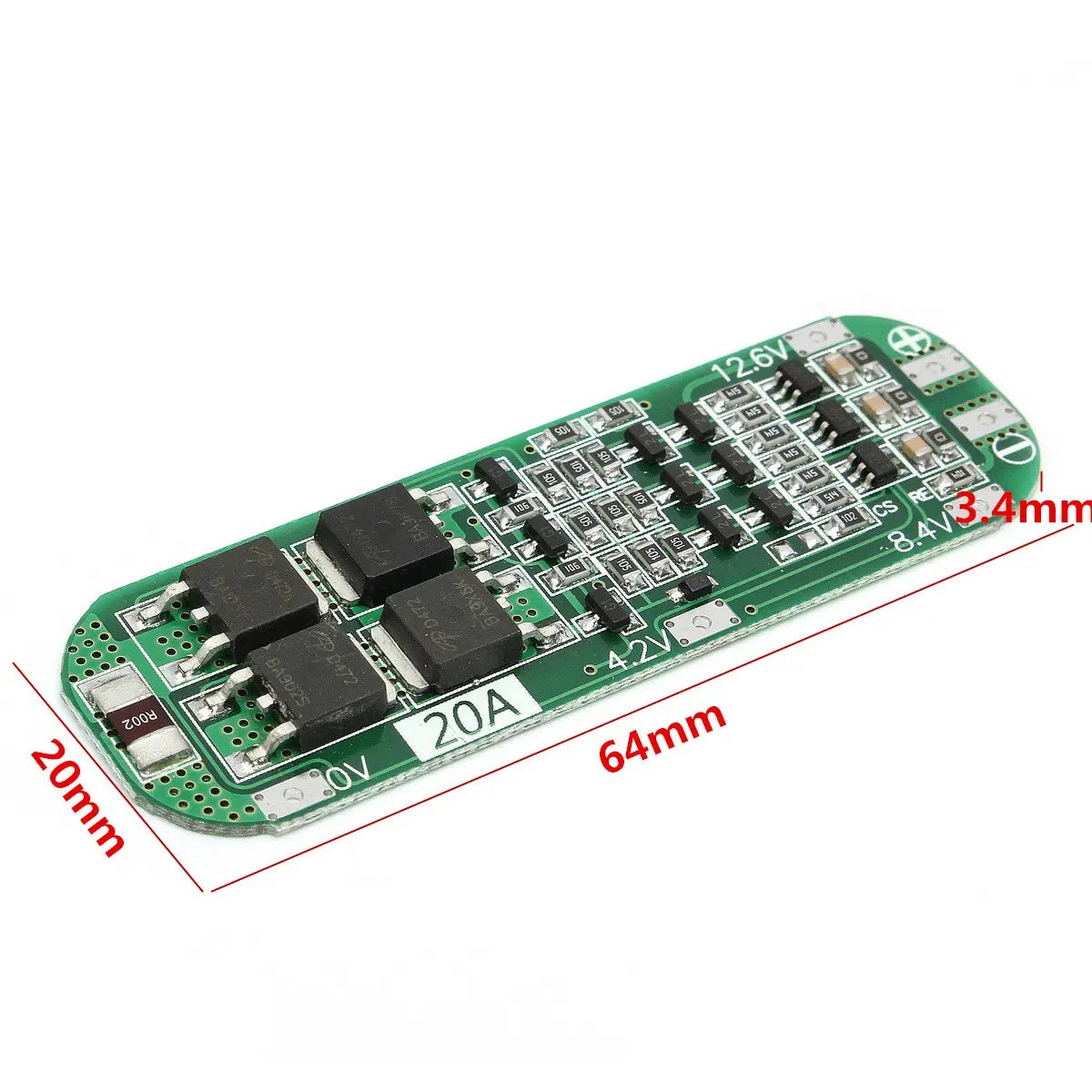

Product Size: 64mmx20mmx3.4mm
Material: Metal Charging voltage: 12.6V
Maximum output current: 20A Maximum output power / charging power: 252W
| Electrical Parameters | ||||
| Item | Minimum | Typical | Maximum | Unit |
| Consumable Current | 12 | 18 | 24 | uA |
| Over charge protection voltage | 4.2 | 4.25 | 4.3 | V |
| Over charge recovery voltage | 4.1 | 4.16 | 4.2 | V |
| Over charge delay time | 500 | 1000 | 1500 | ms |
| Over discharge protection voltage | 2.35 | 2.5 | 2.7 | V |
| Over discharge recovery voltage | 2.9 | 3.2 | 3.3 | V |
| Over discharge delay time | 50 | 100 | 150 | ms |
| Conduction resistance | 10 | 12 | 14 | mΩ |
| Overcurrent protection current | 37 | 40 | 43 | A |
| Over current delay time | 5 | 10 | 15 | ms |
| Normal operating current | 0 | 20 | 20 | A |
| Transient current (<10ms) | 18 | 20 | 22 | A |
| Ambient temperature | -40 | 25 | 85 | °C |
Note:

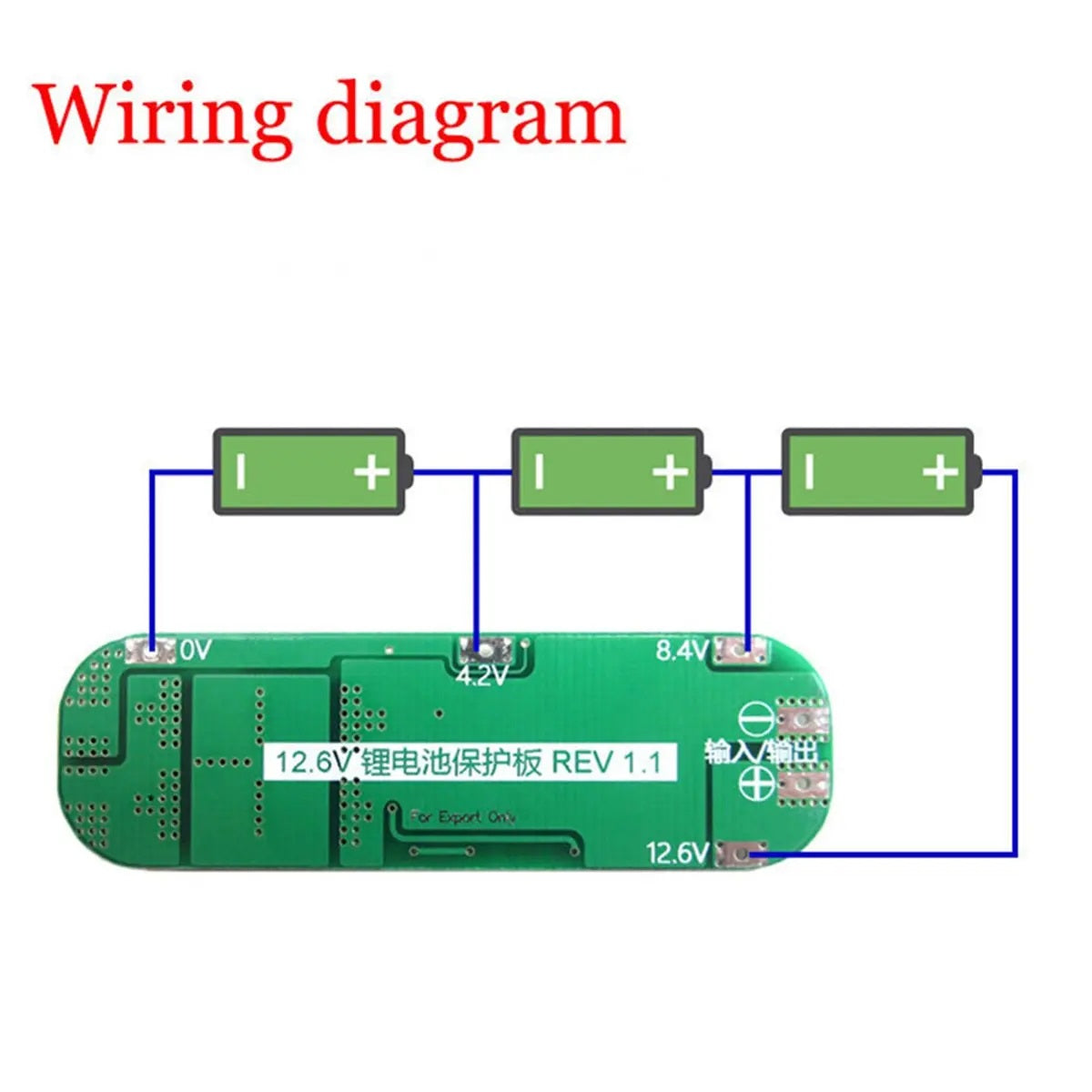

1. Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2. After connection, it need to first charge activation, then will have the output.
3. Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better.
Package Contents:
1 x PCB Protection Board
