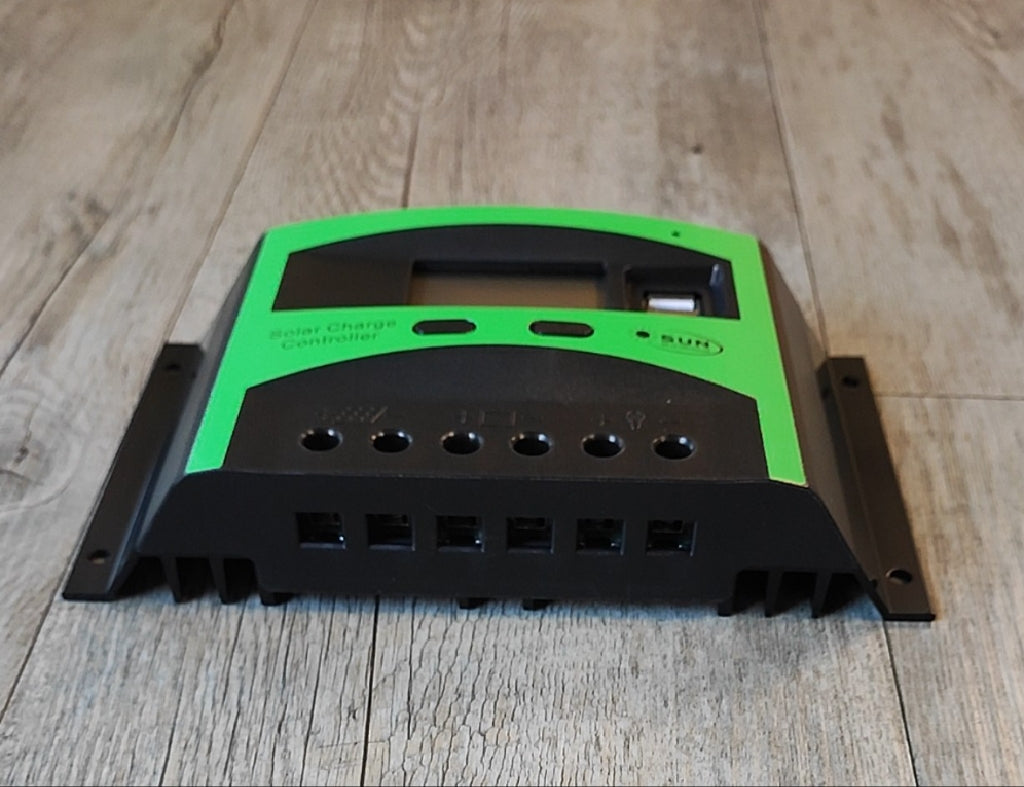

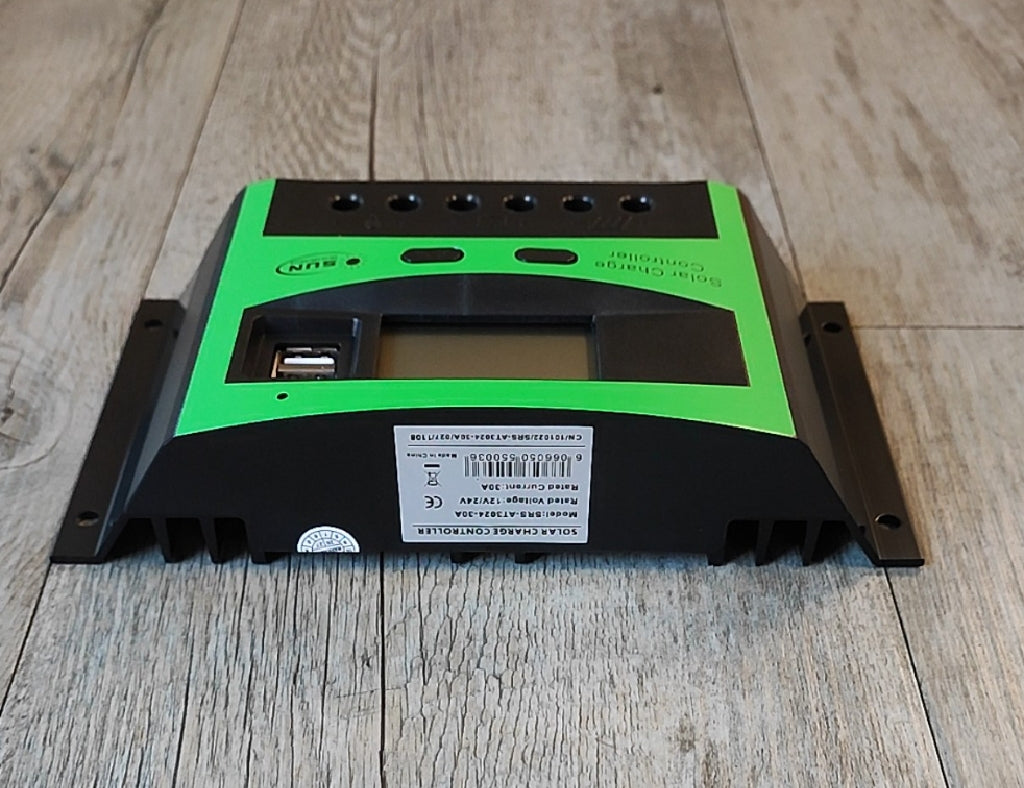

30Amp 12/24V Solar Charge Controller PWM with LCD Display and 2x 5V 1Amp USB Outputs for Solar Off-grid System (10004728)
The 30Amp 12/24V + 5v 1Amp USB Out Solar Charge Controller PWM efficiently charges your batteries from solar panels while also providing a USB output for your devices. Perfect for off-grid applications. This solar charge controller is a kind of intelligent, multi-functional solar charge and discharge controller. Use PWM charge mode, which can improve system efficiency and prolong the life span of the battery.
Features:
This controller is for off-grid solar system and to control the charging and discharging of the battery. It can well protect the battery and ensure long battery life and improved system performance. Automatic identification for system voltage: 12/24v. High efficiency intelligent PWM mode charging. The load control mode can be selected, the timer function can be reset for street light at night. Discharge capacity control, discharge counter of power, record total running time of system, etc. Reliable over voltage, short circuit, over load, overcharge and over-discharge protection. Accurate temperature compensation, correct charging and discharging voltage automatically. LCD display, 2 buttons to operate.
Specifications:

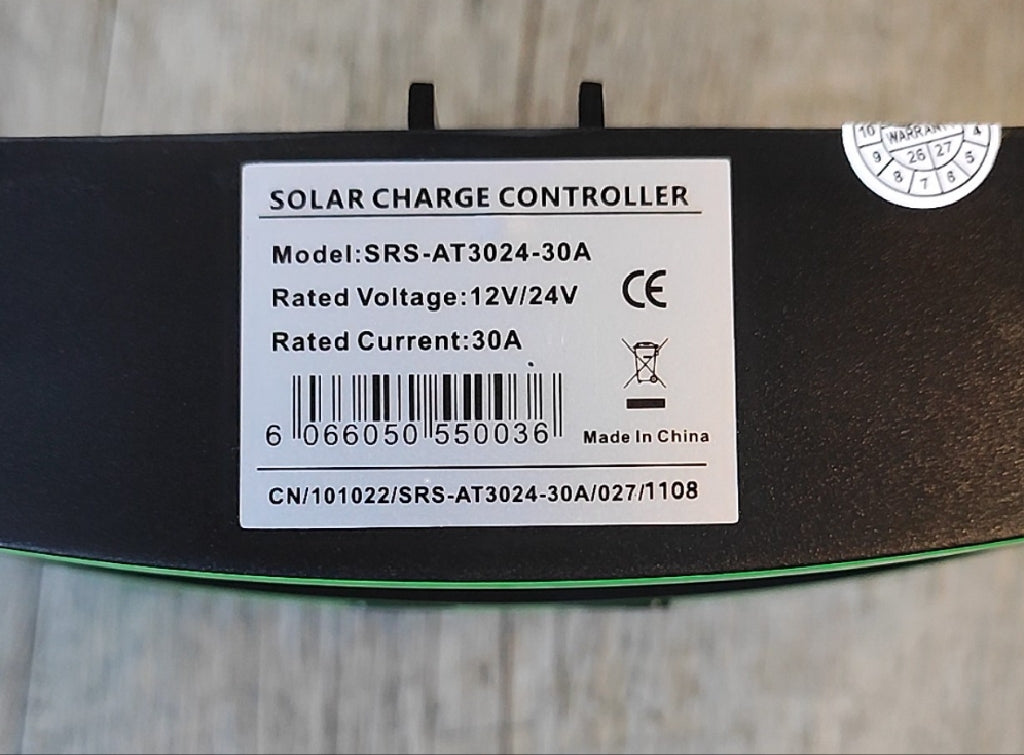

Color: Green + Black Max. Charge/Discharge Current: 30A System Voltage: 12/24V Max. Input Voltage of Solar Panel: 55V Self-consumption: <=10mA Reverse Connection Protection: Yes Load Over Current Protection: Yes Charge Type: PWM Temperature Compensation: -24mV/°C for 12V System, Working Temperature: -20 ~ 55°C Terminal Scale: 14-6 AWG Water Resistance: IP32
Package List:

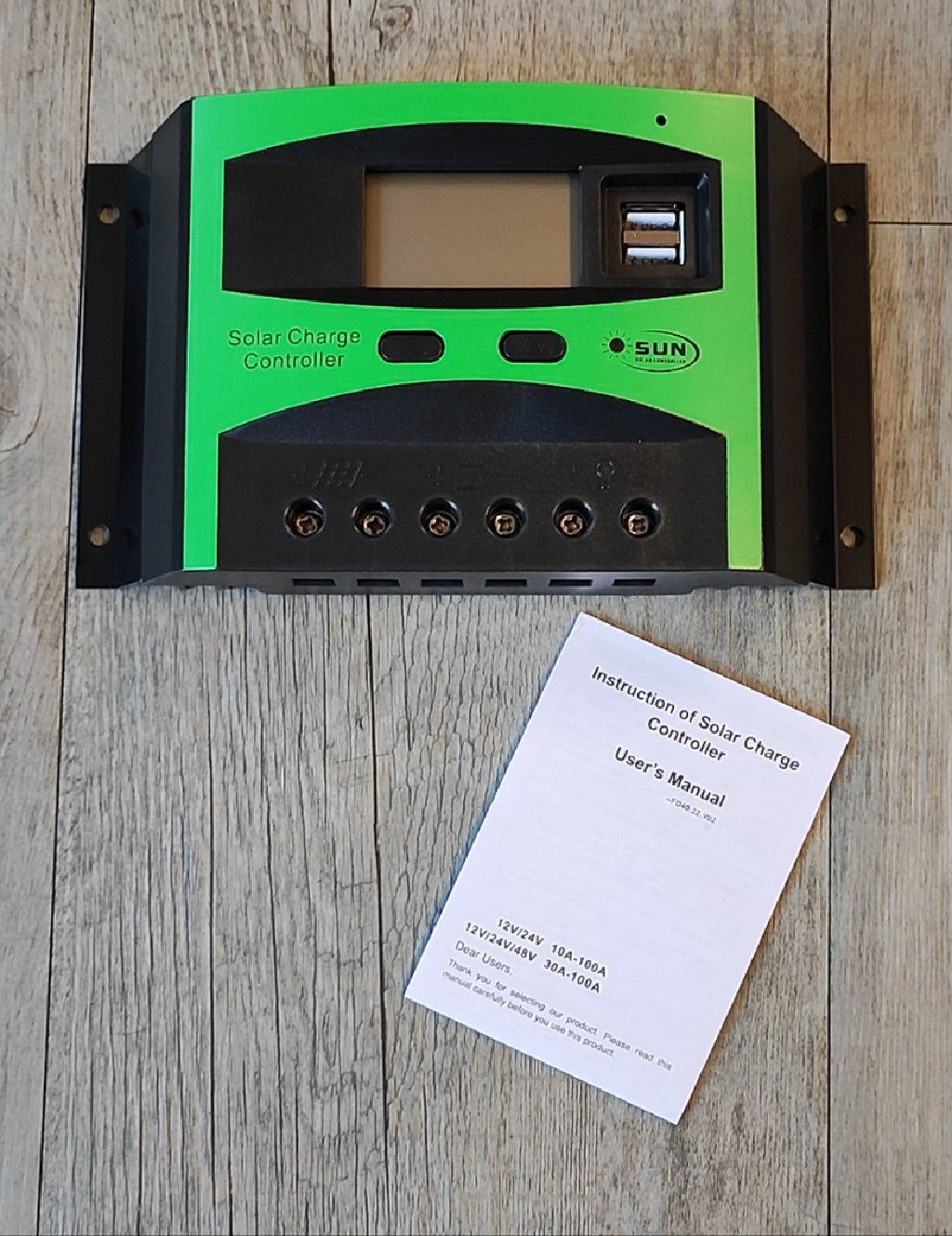

1 * Solar Charge Controller
1 * User Manual
