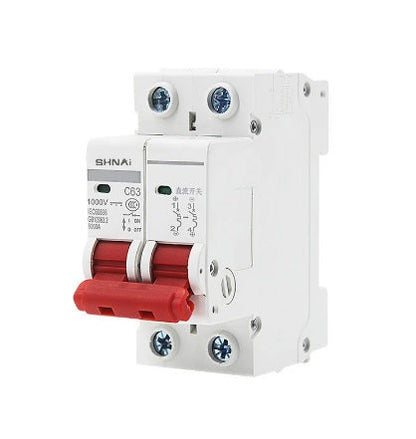

2Pole 50A DC 1000V Circuit Breaker for Solar PV Systems

2Pole 50A DC 1000V Circuit Breaker for Solar PV Systems (10006934)

The 2Pole 50A DC 1000V Circuit Breaker is designed specifically for solar PV systems. This circuit breaker provides reliable protection against overloads and short circuits in solar power installations. With a voltage rating of 1000V and a current rating of 50A, it is suitable for high-power solar systems. The 2Pole design allows for simultaneous disconnection of both the positive and negative poles, ensuring enhanced safety. This circuit breaker is compact, durable, and easy to install. It features a trip indicator that provides visual confirmation of a tripped circuit. The 2Pole 50A DC 1000V Circuit Breaker is an essential component for efficient and safe operation of solar PV systems.

Standard	EN60898(IEC60898) IEC60947-2
Rated current	50A
Rated Breaking capacity	6.0kA IEC60898(0.5~50A) 6,10,15kA IEC60947-2(0.5~50A)
Characteristic curve	B,C,D
Max. fuse that can be connected to	100AgL(>10kA)
Selective grade	3
Working ambient temperature	-5 ℃ ~+40℃
Enclosed protective class	IP20
Electrical life	Not less than 8000 times
Mechanical life	Not less than 20000 times
