PLEASE NOTE: These items are for collection and delivery in Gauteng only. We will not deliver them outside of the Gauteng area due to high risk of damage on the Solar Panels from courier delivery

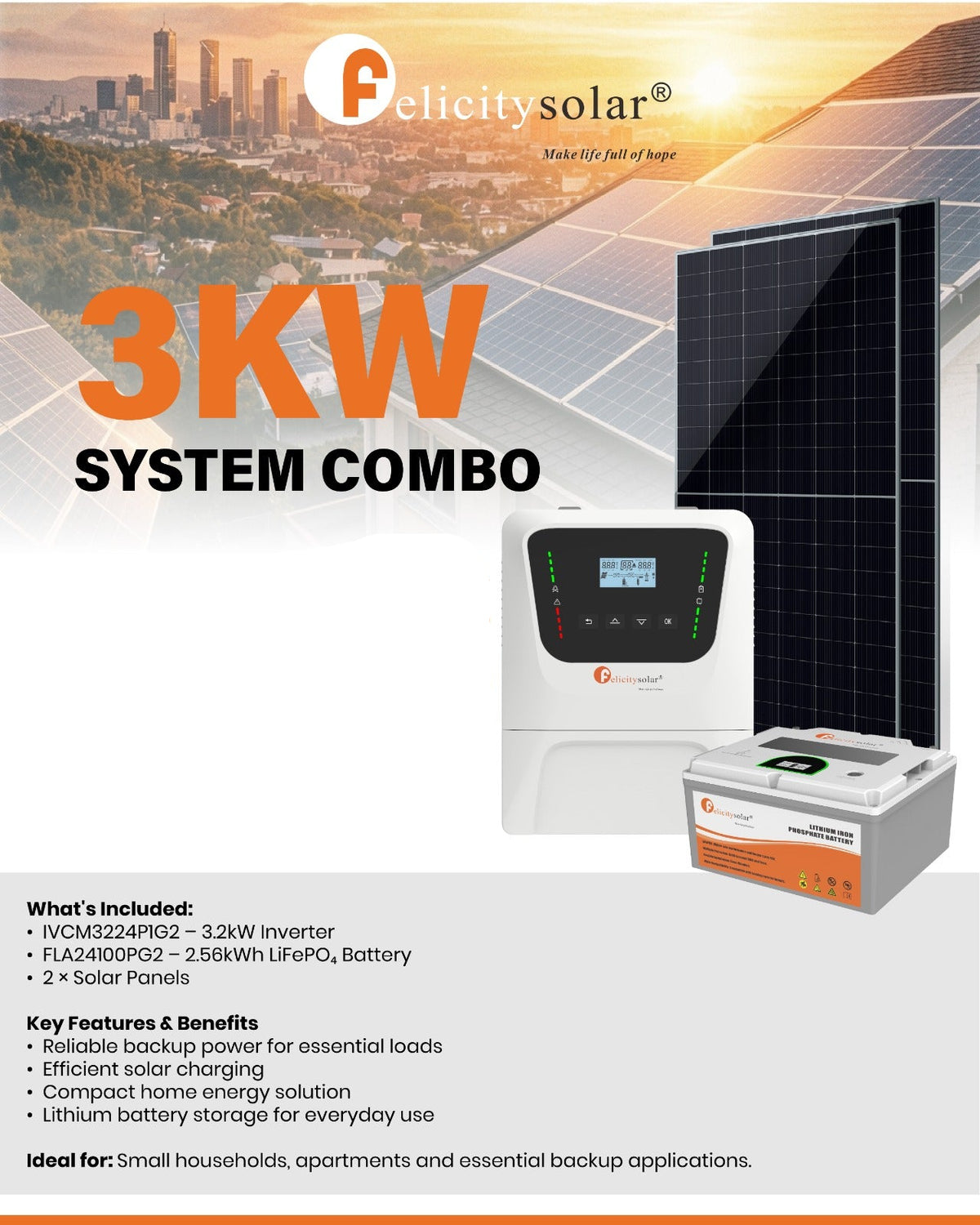

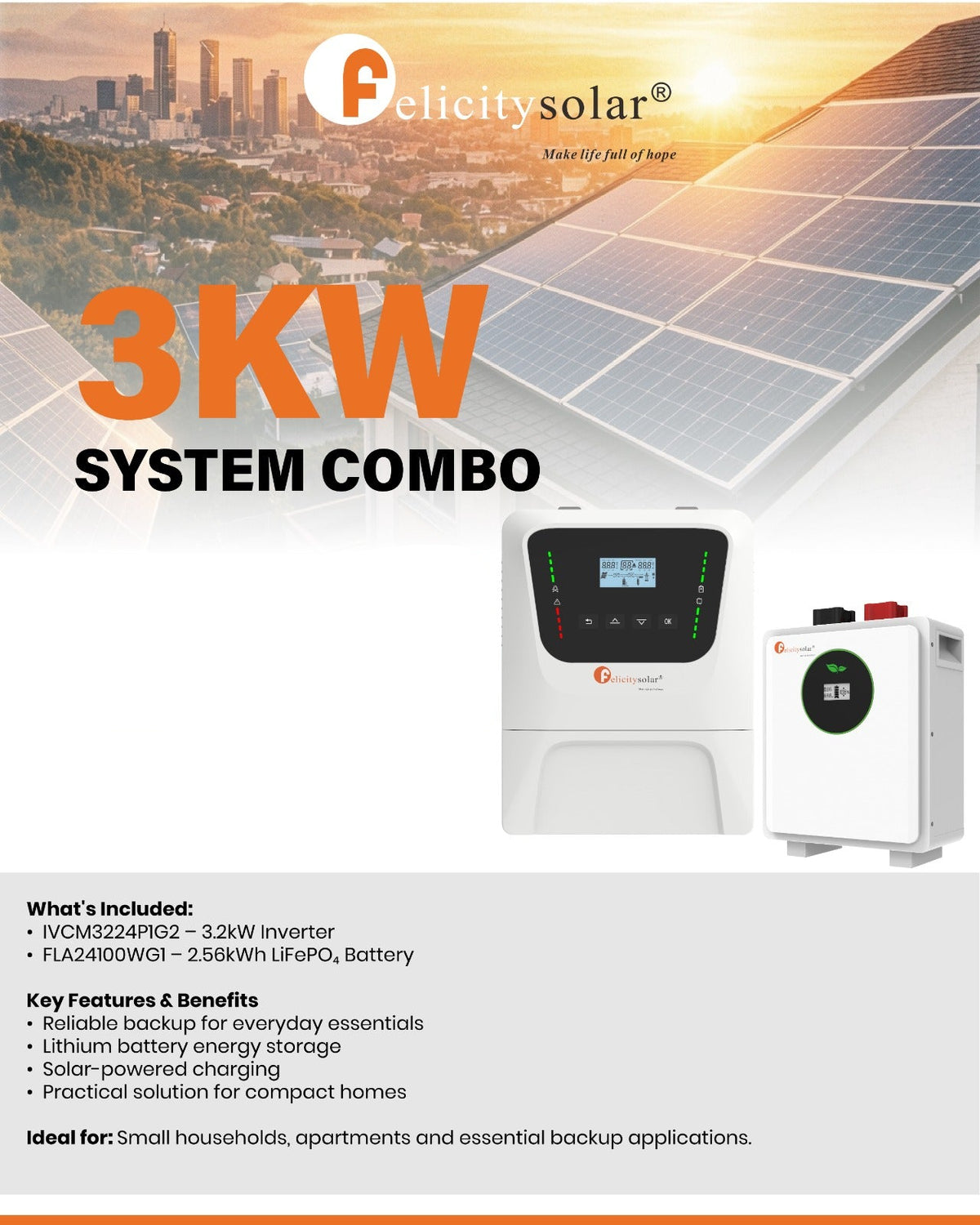

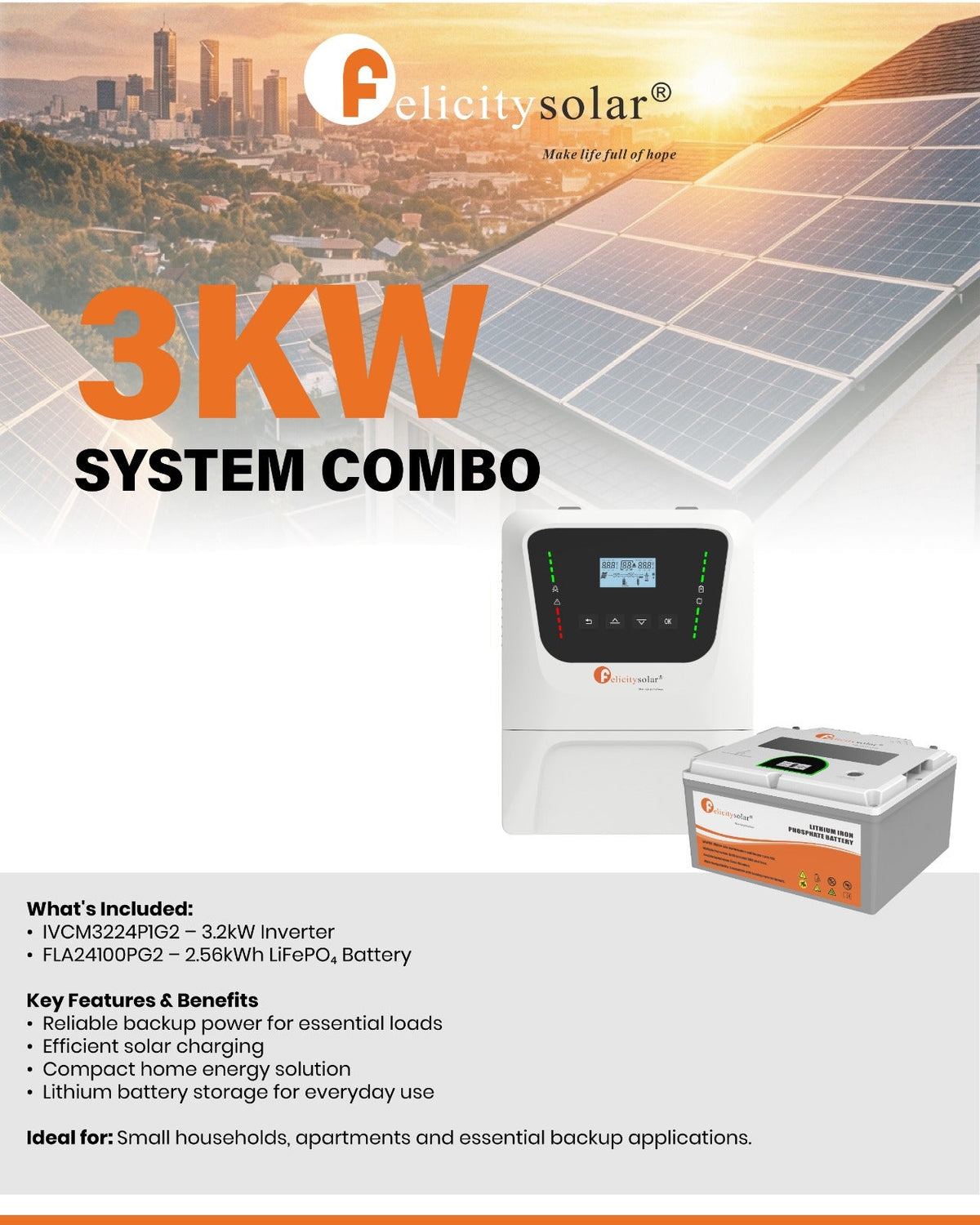

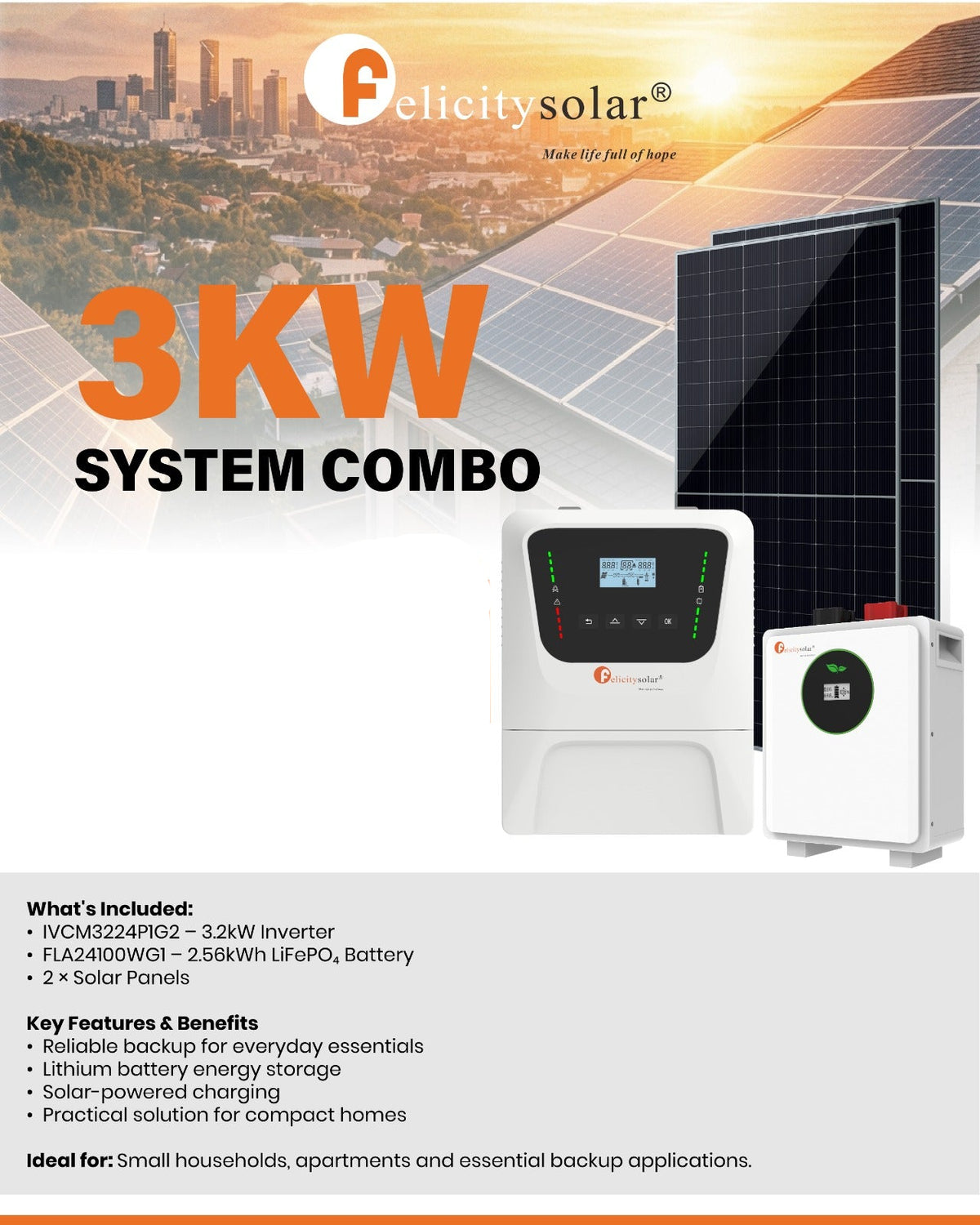

Inverter - Model: IVCM3224P1G2 - 3.2kW Inverter
Rated Power: 3200VA/3200W
Battery Voltage Range: 24V Nominal
Solar Input: 105V Max; 1600W Max ; 120A MPPT
AC Charger: Up to 120A Adjustable
Efficiency: ≥93% peak
Battery - Model: FLA24100PG2:
Battery Type: LiFePo4 Battery
Nominal Energy: 2.56kWh
Nominal Voltage: 25.6V
Operating Voltage: 22.4-28.8V
Max Continuous Charge/Discharge Current: 100A / 2500W
Depth of Discharge (DOD): ≥ 95%
Cycle Life: ≥ 6,000 Cycles
Battery - Model: FLA24100WG1:
Battery Type: LiFePo4 Battery
Nominal Energy: 2.56kWh
Nominal Voltage: 25.6V
Operating Voltage: 22.4-28.8V
Max Continuous Charge/Discharge Current: 150A
Depth of Discharge (DOD): ≥ 95%
Cycle Life: ≥ 6,000 Cycles
Warranty: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
