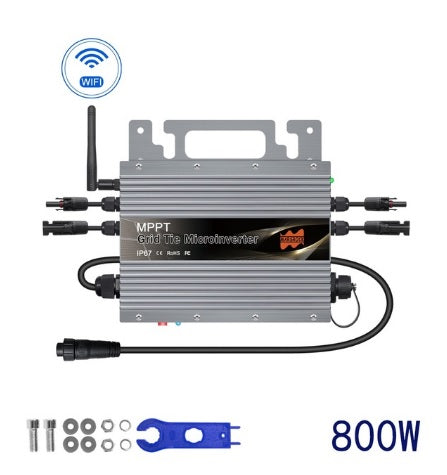

800W MPPT Grid Tie Micro Inverter with Built-in WiFi

Name: 800W MPPT Grid Tie Micro Inverter with Built-in WiFi
Brand: Nemoah
SKU: 10005946
Price: 2995.0 ZAR
Availability: InStock

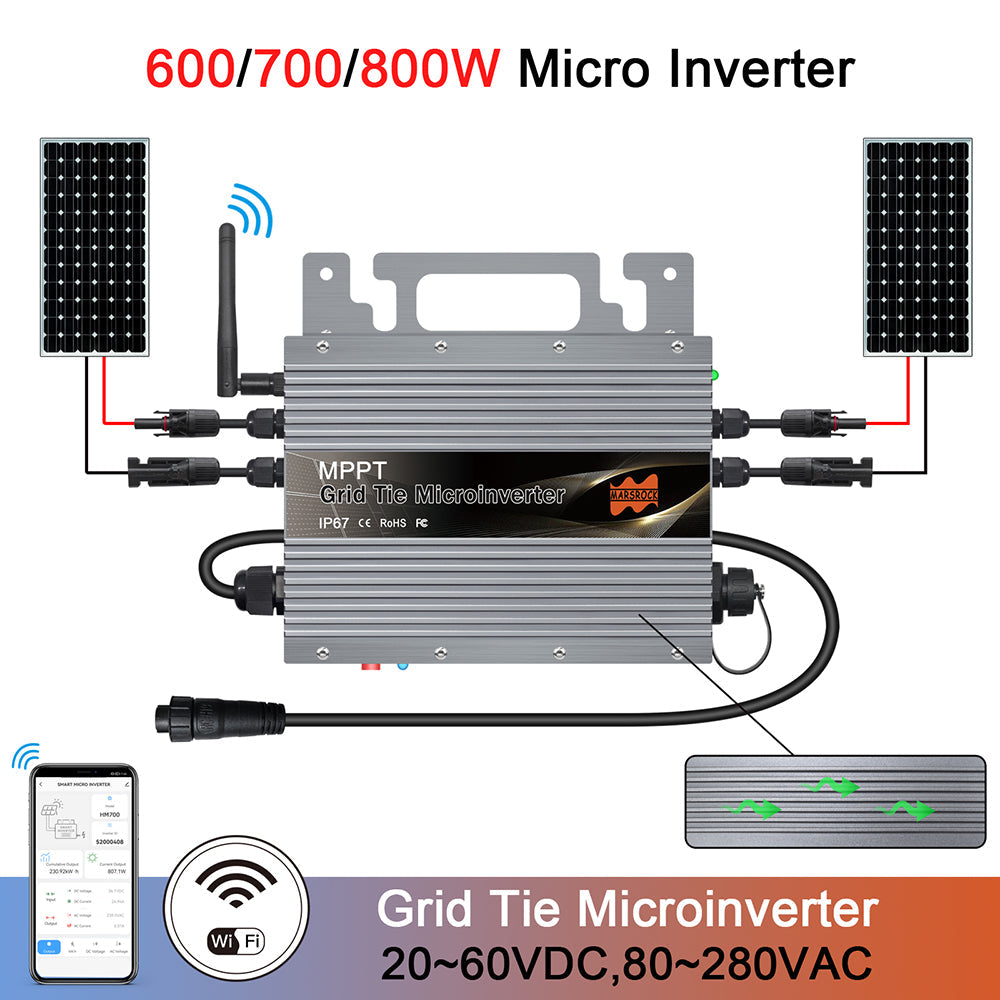

IP67 800W MPPT Grid Tie Micro Inverter with Built-in WiFi function for 20-60VDC Solar Panel and 80-260VAC Grid Output (10005946)

The 800W MPPT Grid Tie Micro Inverter with Built-in WiFi is a high-quality and efficient inverter that converts the direct current (DC) generated by solar panels into alternating current (AC) for use in homes or businesses. With its built-in Maximum Power Point Tracking (MPPT) technology, it optimizes power generation and ensures maximum efficiency even in low light conditions. The built-in WiFi feature allows users to conveniently monitor and control the inverter remotely through a mobile app or web portal. It has a power output of 800W and is compatible with a wide range of solar panel systems. This micro inverter features a compact and rugged design, ensuring durability and easy installation. It also incorporates advanced safety features such as overvoltage and overtemperature protection, providing peace of mind to users.

Product Parameters：

Model	600W		700W		800W
Input Data
Recommended Input Power(STC)	210~300W(2 PCS)		210~350W(2 PCS)		210~400W(2 PCS)
Max Input Voltage	60V DC
MPPT Voltage	25~55V DC
Operating Voltage	20~60V DC
Max Input Current	2*13A
Output Data
Max Output	600W	600W	700W	700W	800W	800W
Rated voltage	@127V	@230V	@127V	@230V	@127V	@230V
AC workable scope	80~160V	184~265V	80~160V	184~265V	80~160V	184~265V
Rated output current	4.72A	2.6A	5.5A	3A	6.3A	3.5A
Max units per branch	4PCS	8PCS	4PCS	7PCS	4PCS	6PCS
Rrequency	Auto switch 50/60Hz(45%55/55~65Hz)
Output Efficiency
Static MPPT	0.999
Power factor	>99%
Max output	0.95
CEC Weighted	@127V:92.5%
Self consumption	50mW
THD	<5%
Exterior
Ambient temperature	- 40℃to +65℃
Dimensions（W×H×D）	18X18X45mm
Weight	1.75 KGS
AC Cable withstand max current	40A
Waterproof Rating	IP65
Cooling	Natural cooling
Feature
Compatibility	Compatible with 60~72 cell PV modules
Isolation	High frequency transformer isolation

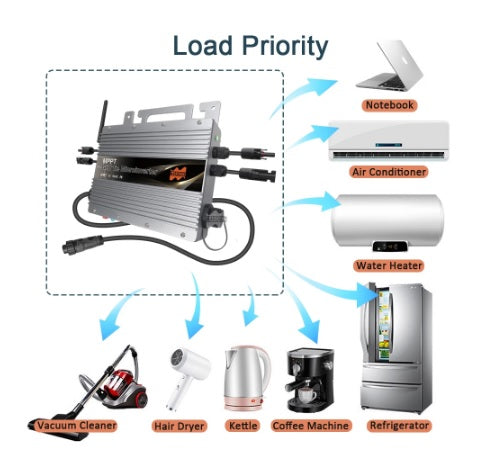

Power transmission	Reverse transfer, load priority
Protection	Islanding, Over-temperature, Over / low AC & AC voltage
Communication	2.4G wireless(Inverter to Data Box)
Grid Connection Standard	EN50549-1, VDE0126-1-1, VDE4105, ABNT NBR16149, ABNT NBR16150, ABNT NBR62116, RD1699, UNE206006 IN, UNE206007-1 IN, IEEE1547
Safety EMC/Standard	UL1741, IEC62109-1/-2, IEC61000-6-3, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3

Use AC Extension Cable With Inverter

Smart WiFi Module:

This inverter has a new smart WiFi module, no need to order a data box, directly download the APP software, scan the code to log in, and easily use the WiFi module to check the power generation data

Product Features:
