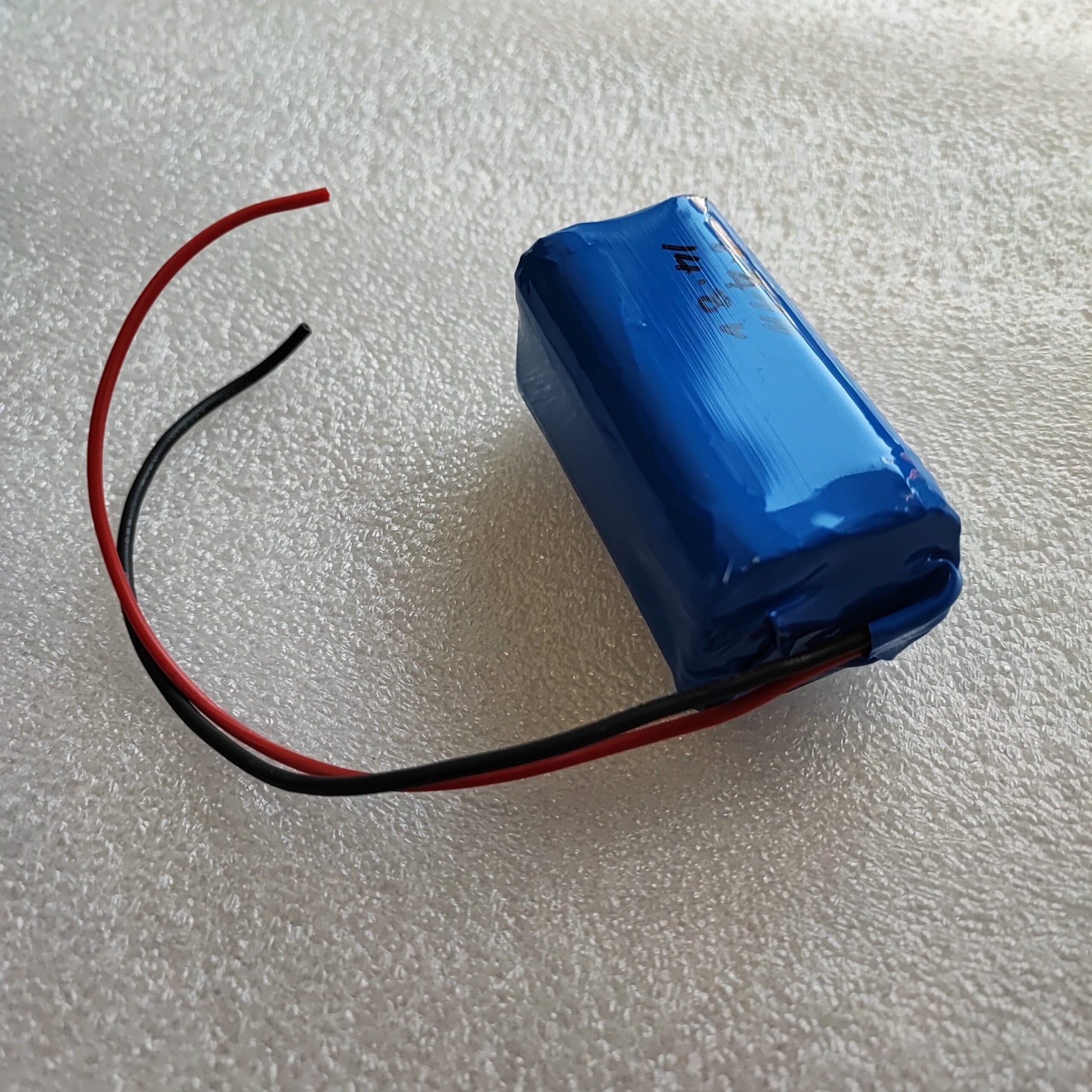

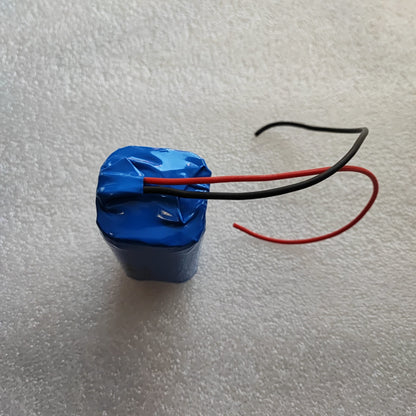

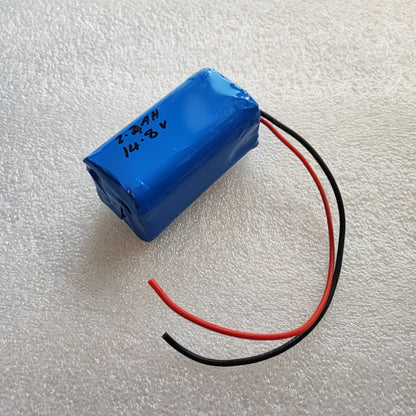

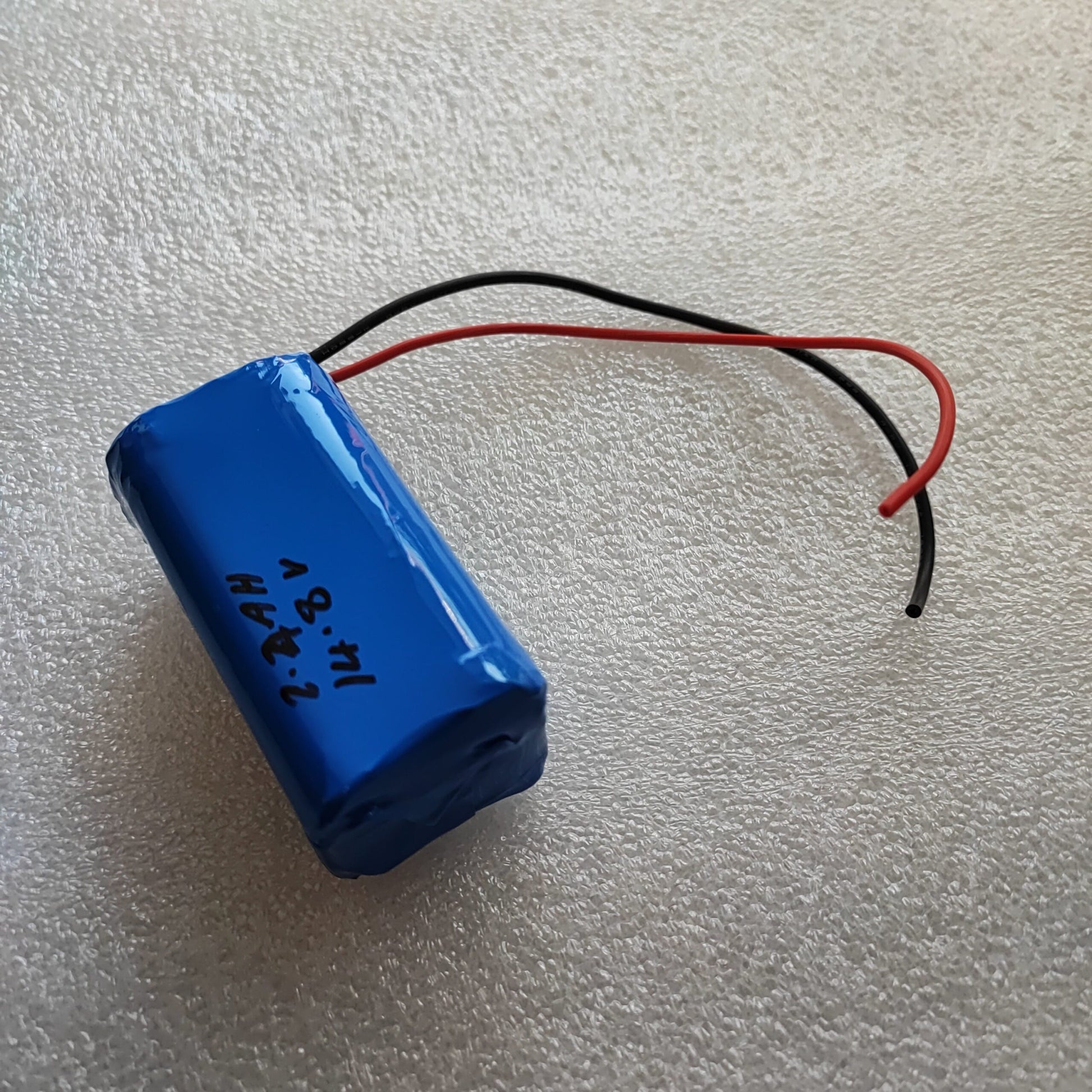

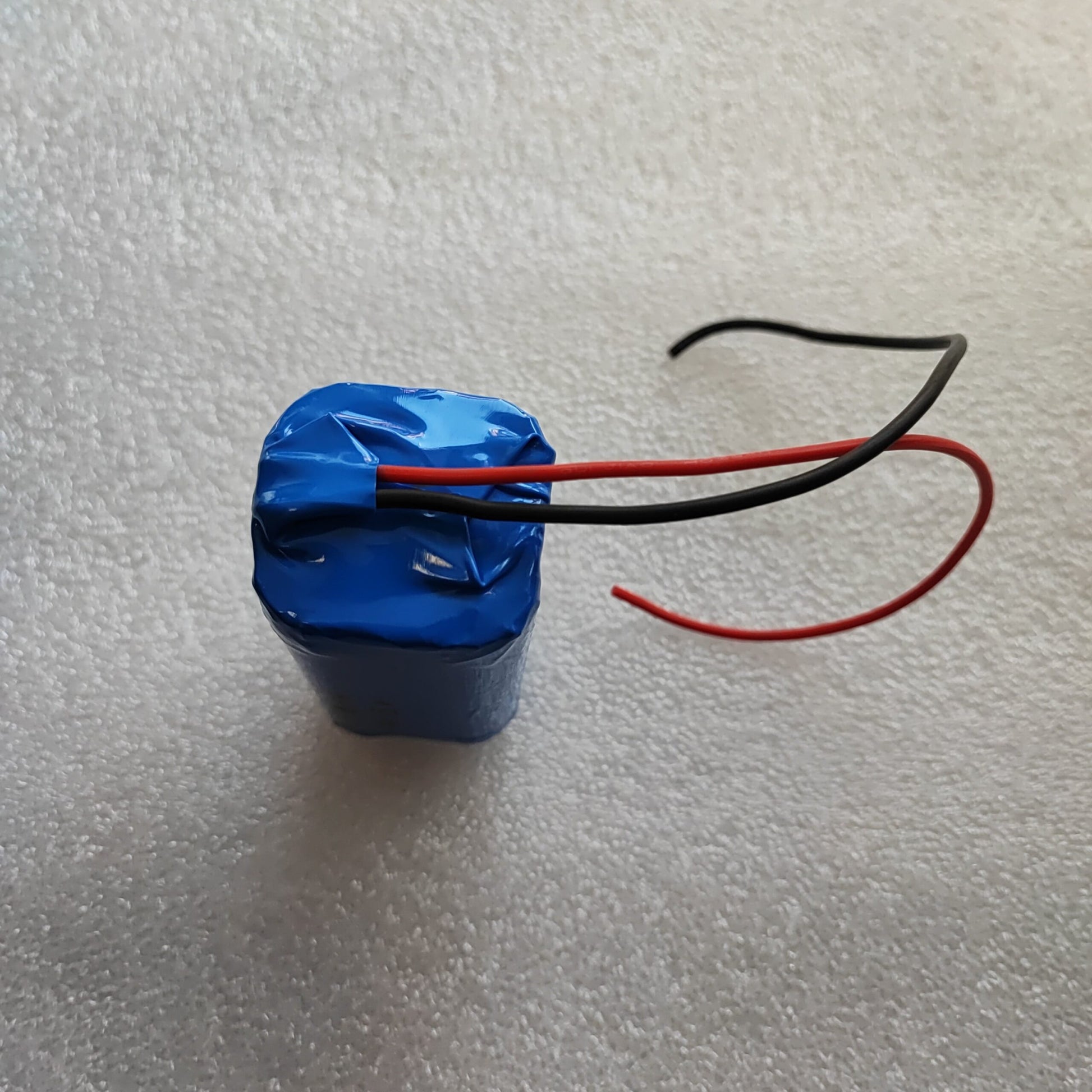

4S1P 2200mah 14.8V 10A Peak Li-ion BMS Battery

Name: 4S1P 2200mah 14.8V 10A Peak Li-ion BMS Battery
Brand: Electromann SA
SKU: 10004122
Price: 350.0 ZAR
Availability: InStock
Rating: 5.0 (2 reviews)

2.2ah 14.8V (Nominal) 10A Peak Li-ion BMS Battery with Protection Board (10004122)

PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!

Features:

1) high-accuracy voltage detection circuit;

2) terminal of the charger using high voltage device;

3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);

4) MOS transistor can control the battery charge and discharge;

5) low standby current consumption.

Specifications:

14.8V (Li-ion 18650 or li-ion battery Nominal rated voltage)

16.8V (Li-ion battery full charge voltage)

Over Charge Voltage:4.25-4.35v±0.05v

Over Discharge Voltage: 2.3-3.0v±0.05v

Max working current: 10A

Max Peak current: 10A

Working Temperature:-40---+50

Storage Temperature:-40-- +80

Small current: 6uA

Resistance: 45mΩ

Short cut Protection: Protectable ,change for repair Size:35*35*3.0mm

NOTE:

1) this board is not suit high power electronic tools, if use for screwdriver and drill, please don't buy

2)Above 3A device, means the battery discharge rate is more than 3C.

1C rated battery, 2000mah equals 2ah*1=2A max working current.

3C rated battery means 2ahx3=6A Max working current.

Package Contents:

1 x 4S 14.8V 10A Peak Li-ion BMS PCM Battery

Usually Ships Out The Same Day

PRE ORDER - Item is shipped from our warehouse in China
