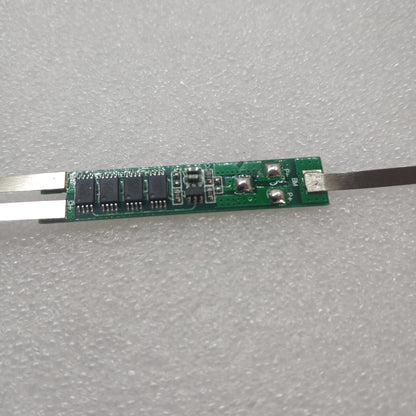

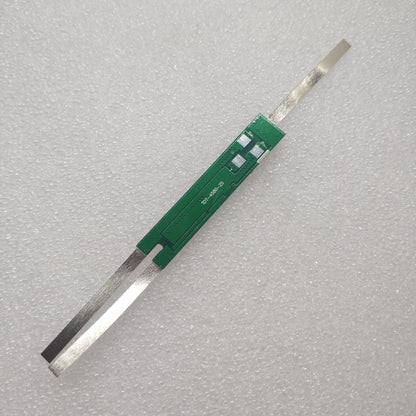

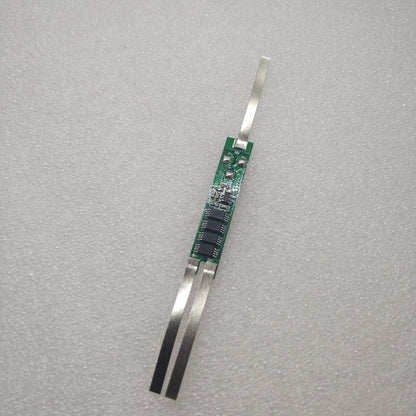

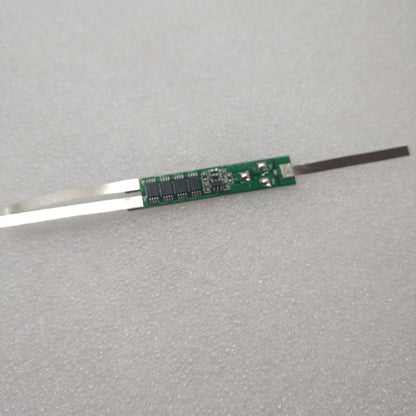

2S 6.4V 6A LiFePo4 Battery Protection Board

Name: 2S 6.4V 6A LiFePo4 Battery Protection Board
Brand: Easton
SKU: 10004257
Price: 20.0 ZAR
Availability: InStock

2S 6.4V 6A (3.2v cells) LiFePo4 Battery Protection Board (10004257)

The 2S 6.4V 6A LiFePo4 Battery Protection Board is designed to protect lithium iron phosphate batteries from overcharging, over-discharging, and short circuits, ensuring a longer battery life.

Description:
Type: Voltage Regulator Supply Voltage: 7.2V Application: LiFePo4 lithium battery (3.2v cells)

Working current: 0-6A

Working temperature: -40---+50 °C

Instantaneous current: 6A

Storage conditions: -40-- +80 ° C

Quiescent current: less than 5uA

Effective life: more than 50,000 hours

Internal resistance: less than 300mΩ

Short circuit protection: protection, charge recovery Size: 40*8*2.6mm

Solder joint description:

B+: Connect the battery positive pole;

B-: Connect the battery negative pole;

MB: Connect the connection point between battery 1 and battery 2;

P+: charging/discharging terminal positive (common terminal/discharge terminal shared);

P-: Connect the negative terminal of the charge/discharge terminal (common to the charge terminal/discharge terminal).

Package Contents:
1 x 2S 6A lithium battery protection board

Usually Ships Out The Same Day

In stock
