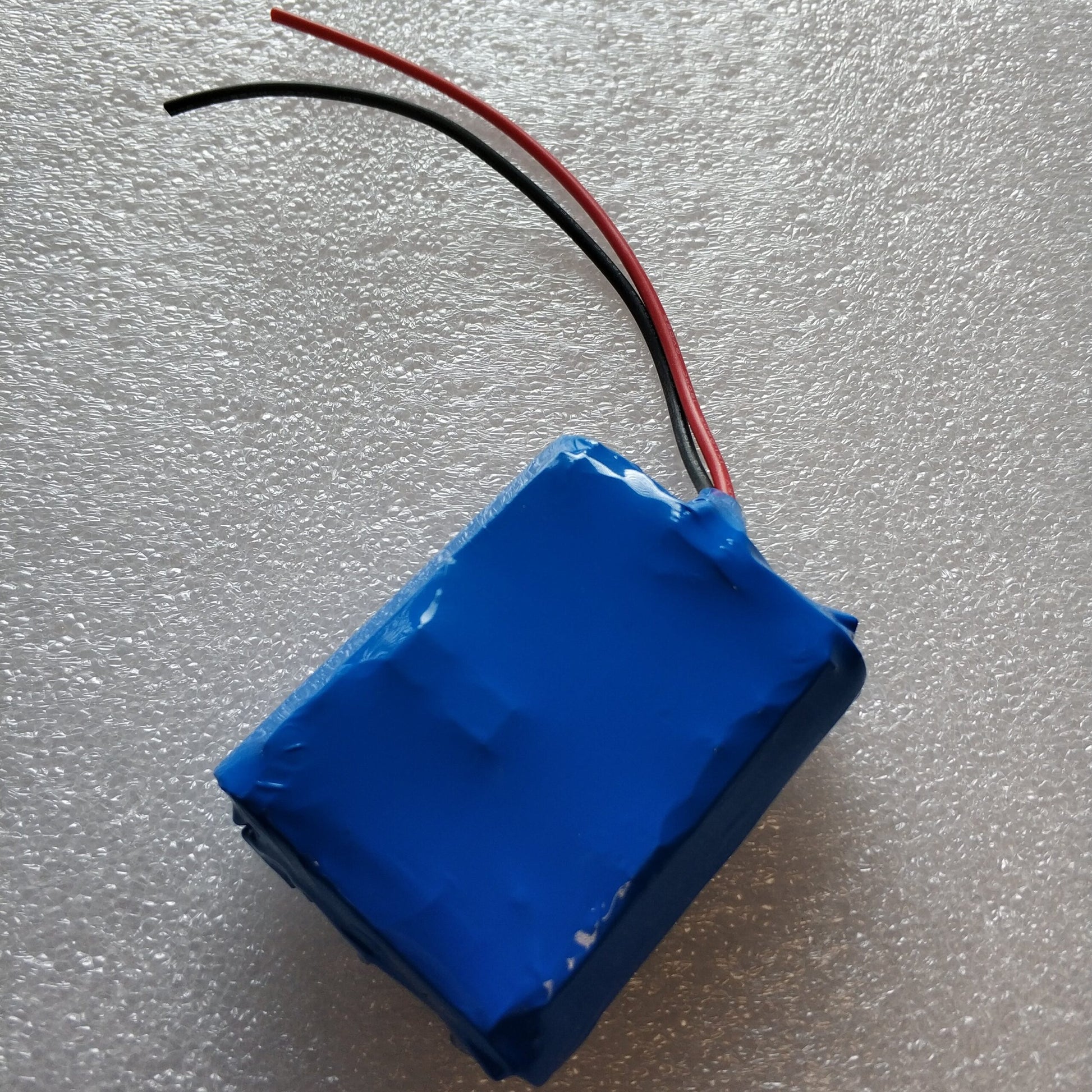

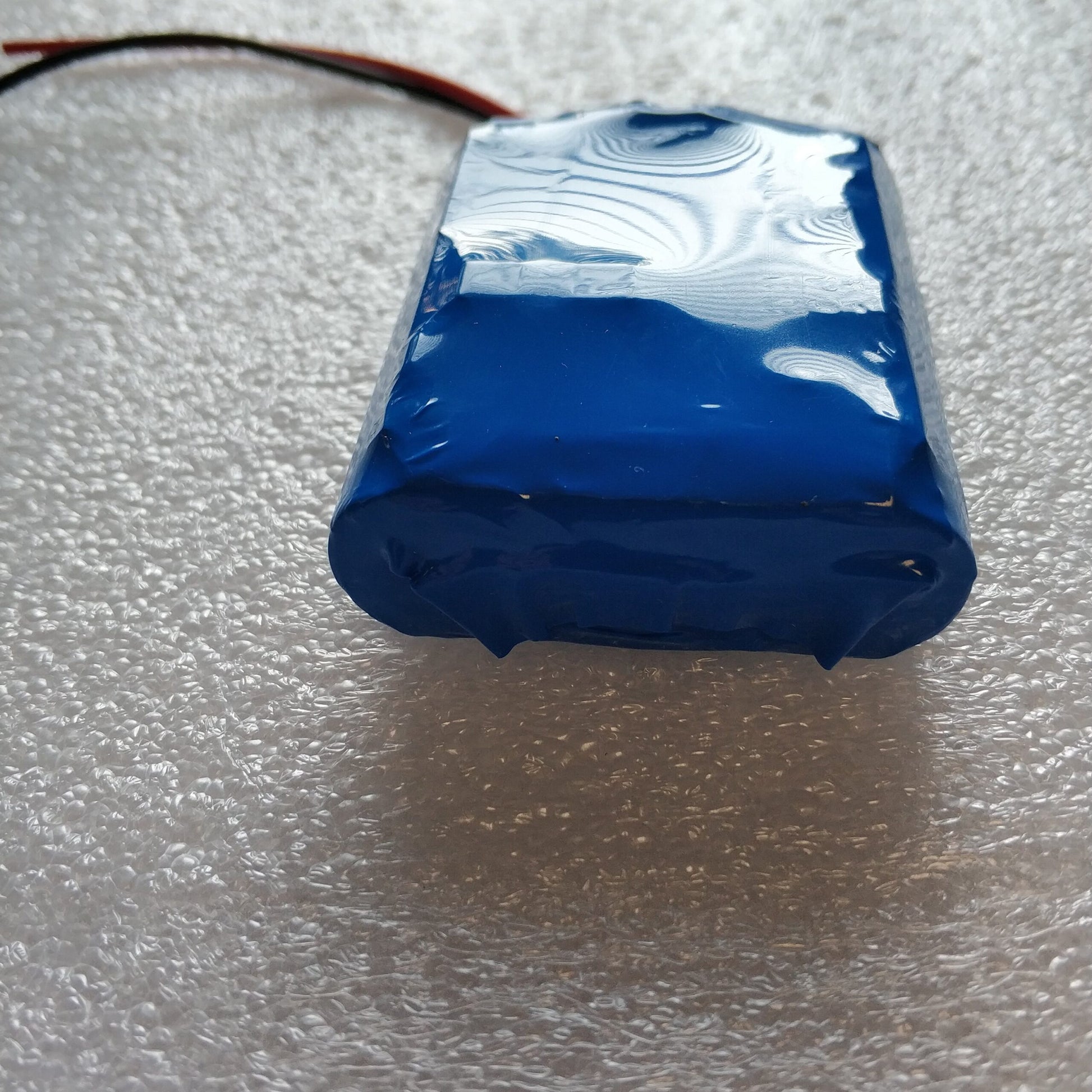

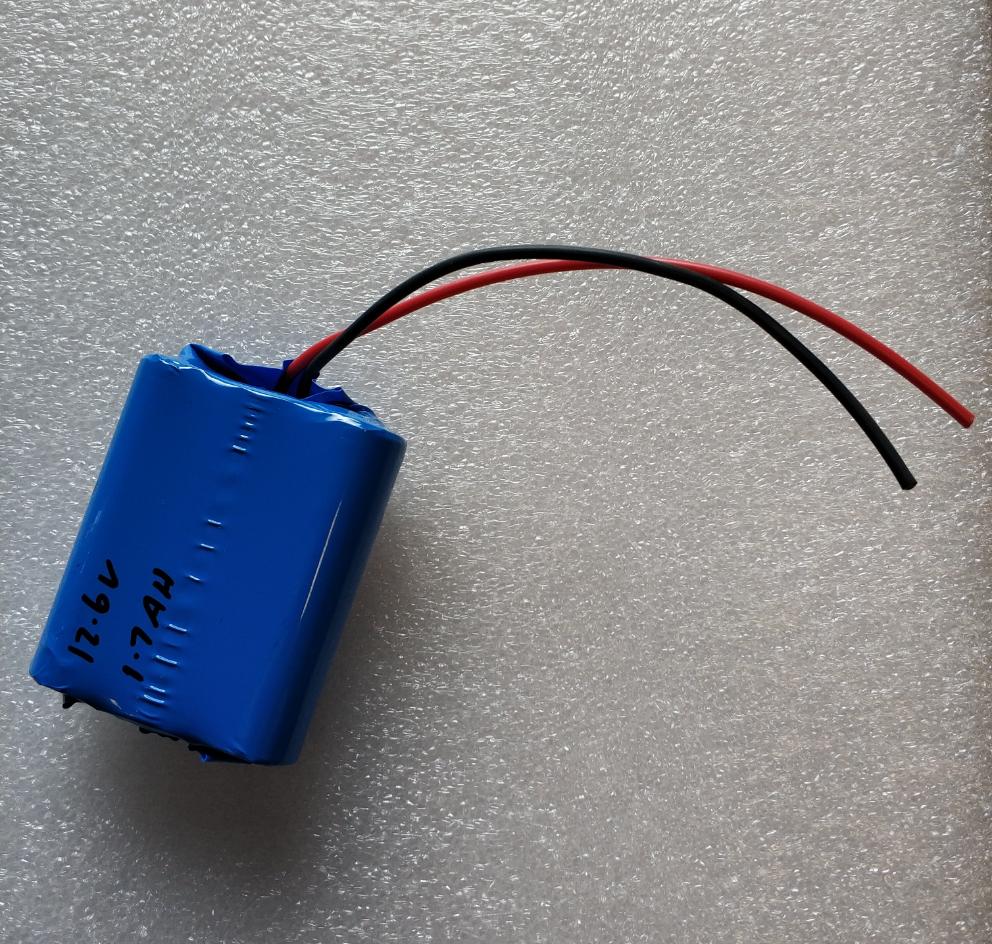

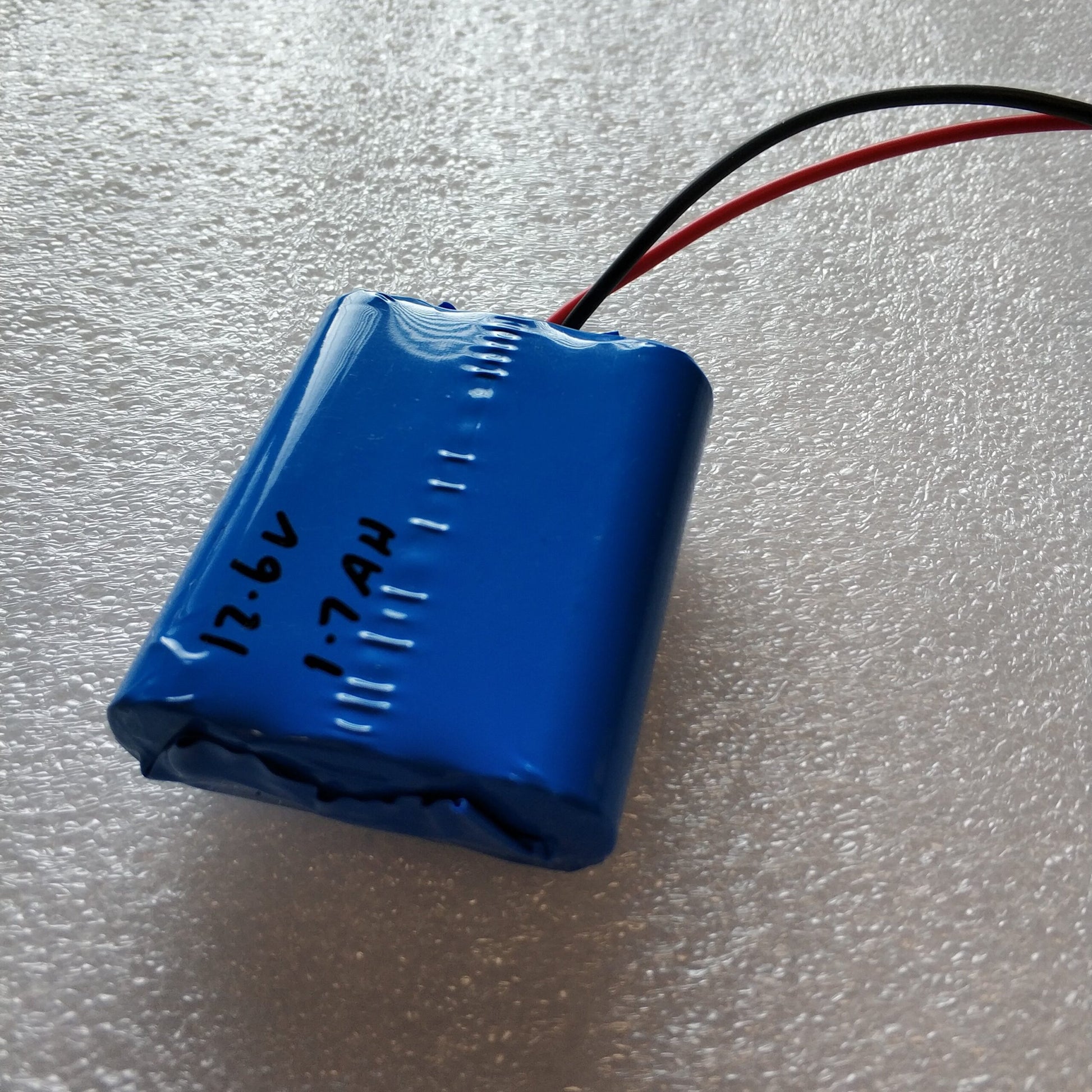

2200mAh 12.6v Rechargeable Li-ion Battery with Built-in 15Amp BMS Board - (10004197)

Name: 2200mAh 12.6v Rechargeable Li-ion Battery with Built-in 15Amp BMS Board - (10004197)
Brand: Electromann SA
SKU: 10004197
Price: 210.0 ZAR
Availability: InStock
Rating: 5.0 (1 reviews)

PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!

Dimensions: 70mm W x 55mm H x 20mm

Weight: 200g

Specifications:

Single Cell overcharge protect voltage: 4.23 - 4.28V

Single Cell overcharge protect recover voltage: 4.08 - 4.18

Overcharge protect delay: 0.5 - 1.5S

Single Cell over-discharge protect voltage: 2.72 - 2.88V

Single Cell over-discharge protect recover voltage: 2.9 - 3.1V

Overcharge protect current: 5A

Over-discharge protect current: 5A

Over-discharge protect delay: 0.5 - 1.5S

Temperature protect: YES

Disconnect protect: YES

Shortage protect: YES

Shortage delay: 100 - 600μS

Shortage protect recover: YES

Charging current: 10A

Discharging current: 10A

Charging voltage : 12.6V for 3S BMS board

Usually Ships Out The Same Day
