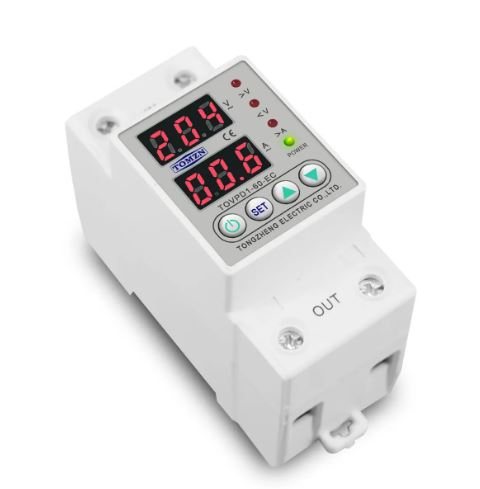

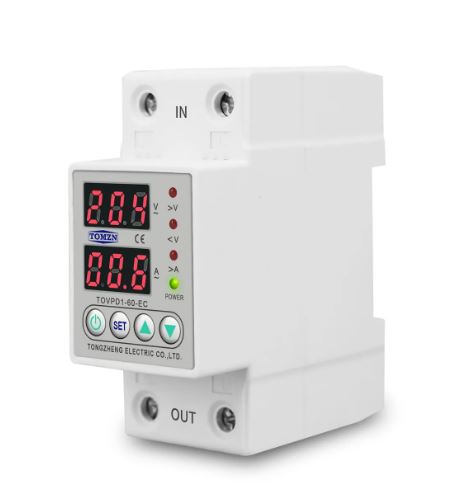

Din Rail Over Voltage Current and Under Voltage Protector Relay - Efficient Electrical System Protection
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V (10006337)

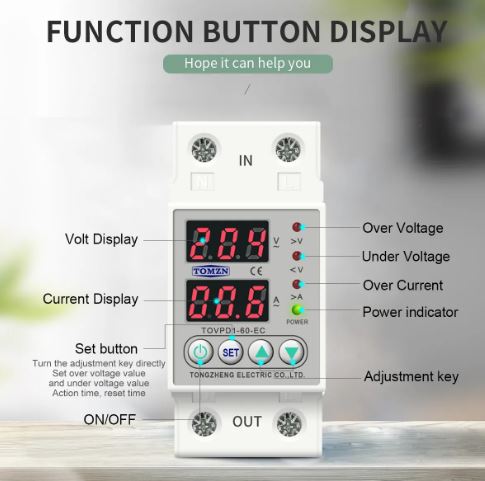

The Din Rail Over Voltage Current and Under Voltage Protector Relay is a versatile and reliable device designed to protect electrical systems from voltage fluctuations. With its compact and easy-to-install design, this relay can be mounted on a DIN rail to provide efficient protection against overvoltage, undervoltage, and excessive current. It features adjustable trip voltage settings and a built-in LED indicator for easy monitoring. This protector relay is ideal for use in industrial settings, commercial buildings, and residential applications where the stability and safety of electrical systems are crucial.Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

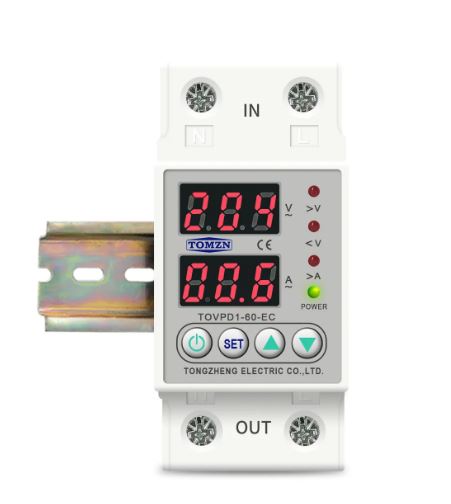

11.Installation:35mm DIN rail
A13 Voltage adjustble +-%9.5 A14 Current limit times: 1-20 times (default off)
Restore factory settings: Press the down button for more than 12s
Fault inquiry: Press the UP button for more than 12S
