Bisida 13S 48V Common port BMS with balanced temperature control for 3.7V 18650 lithium-ion battery pack

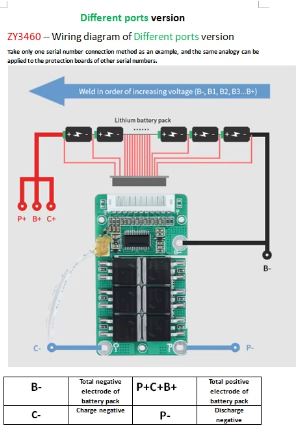

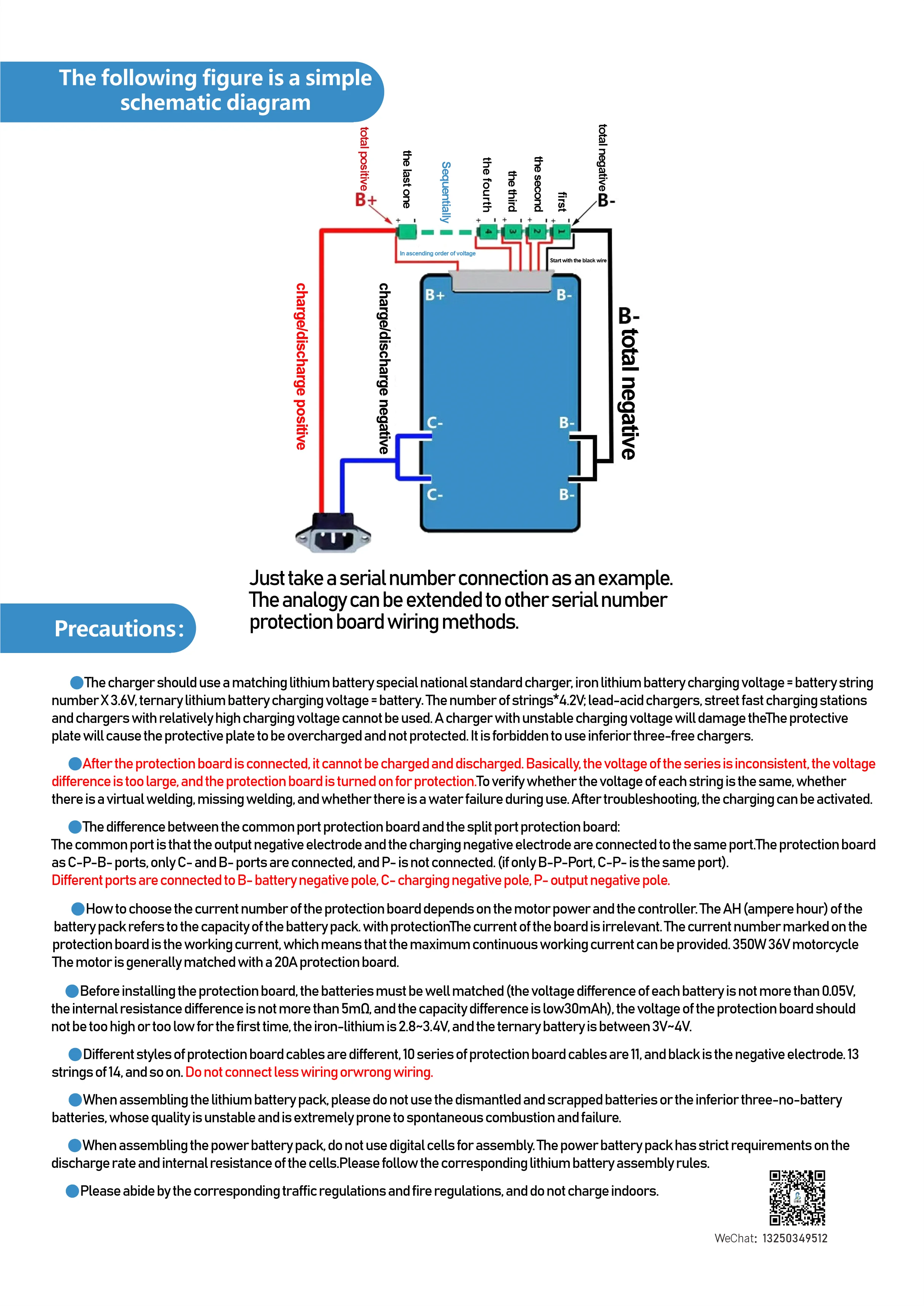

Common port: B- is the total negative electrode of the battery, C- is the negative electrode for charging

Size table：

15A~20A:34MM*60MM*8MM

Features:

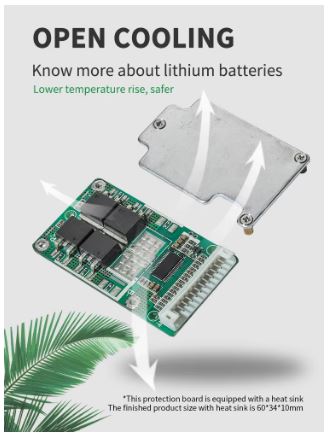

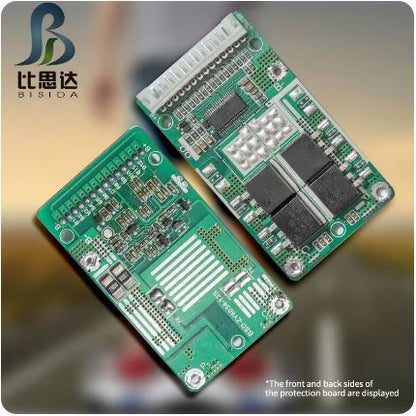

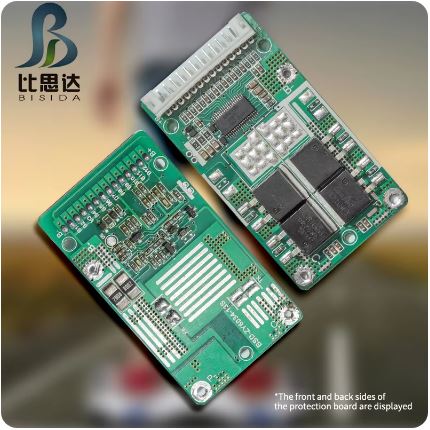

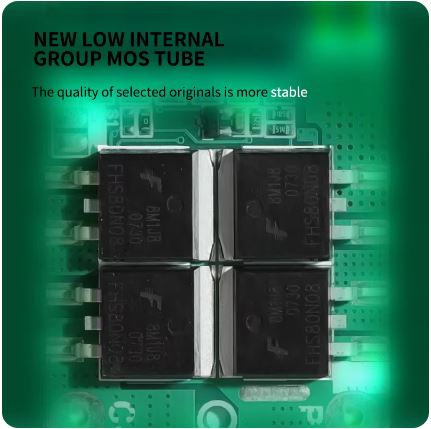

• The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Voltage balance(passive balance), etc. • Use top quality (A-level) protective integrated circuit IC, from the solution of Industry car level. BMS manufactured by high quality Mos and IC imported. • Double-sided PCB circuit board ,high anti-corrosion, high water resistance, high impedance ESD conformal Coating. Silicone sheet + aluminum sheet double-layer heat dissipation. Three anti-glue + insulation sheet, double-layer electrostatic insulation

Applicable battery:
Nominal voltage (single cell): 3.6V/3.7V lithium ion battery Charging voltage: 4.2V*string number Instantaneous current: 3 to 5 times the working current.

Charging current: recommended to be less than 15A.

Temperature protection: -20 ℃ ~ 70 ℃

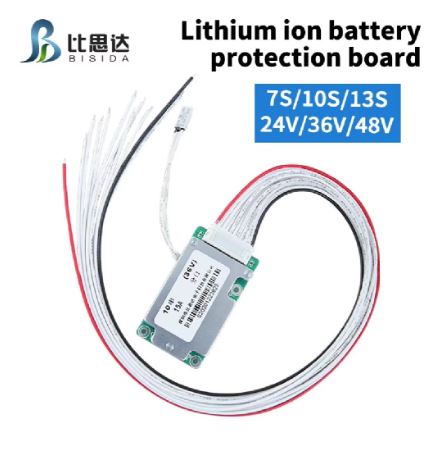

What you get: Battery protection board*1 Balance Cable*1
