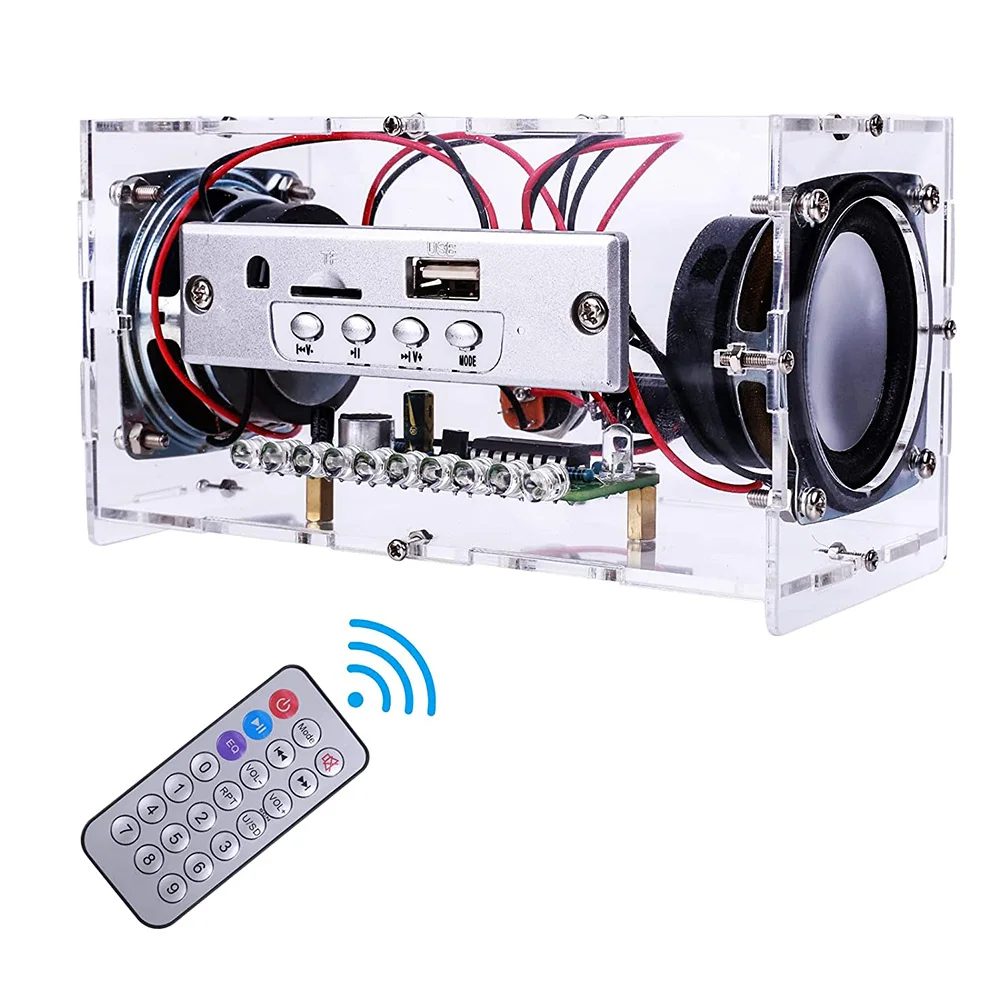

DIY Bluetooth Compatible Speaker Kit with LED Flashing Lights and USB Port (10006460)
Instruction Download link:
http://attach01.oss-us-west-1.aliyuncs.com/IC/DIY-Manual/GY19298.pdf
Introduction:
1>. It is a RGB LED Spectrum Bluetooth-Compatible Audio Speaker DIY Kit with remote control.
2>. It has 10pcs RGB LED music spectrum display. It can play music form Bluetooth-Compatible, TF Card, U-disk with 4ohm 2in speakers. The voice is clear and loud.
Feature:
1>.Music spectrum display
2>.BLE 5.0 Bluetooth-Compatible audio play
3>.Support TF Card and U-disk music
4>.Remote controller
5>.Adjustable Next/Prev/VOL+/VOL-/Play/Pause
6>.Support power OFF memory function
7>.DIY manual soldering
8>.Simple and easy to operate
Parameter:
1>.Item name: RGB LED Spectrum Bluetooth-Compatible Audio Speaker DIY Kit
2>.Work Voltage: DC 3.7V-5V
3>.Bluetooth-Compatible Version:5.0
4>.Bluetooth-Compatible Distance:15meter(Max)
5>.Amplifier Power:3W*2
6>.Music Source: Bluetooth-Compatible/U-disk/TF Card
7>.Control Type: Bluetooth-Compatible/Remote Controller/On Board Button
8>.LED Color: Yellow/Green/Red/Blue
9>.Work Temperature:-40℃~85℃
10>.Work Humidity:0%~95%RH
11>.Size(Installed):135*74*64mm

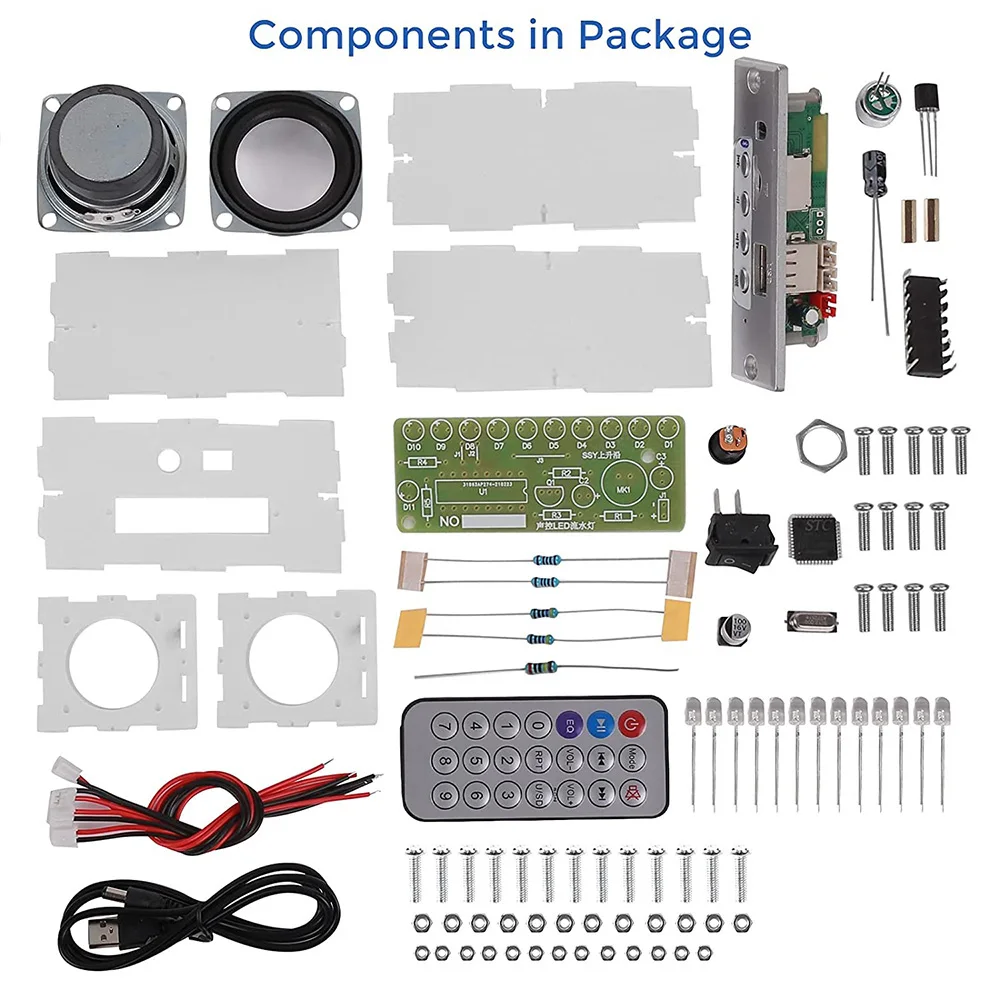

Package Contents:
