Model : GETA 3.6K/24V
Max. PV input voltage 500V

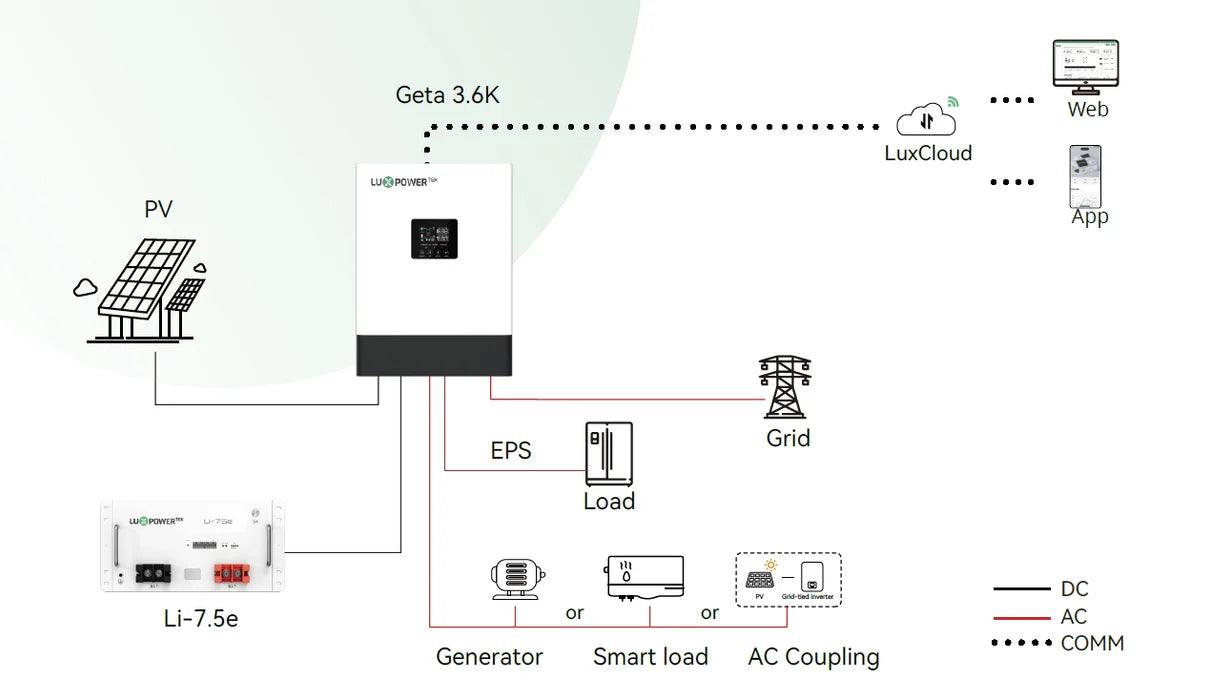

Dual outputs for intelligent load management
Battery activation via PV and utility grid
Flexible operation modes to meet diverse energy needs
EQ function for enhanced battery performance
and longevity
Real-time 24/7 remote monitoring
Remote monitoring possible (WIFI-Dongle Built In)
User Manual Download
Input (PV DC)
Max. PV array power (W) 4000
Number of independent MPPT inputs 1
Max. PV input voltage (V) 500
MPPT voltage range (V) 55 ~ 440
Start-up voltage (V) 65
Max. PV input current per MPPT (A) 18
Battery
Compatible battery type Lithium-ion / Lead-acid
Rated battery voltage (V) 24
Max. Charge Current (PV+AC) 100
Force wake up battery from PV function Yes
Force wake up battery from Grid function Yes
UPS
Rated output power (W) 3600
Rated output voltage (V) 220/230VAC
Rated output current (A) 15.7
General
Dimensions (W × H × D) 307.4 × 418 × 111 mm / 12.1 × 16.5 × 4.4 in
Weight 7KG
Warranty 2 Years
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
