I-2S 7.4V 8A Peak Yamanje 15A 18650 Lithium Ibhodi Lokuvikela Ibhethri Nomsebenzi Wokuvikela Ukukhipha Okungaphezu Kweshaji (10003496)
Nge-2S 7.4V 8A Peak Current 15A 18650 Lithium Battery Protection Board, ungakwazi manje ukunika amandla amadivayisi akho ngaphandle kokwesaba ukushaja ngokweqile noma ukushajwa ngokweqile kwamabhethri akho. Leli bhodi lokuvikela lifakwe ubuchwepheshe besimanje obuzonqamula ugesi ngokuzenzakalelayo lapho amabhethri akho efinyelela amazinga awo aphezulu noma amancane kagesi, avimbele noma yimuphi umonakalo noma ukulimala kwamabhethri akho. Manje ungajabulela ukusebenzisa amadivayisi akho ngaphandle kokukhathazeka mayelana nokuphepha kwebhethri!
Incazelo:
Uhlobo: I-Voltage Regulator Dissipation Power: 50W Supply Voltage: 8.4V Isicelo: 18650 ibhethri ye-lithium
Ububanzi be-voltage ye-overcharge: 4.25-4.35v±0.05V
Ububanzi be-voltage yokukhishwa ngokweqile: 2.5-3.0v±0.05V
Ukusebenza kwamanje: 0-5A
Izinga lokushisa lokusebenza: -40---+50 °C
Isikhathi esisheshayo: 6-7A
Izimo zokugcina: -40-- +80 ° C
I-Quescent current: ngaphansi kuka-5uA
Impilo esebenzayo: amahora angaphezu kuka-50,000
Ukumelana kwangaphakathi: ngaphansi kuka-300mΩ
Ukuvikelwa kwesifunda esifushane: ukuvikelwa, ukukhokhiswa kokutholwa Usayizi: 38 * 8 * 2.6mm

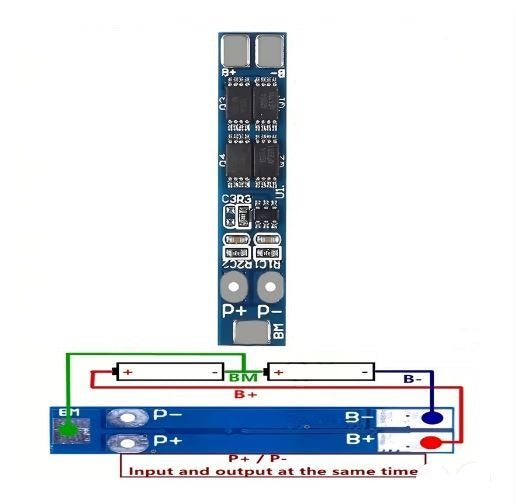

Incazelo ehlangene ye-solder:
B+: Xhuma isigxobo sebhethri esiqondile;
B-: Xhuma isigxobo esinegethivu sebhethri;
MB: Xhuma indawo yokuxhumana phakathi kwebhethri 1 nebhethri engu-2;
I-P+: itheminali yokushaja/yokukhipha i-positive (itheminali evamile/itheminali yokukhipha eyabiwe);
P-: Xhuma itheminali enegethivu yetheminali yokushaja/yokukhipha (okujwayelekile kutheminali yokushaja/yokukhipha).
Okuqukethwe Kwephakheji:
1 x 2S 8A ibhodi lokuvikela ibhethri le-lithium
