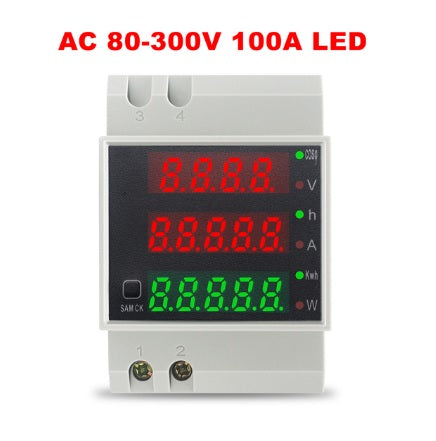

Ketotek AC 80-300V 0-100A Din Rail LED Voltmeter Ammeter - Accurate and Versatile Measurement Device

Name: Ketotek AC 80-300V 0-100A Din Rail LED Voltmeter Ammeter - Accurate and Versatile Measurement Device
Brand: Nemoah
SKU: 10005936
Price: 595.0 ZAR
Availability: InStock

Ketotek AC 80-300V 0-100A Din Rail LED Voltmeter/Ammeter Active/Power Factor Energy Meter (10005936)

The Ketotek AC 80-300V 0-100A Din Rail LED Voltmeter Ammeter is a versatile and accurate measuring device for monitoring voltage and current in various electrical systems. This compact and easy-to-install meter features a clear LED display that provides real-time readings of voltage and current levels. With a wide measurement range of 80-300V for voltage and 0-100A for current, this meter is suitable for both residential and industrial applications. The din rail design allows for convenient mounting in electrical panels or control cabinets. The Ketotek AC 80-300V 0-100A Din Rail LED Voltmeter Ammeter is a reliable and essential tool for electricians, engineers, and DIY enthusiasts who need to monitor and troubleshoot electrical systems.

Accuracy: 1%±2 words
AC voltage: AC 80.0 - 300.0 V or AC 250.0 - 450.0 V
AC current: AC 0.0 - 100.0A (accuracy: 0.01A)
Active power: 0.0 – 30000 W or 0.0 – 45000 W
Electric energy: 0.000 - 99999 kwh
Electric energy of cumulative time: 0.00 - 999.59h
Power factor: 1.000 - 0.000
Speed: 2 times per second
Size: 54 x 80 x 64 mm
Installation: Din-Rail

Display mode:

V: AC voltage and power factor
A: AC current and electric energy of cumulative time
W: Active power and electric energy

Application Method:

1) Connect the measuring voltage to terminals 1 and 2.

2) Meter to internal current transformer: Place the wire through the hole in any direction.

3) Meter to external current transformer: Place the wire through the hole in the meter, and connect the two wires of the secondary transformer to terminals 3 and 4.

4) When powered on, the meter will display the AC voltage (V), AC current (A) and active power (W) with the correlative LEDs lighting up.

5) When pressing the SAM CK button (right side of meter), the meter will change to display the power factor (cosΦ), electric energy of cumulative time (h), and electric energy (kwh) with the correlative LEDs lighting up.

6) When pressing the SAM CK button again, the meter will display the AC voltage, AC current and active power.

7) When powered off, the meter can save the value of electric energy and electric energy of cumulative time, and go on cumulating data when the meter is powered on again. When the meter is displaying electric energy, you can press down SAM CK button to reset the electric energy and electric energy of cumulative time to zero.

The meter can only use to measure 50/60 HZ AC city electricity. It will be destroyed when used to measure square waves, output of inverter, or non-standard sine wave
