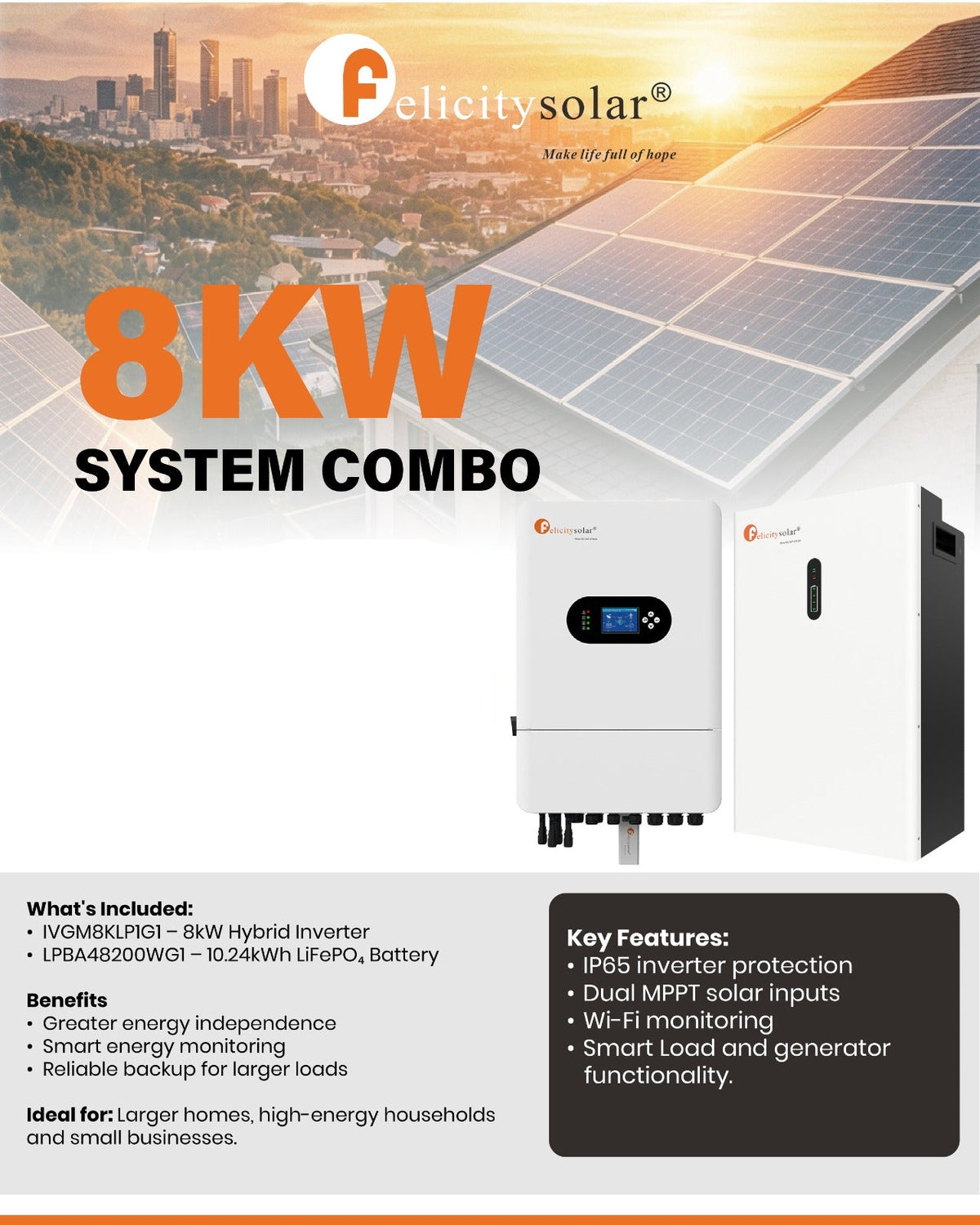

Inverter - Model: IVGM8KLP1G1 - 8kW Inverter
Rated Power: 8000VA/8000W
Battery Voltage Range: 40V-60V
Solar Input: 90-500V ; 12000W Max ; 190A Max
AC Charger: Up to 190A Adjustable
Efficiency: ≥93% peak
Battery - Model: LPBA48200WG1:
Battery Type: LiFePo4 Battery
Nominal Energy: 10.24kWh
Nominal Voltage: 51.2V
Operating Voltage: 44.8-57.6V
Max Continuous Charge/Discharge Current: 180A / 9200W
Depth of Discharge (DOD): ≥ 95%
Cycle Life: ≥ 6,000 Cycles
Warranty: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
