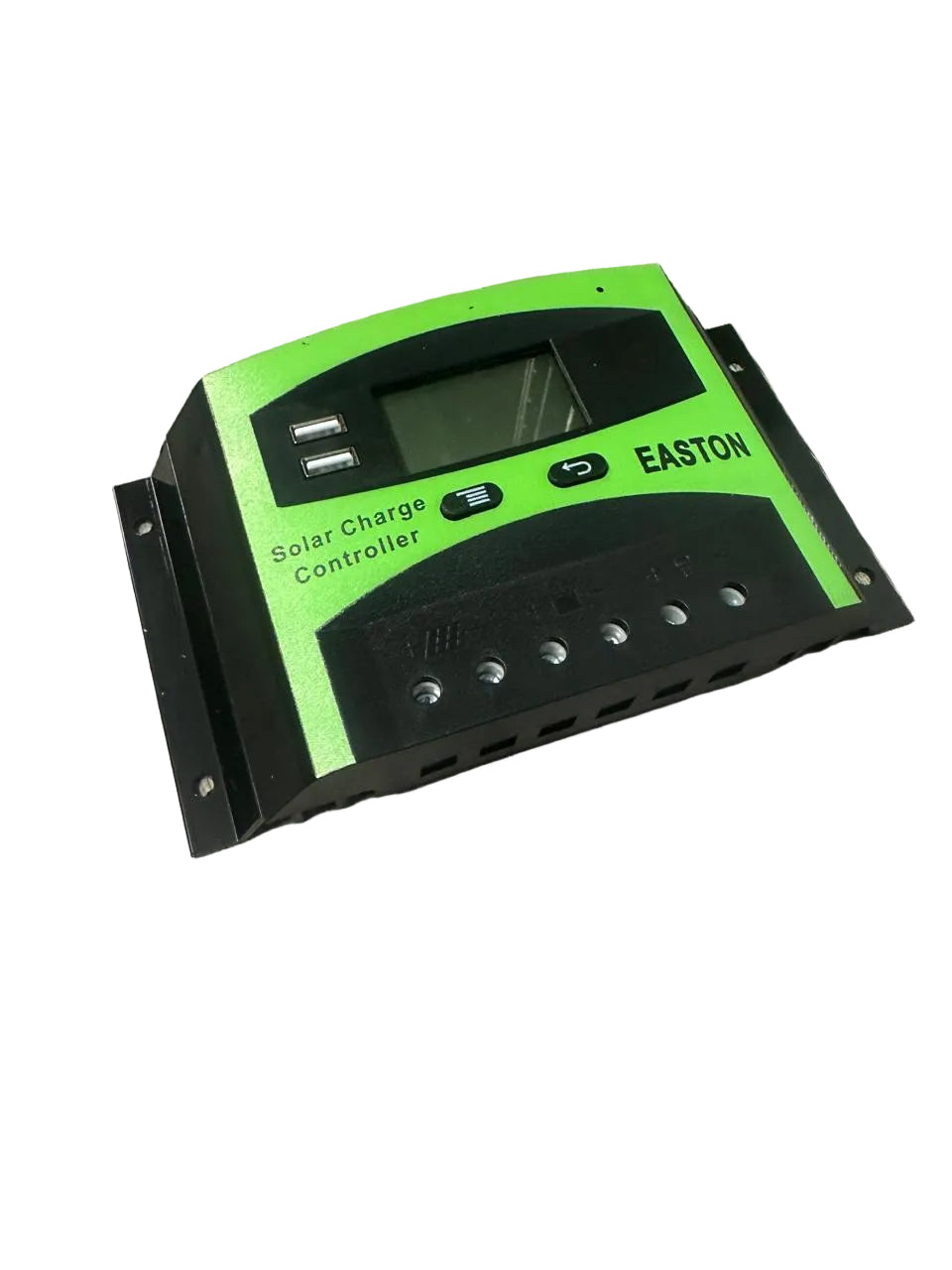

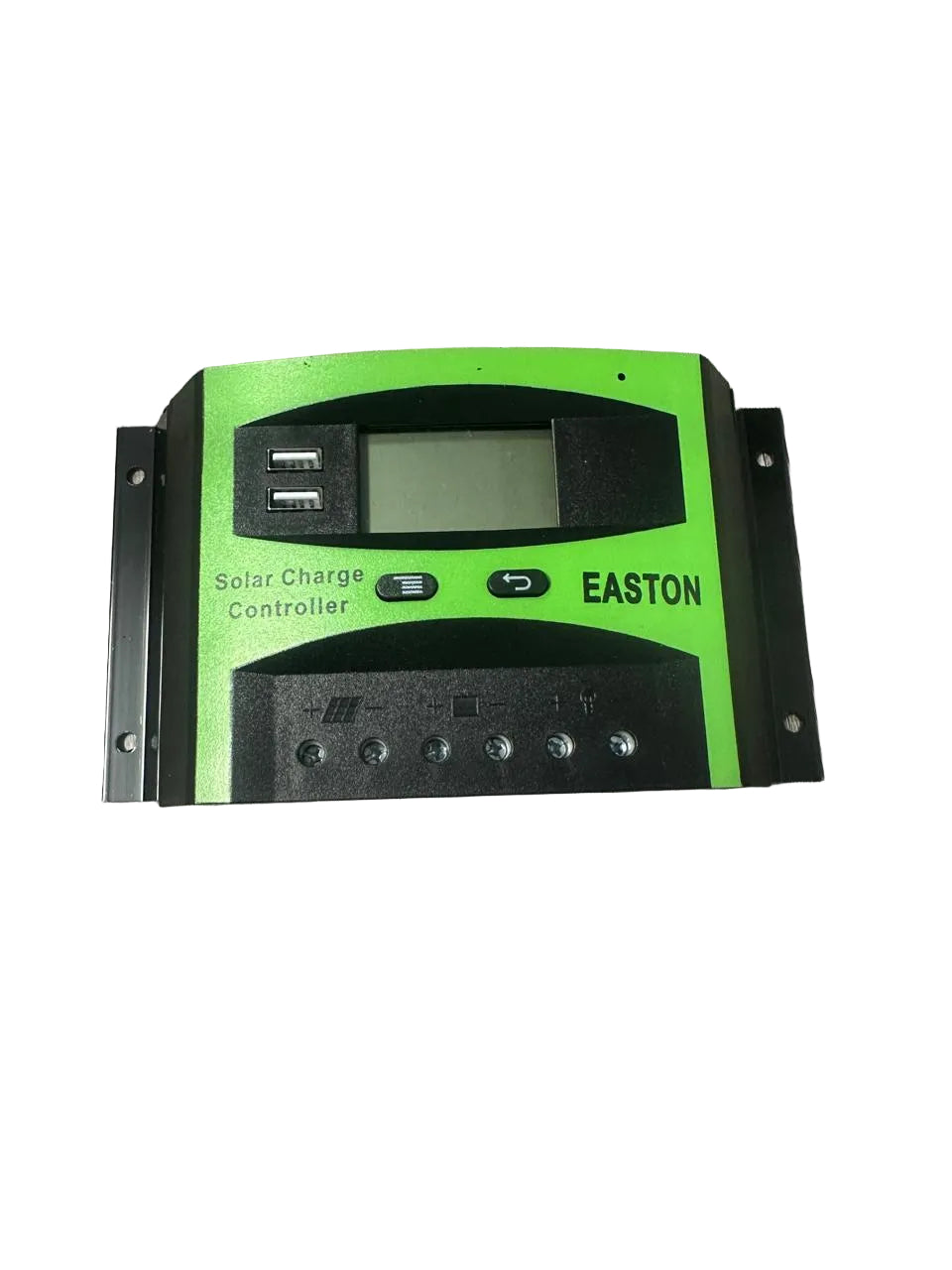

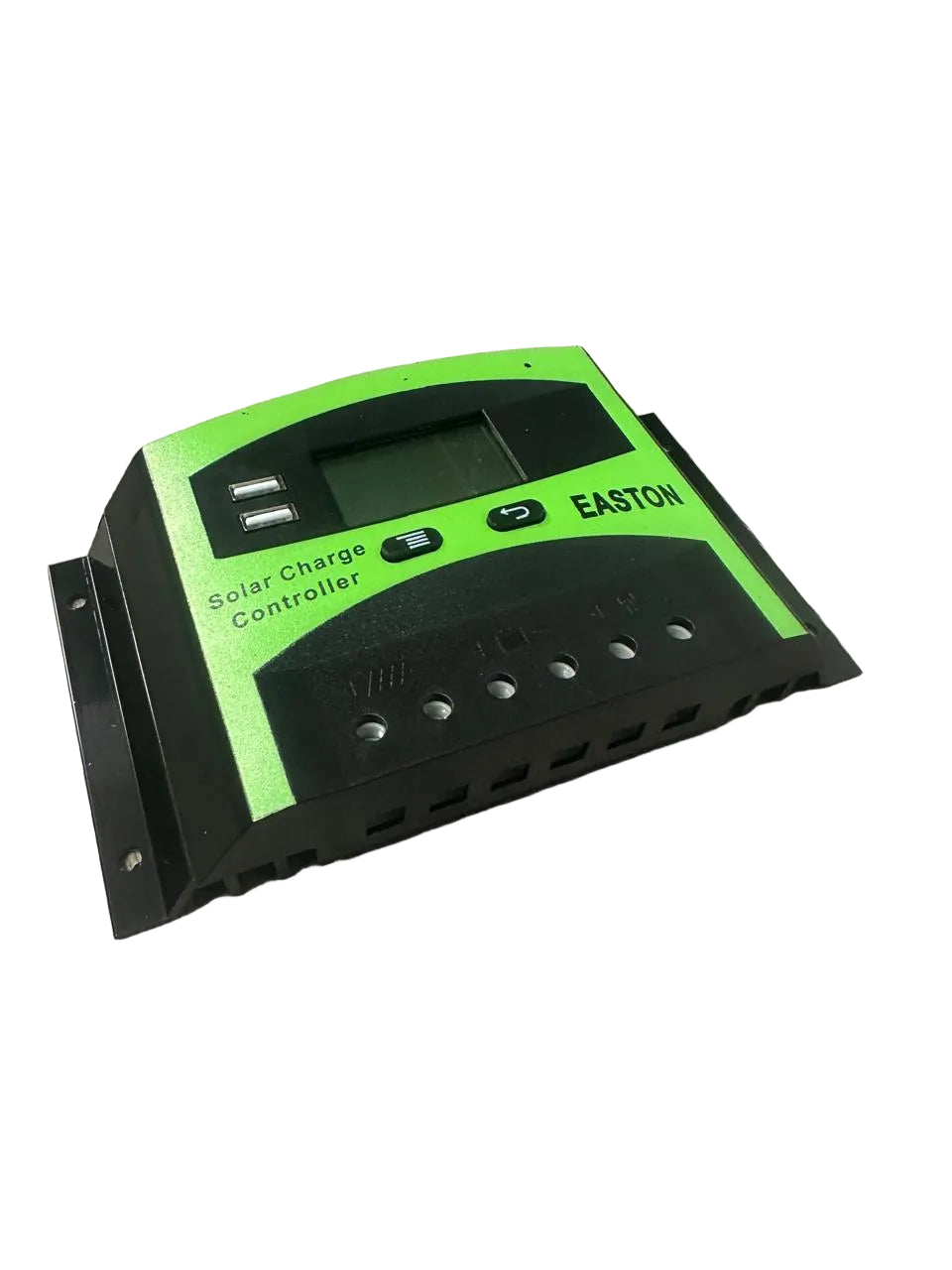

EASTON 30A 12v/24v Solar Charge Controller (18000010)
Efficient solar charge controller designed for 12V and 24V systems with a 20A charging capacity. Regulates power from your solar panels to batteries, preventing overcharging and extending battery life. Ideal for off-grid installations, caravans, boats, and remote power applications. Features automatic voltage detection and reliable performance in demanding conditions. Essential component for any solar energy setup seeking maximum efficiency and battery protection.
Specifications:
Max Input Voltage of Solar Panel: 55V
USB Output: 5V/1A x2
Self Consumption: +-10mA
Reverse Connection Protection: Yes
Charge Type: PWM
Terminal Scale: 20-3AWG
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL (It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
