DC 200V 10A Digital Voltmeter Ammeter

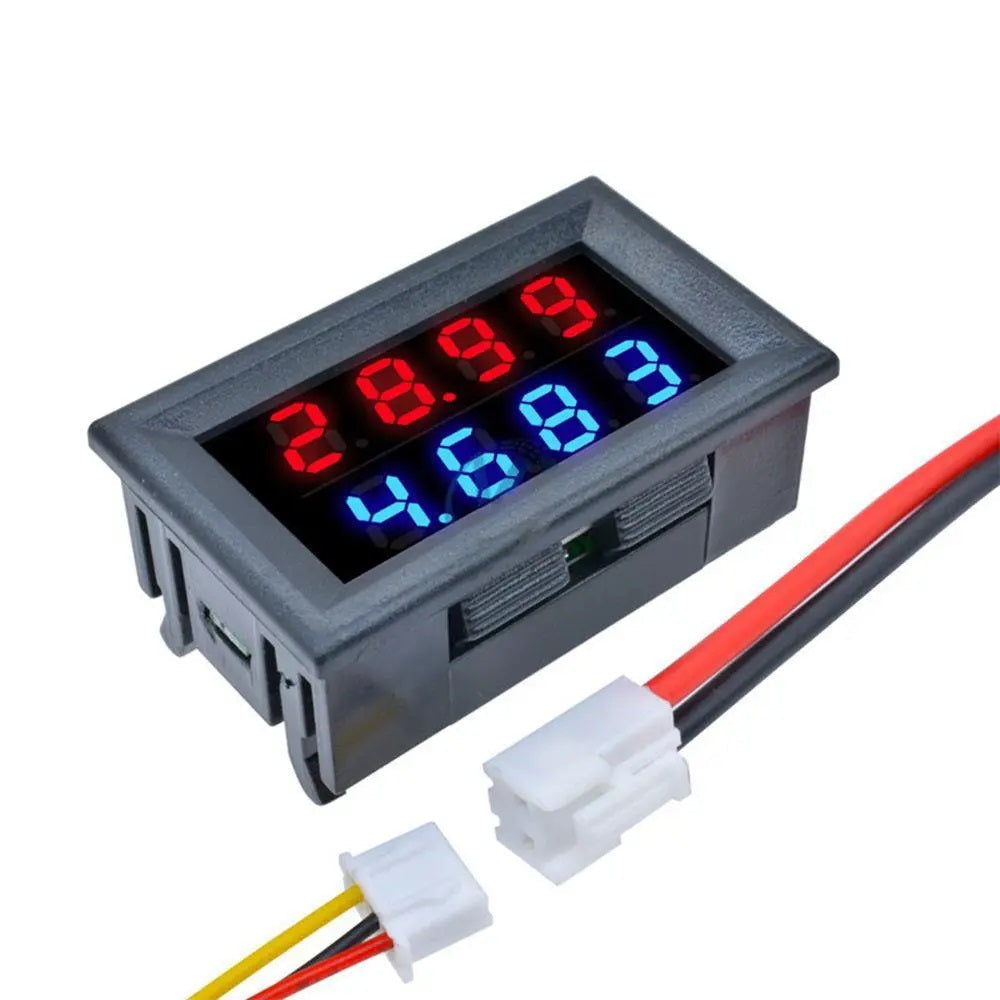

Mini Digital Voltmeter Ammeter DC 200V 10A with Blue+Red Dual LED Display (10003678)

Features:

High precision: 4-digit

Working voltage: DC 4V-28V

Working current: <20mA

Display: 0.28" Red + Blue Dual LED Display

Voltage Measuring Range: DC 0.000V-200.0V

Current Measuring Range: 0-9.999A

Refresh rate: about 1S / 3times

Operating temperature: -10°C - 65°C

Working pressure: 80 to 106 kPa

Size : 48x29x20 mm

Mounting hole: 46 x 27 mm

Current: Range x 0.08%+Two decimal point

Voltage: Range x 0.08%+Two decimal point

Wiring:

Red line thin: power supply +

Red line (thick): IN+, current input

Yellow line (thick): PW+, measuring terminal voltage input positive

Black line thick: COM, common measuring

Note:

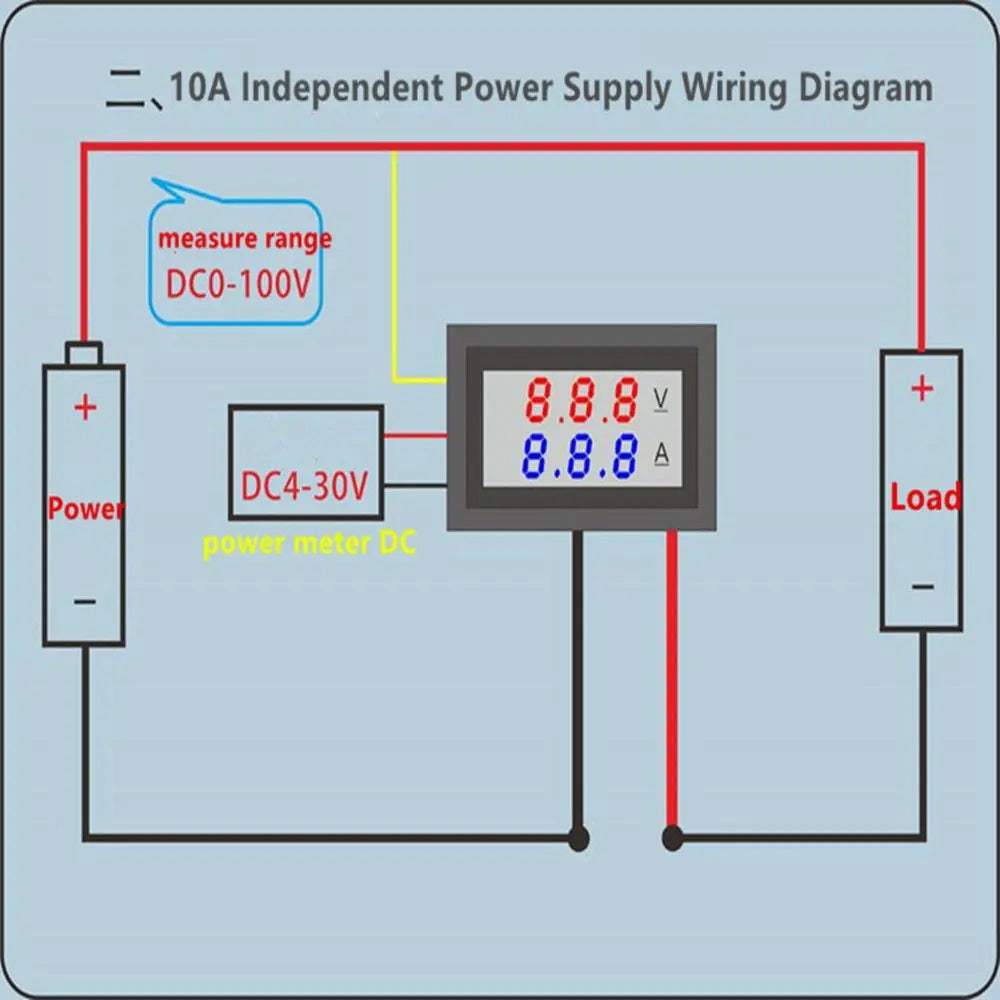

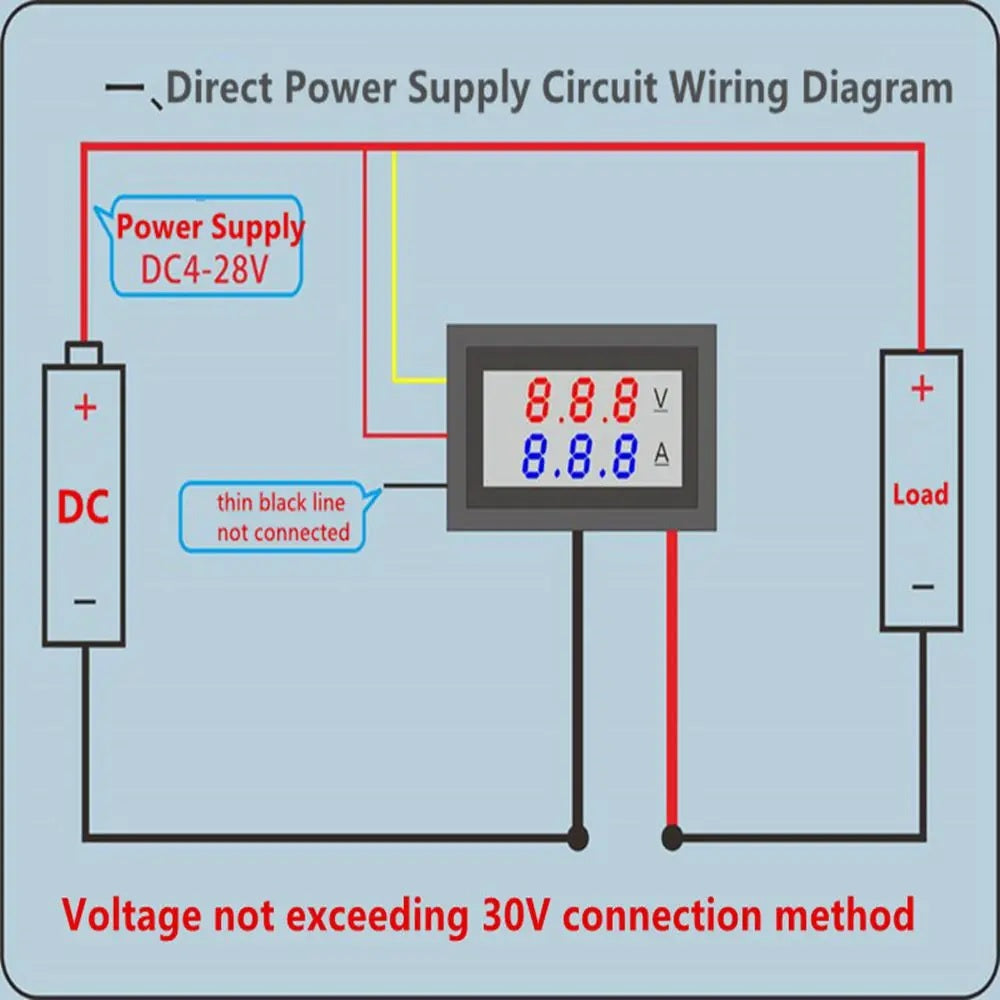

Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!

Package Contents:

1 x DC 200V 10A 0.28 Inch Mini Digital Voltmeter Ammeter

Usually Ships Out The Same Day
