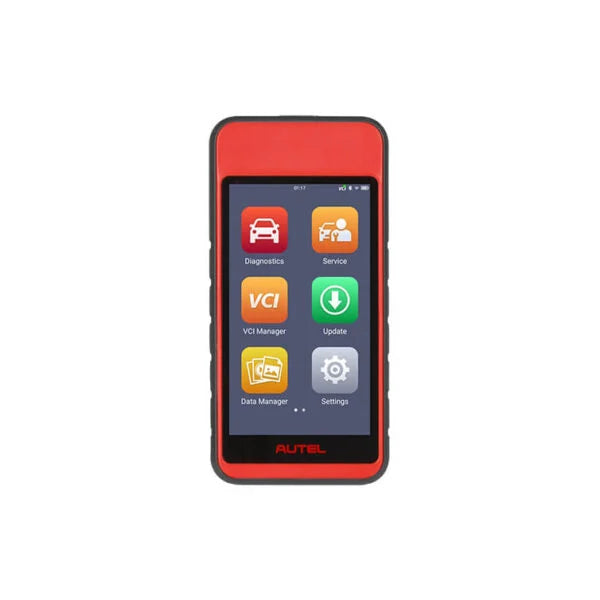

Autel MaxiDiag MD909 Pro Advanced All-Systems Diagnostic Tablet | Wireless + Free Lifetime Software (10007630)

The Autel MaxiDiag MD909 Pro is a powerful, Android-based diagnostic tablet designed to elevate vehicle diagnostics and service to professional levels. This advanced tool supports comprehensive system diagnostics, performs essential service tasks, and offers wireless convenience through a Bluetooth-enabled VCI. It is ideal for technicians and serious DIYers seeking a reliable and future-proof diagnostic solution.

Download User Manual Here
Download Quick Reference Guide Here

Key Features:

• All Systems Diagnostics: Scan all available systems on U.S., Asian, and European vehicles (1996 and newer). Supports read/erase codes, live data, and freeze frame display.

• Extensive Vehicle Coverage: Compatible with the current model year vehicles from Asia, Europe, America, and China.

• 11 Common Service Functions: Includes Oil Reset, Brake Bleeding, Injector Coding, Steering Angle Sensor (SAS) Calibration, Throttle Reset, Electronic Parking Brake (EPB) Reset, Battery Management System (BMS) Reset, TPMS Relearn, Diesel Particulate Filter (DPF) Regeneration, Adaptive Frontlighting System (AFS) Reset, and Air/Fuel Ratio Reset.

• Security Gateway Access: Supports FCA (Chrysler, Dodge, Jeep, RAM, Alfa Romeo, Fiat, Maserati) and SFD gateways (AutoAuth account required).

• OBDII Protocols: Supports all 10 OBDII test modes, I/M Readiness testing, and full emissions diagnostics.

• Pre- and Post-Scan Reports: Generate, store, print, and share diagnostic reports via email, text, or cloud storage.

• Battery Test Extension: Compatible with the optional Autel MaxiBAS BT506 battery tester for in-depth battery diagnostics (sold separately).

• Free Lifetime Software Updates: No subscription required—stay current for the life of the tool.

• Quick AutoVIN Identification: Automatically identifies vehicle and scans all ECUs.

• Cloud Report Sharing and Storage: Integrated cloud-based report access and sharing capabilities.

Protocols Supported:

• ISO9141-2, ISO14230-2, ISO15765

• K/L-Line, SAE-J1850 VPW, SAE-J1850 PWM

• ISO11898 (High/Mid/Low/Single-wire CAN, fault-tolerant CAN)

• SAE J2610, GM UART, UART Echo Byte Protocol

• Honda Diag-H Protocol, TP1.6, TP2.0

• CAN FD (future vehicle support)

Additional Features:

• Browser-Based DTC Lookup: Quick reference of trouble codes.

• Wireless & Network Printing: Print reports via Wi-Fi or PC link.

• Data Manager: Organize test records, workshop details, screenshots, and PDF reports.

• User-Centric Interface: Clean UI for diagnostics, service, updates, and settings.

• Remote Support: Includes TeamViewer for real-time assistance.

• OTA Updates: One-click online updates through built-in Wi-Fi.

Warranty: 1-year limited warranty
Software Updates: Free for the lifetime of the tool
Optional Add-on: MaxiBAS BT506 battery tester (sold separately)

Technical Specifications:

• Operating System: Android 9.0

• Processor: 1.5 GHz Quad-core

• Memory: 2 GB RAM

• Storage: 64 GB ROM

• Display: 5.5-inch LCD capacitive touchscreen (1280 x 720 resolution)

• Battery: 3.8V / 5000 mAh lithium-polymer battery

• Power Input: 5V/1.5A (USB Type-C)

• Connectivity:

  • Wi-Fi (802.11 a/b/g/n/ac)

  • Bluetooth

  • USB Type-C

• Audio:

  • Input: Microphone

  • Output: Speaker

• Sensors: Ambient Light Sensor (ALS)

• Dimensions: 89 mm x 183 mm x 22 mm

• Weight: 368 g (0.8 lb)

System Coverage

• All System Coverage (OBDII + manufacturer-specific)

• Read / Erase Codes: Yes

• Live Data Display: Yes

• Security Gateway Access:

  • FCA (Chrysler, Jeep, Dodge, Ram)

  • SFD (Volkswagen, Audi, etc.)

Service Functions (Maintenance & Reset Capabilities)

• Oil Reset

• Brake Bleeding

• Injector Coding

• Steering Angle Sensor (SAS) Calibration

• Throttle Adaptation

• Electronic Parking Brake (EPB) Reset

• Battery Management System (BMS)

• Tire Pressure Monitoring System (TPMS)

• Diesel Particulate Filter (DPF) Regeneration

• Adaptive Front-lighting System (AFS) Headlamp

• Air/Fuel (A/F) Ratio Adjustment

Communication Protocols

• Supports CAN FD (Controller Area Network Flexible Data-Rate)

Extended Functionality

• Battery Testing (requires optional BT506 accessory)

Packing List

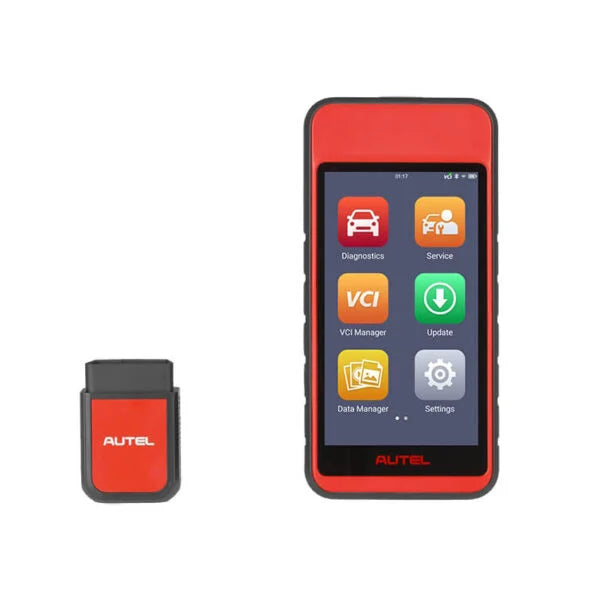

• MaxiDiag MD909 Pro Tablet

• VCI Device: V150 Lite (Bluetooth-enabled, CAN FD support)

• USB Type-C Cable (for charging and data transfer)

• Power Adapter (varies by region, not included in EU packages)

• Quick Reference Guide

• User Manual

• Carry Case
