ANENG Automotive Relay Tester RT01 Voltage Detector (10002825)

Digital display voltage battery 4/ 5-pin relay universal 12V-24V automotive battery inspection integrated design diagnostic tools No battery

Power Mode: Room electrical/hard wiring
Contact Material: Copper
Pole & Throw Configuration: Sp5t
Termination Type: Fixture
Brand: ANENG

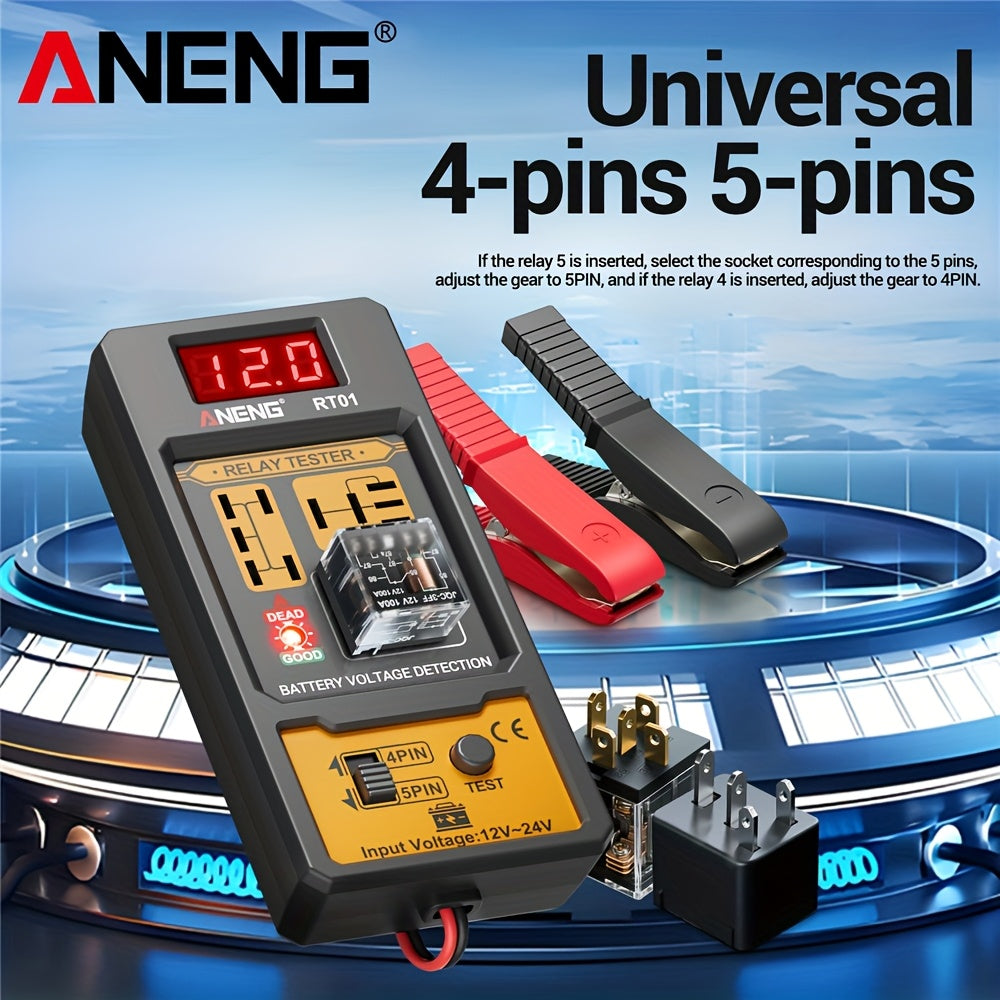

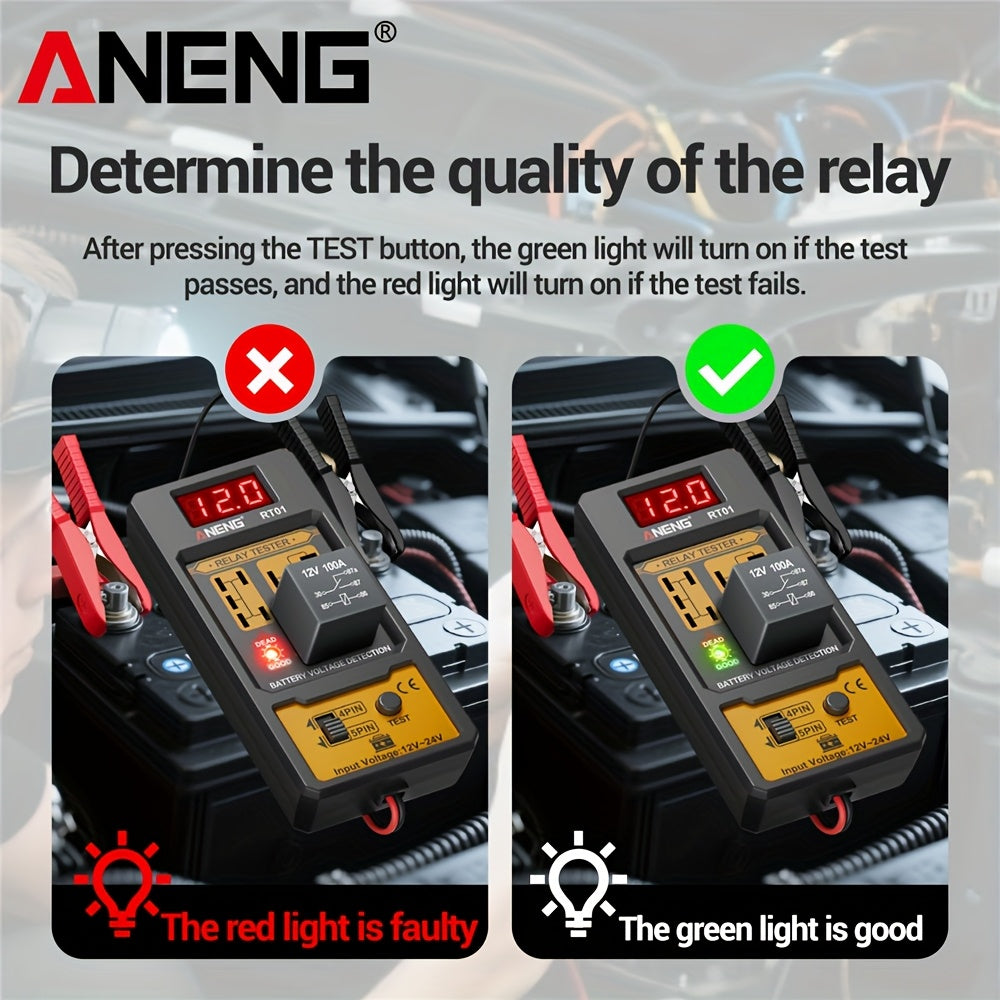

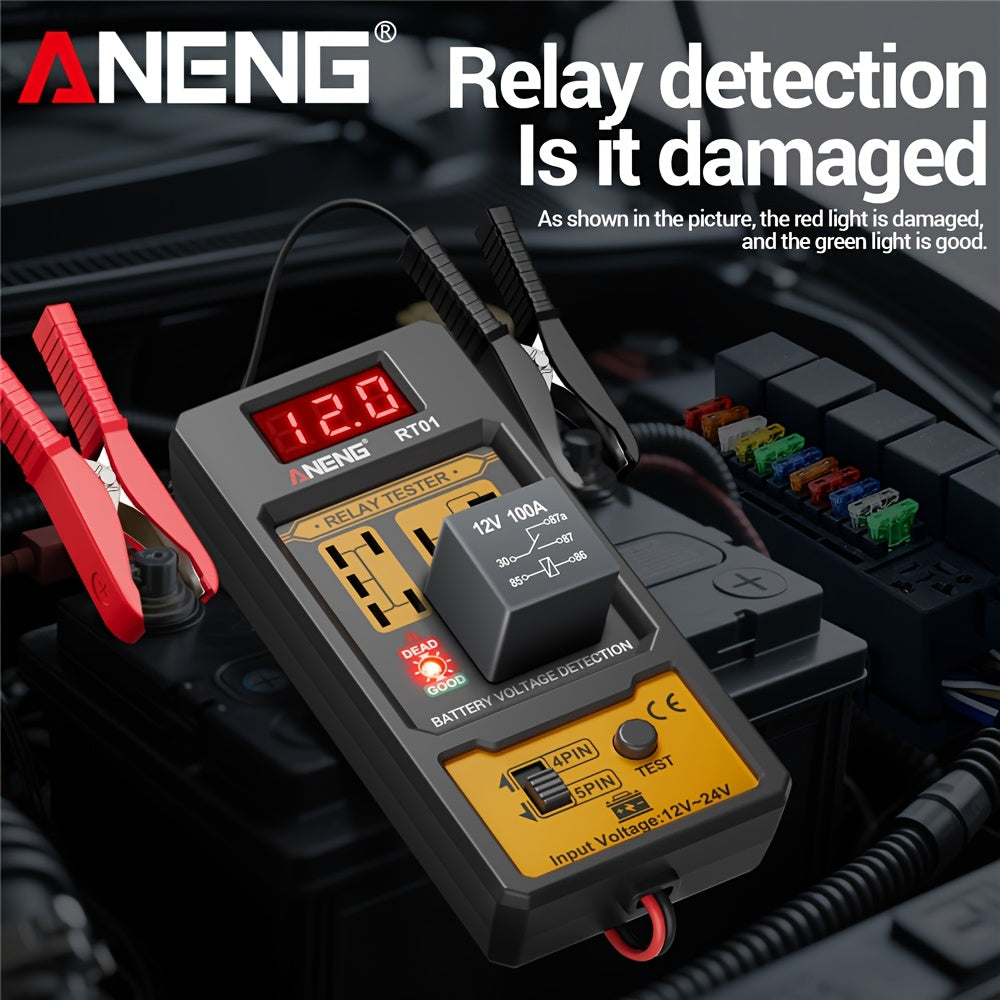

RT01 can quickly detect whether your relay is normal. It is easy to use and suitable for general-purpose automotive relays on the market. During testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position, the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.

Specification:

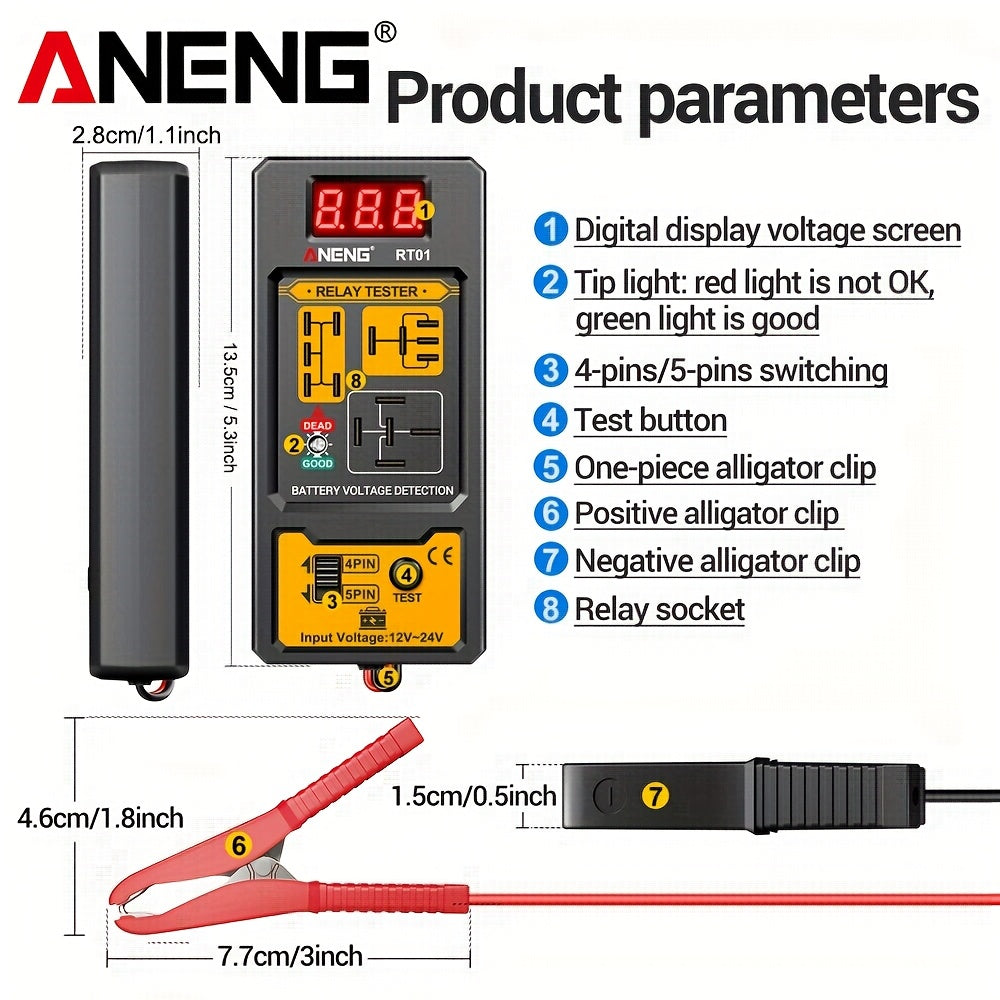

Product Model: RT01 Relay Detector

Applicable pins: 5 pins/4 pins

Battery detection:11V~ 25V voltage

Applicable coil resistance:≥20Ω

Use power: Connect car battery power supply

Detection prompt light: lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.

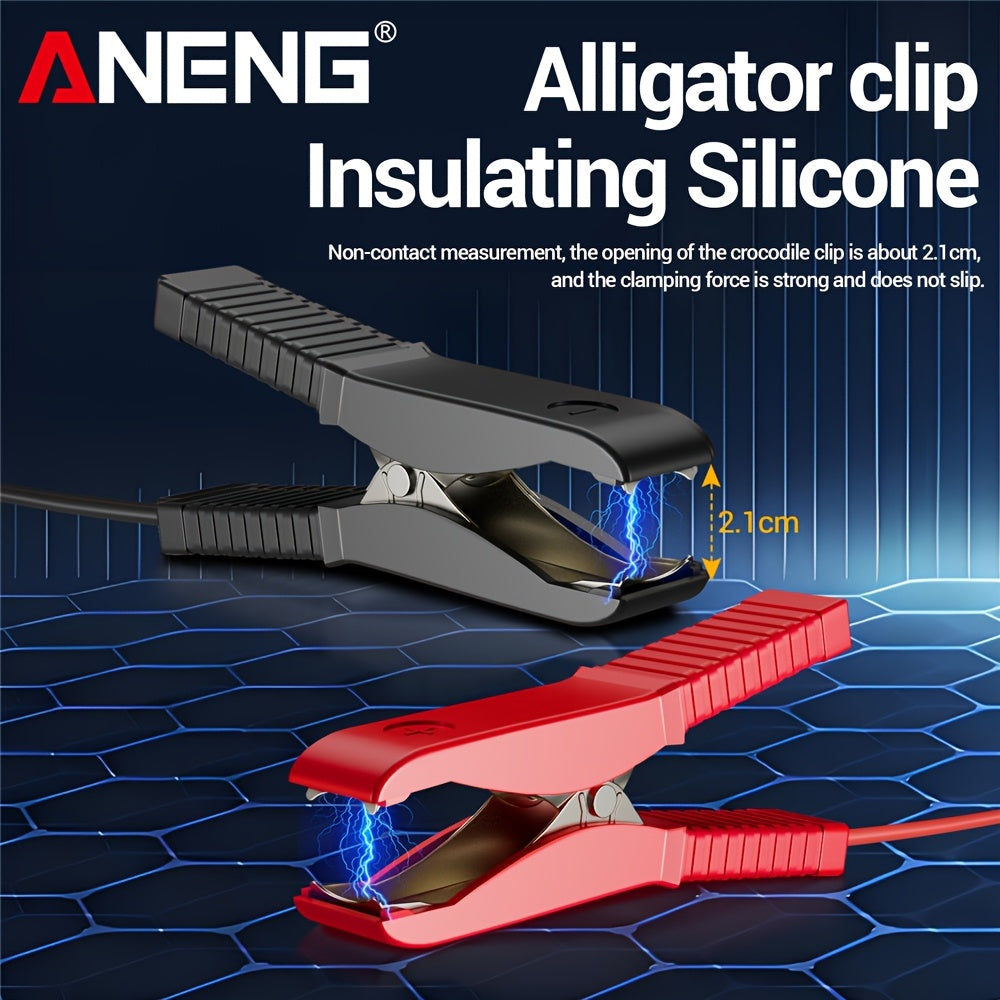

Clip opening size: 2.1cm/0.82inch

Clip length: 42cm/16.54inch

Digital display bright screen: Yes

Operating instructions:

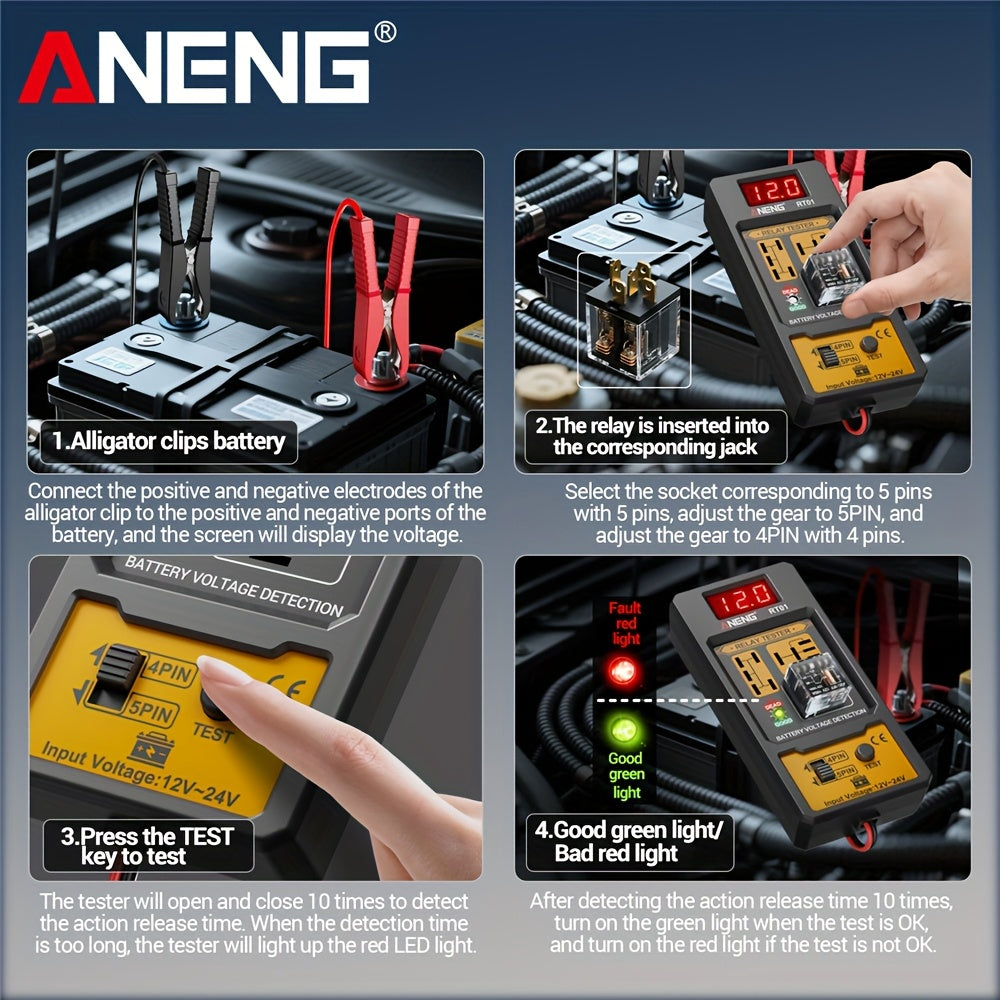

1) Clip the clip of the tester on the car battery the black clip on the negative electrode and the red clip on the positive electrode.

2) When the red LED light is on, it indicates that the tester can start testing.

3) Check the relay before testing. lf it is 4 feet, choose a 4-foot socket on the tester; if it is 5 feet, choose a 5-foot socket on the tester.

4) Plug the relay into one of the three sockets

5) Press the "Test" button

6) The tester will automatically detect the pin position of the unknown relay. When the relay is not a universal relay on the market or is damaged, the tester will turn on a red LED light.

7) When the foot position is set correctly, the tester will open and close 10 times to detect the release time of the action. When the detection time is too long, the tester wil light up the red LED light.

8) When the tester has detected the action release time 10 times, start to detect the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK, turn on the red light.

9) After the test is complete, remove the clip from the battery and remove the relay from the tester.

Package:

1*RT01 Relay

Detector Attention:

1.The car battery must be a 12V battery, and the voltage of the battery must be between 11V and 25V.

2.The applicable coil resistance should preferably be above 20Ω.
