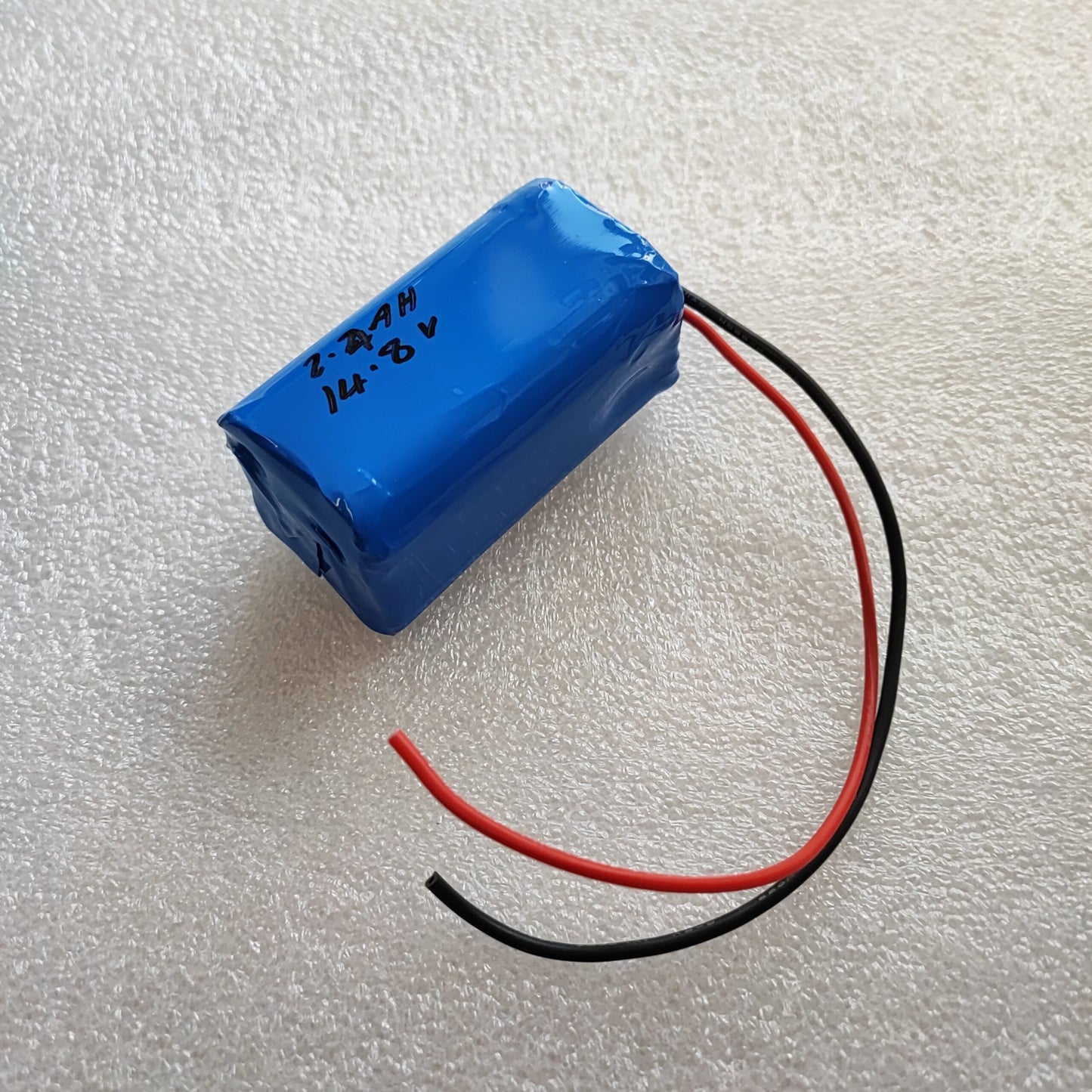

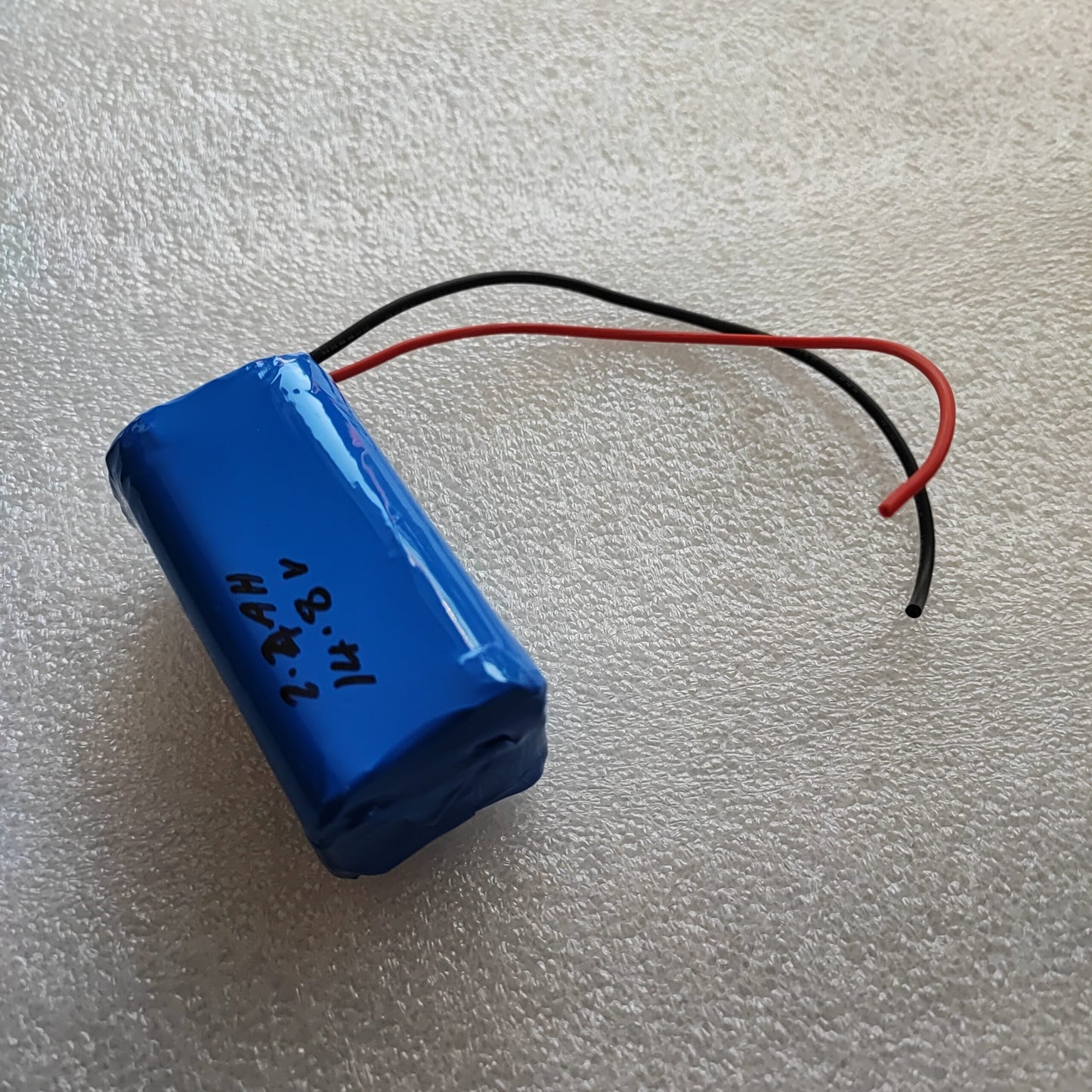

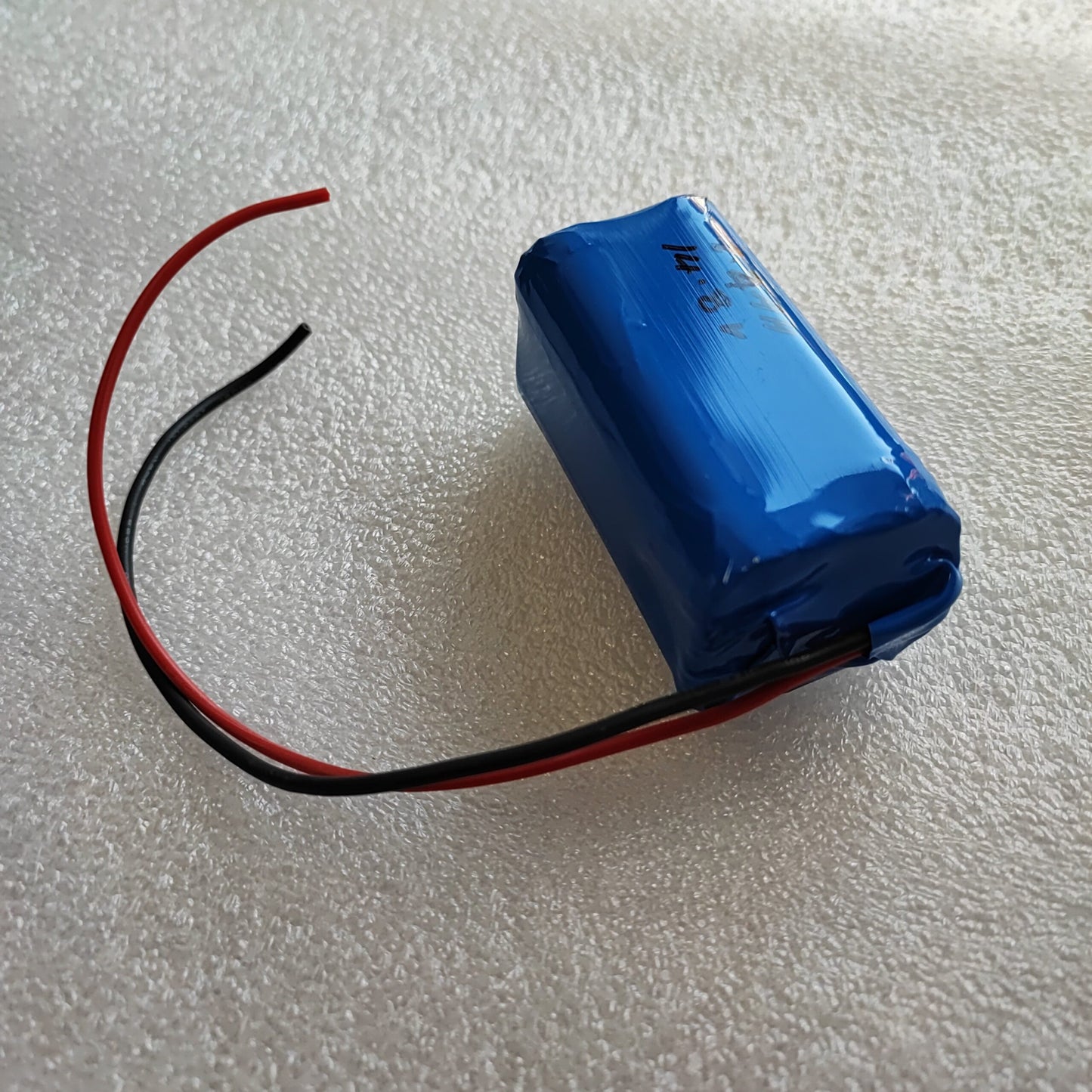

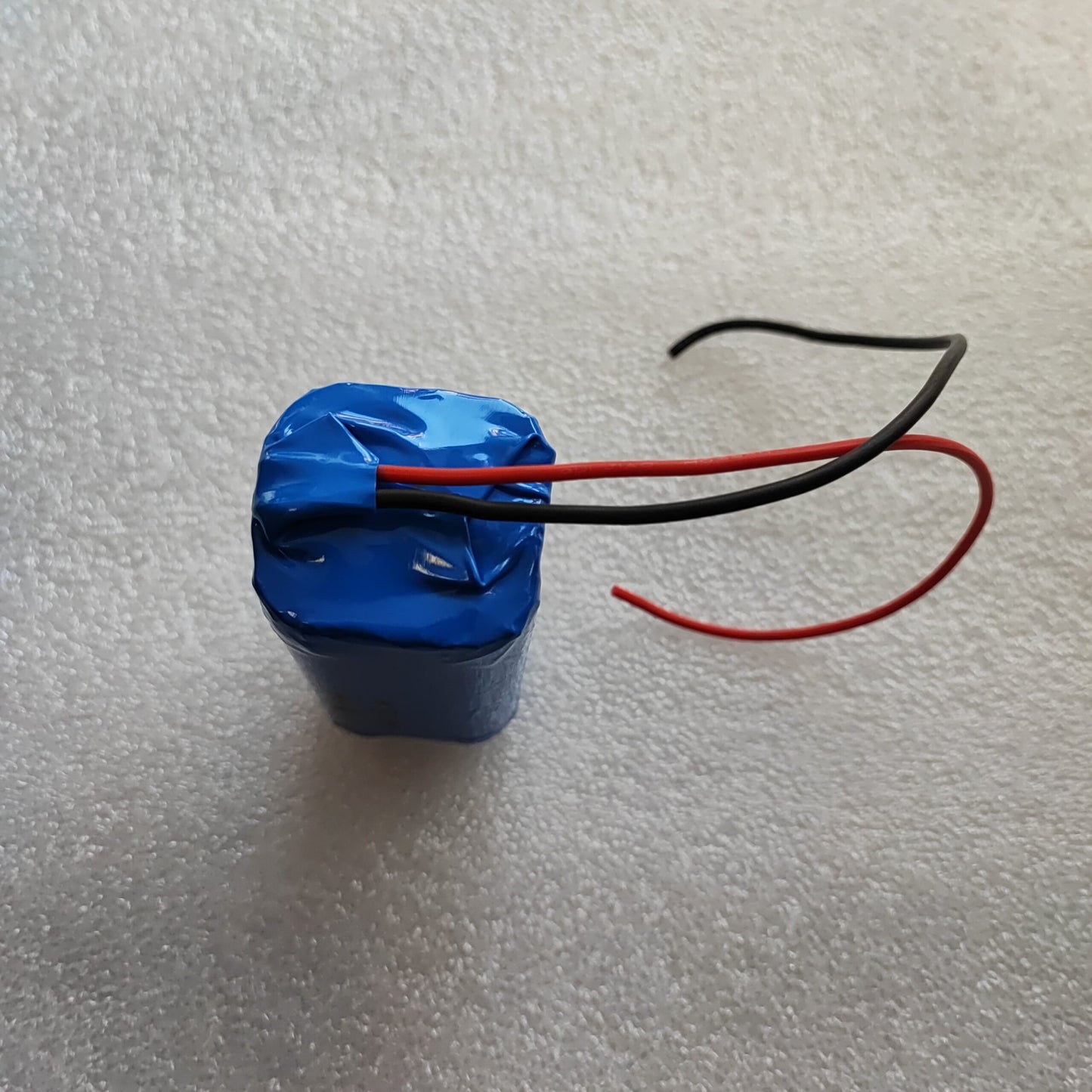

2.2ah 14.8V (Nominal) 10A Peak Li-ion BMS Battery with Protection Board (10004122)
PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
Specifications:
14.8V (Li-ion 18650 or li-ion battery Nominal rated voltage)
16.8V (Li-ion battery full charge voltage)
Over Charge Voltage:4.25-4.35v±0.05v
Over Discharge Voltage: 2.3-3.0v±0.05v
Max working current: 10A
Max Peak current: 10A
Working Temperature:-40---+50
Storage Temperature:-40-- +80
Small current: 6uA
Resistance: 45mΩ
Short cut Protection: Protectable ,change for repair Size:35*35*3.0mm
NOTE:
1) this board is not suit high power electronic tools, if use for screwdriver and drill, please don't buy
2)Above 3A device, means the battery discharge rate is more than 3C.
1C rated battery, 2000mah equals 2ah*1=2A max working current.
3C rated battery means 2ahx3=6A Max working current.
Package Contents:
1 x 4S 14.8V 10A Peak Li-ion BMS PCM Battery
