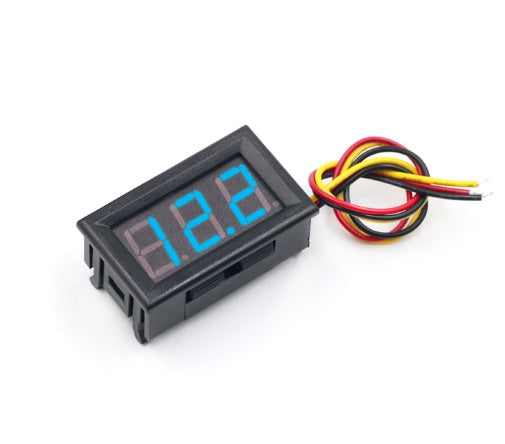

0.56 Inch 4.5 to 30v DC Mini BLUE LED Display Panel - 3 Wires (10004781)
This mini voltage meter features a bright blue LED display, with a measurement range from 4.5 to 30 volts DC. It is compact, easy to read, and ideal for monitoring voltage levels in various electrical systems.
- Operating voltage: 4.5 ~ 30V (with reverse polarity protection function)
- Test voltage: 0 ~ 99.9V Operating Current: <60mA Display: 0.56 "
- Mounting holes: 45.5 — 26.5 mm
- Measurement rate: ? 500mS
- Measurement accuracy: 1%
- Maximum operating conditions: Minimum operating voltage: +4.5 V
- Operating temperature: -10 to +65 ° C
- Operating Humidity: 10 ~ 80% (no condensation)
- Working pressure: 80 ~ 106kPa
- Sun exposure: no direct exposure
