Specification:
Wide Input voltage: 3V-30V
Output Voltage: 4-35V (Adjustable)
Output current: rated current 3A MAX ( Heat-sink Needed)
If you need its output power greater than 15W, please add with heat-sink
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 50KHz
Rectifier: Non-Synchronous Rectification
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
Full load temperature rise: 40 ℃
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Size: 47 x 26 x 15 mm
Package Contents:

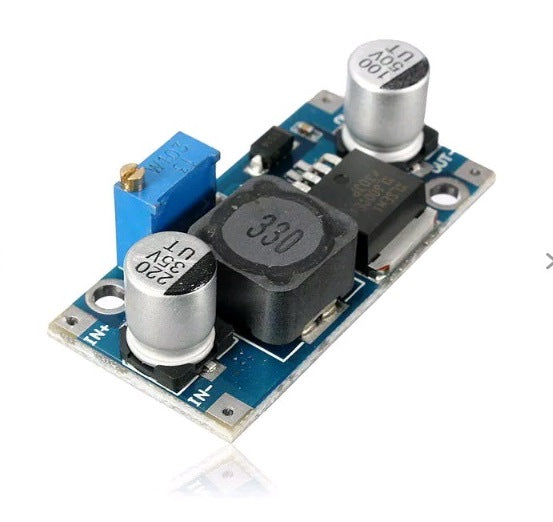

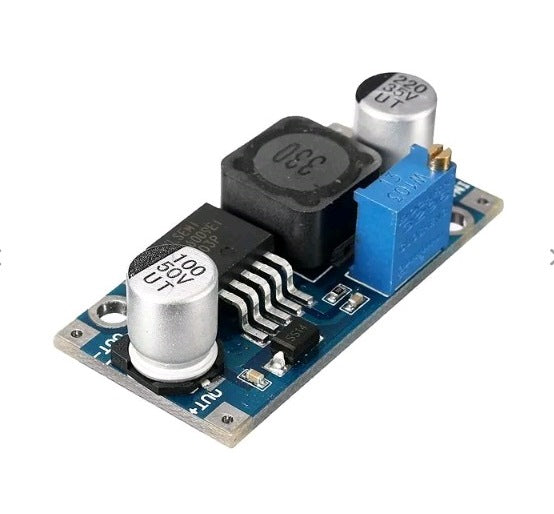

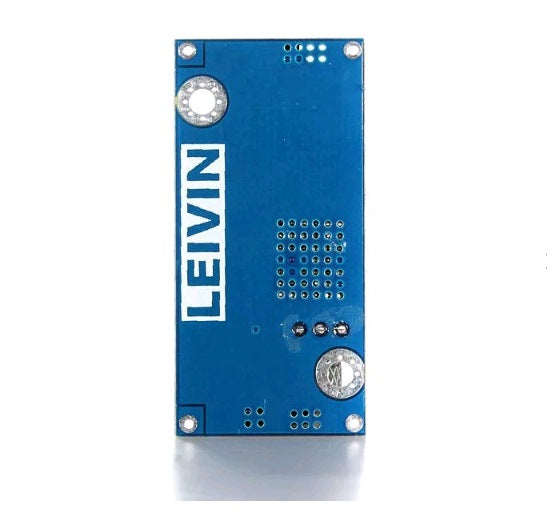

1x XL6009 DC-DC 50KHz Adjustable Step-up Power Converter Module
