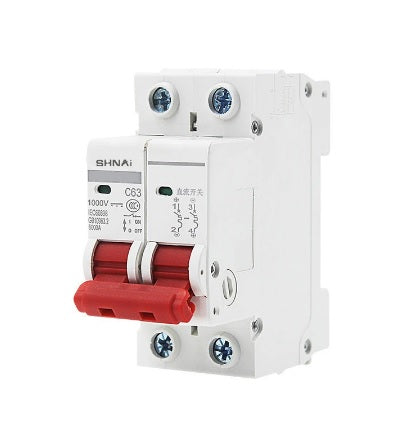

The 2Pole 20A DC 1000V Circuit Breaker is designed specifically for solar PV systems. This circuit breaker provides reliable protection against overloads and short circuits in solar power installations. With a voltage rating of 1000V and a current rating of 20A, it is suitable for high-power solar systems. The 2Pole design allows for simultaneous disconnection of both the positive and negative poles, ensuring enhanced safety. This circuit breaker is compact, durable, and easy to install. It features a trip indicator that provides visual confirmation of a tripped circuit. The 2Pole 20A DC 1000V Circuit Breaker is an essential component for efficient and safe operation of solar PV systems.
| Standard |
EN60898(IEC60898) IEC60947-2 |
| Rated current |
20A |
| Rated Breaking capacity |
6.0kA IEC60898(0.5~25A) 6,10,15kA IEC60947-2(0.5~20A) |
| Characteristic curve |
B,C,D |
| Max. fuse that can be connected to |
100AgL(>10kA) |
| Selective grade |
3 |
| Working ambient temperature |
-5 ℃ ~+40℃ |
| Enclosed protective class |
IP20 |
| Electrical life |
Not less than 8000 times |
| Mechanical life |
Not less than 20000 times
|
