PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!
Battery is made up of 14x 18650 Lithium cells in 7S 2P configuration
Specifications:
Single cell overcharge protect voltage: 4.23 - 4.28V
Single Cell overcharge protect recover voltage: 4.08 - 4.18
Overcharge protect delay: 0.5 - 1.5S
Single Cell over-discharge protect voltage: 2.72 - 2.88V
Single Cell over-discharge protect recover voltage: 2.9 - 3.1V
Shortage delay: 100 - 600μS
Max Charging current: 10A
Max Discharging current: 10A
Max Charging voltage: 29v
Max Discharge Voltage: 21v
Nominal Voltage - 25.9v, fully Charged voltage - 29v
Dimensions: 130mm W x 80mm H x 50mm D
Weight: 700g
Package Contents:

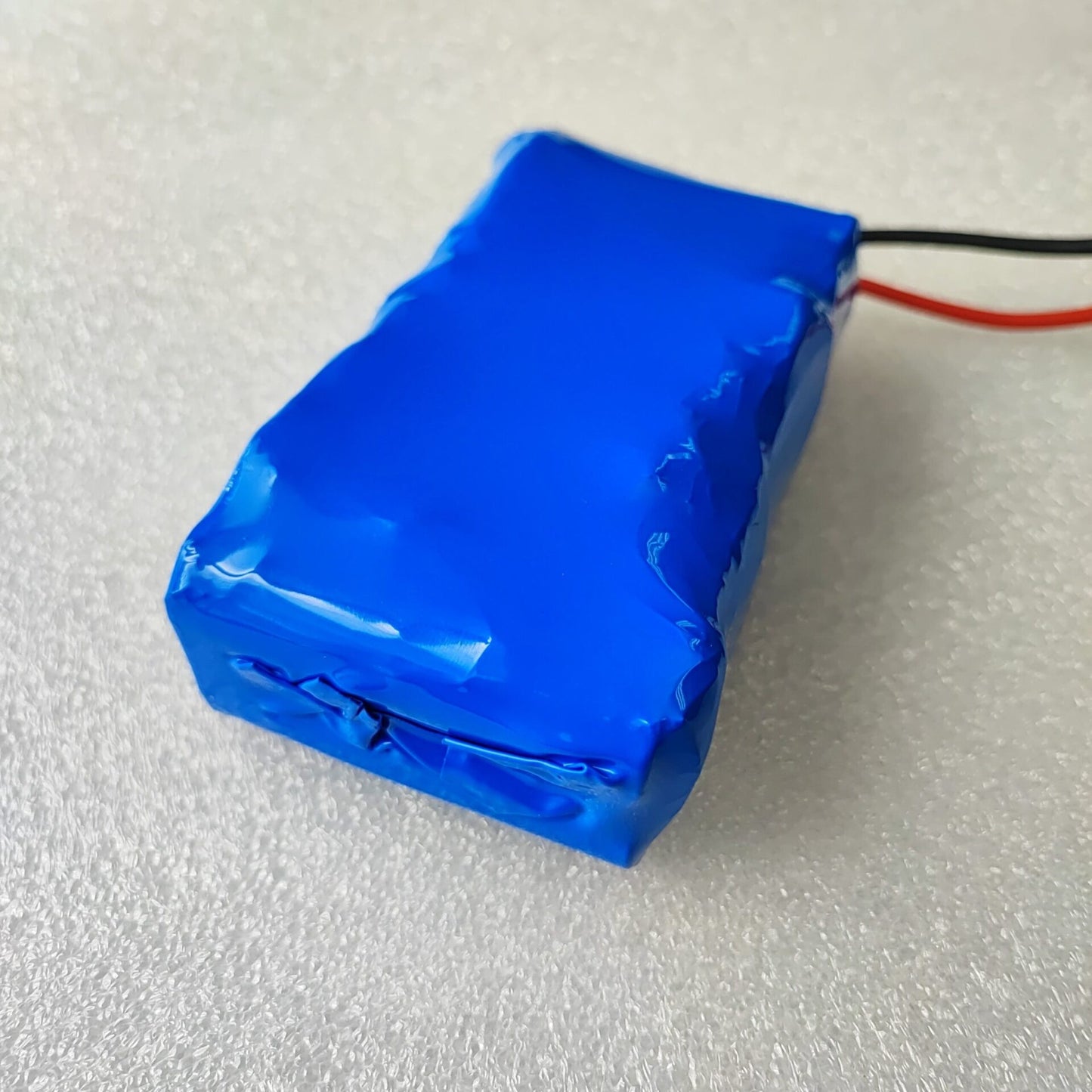

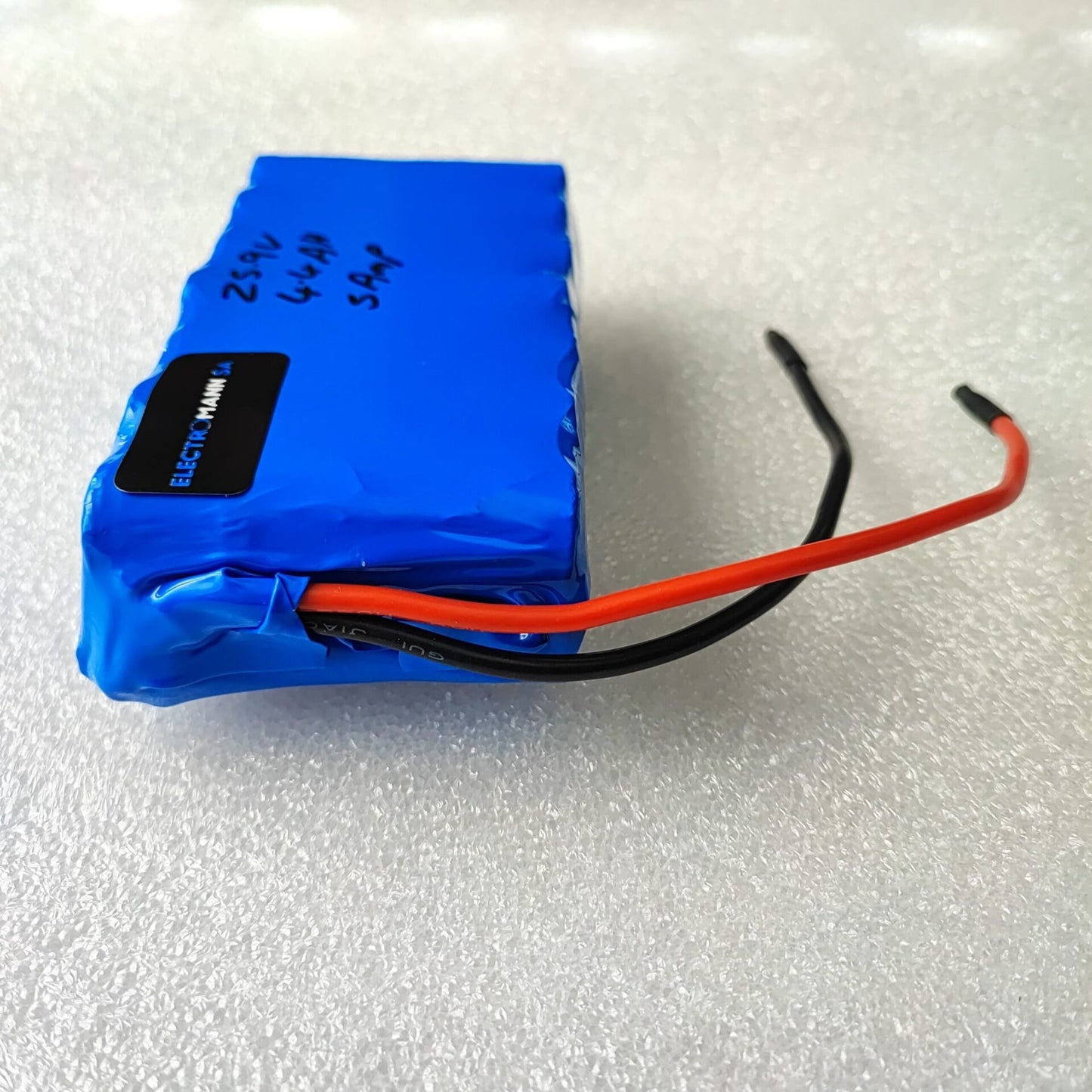

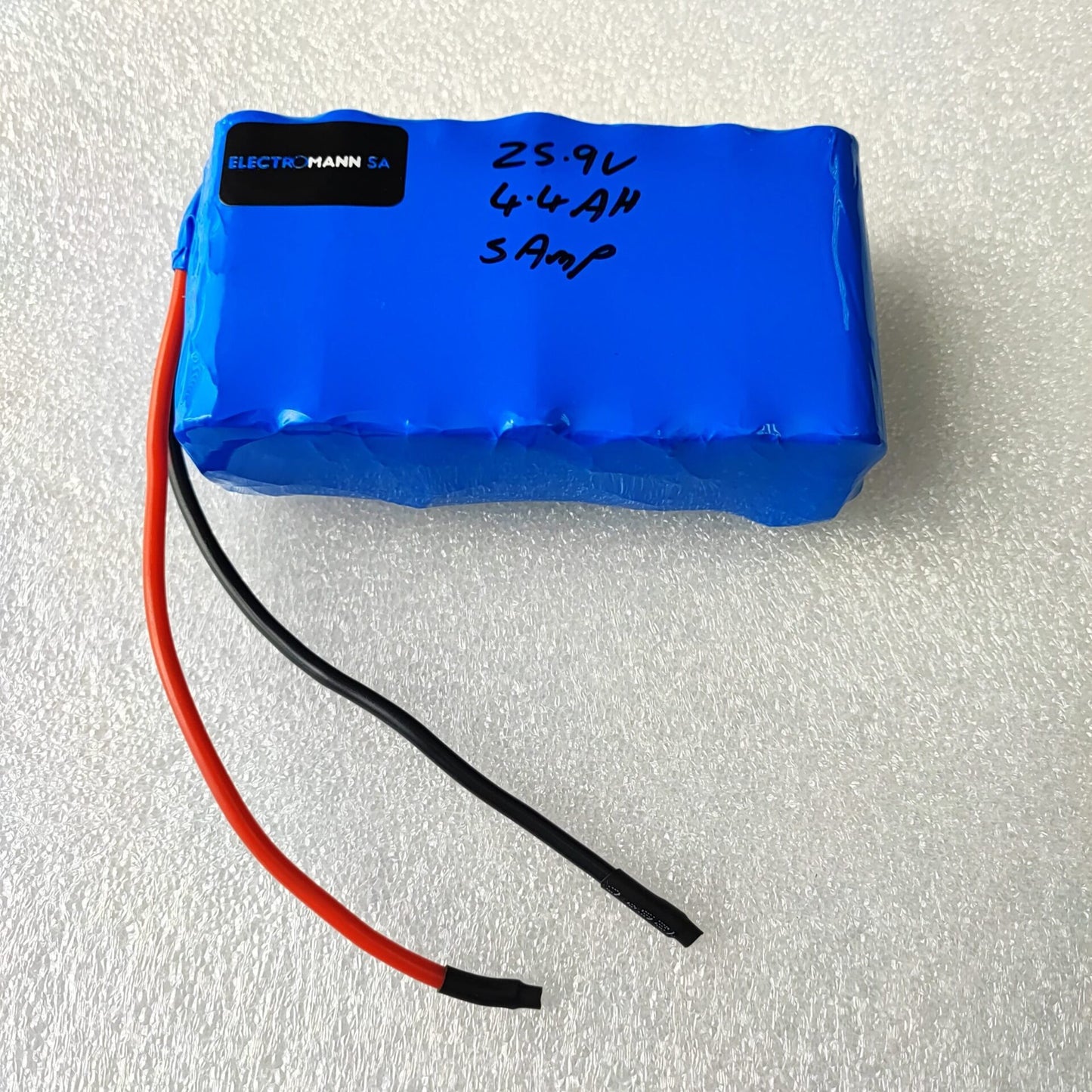

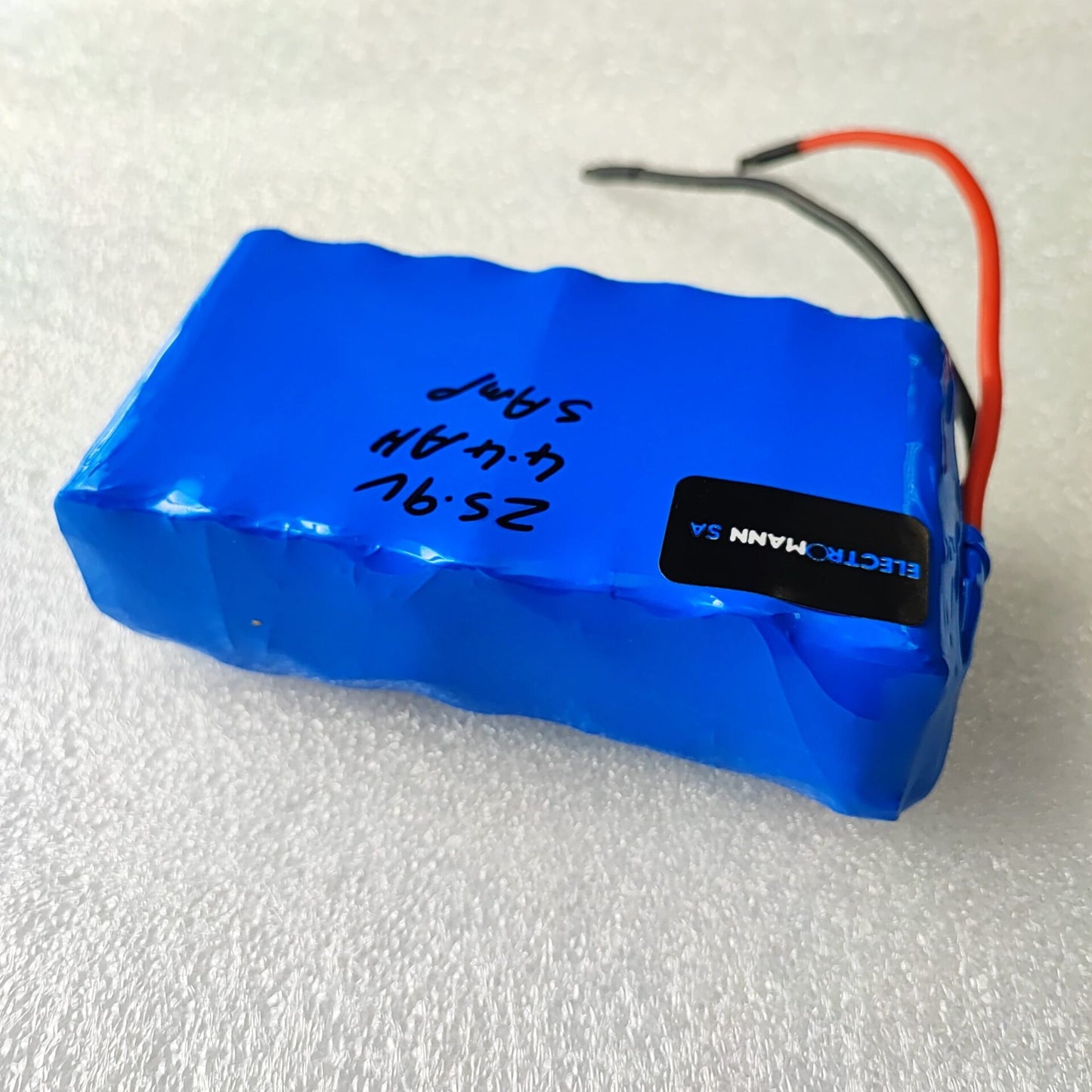

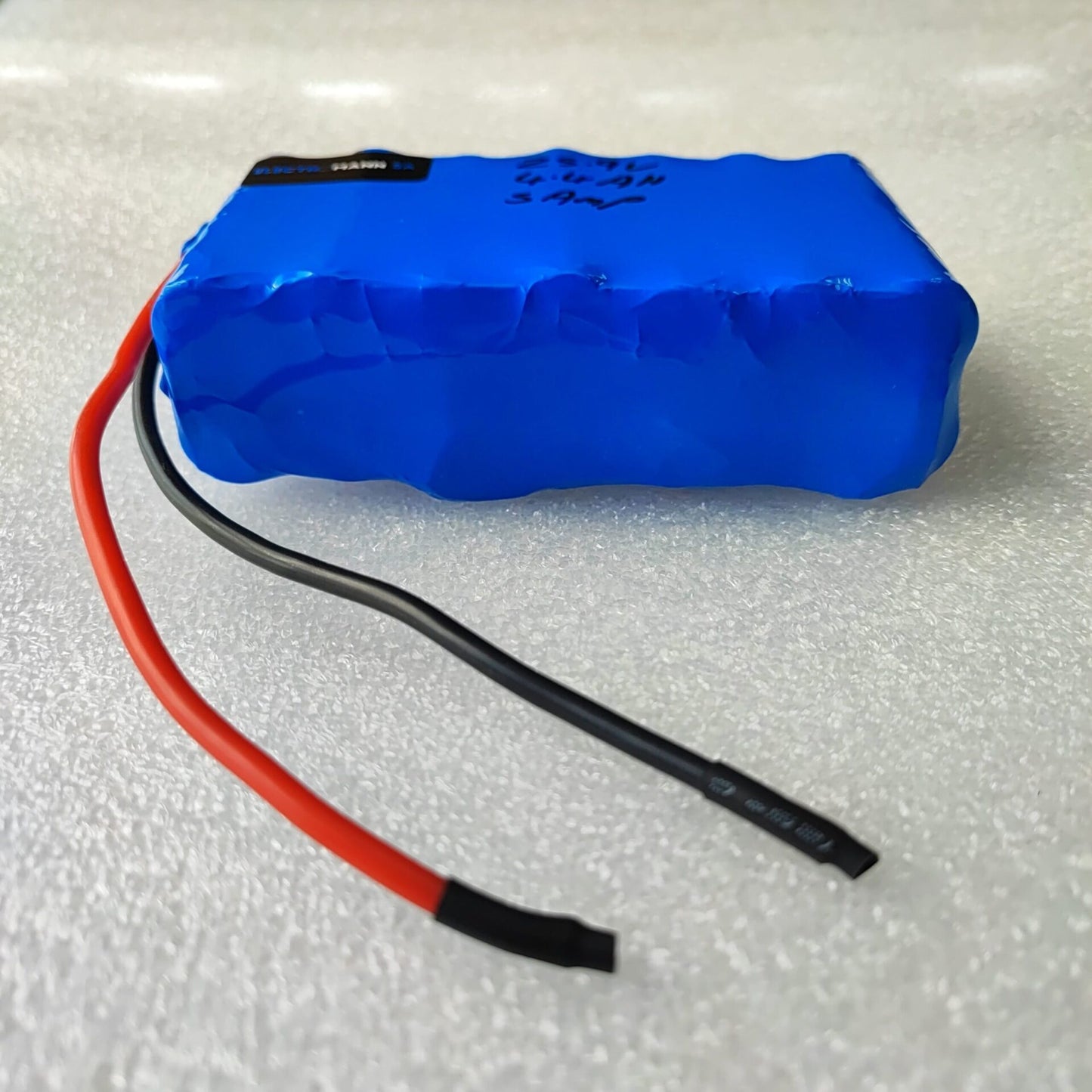

1 x 24v 4.4ah Li-ion Lithium Battery
