PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!
Specifications:
Single Cell overcharge protect voltage: 4.23 - 4.28V
Single Cell overcharge protect recover voltage: 4.08 - 4.18
Overcharge protect delay: 0.5 - 1.5S
Single Cell over-discharge protect voltage: 2.72 - 2.88V
Single Cell over-discharge protect recover voltage: 2.9 - 3.1V
Overcharge protect current: 5A
Over-discharge protect current: 5A
Over-discharge protect delay: 0.5 - 1.5S
Temperature protect: YES
Disconnect protect: YES
Shortage protect: YES
Shortage delay: 100 - 600μS
Shortage protect recover: YES
Max Charging current: 3A
Max Discharging current: 3A
Max Charge Voltage: 25.2v
Nominal Charge Voltage: 22.2v
Weight: Approx 400g
Dimensions: 60mm x 40mm x 75mm
Package Contents:

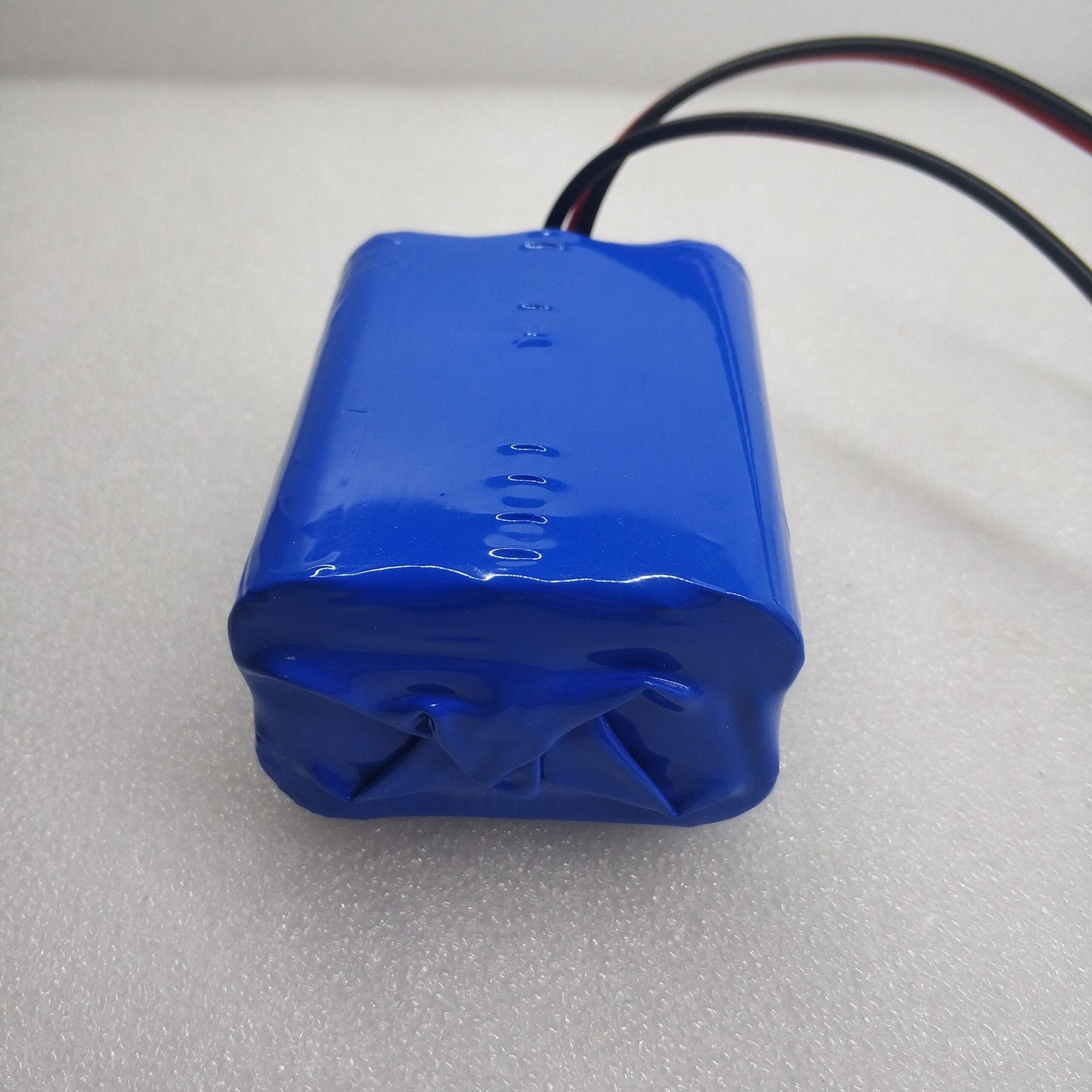

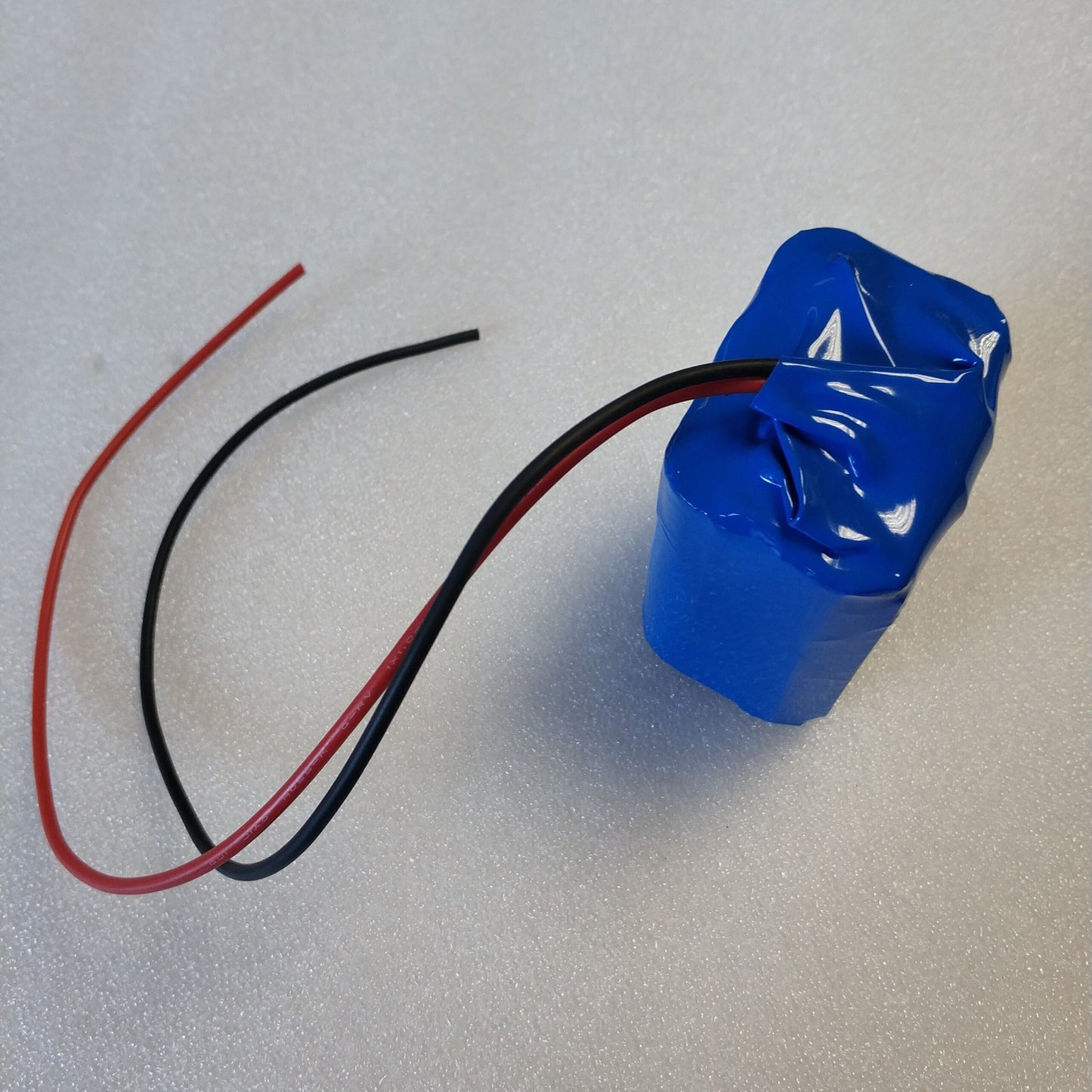

1 x 22.2v Lithium Battery
