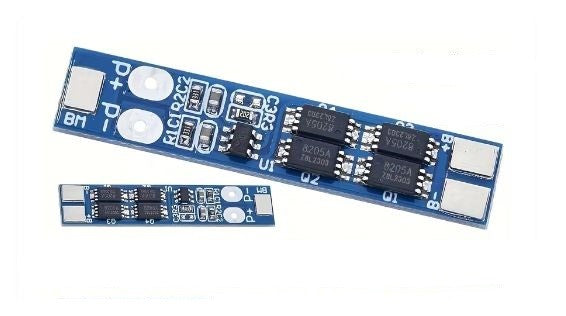

PCB Protection Board MOS 18650 Charger Module, for lithium-ion lithium battery, with nickel over-current and over-charge and discharge protection
Parameter:
Charging Voltage: 8.4V-9V;
Overcharge Voltage Range: 4.25V-4.35Vplus or minus 0.05V;
Overpressure Voltage Range: 2.3V-3.0V plus or minus 0.05V;

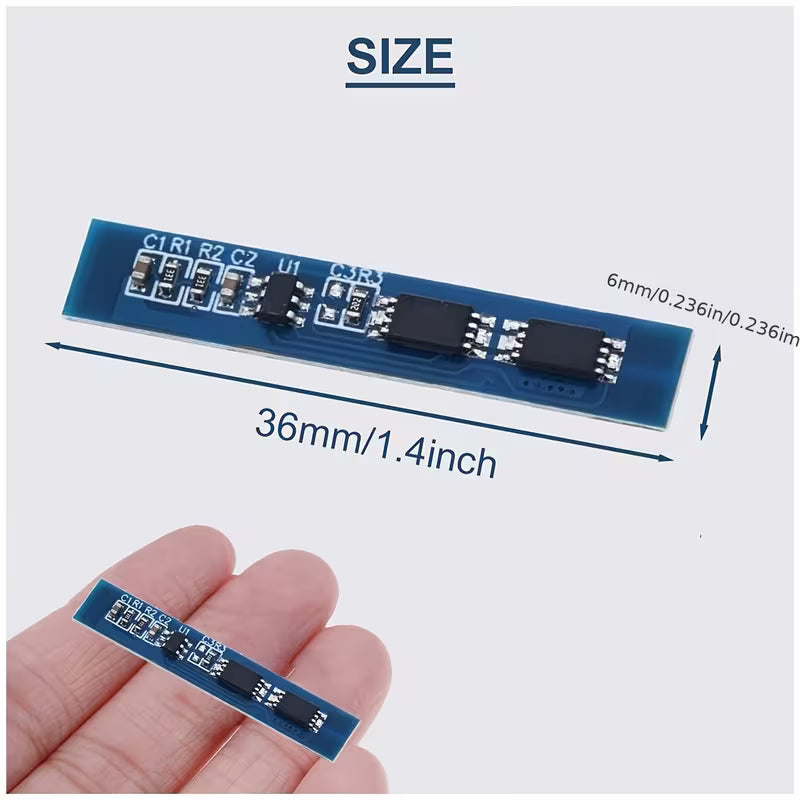

Upper Limit Operating Current: 8A Size: 41 x 8 x 2.2mm/ 1.61 × 0.31 ×0.09inch (L x W) Protection: Overcharge Protection;
Over discharge Protection;
Short Circuit Protection;
Overcurrent Protection.

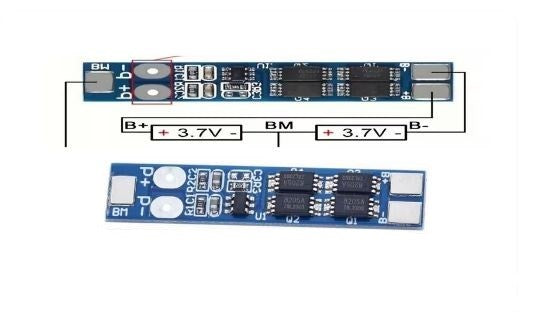

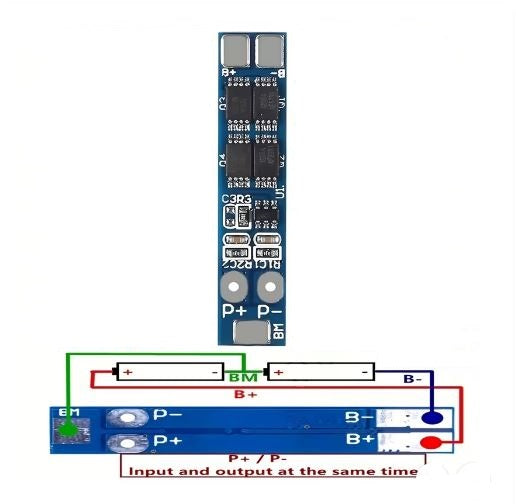

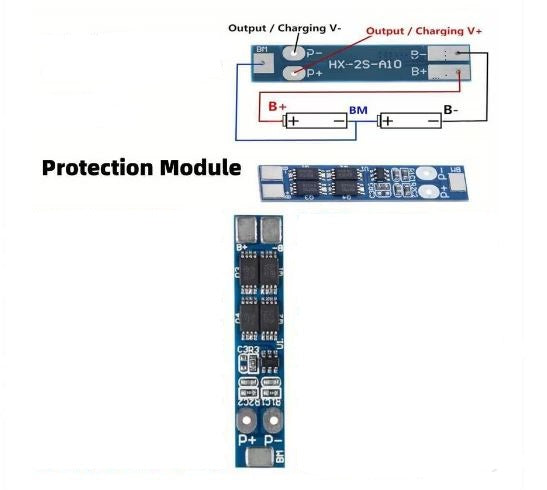

Wiring Instructions: B+: Connected to the battery positive; B-: Connected battery negative; P+: For the battery pack output input positive; P-: For the battery pack output input negative
Package Content:
1 x 2S 7.4V 8.4V 8A Lithium Battery Protection Board
Product Description Description:
Charging Voltage: 8.4V to 9V Overcharge Voltage Range: 4.25V to 4.35Vplus or minus 0.05V Overpressure Voltage Range: 2.3V to 3.0V plus or minus 0.05V Upper Limit Operating Current: 8A Upper Limit Instantaneous Current: 16A Quiesnt Current: less than 10uA Internal Resistance: less than 300m ohm Size: 41 x 8 x 2.2mm/ 1.61 × 0.31 ×0.09inch(L x W x H)
