PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!
Battery is made up of 9 Lithium cells in 3S 3P configuration
Specifications:
Single Cell overcharge protect voltage: 4.23 - 4.28V
Single Cell overcharge protect recover voltage: 4.08 - 4.18
Overcharge protect delay: 0.5 - 1.5S
Single Cell over-discharge protect voltage: 2.72 - 2.88V
Single Cell over-discharge protect recover voltage: 2.9 - 3.1V
Overcharge protect current: 5A
Over-discharge protect current: 5A
Over-discharge protect delay: 0.5 - 1.5S
Temperature protect: YES
Disconnect protect: YES
Shortage protect: YES
Shortage delay: 100 - 600μS
Shortage protect recover: YES
Charging current: 15A
Discharging current: 15A
Charging voltage : 12.6V for 3S BMS board
Nominal Voltage - 11.1v
Fully Charged Voltage - 12.6v
Dimensions: 112mm W x 70mm H x 90mm D
Package Contents:

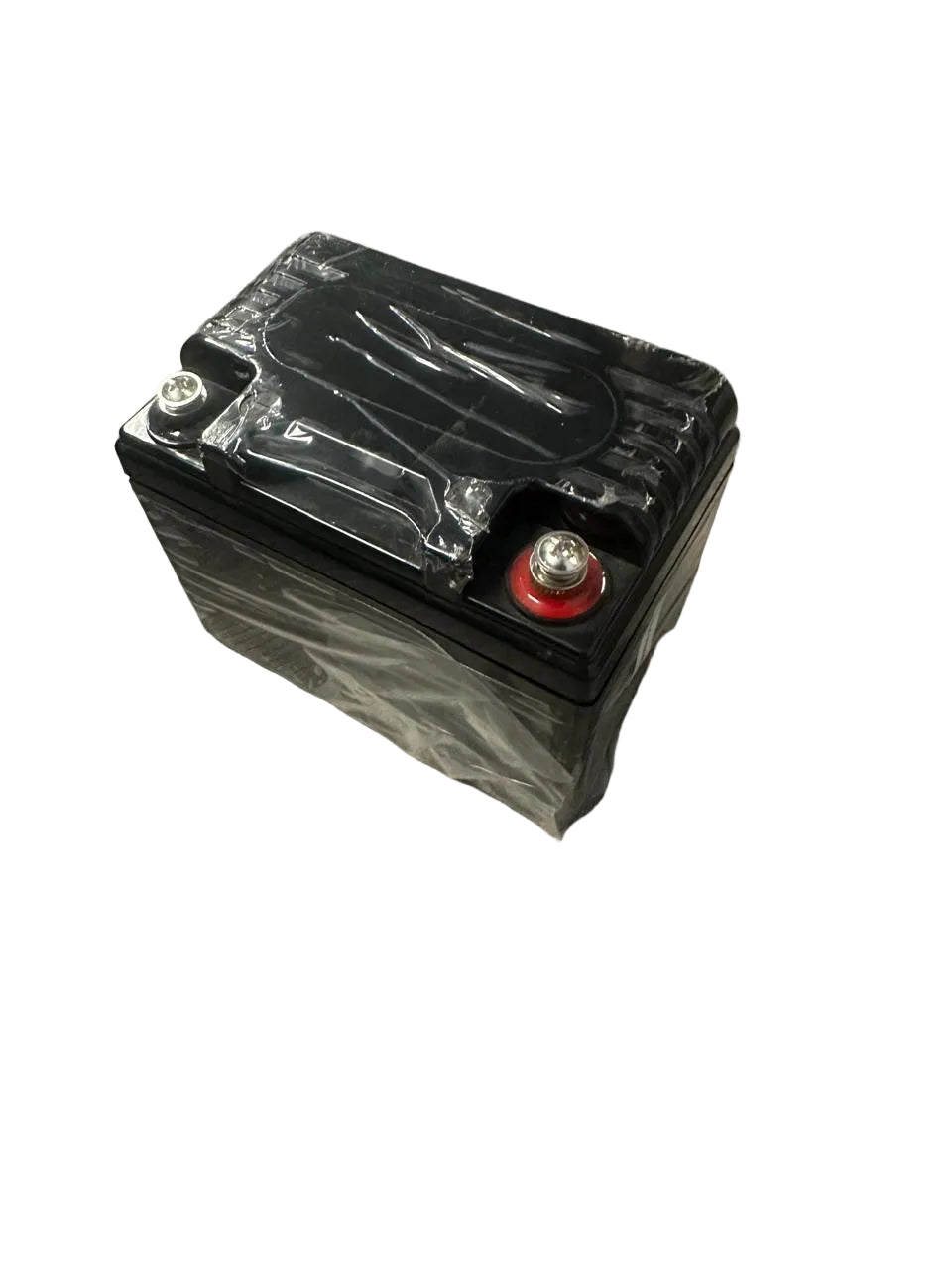

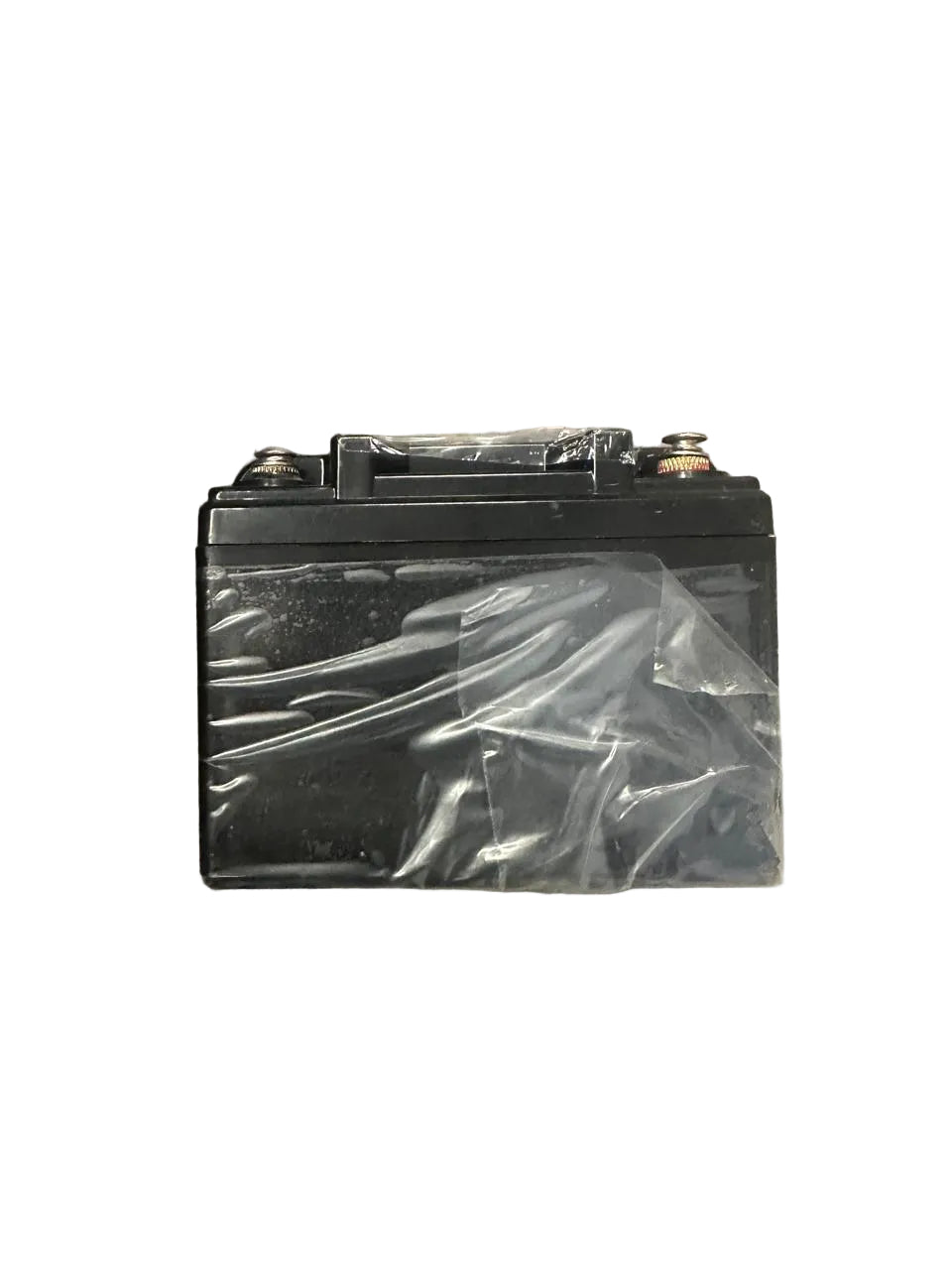

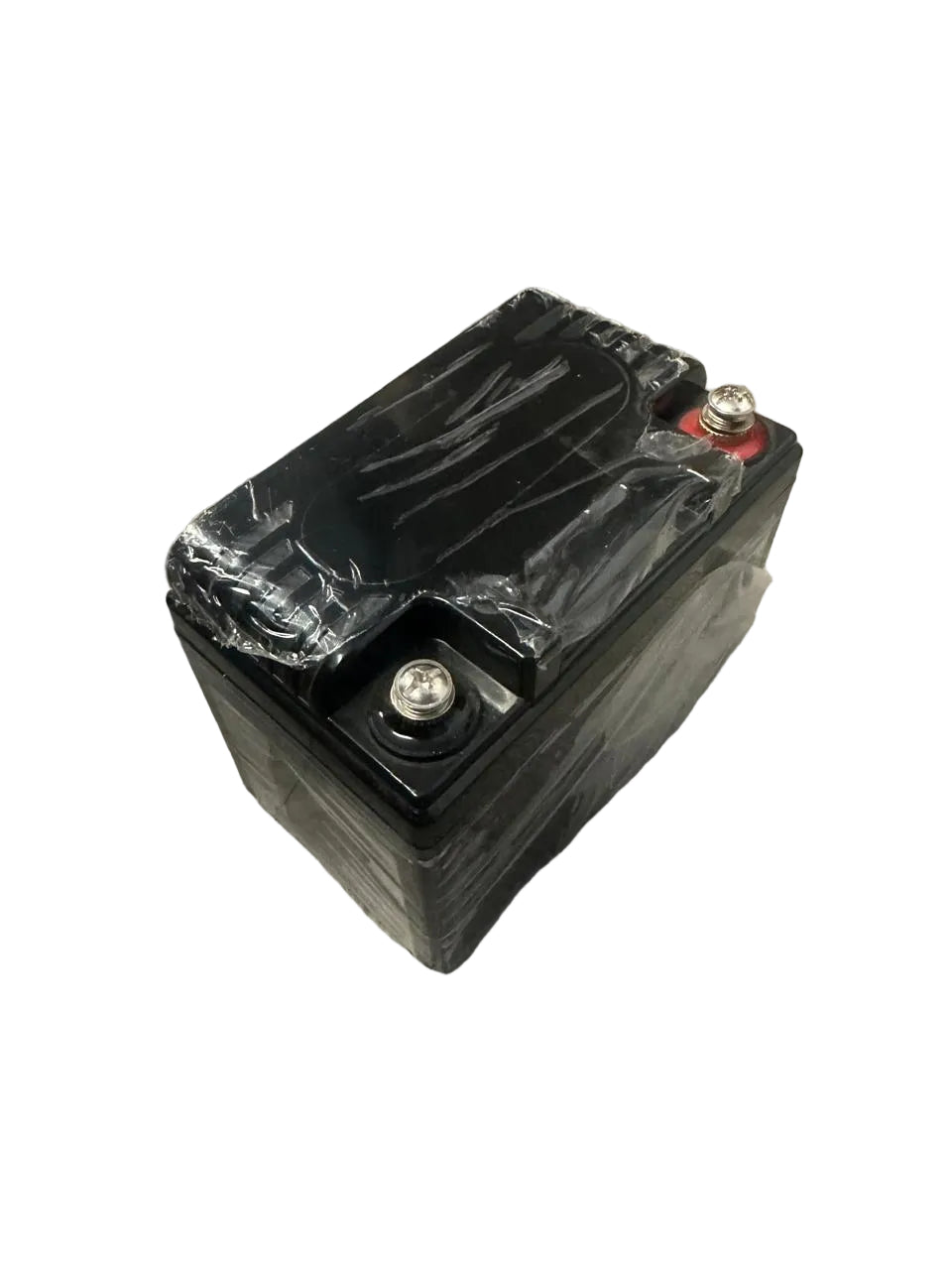

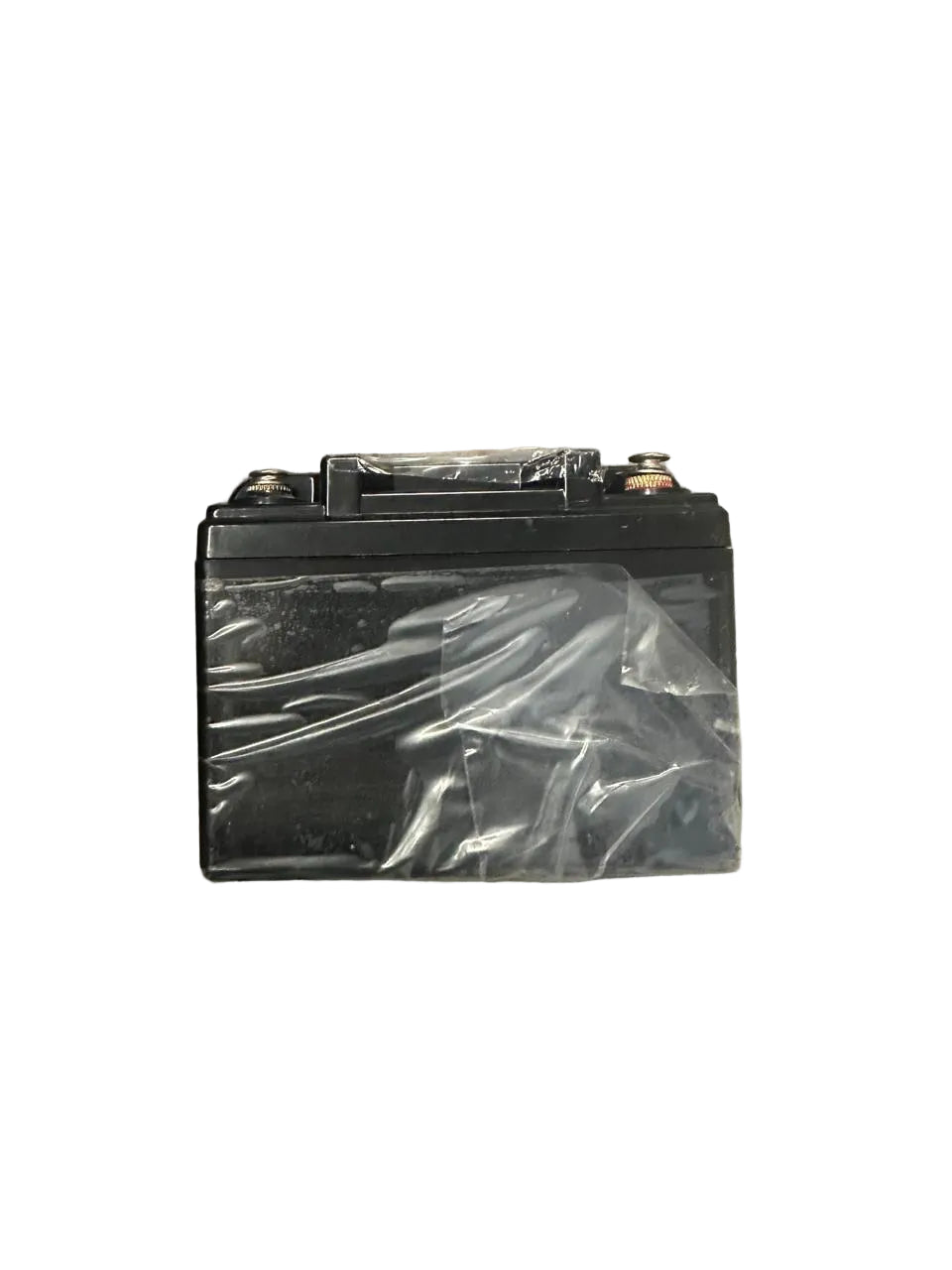

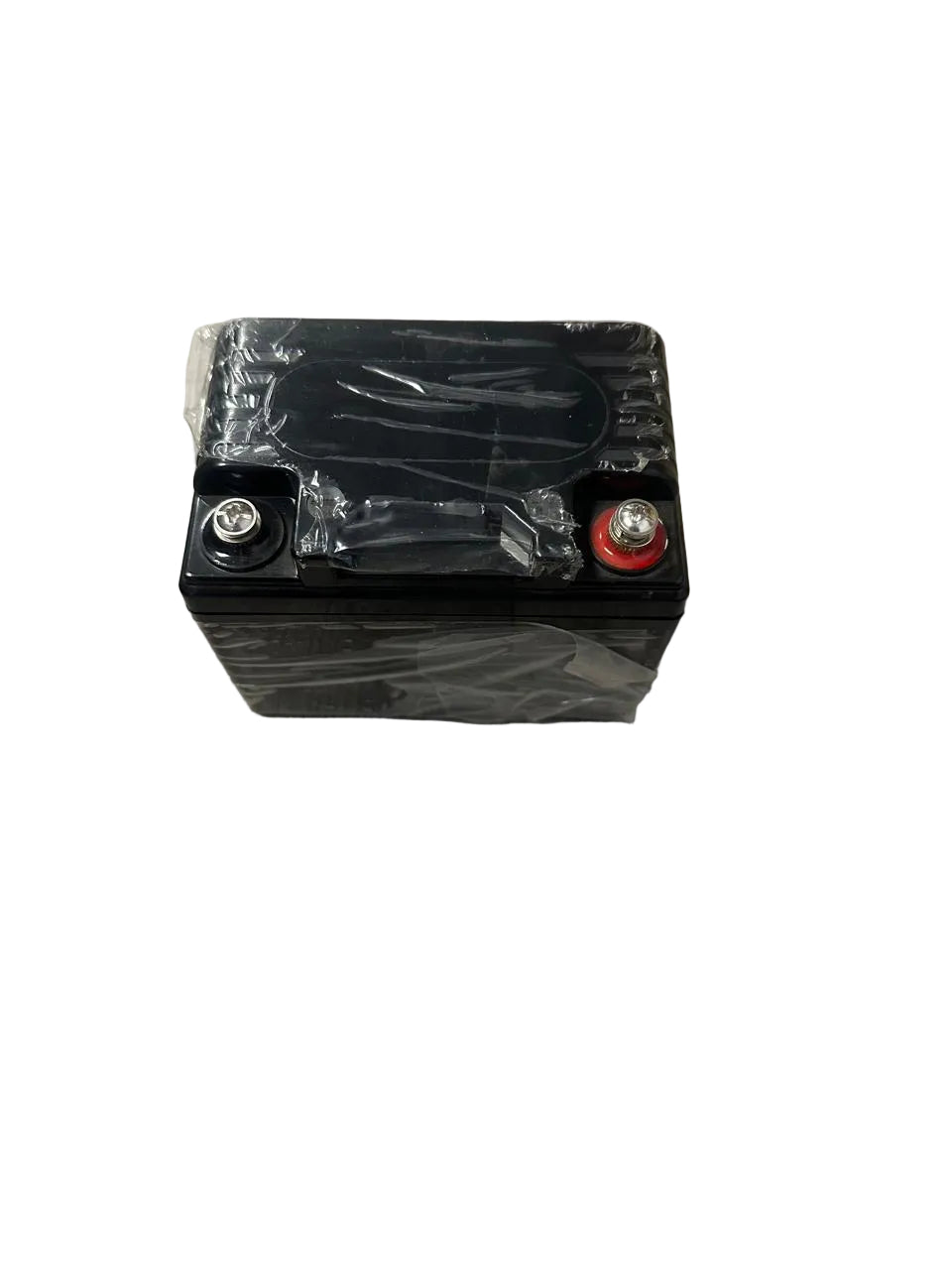

1 x 12.6V 6.6Ah Li-ion Battery
