12.6v 13.2Ah Rechargeable Li-ion Battery Pack UPS with 15Amp BMS (10005143)
PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!
Ideal for use with 12v powered devices like Routers, Fibre Boxes etc Simply plug the charger into the Lithium battery Pack/UPS, then plug the 12v devices and leave it.
Specifications:
Single cell overcharge protect voltage: 4.23 - 4.28V
Single Cell overcharge protect recover voltage: 4.08 - 4.18
Overcharge protect delay: 0.5 - 1.5S
Single Cell over-discharge protect voltage: 2.72 - 2.88V
Single Cell over-discharge protect recover voltage: 2.9 - 3.1V
Overcharge protect current: 15A
Over-discharge protect current: 15A
Over-discharge protect delay: 0.5 - 1.5S
Temperature protect: No
Shortage delay: 100 - 600μS
Max Charging current: 15A
Max Discharging current: 15A
Max Charging voltage : 12.6V for 3S BMS board
1 x 12v DC Charging input
2 x 12v DC Outputs
Note:
12v Male connecters are 5.5mm diameter
Nominal Voltage - 11.1v, fully Charged voltage - 12.6v
Dimensions: 130mm W x 70mm H x 60mm D
Weight: 1.2kg

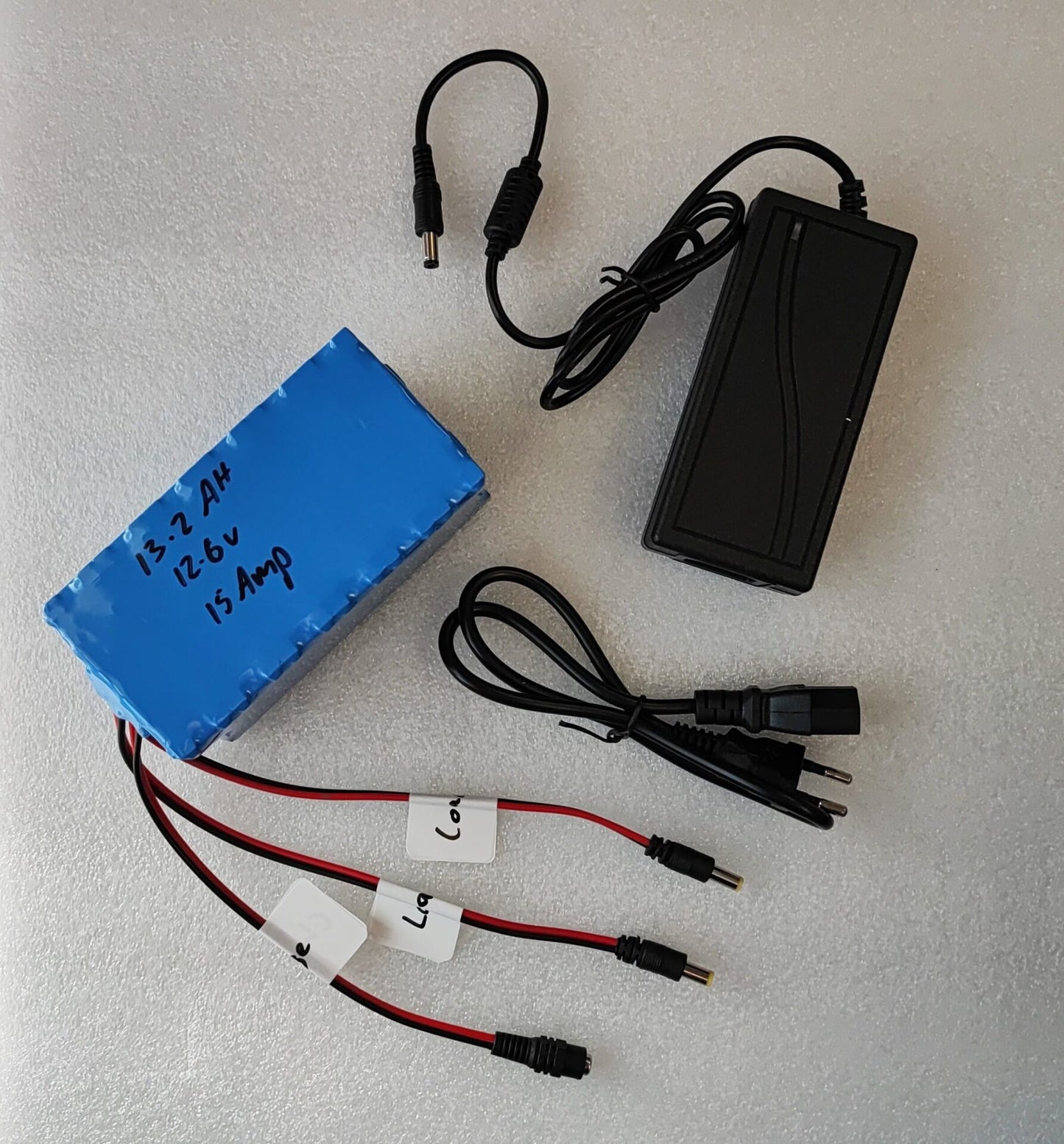

Package Contents:
1 x 12.6V Li-ion Lithium Battery Pack UPS
1x 12v Charger
