PowMr 6.2KW 48v 120Amp MPPT Pure Sine Hybrid Solar Inverter
PowMr 6.2KW Hybrid Solar Inverter MPPT 120A 500VDC PV 220VAC 48VDC Pure Sine with Support for WiFi (10005854)
Inverter Use Note:
The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
Introduction：
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time and output pure sine wave to convert DC into AC.
It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
Features:
- Pure sine wave inverter •Configurable input voltage range for home appliances and personal computers via LCD setting •Configurable battery charging current based on applications via LCD setting •Configurable AC/Solar Charger priority vía LCD setting •Compatible to mains voltage or generator power •Auto restart while AC is recovering • Overload/ Over temperature/ short circuit protection •Smart battery charger design for optimized battery performance •Cold start function
|
MODEL |
POW-HVM6.2M-48V |
|
|
Phase |
1-phase |
|
|
Maximum PV Input Power |
6200W |
|
|
Rated Output Power |
6200W |
|
|
Maximum Charging Power |
6200W |
|
|
GRID-TIE OPERATION |
||
|
PV Input(DC) |
|
|
|
Nominal DC Voltage/Maximum DC Voltage |
500VDC |
|
|
MPPT Voltage Range |
120VDC~450VDC |
|
|
GRID OUTPUT(AC) |
||
|
Nominal Output Voltage |
220/230VAC |
|
|
Output Voltage Range |
195.5-253VAC |
|
|
Nominal Output Current |
15.7A 26.1A |
|
|
Power Factor |
>0.9 |
|
|
EFFICIENCY |
||
|
Maximum Conversion Efficiency(DC/AC) |
97% |
|
|
AC INPUT |
||
|
AC Start-up Voltage/Anto Restart Voltage |
120-140VAC/180VAC |
|
|
Acceptable Input Voltage Range |
90-280VAC OR 170-280VAC |
|
|
PV Input(DC) |
||
|
Nominal DC Voltage |
500VDC |
|
|
MPPT Voltage Range |
120VDC-450VDC |
|
|
BATTERY MODE OUTPUT(AC) |
||
|
Nominal Output Voltage |
48VDC |
|
|
Output Waveform |
Pure sine wave |
|
|
Efficiency(DC to AC) |
94% |
|
|
GENERAL |
||
|
Dimension D *W *H |
420*310*120 |
|
|
Net Weight (kgs) |
11.5 |
|
|
INTERFACE |
||
|
Communication Port |
RS232/WIFI |
|
|
ENVIRONMENT |
||
|
Humidity |
0-90% |
|

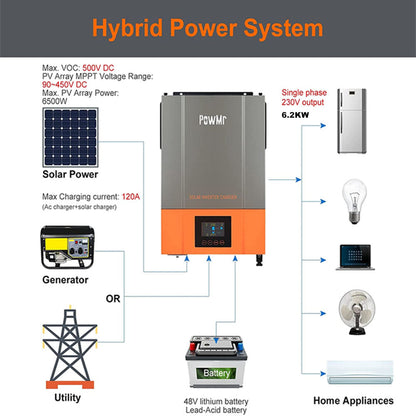

Basic System Architecture The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system: • Generator or Utility. • PV modules Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.
Warranty: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
