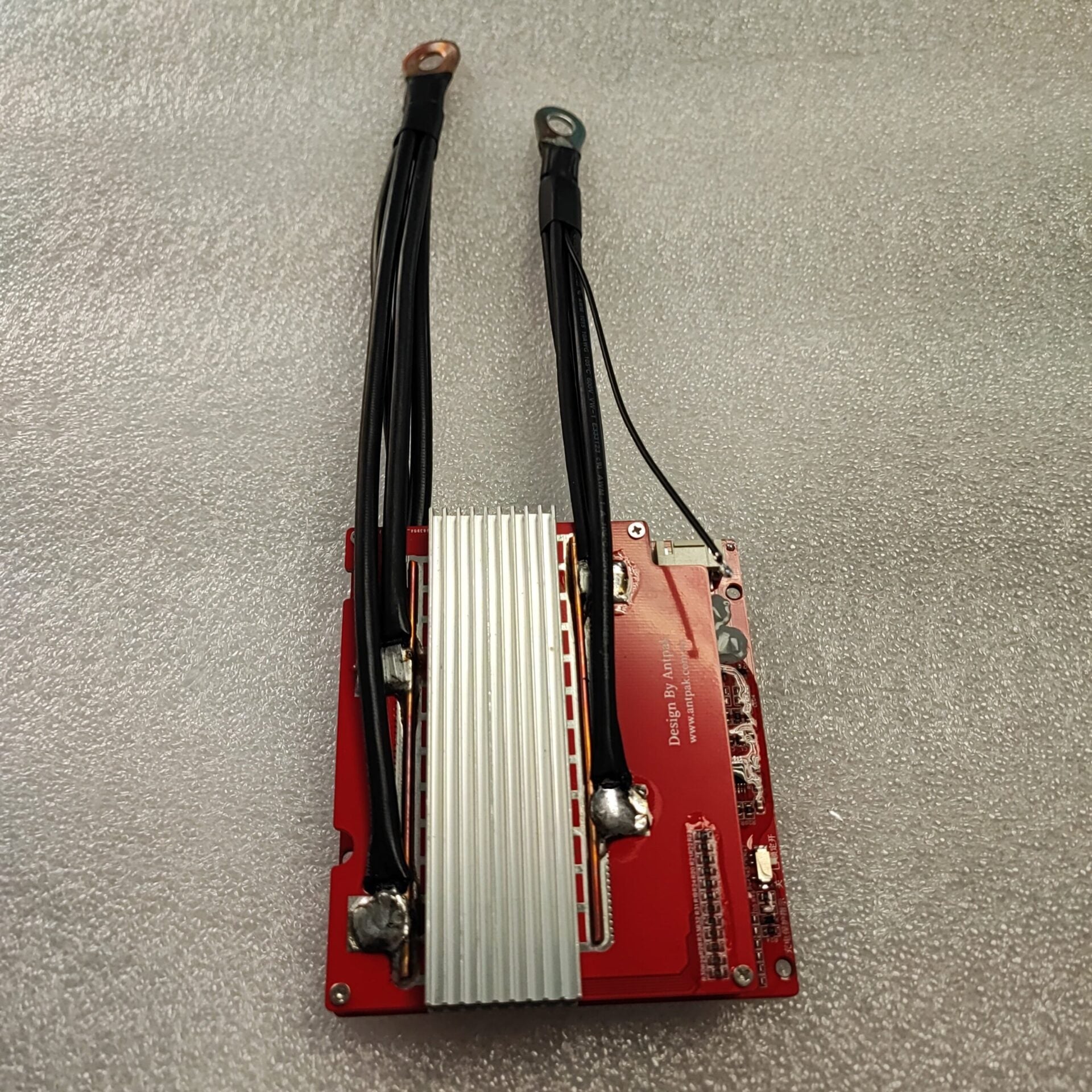

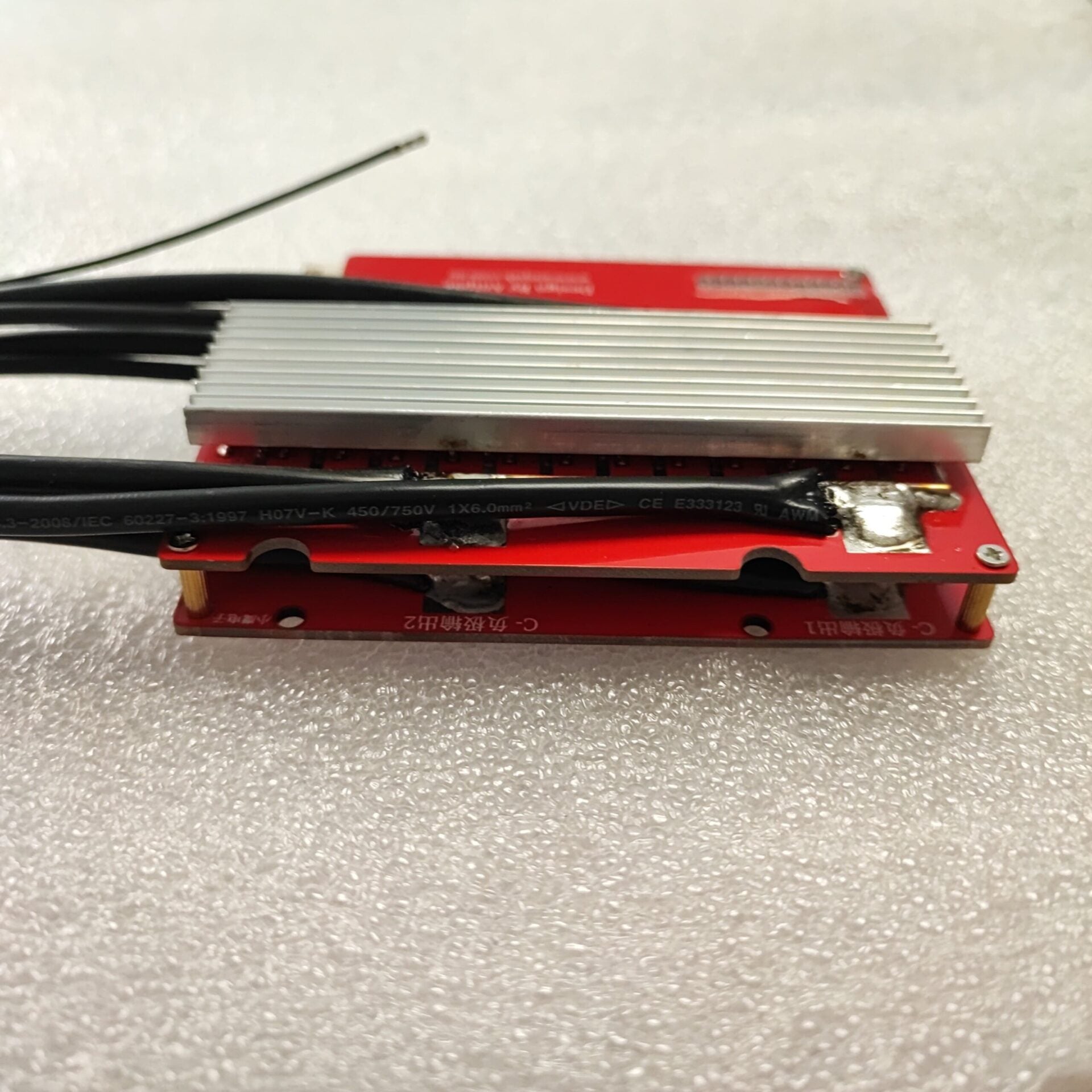

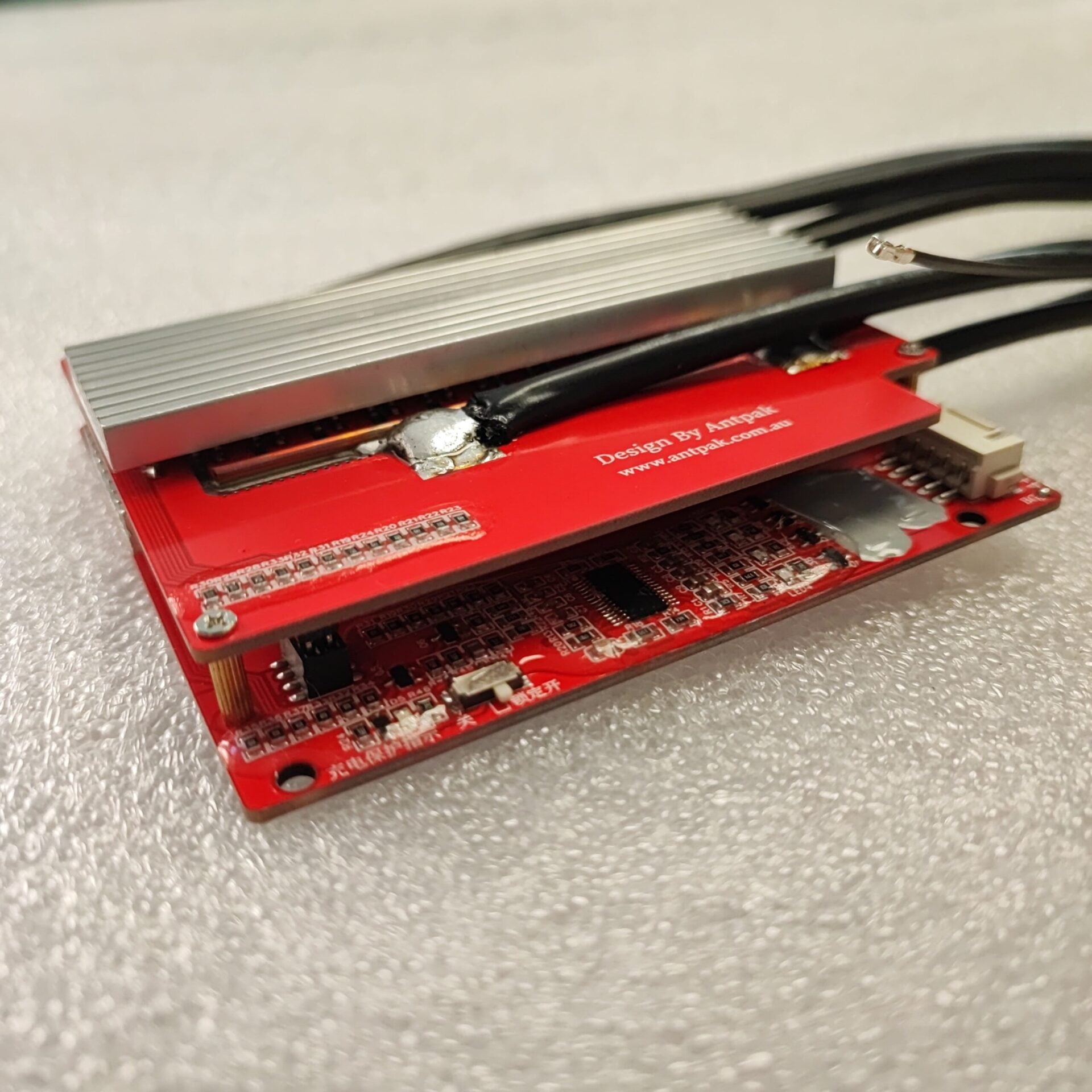

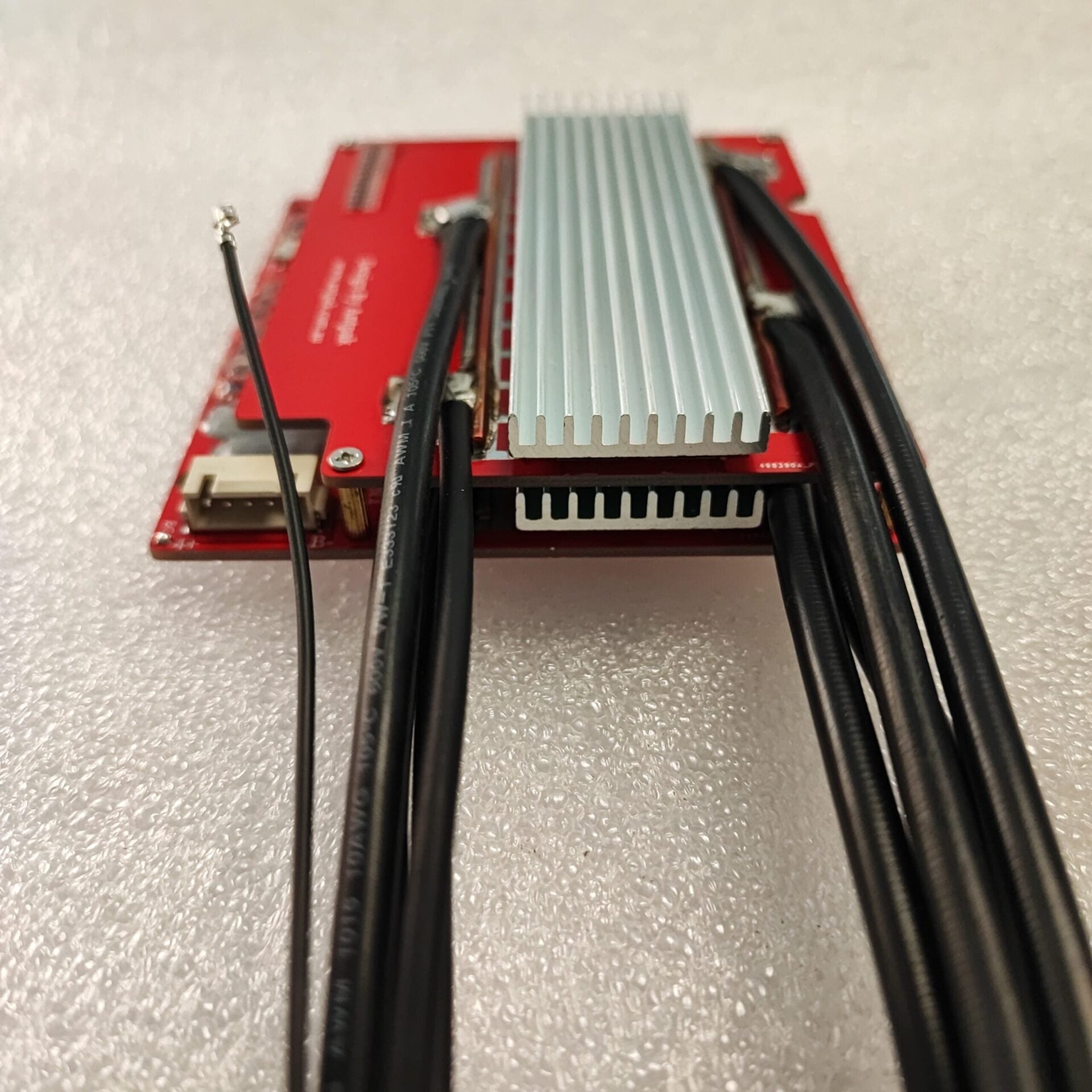

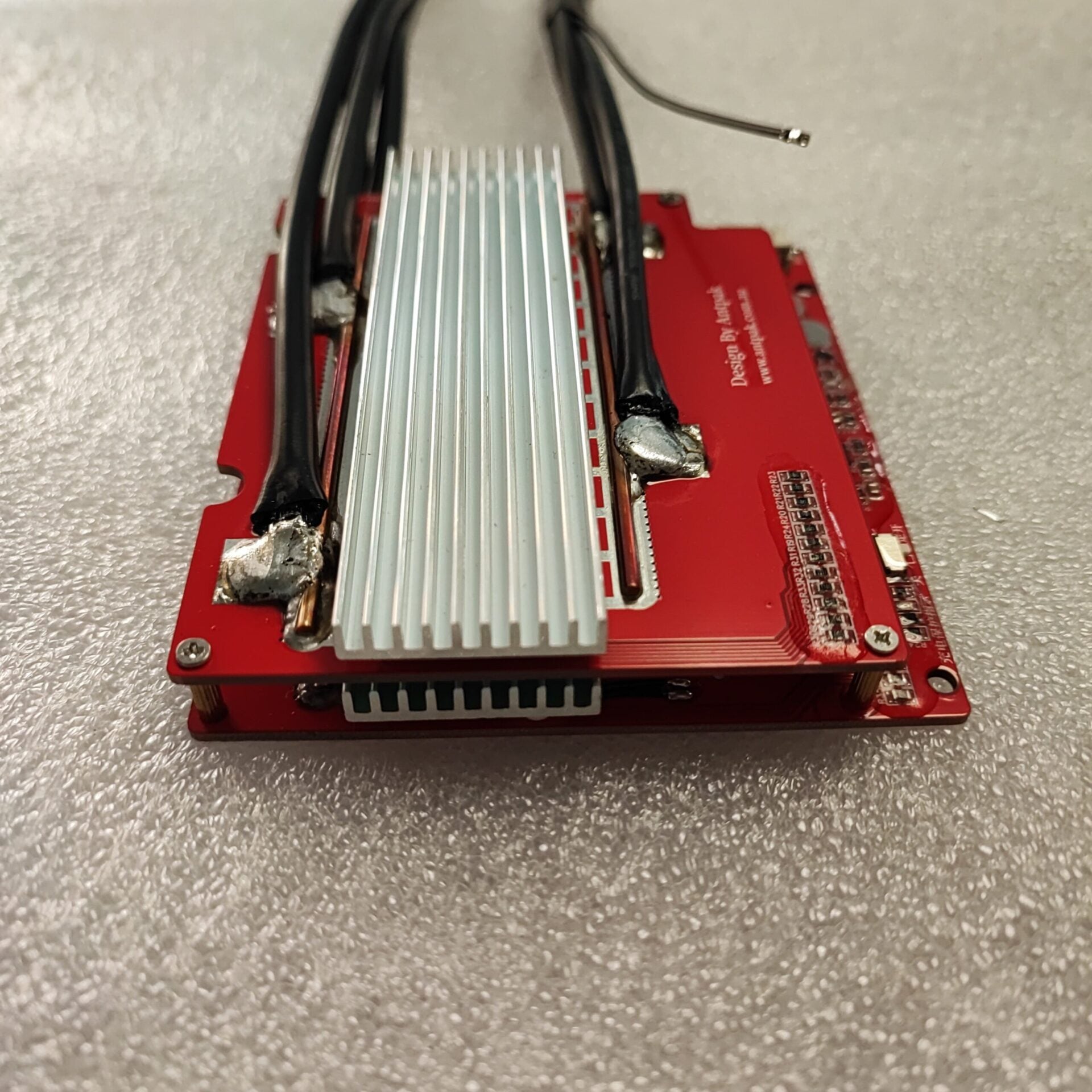

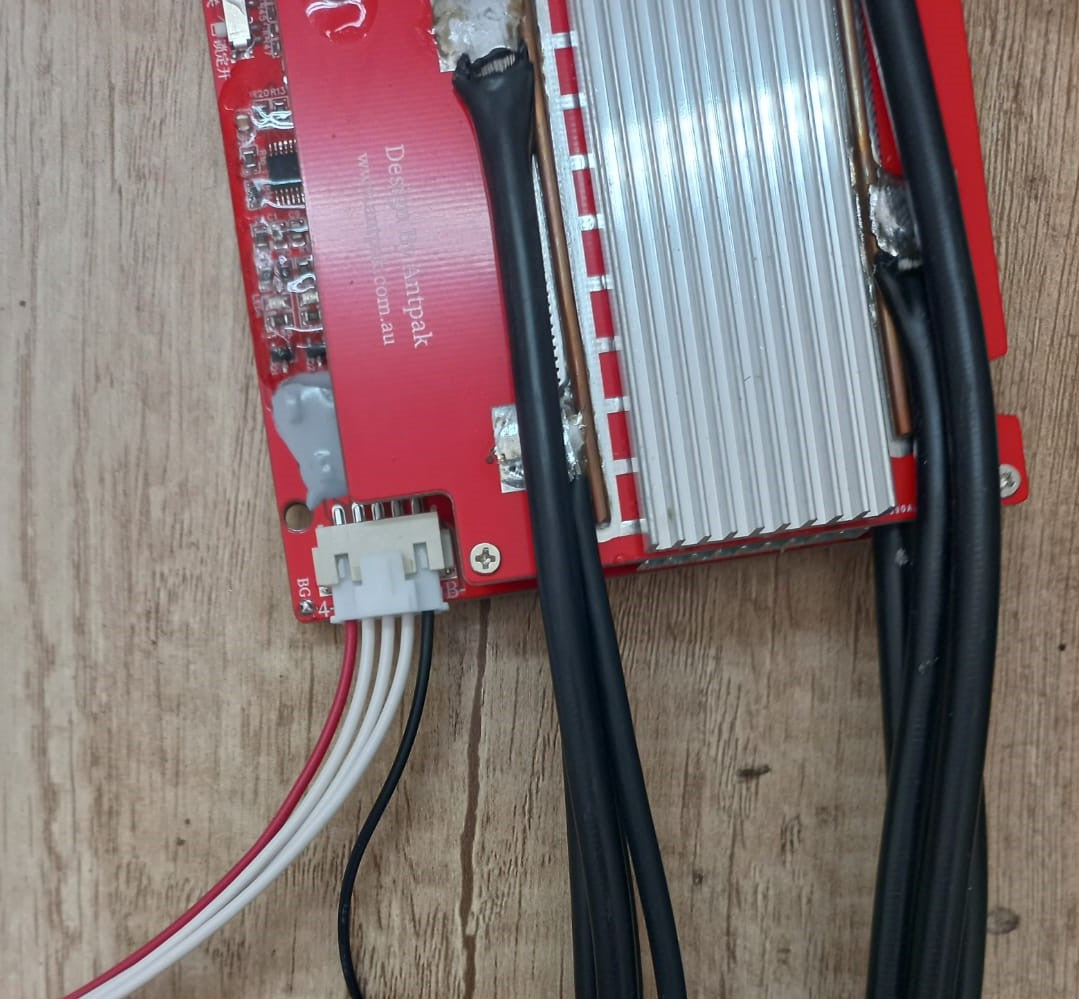

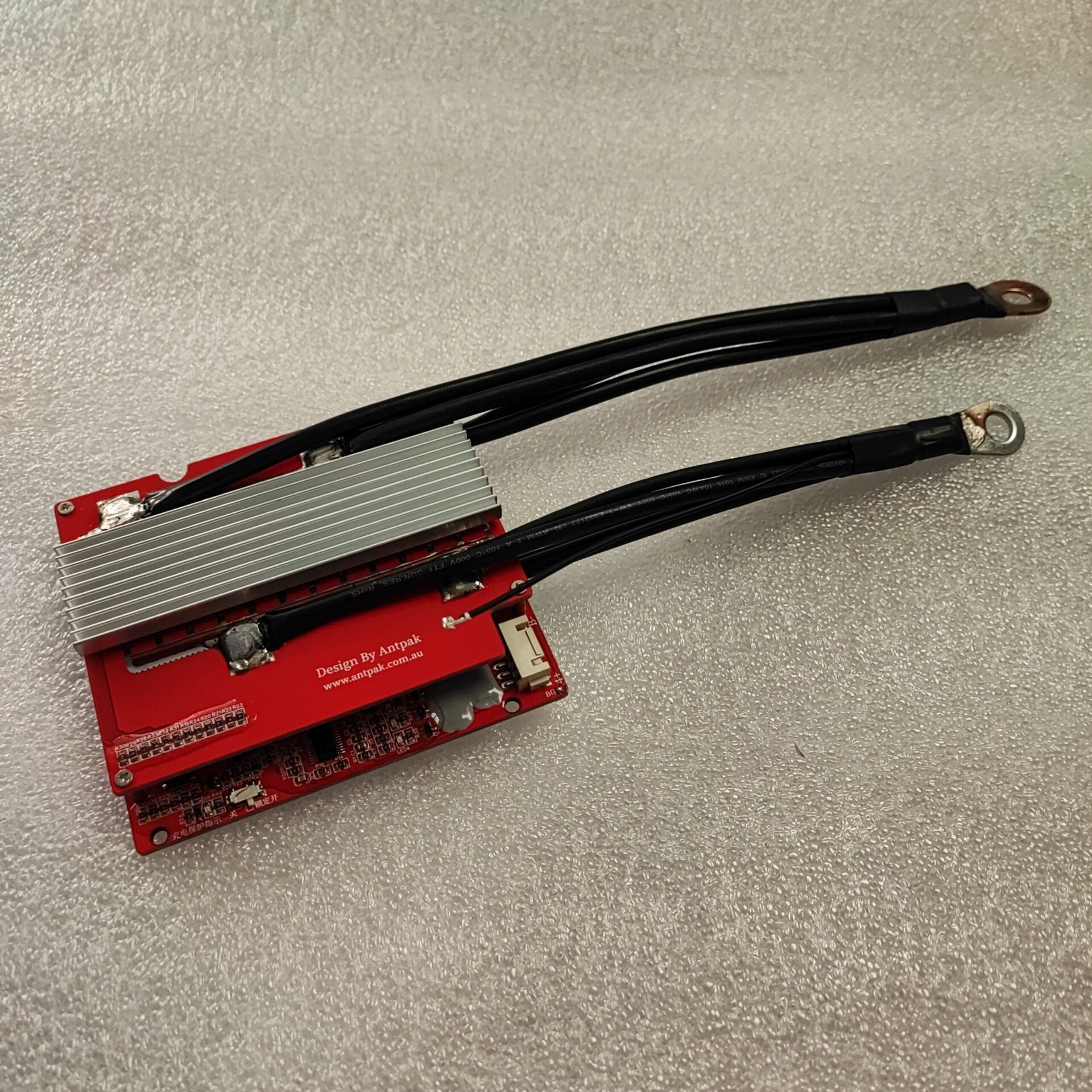

4S 12.8V LiFePo4 3.2V Battery 200A BMS Battery Protection Board

Name: 4S 12.8V LiFePo4 3.2V Battery 200A BMS Battery Protection Board
Brand: Electromann SA
SKU: 10005033
Price: 995.0 ZAR
Availability: InStock

4S 12.8V LiFePo4 200Amp 3.2V Battery Power Protection Board Equalization Function, Overcurrent Protection, BMS (10005033)

Ideal for use in a Car battery

Description:

Range: nominal voltage is 3.2V lithium battery (including 18650, 26650, polymer battery).

Function: Overcharge protection function, over discharge protection function, over current protection function, short circuit protection function, battery balance management function

Charging

Charge current: Same as continuous current

Charging voltage：12.8V (Nominal)

Over charge protection

Overcharge detection voltage：3.7V±0.05V

Overcharge release voltage：3.6V±0.05V

Overcharge protection delay：600uS

Over discharge protection

Over discharge protection voltage: 2.2V ± 0.1V

Over discharge release voltage：2.5V±0.1V

Over discharge detect delay：600uS

Discharge protection

Instantaneous current: continuous current * 2.5

Overcurrent detection delay：600uS

Over discharge detect voltage：100mV

Overcurrent protection release condition: Disconnect load

Short circuit protection

Short circuit protection condition: External load short circuit

Short circuit detection delay：600uS

Short circuit protection release condition: Disconnect load

Working Temp

temperature range：-20℃/+80℃

Package Contents:

1 x 4S 12.8V LiFe Po4 Battery 3.2V Power Protection Board 200A
