3S 40A 12.6v Li-ion Lithium Battery Charger Protection Board

Name: 3S 40A 12.6v Li-ion Lithium Battery Charger Protection Board
Brand: Nemoah
SKU: 10003766
Price: 85.0 ZAR
Availability: InStock

3S 40A Li-ion Lithium Battery Charger Protection Board 12.6V (10003766)

Description:

Suitable for starting current below 80A, power 135W below the drill. 3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery)

Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)

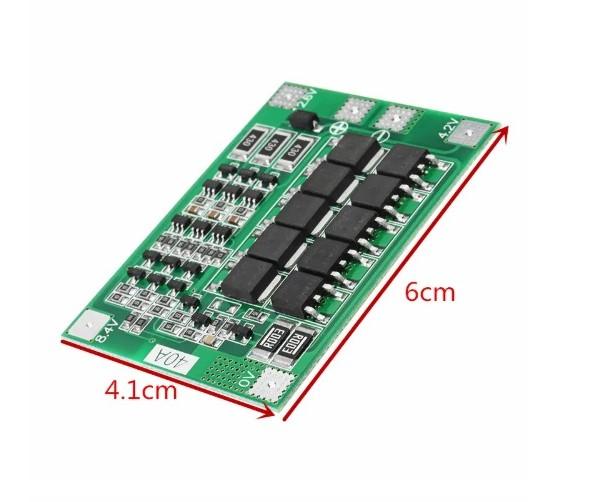

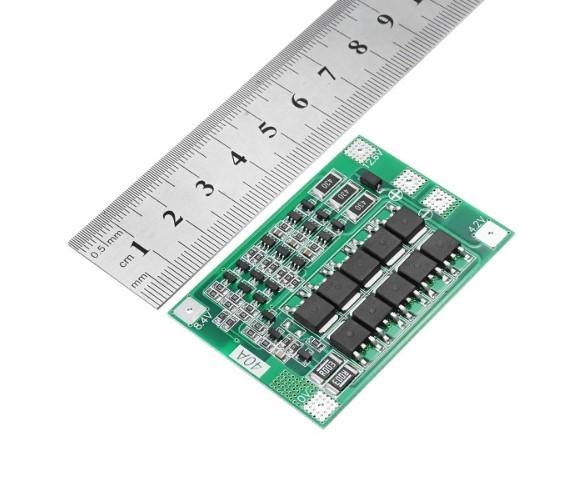

Product Size: 41 * 60 * 3.4mm

Product weight: 9.8g

Charging voltage: 12.6V - 13.6V

Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)

Continuous charge current (upper limit): 20A

Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 cannot start the drill!!).

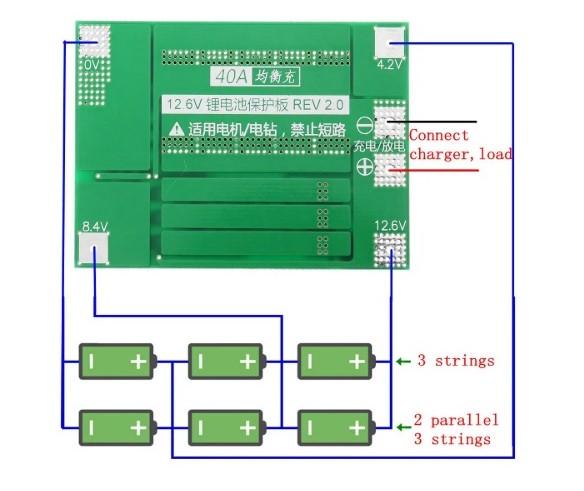

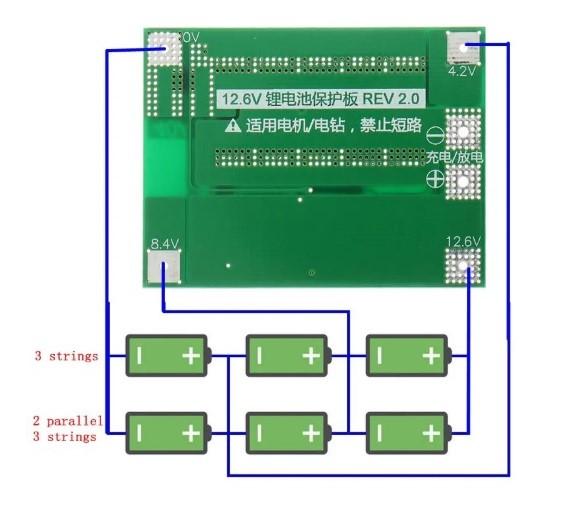

Note 2: Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.

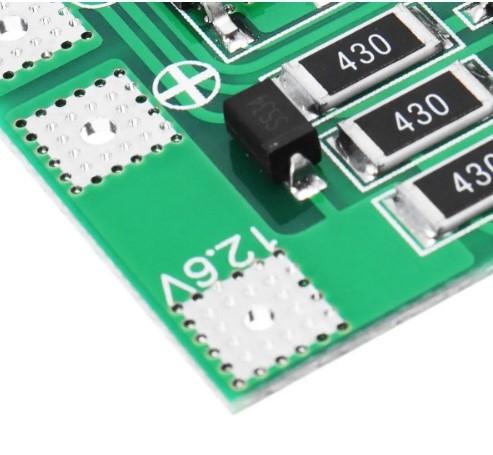

Note 3: When soldering the battery for the first time or while charging, as long as the single battery exceeds 4.2V, the "430" resistor will heat up and discharge (discharge to about 4.19V to stop heating). If the "430" resistor is severely hot, check if the wrong line is connected.

	12	18	24
4.2	4.25	4.3
										4.1	4.15	4.2
2.4	2.5	2.6
2.8	3	3.2		3.2	3.5	3.8	2.9	3.2	3.3
2.5	3	3.5
70	80	90
100	150	200
0	40	40		0	504	504	-40	25	85

Package contents:

1 x Battery Protection Board
