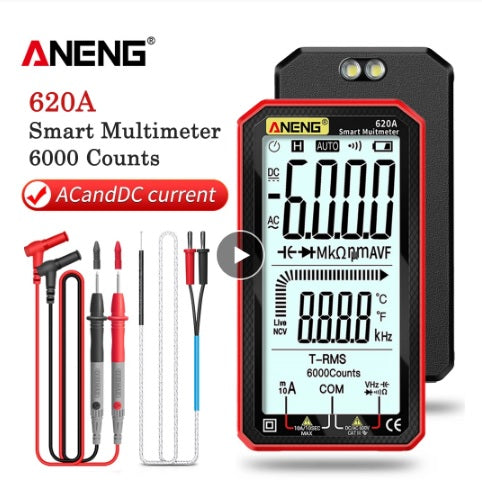

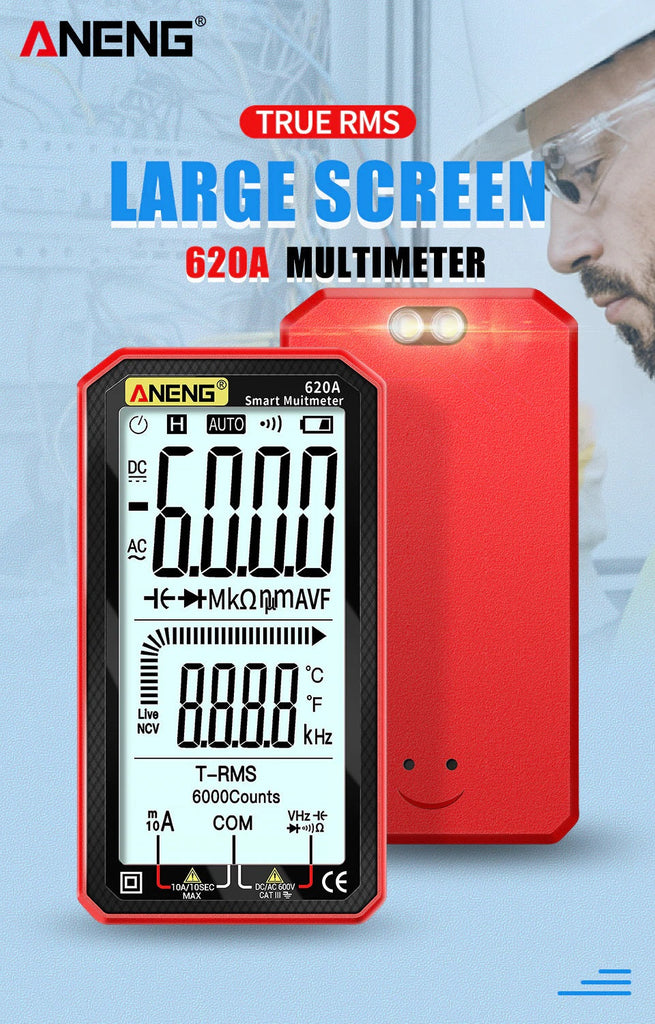

ANENG 620A Digital Smart Multimeter and Transistor Tester
Regular price
R 850.00

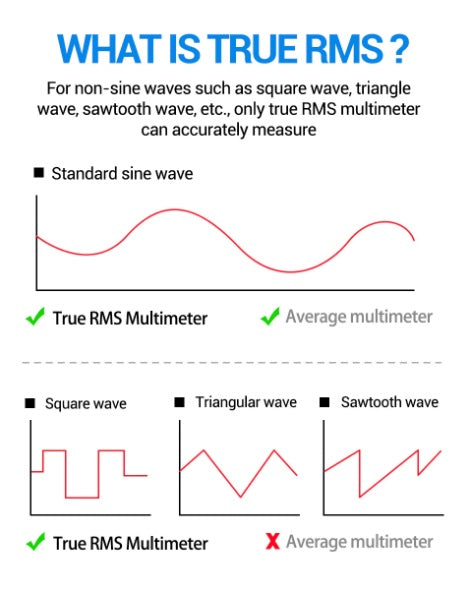

ANENG 620A Digital Smart Multimeter Transistor Testers 6000 Counts True RMS Auto Electrical Capacitance Meter Temp Resistance (10005138)

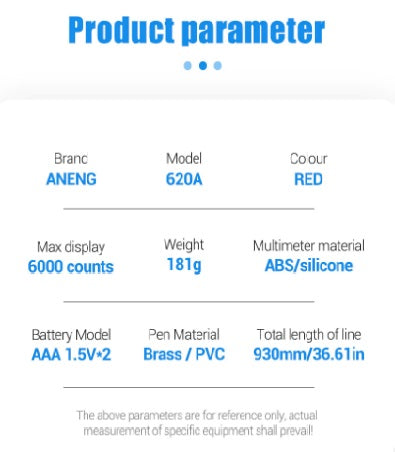

Overview: Display: LCD Max. display value:6000 digit Automatic shut down time:15 minutes power supply: 2*1.5V AAA Battery (Without) The instrument specifies one year as a cycle, and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.
Specification:
| Function | Range | Accuracy |

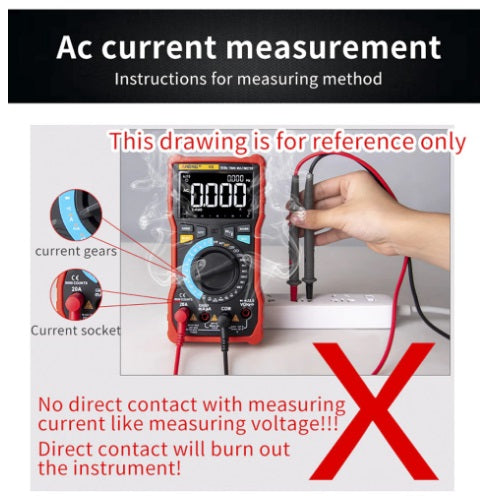

| AC Current | 6000mA/10A | +-(1.0%reading+8 digits) |
| DC Current | 6000mA/10A | +-(1.0%reading+5 digits) |

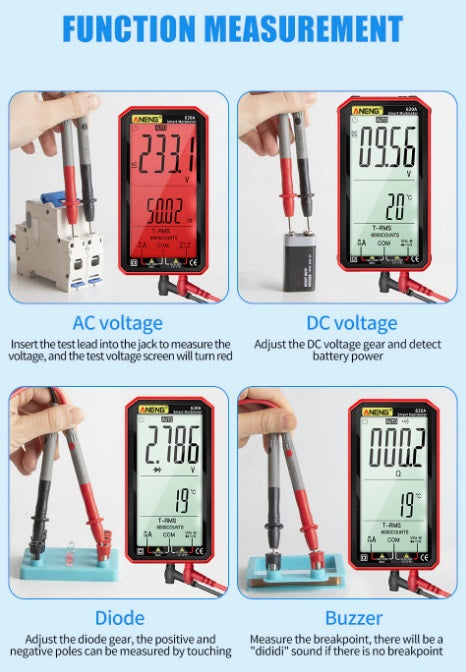

| DC Voltage | 6V/60V/600V | +-(0.5%reading+3 digits) |
| AC Voltage | 6V/60V/600V | +-(0.8%reading+5 digits) |
| Line on-off Test | -- | 1Ω |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | +-(0.8%reading+3 digits) |
| Diode Test | -- | 1V |
| Capacitor | 6nF | +-(10%reading+40 digits) |
| 60nF/6uF/60uF/600uF/6mF/60mF | +-(2.5%reading+20 digits) | |
| Temperature | -40~1000℃ | +-(1%reading+3℃) |
| -40~1832℉ | +-(1%reading+3℉) | |
| Frequency | 100Hz/1000Hz | +-(1.0%reading+5 digits) |
| 100Hz/1000Hz | +-(1.0%reading+5 digits) |
Package Contents: 1x Multimter 1x Set of Leads
