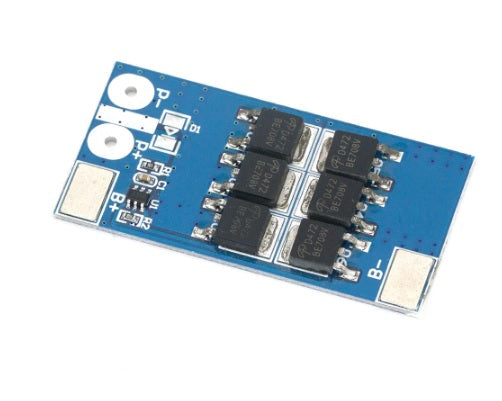

1S 3.2V 25A lifepo4 Lithium Phosphate Battery Protection Board

1S 3.2V 25A lifepo4 Lithium Phosphate Battery Protection Board, 1 Cell 3.6V overcharge over-discharge protection module (10005163)

Parameters:

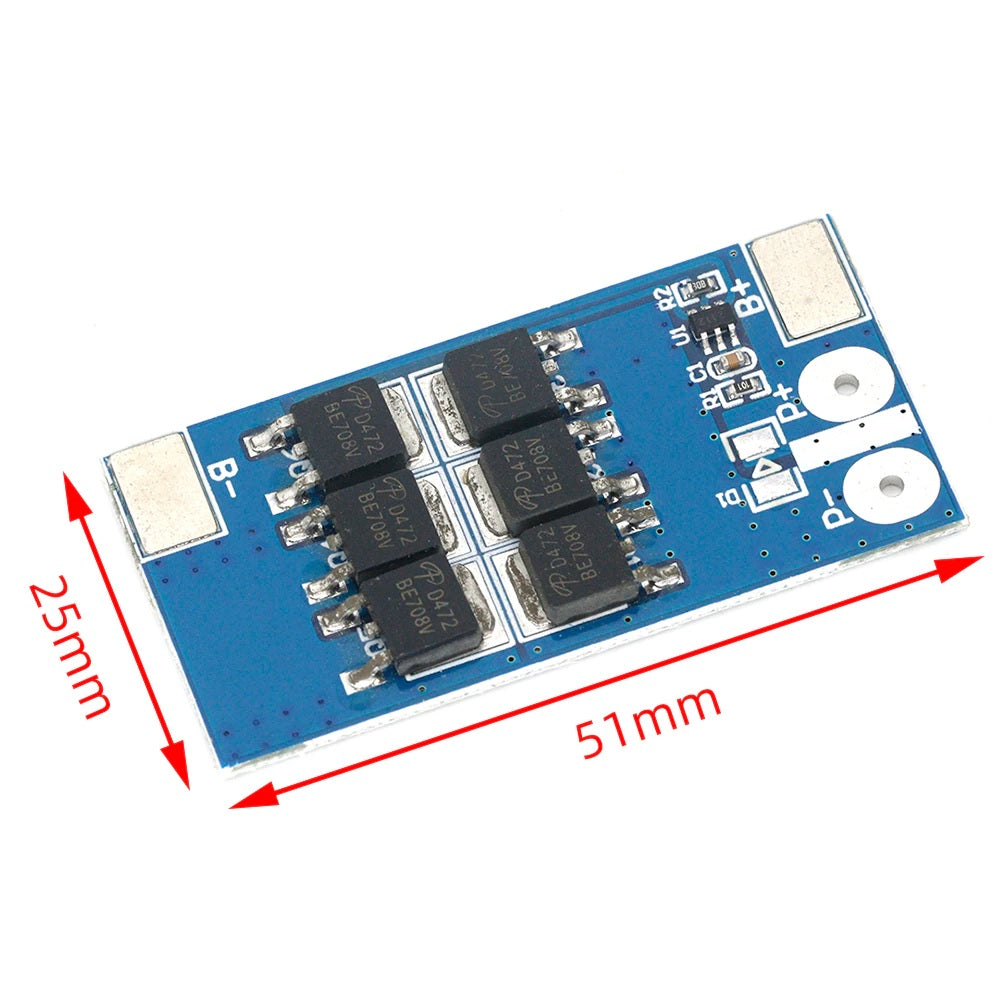

Overcharge detection voltage: 3.75V±0.25V Overcharge release voltage: 3.45V±0.25V Over-discharge detection voltage: 2.1±0.05V Upper limit continuous current: 24A Over-current detection current: 42A Charging voltage: 3.7-3.9V Product Size: 51*25MM The main function: Overcharge protection, over discharge protection, short circuit protection, over current protection.

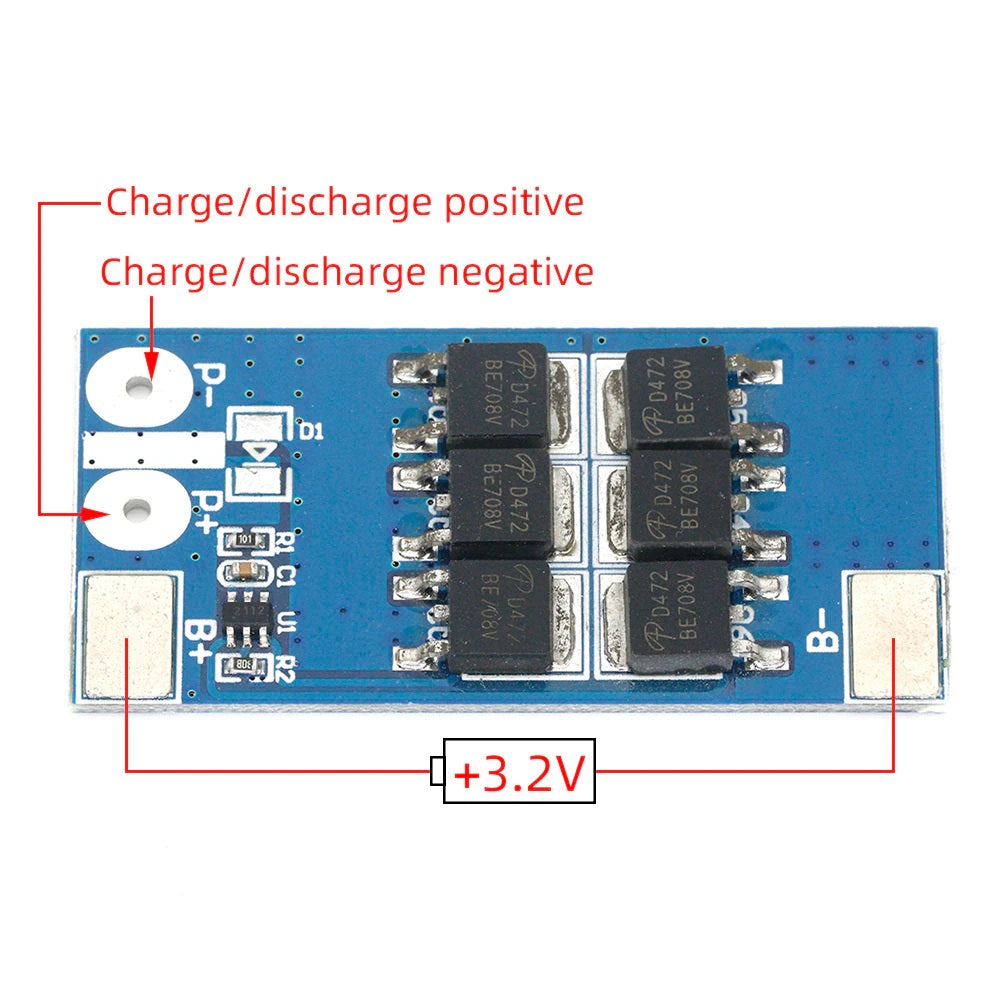

Wiring instructions:

B+ connects to the positive battery. B-Connect the battery negative. P+ is the battery output positive input P- is the output negative input for the battery pack
