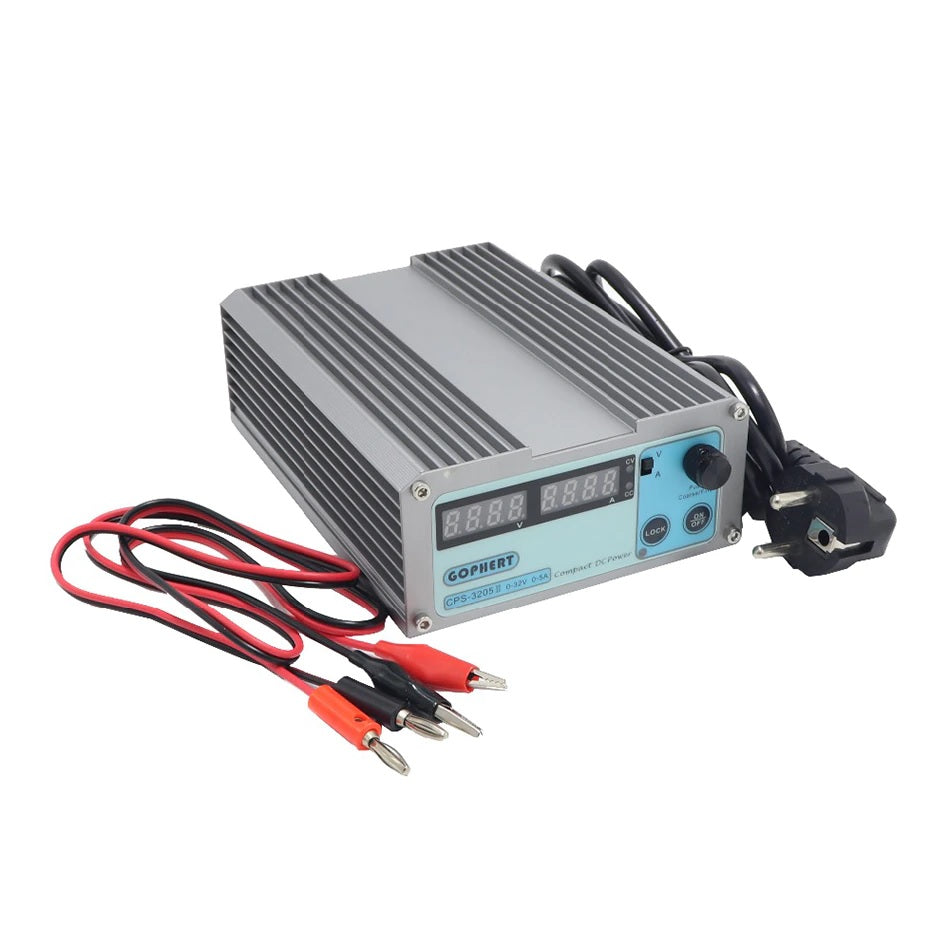

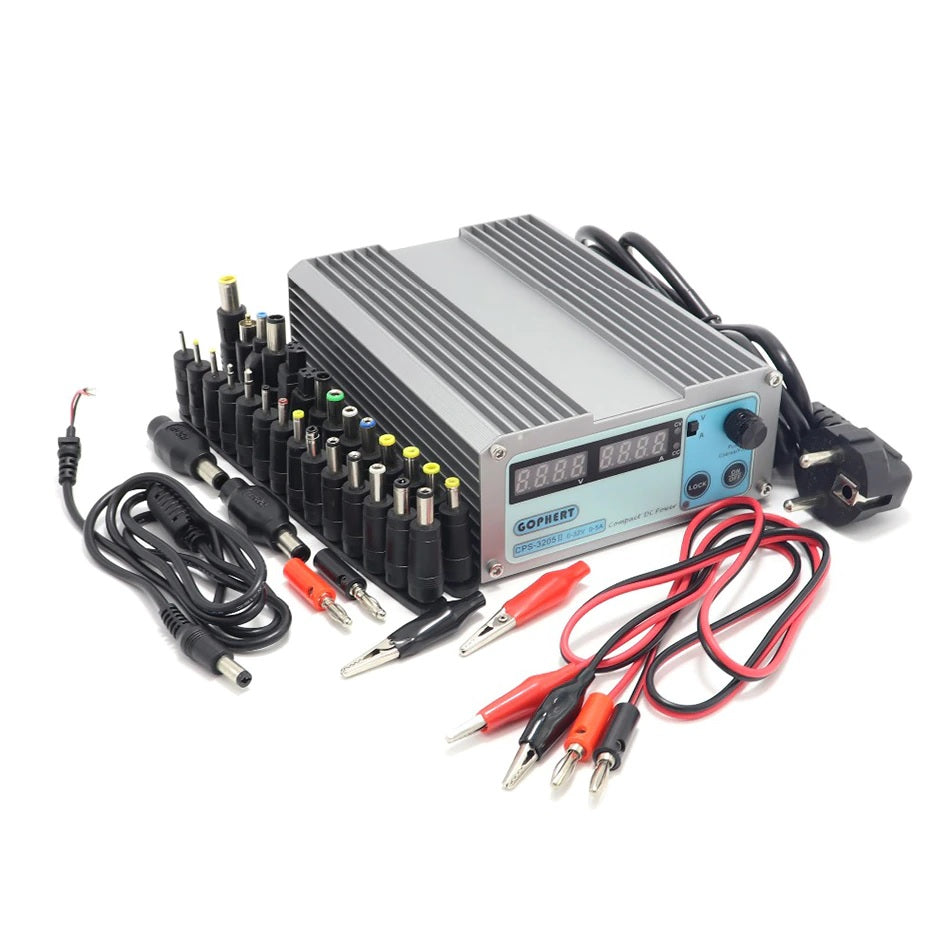

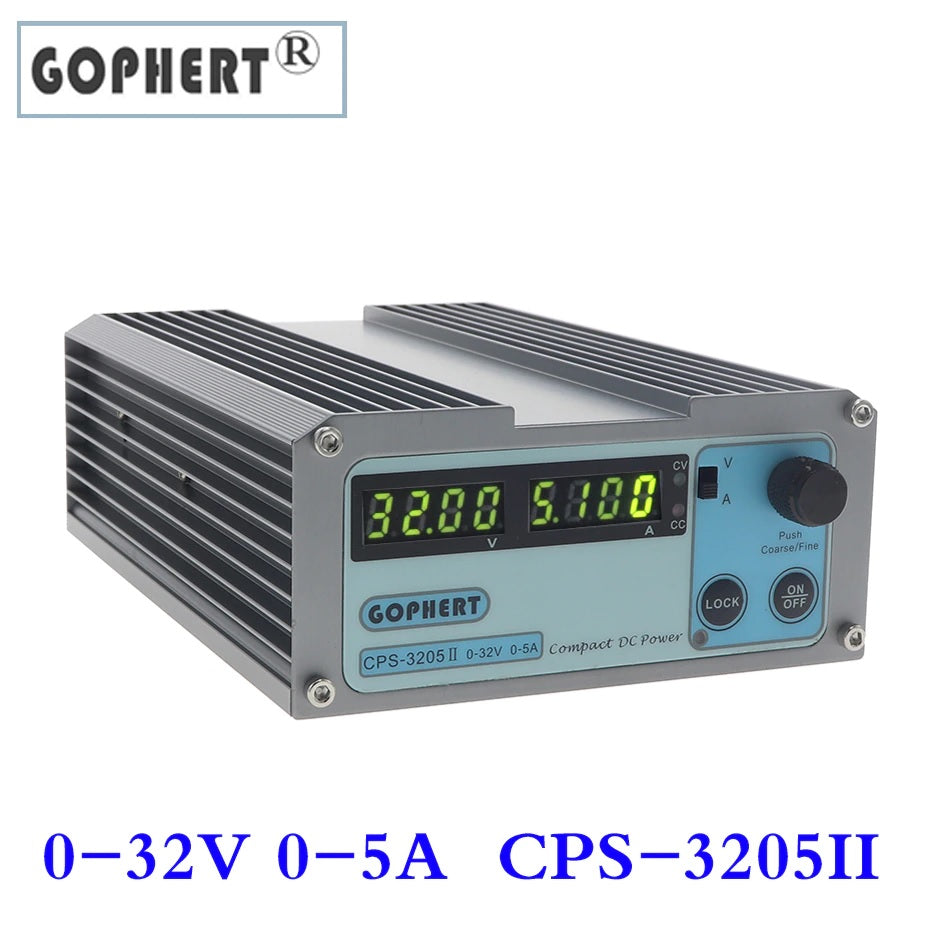

Ankang Gophert CPS-3205II Single Output 0-32V 0-5A 160W adjustable DC Switching Power Supply (10004573)
Features of the new version of CPS-3205II

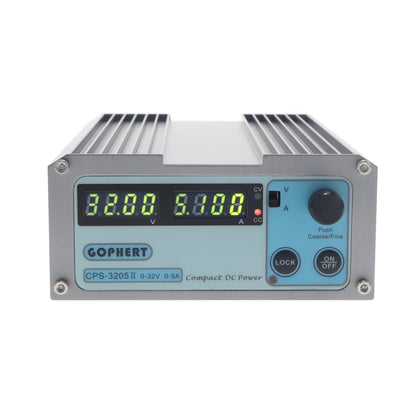

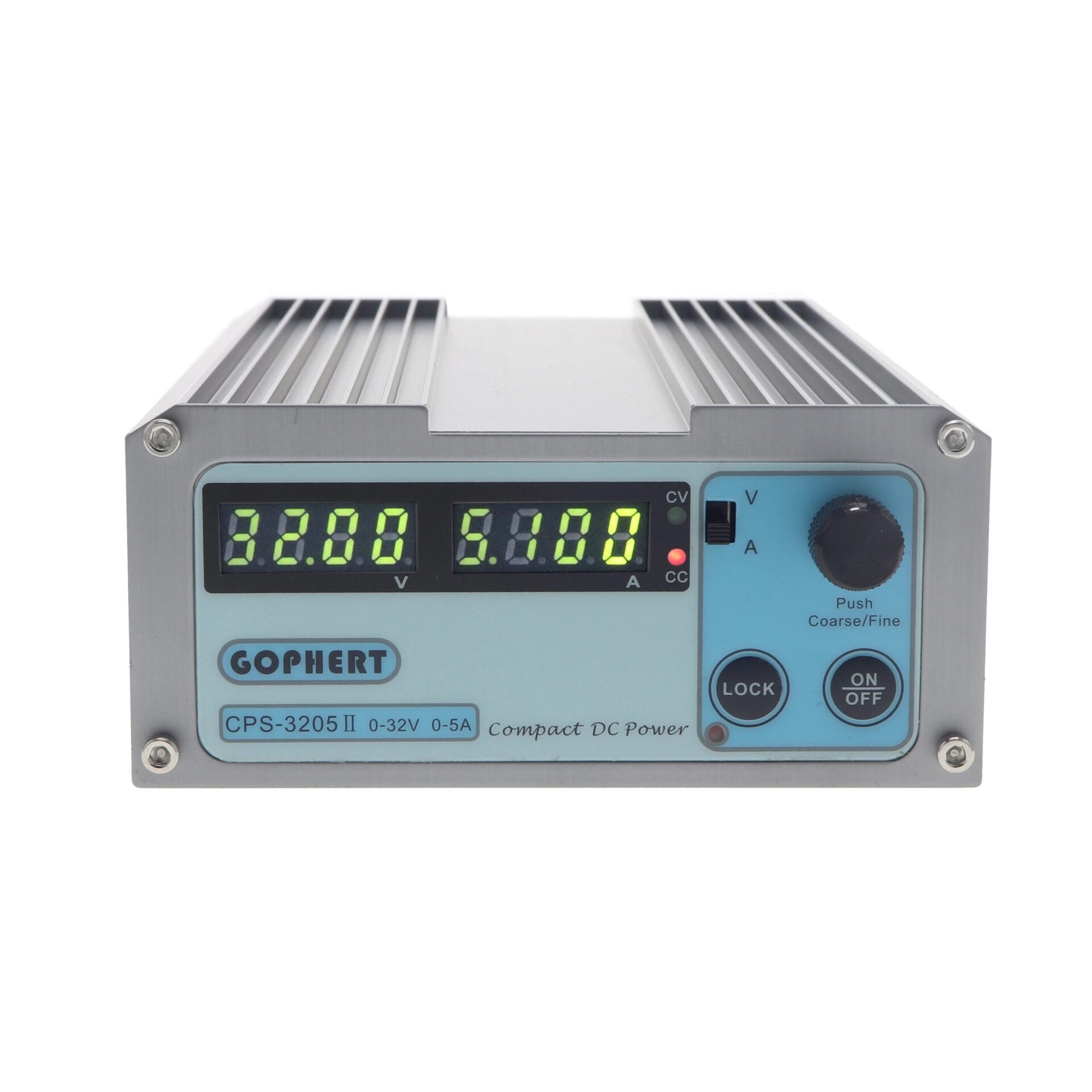

Voltmeter, ammeter four green digital tube display. Precision ammeter display, resolution 1mA, accuracy 0.1%+4digits. The peak value of ripple and noise is less than 10mV, which is comparable to that of linear power supply. Constant voltage C.V mode and constant current C.C mode have no overshoot output. Efficiency is greater than 87%. Intelligent protection: output short circuit protection, tracking overvoltage protection, track over current protection, over temperature protection. Reflow process using SMT components to reduce false welding and welding of internal components damage, better reliability. Voltage: 0-32V Current: 0-5A Power: 160W
Features:

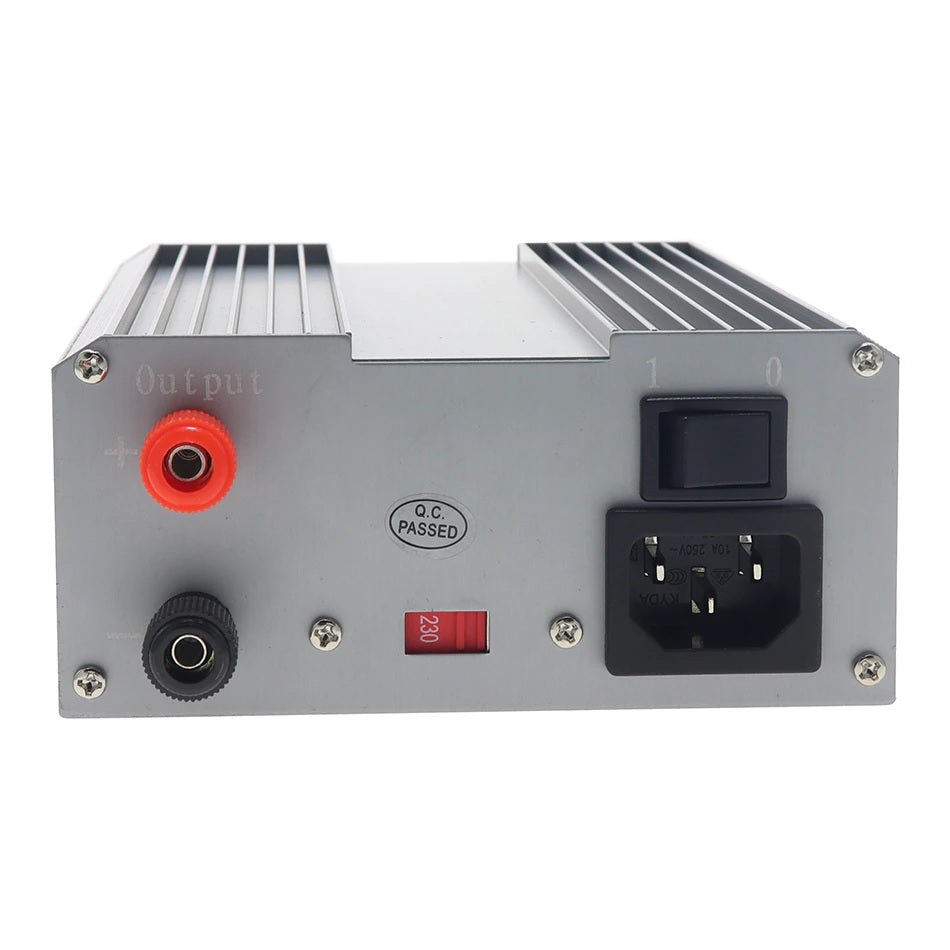

Microprocessor (MCU) control, high cost performance High power density, compact appearance Aluminum enclosure, very low EMI The encoder is used to adjust the voltage and current Four bit digital voltmeter and three bit digital ammeter, set and display accurate to decimal place after the two bit When the working current is lower than 1A, the ammeter automatically displays Ma High efficiency, efficiency as high as 88% Low ripple noise, ripple peak value less than 30mV Output ON/OFF switch Input voltage 220VAC/110VAC switch Lock button, the output switch button and adjust knob lock, prevent accidental changes Intelligent protection: output short circuit protection, tracking type overvoltage protection (Tracking OVP), tracking type overcurrent protection (Tracking OCP), over temperature protection (OTP)
Specification parameter:

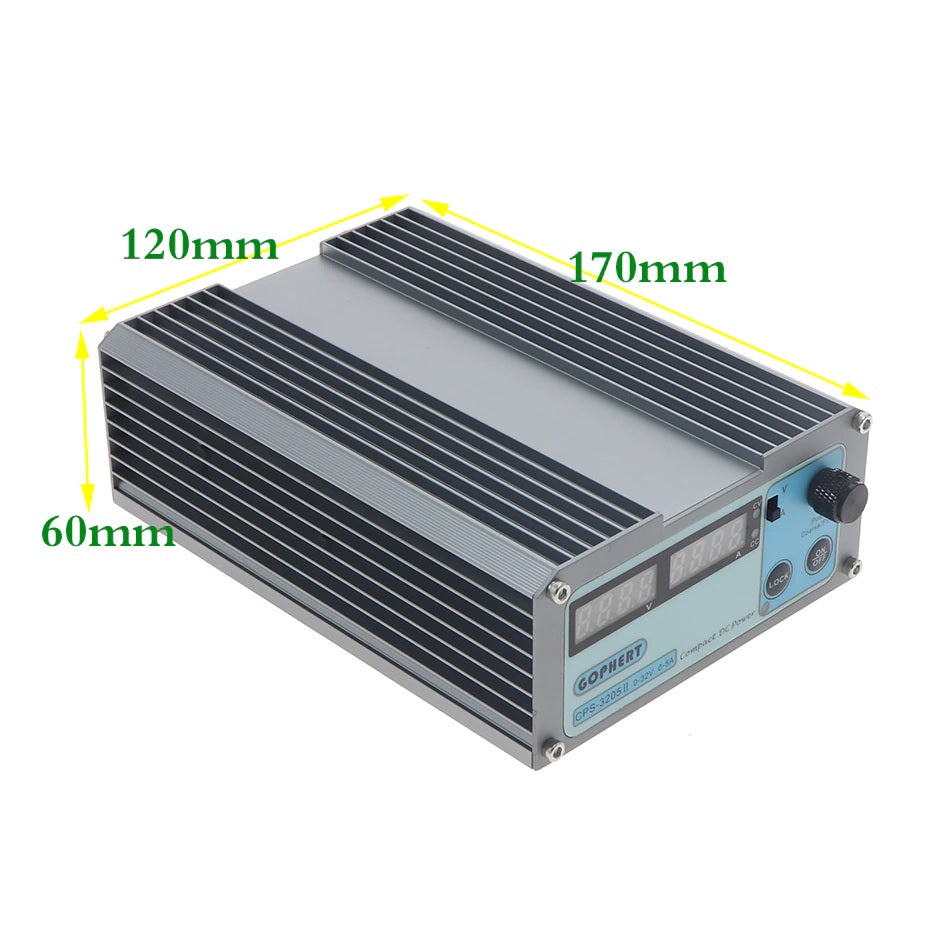

Operating voltage range 198 - 264Vac Operating frequency range 45 - 65HZ Output voltage range 0 - 32V Output current range 0 - 5A Efficiency (220Vac = 87%, full load) With the input current (220Vac = 1.4A) The no-load input current (220Vac = 80mA) Voltage accuracy is less than or equal to 0.1% + 2digits Current accuracy is less than or equal to 0.1% + 4 digit Constant pressure state Load regulation rate (0-100% = 30mV) The input voltage adjustment rate (198-264Vac = 5mV) Ripple noise (Peak-Peak = 10mV) Ripple noise (r.m.s = 2mV) Set accuracy = 0.3% + 10mV The transient response time (50%-100% rated Load) = 1.0ms Constant current state Load regulation rate (90%-10% Rated Voltage) = 50mA The input voltage adjustment rate (198-264Vac = 20mA) Noise ripple current (peak value) is less than or equal to 20mAp-p Set the precision is less than or equal to 0.3% + 20mA Dimensions (w * w * l) 120 * 55 * 168mm Net weight 0.85KG
