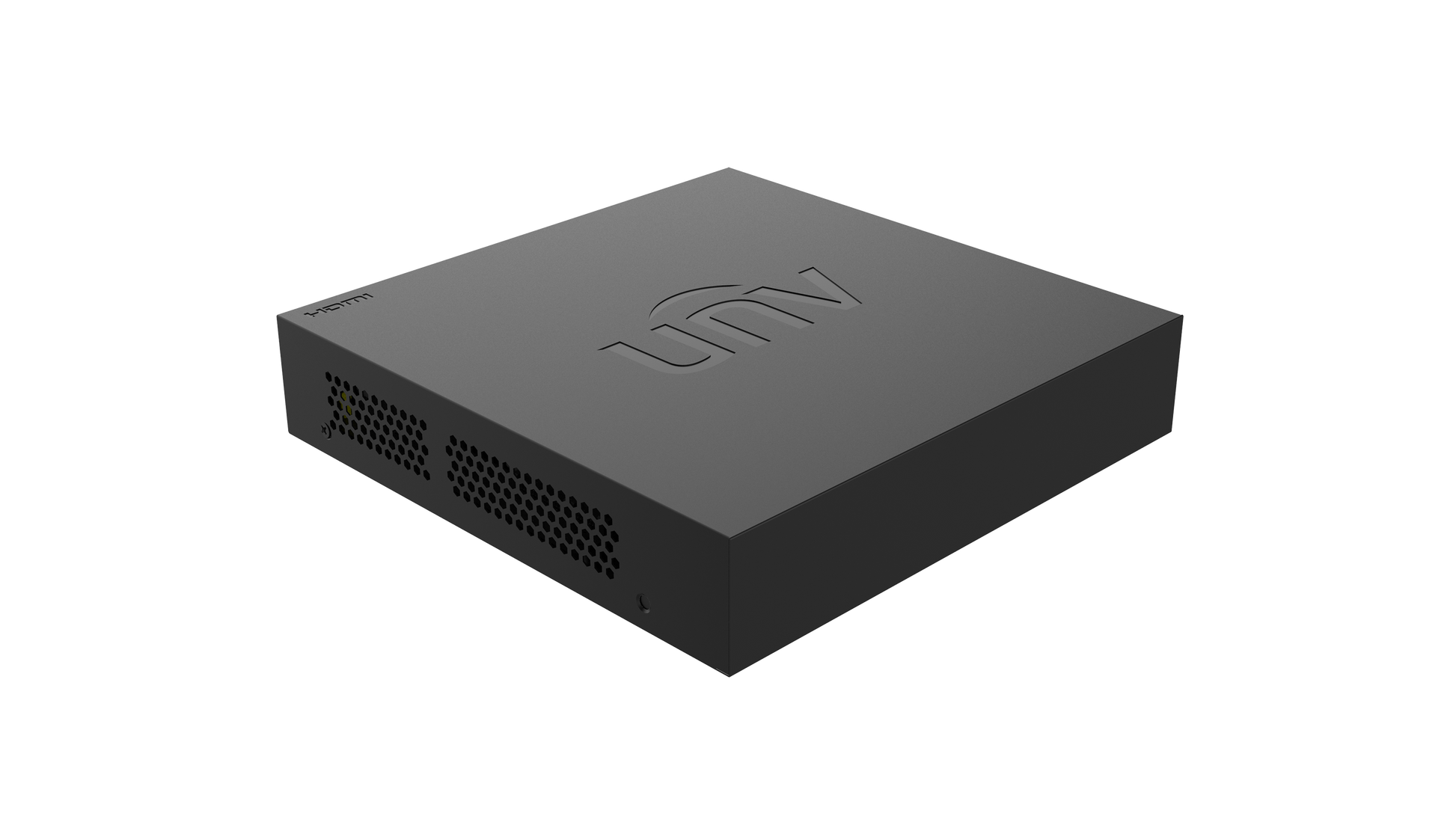

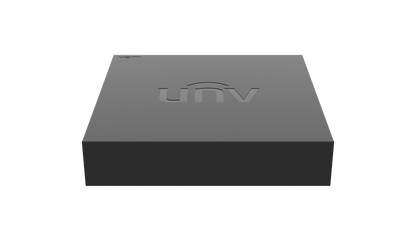

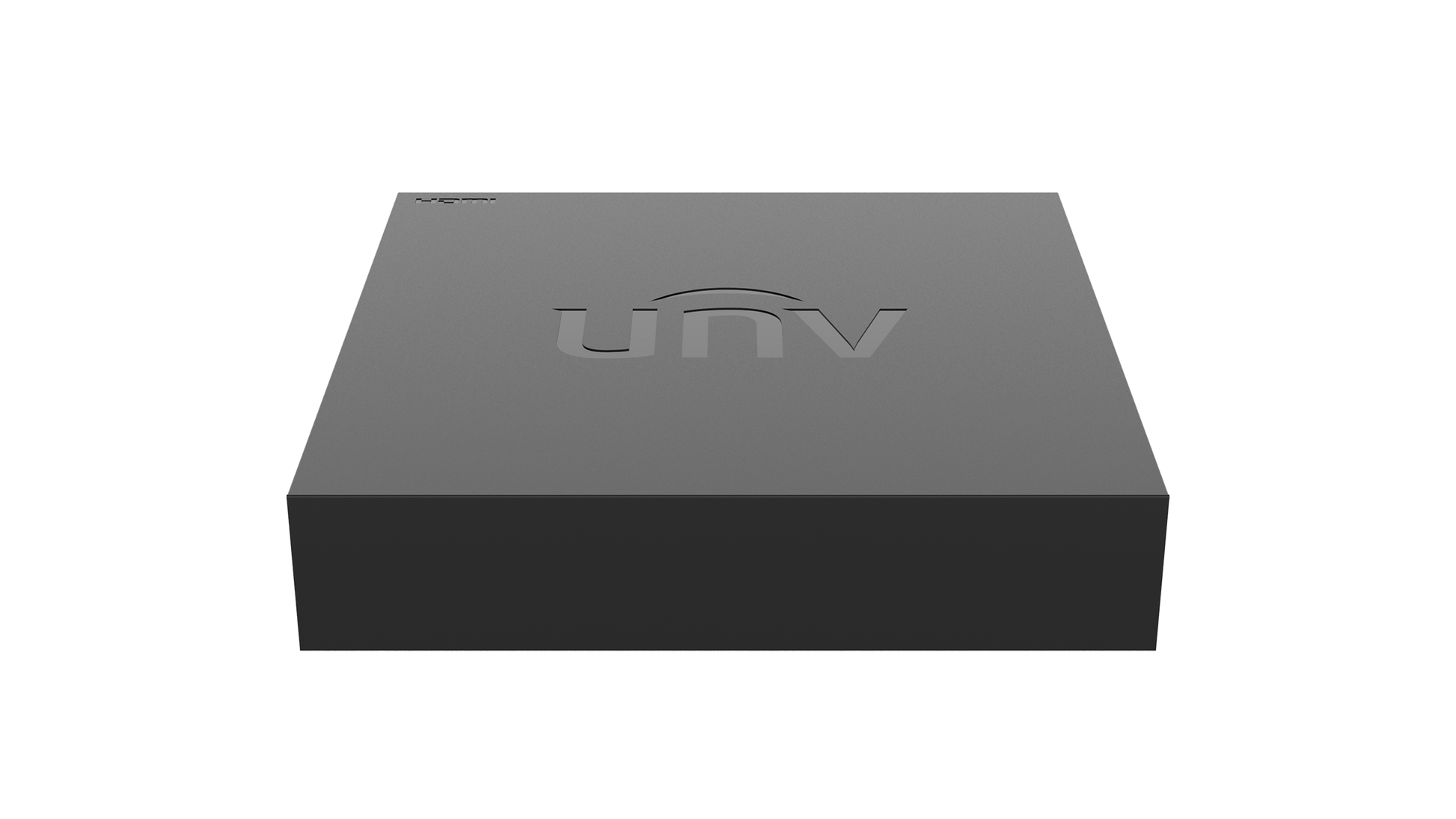

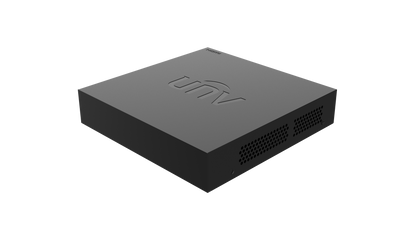

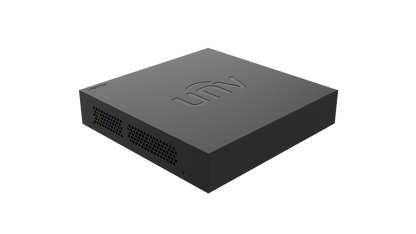

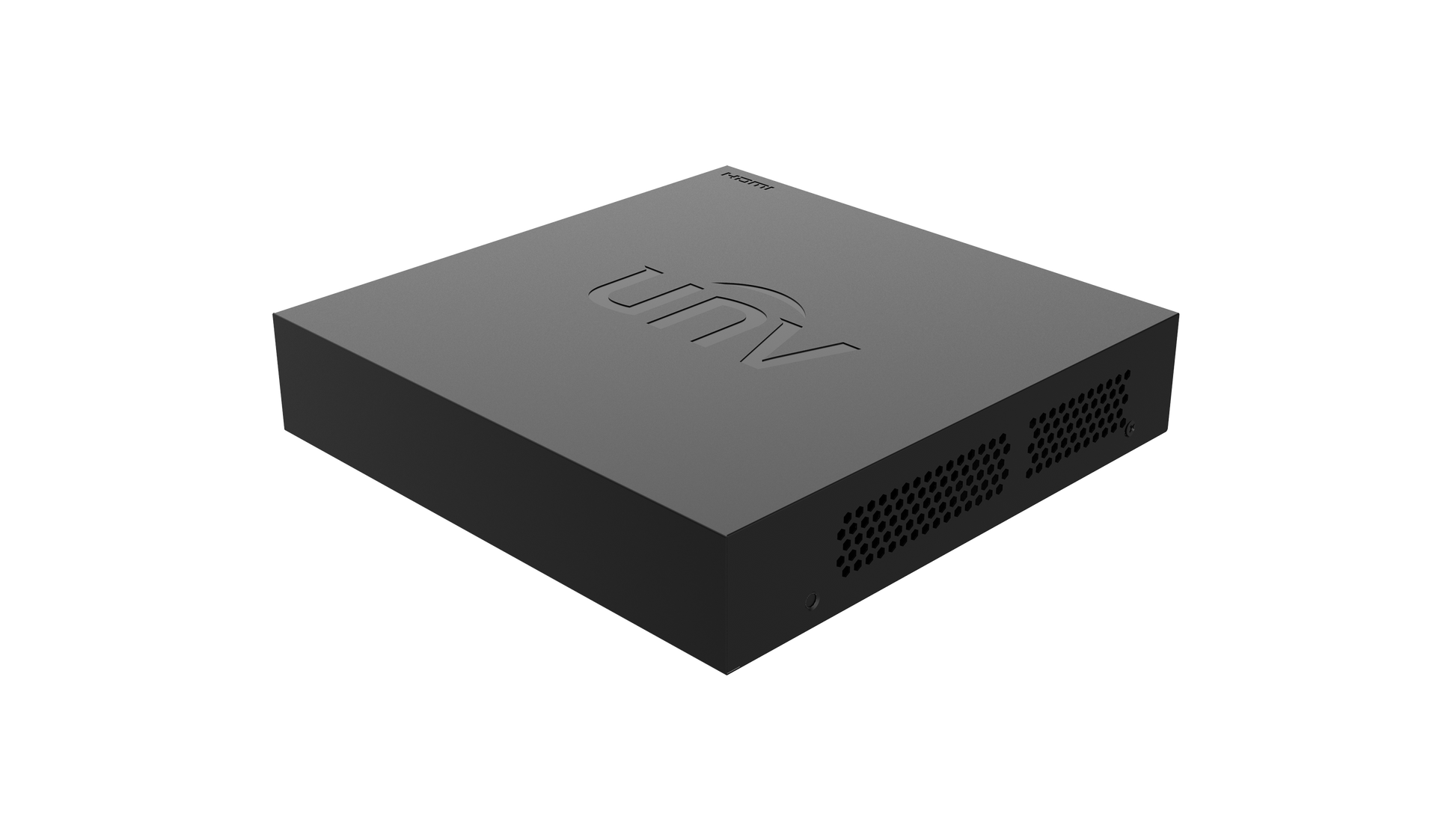

UniView XVR301-F Series - 4Channel Digital Video Recorder for HD Security Cameras(10007780)

Features:

• Support H.265/H.264 video formats
• Support audio over coaxial cable (only for TVI cameras)
• Control the dual-light of UNV analog cameras under TVI
• Support analog camera upgrade over coaxial cable
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 4/8/16-channel BNC input (Optional)
• Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols

Specifications:

Recording Resolution: 1080P Lite/720P/D1

Audio Sample Rate: 8 kHz, 16 bit per Channel

Remote Users: 128

Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP

Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

General Alarm: Motion

Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

Power Consumption (without HDD): ≤10W

Dimensions: 190mm x 202mm x 42mm
