R 195.00 ZAR

Imposte incluse. Spese di spedizione calcolate al check-out.

1A 3.2V 6.4V 9.6V 12.8V 16V 19.2V LiFePO4 Batterie Charger Charging Module

Name: 1A 3.2V 6.4V 9.6V 12.8V 16V 19.2V LiFePO4 Batterie Charger Charging Module
Brand: Nemoah
SKU: 10004806
Price: 195.0 ZAR
Availability: InStock

1A 3.2V 6.4V 9.6V 12.8V 16V 19.2V LiFePO4 Batterie Charger Charging Module (10004806)

Description:

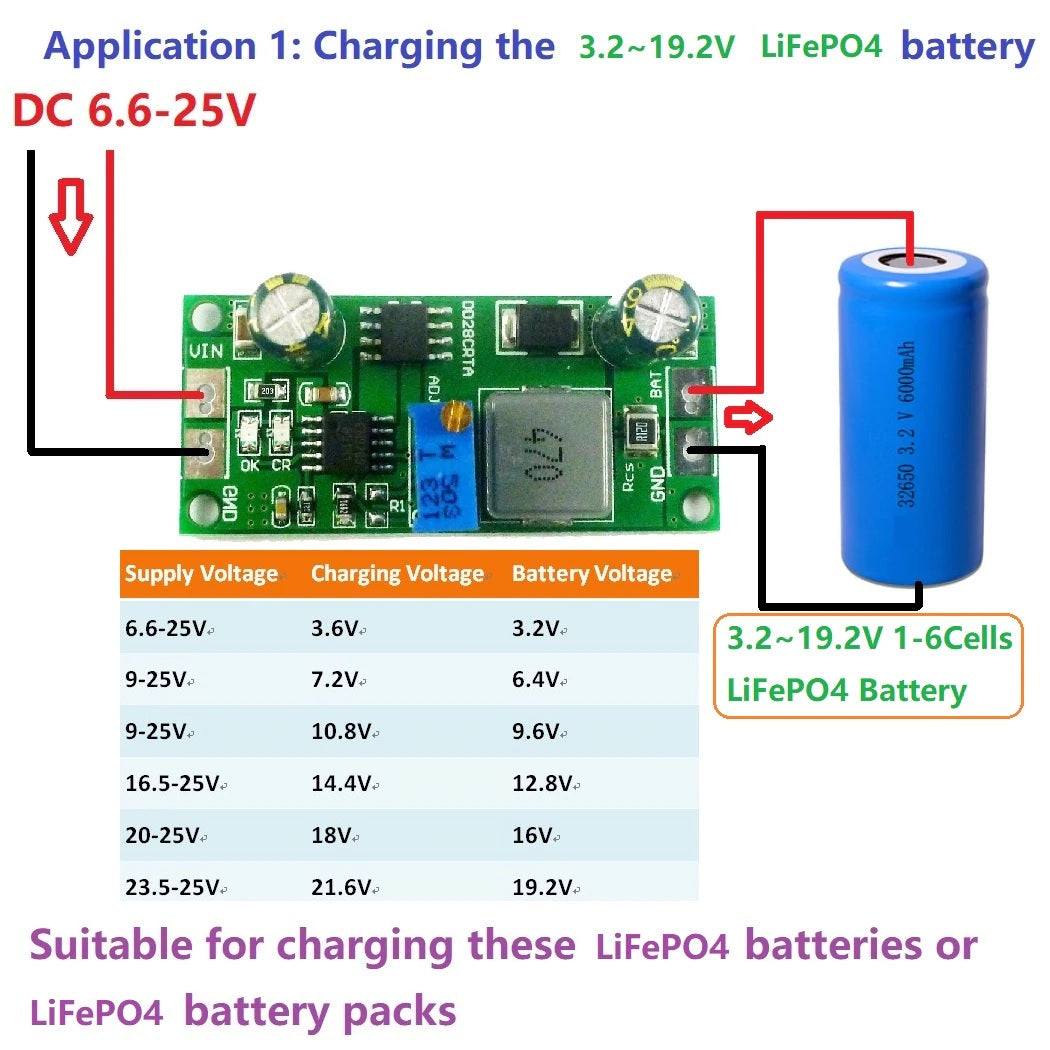

2 in 1 1Amp 3.2~19.2V 1-6Cells LiFePO4 Battery Charger & DC-DC Buck Converter

Complete Charge Controller for Single or Multi-cell LiFePO4 Batteries

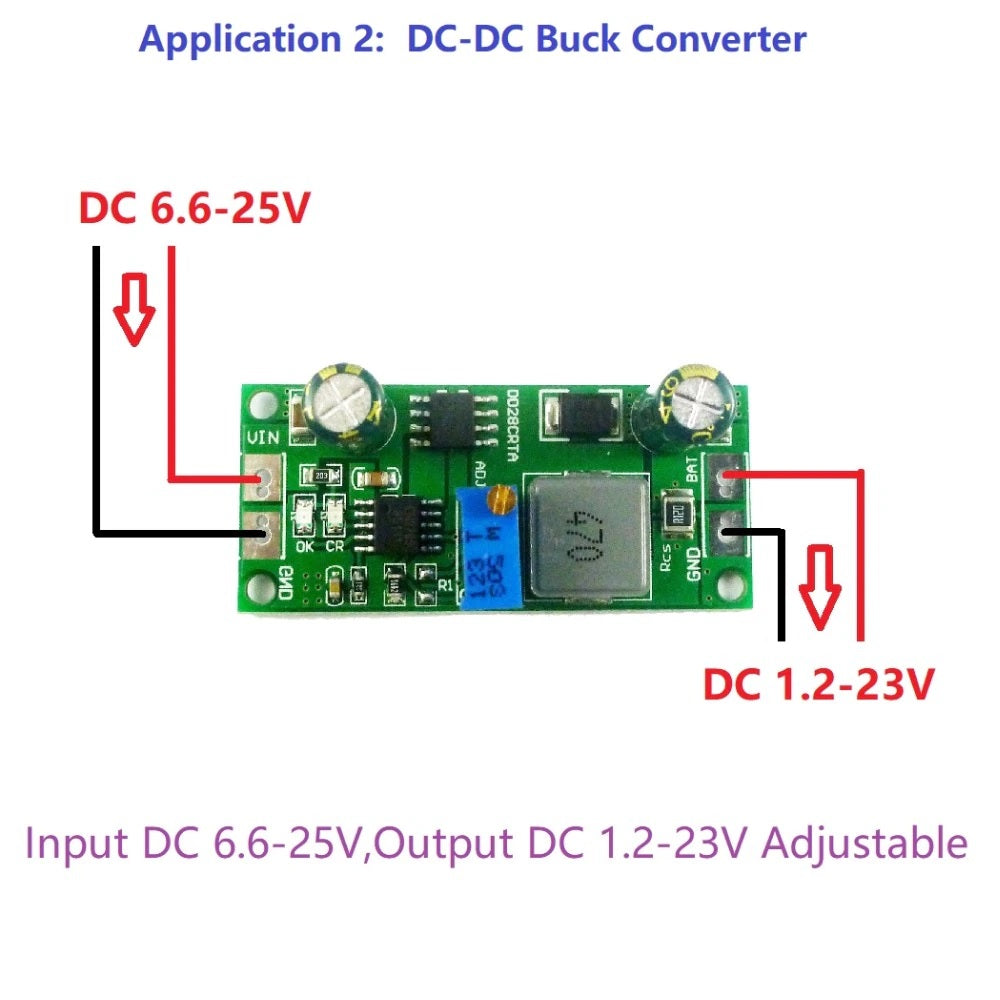

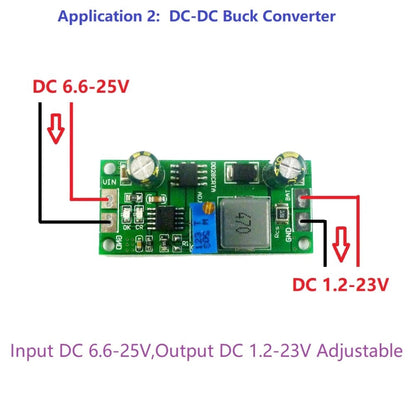

Input DC 6.6-25V,Output DC 1.2-23V Adjustable (3.2V/6.4V/9.6V/12.8V/16V/19.2V)

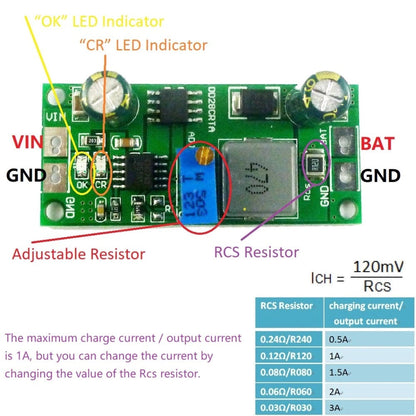

The maximum charge current / output current is 1A, but you can change the current by changing the value of the Rcs resistor.

Can be used as Voltage Source when Battery is Absent

Automatic Conditioning of Deeply Discharged Batteries

Automatic Recharge

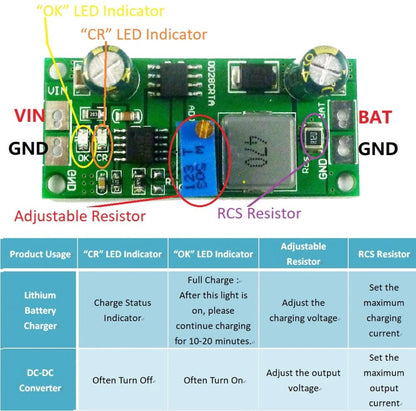

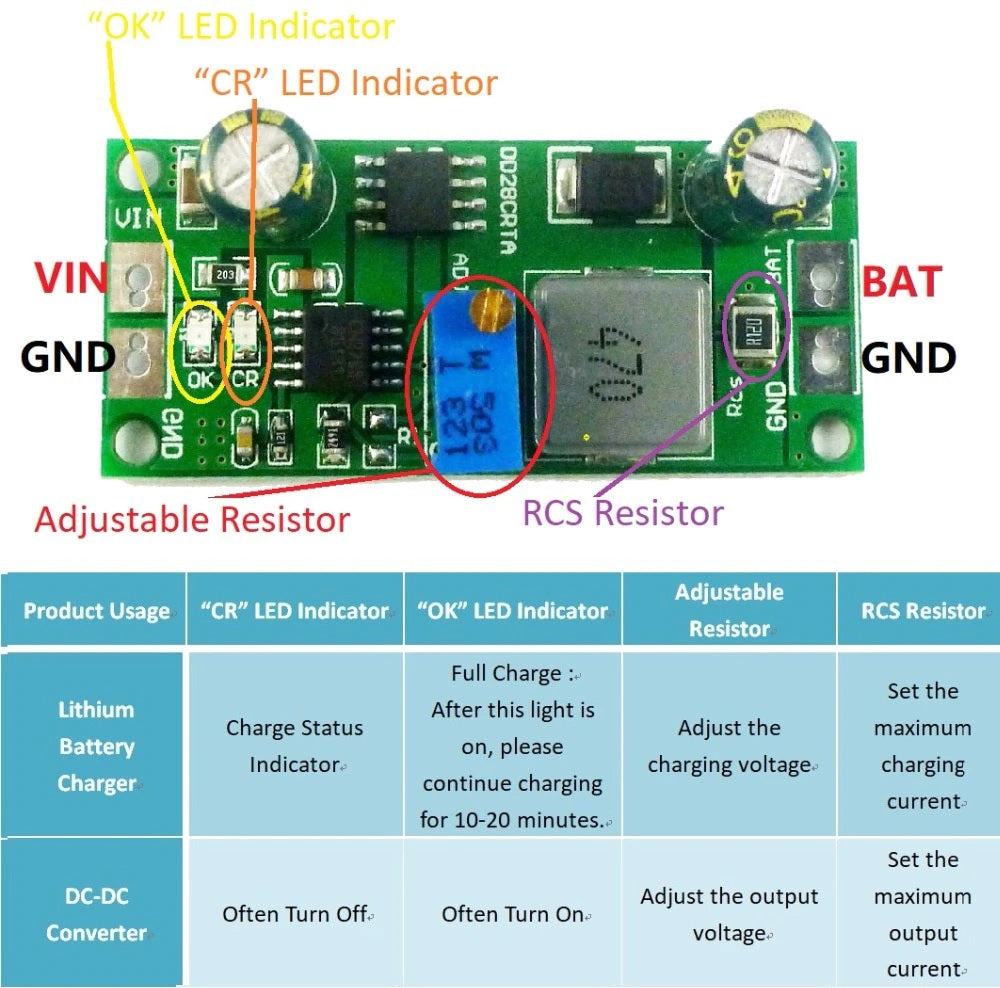

Led indicator : ''CR'' LED is charge status indicator

''OK'' LED is fully charged OR Constant voltage mode;

After the ''OK'' light is on, please continue charging for 10-20 minutes.

Battery Overvoltage Protection

Operating Ambient Temperature－40℃ to ＋85℃

Size : 45 x 20 x 15mm

Weight : 7g

If you need a chip brochure please contact me

Applications:

Car battery charging

Solar battery charging

Mobile Loadspeaker

Electric Bicycle Charger

UPS

Portable Industrial and Medical Equipment

Standalone Battery Chargers

Hand-held Equipment

Battery-Backup Systems

Portable Industrial and Medical Equipment

Standalone Chargers for Lithium ion,

LiFePO4 or Lithium Titanate Batteries

Package Contents:

1 PCS3.2~19.2V 1-6Cells LiFePO4 Battery Charger
