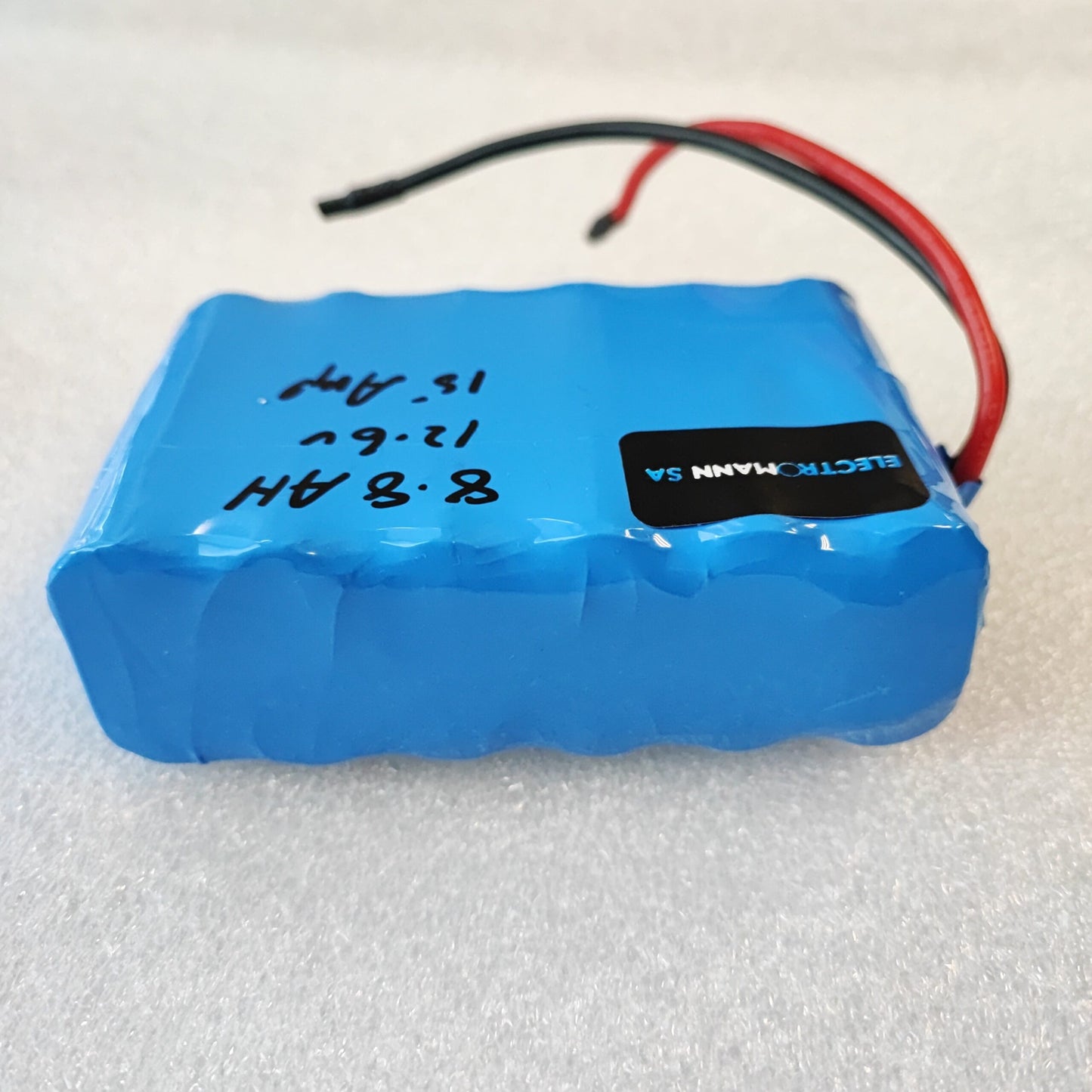

12.6v 8800mAh Rechargeable Li-ion Battery Pack with 15Amp BMS - (10003575)

PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!

Battery is made up of 12x 18650 Lithium cells in 3S 6P configuration

Specifications:

Single cell overcharge protect voltage: 4.23 - 4.28V

Single Cell overcharge protect recover voltage: 4.08 - 4.18

Overcharge protect delay: 0.5 - 1.5S

Single Cell over-discharge protect voltage: 2.72 - 2.88V

Single Cell over-discharge protect recover voltage: 2.9 - 3.1V

Overcharge protect current: 60A

Over-discharge protect current: 60A

Over-discharge protect delay: 0.5 - 1.5S

Temperature protect: No

Shortage delay: 100 - 600μS

Max Charging current: 15A

Max Discharging current: 15A

Max Charging voltage : 12.6V for 3S BMS board

Package Contents:

1 x 12.6V Li-ion Lithium Battery

Nominal Voltage - 11.1v, fully Charged voltage - 12.6v

Dimensions: 110mm W x 70mm H x 60mm D

Weight: 1.2kg

Usually Ships Out The Same Day
