R 595.00 ZAR

Imposte incluse. Spese di spedizione calcolate al check-out.

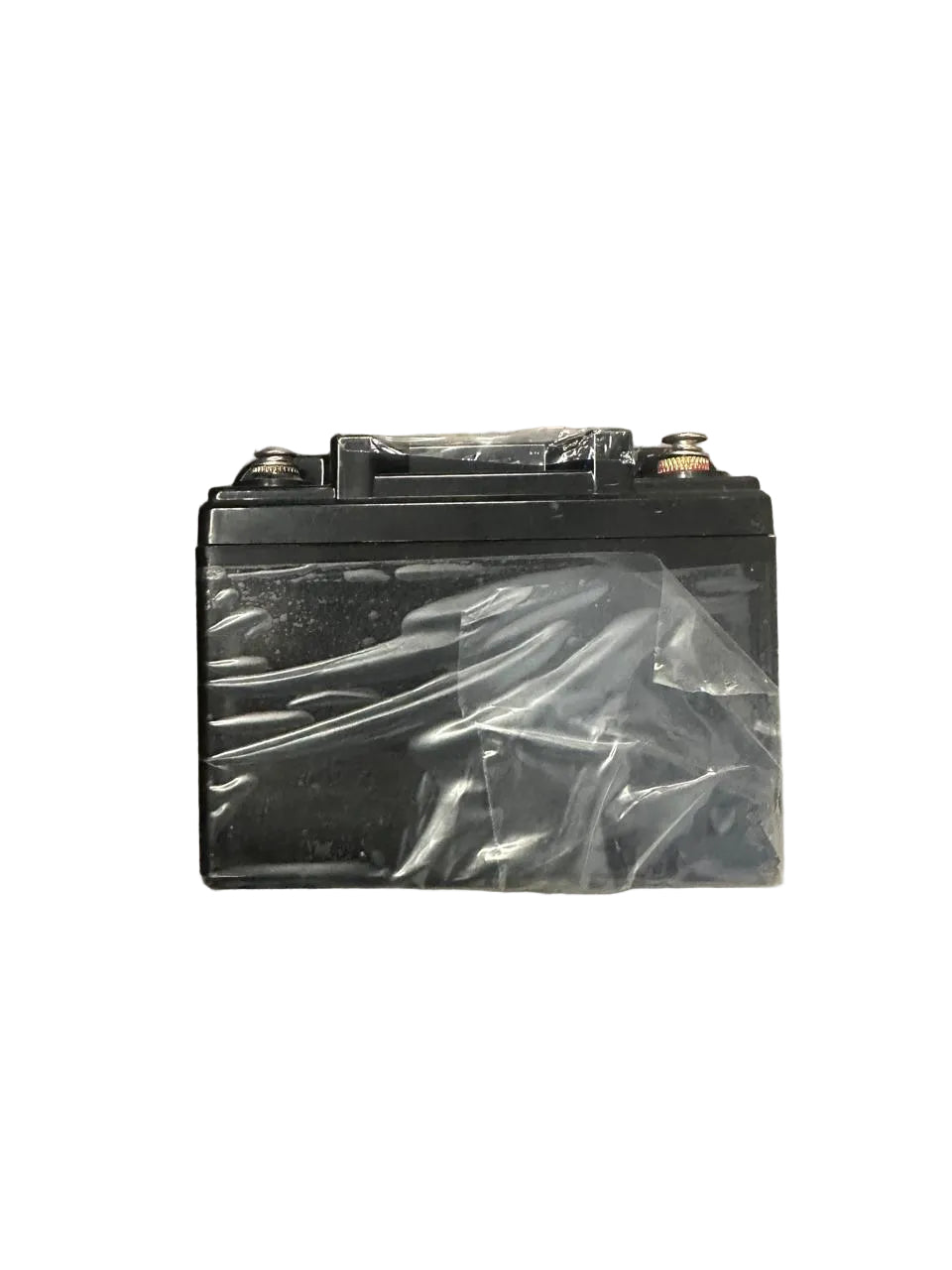

12.6v 6.6Ah Rechargeable Li-ion Battery with BMS (10008212)

Name: 12.6v 6.6Ah Rechargeable Li-ion Battery with BMS (10008212)
Brand: Electromann SA
SKU: 10008212
Price: 595.0 ZAR
Availability: InStock

PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!

Battery is made up of 9 Lithium cells in 3S 3P configuration

Specifications:

Single Cell overcharge protect voltage: 4.23 - 4.28V

Single Cell overcharge protect recover voltage: 4.08 - 4.18

Overcharge protect delay: 0.5 - 1.5S

Single Cell over-discharge protect voltage: 2.72 - 2.88V

Single Cell over-discharge protect recover voltage: 2.9 - 3.1V

Overcharge protect current: 5A

Over-discharge protect current: 5A

Over-discharge protect delay: 0.5 - 1.5S

Temperature protect: YES

Disconnect protect: YES

Shortage protect: YES

Shortage delay: 100 - 600μS

Shortage protect recover: YES

Charging current: 15A

Discharging current: 15A

Charging voltage : 12.6V for 3S BMS board

Nominal Voltage - 11.1v

Fully Charged Voltage - 12.6v

Dimensions: 112mm W x 70mm H x 90mm D

Package Contents:

1 x 12.6V 6.6Ah Li-ion Battery

Usually Ships Out The Same Day
