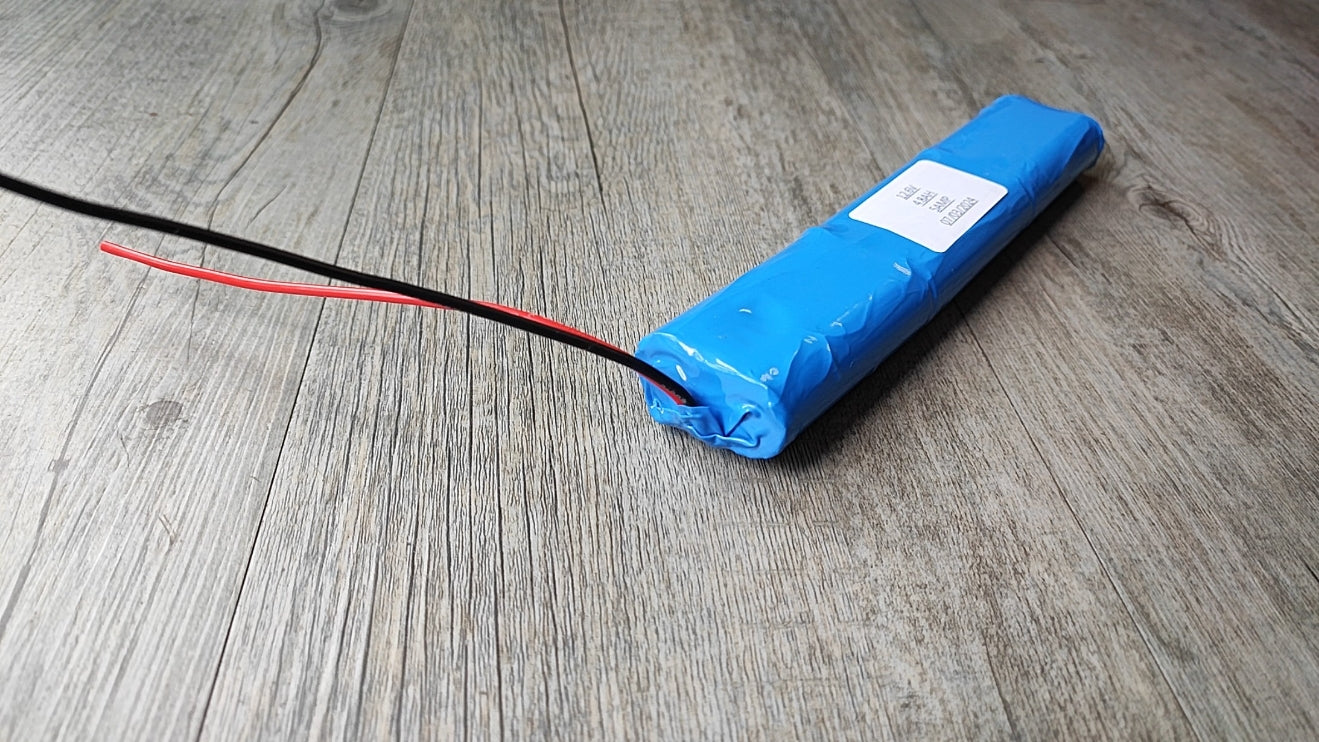

12.6v 10000mAh 21700 Cell Rechargeable Li-ion Battery Pack with 5Amp BMS (10008357)

PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!

Battery is made up of 6 Lithium cells in 3S 2P configuration

Specifications:

Single Cell overcharge protect voltage: 4.23 - 4.28V

Single Cell overcharge protect recover voltage: 4.08 - 4.18

Overcharge protect delay: 0.5 - 1.5S

Single Cell over-discharge protect voltage: 2.72 - 2.88V

Single Cell over-discharge protect recover voltage: 2.9 - 3.1V

Overcharge protect current: 5A

Over-discharge protect current: 5A

Over-discharge protect delay: 0.5 - 1.5S

Temperature protect: YES

Disconnect protect: YES

Shortage protect: YES

Shortage delay: 100 - 600μS

Shortage protect recover: YES

Charging current: 5A

Discharging current: 5A

Charging voltage : 12.6V for 3S BMS board

Package Contents:

1 x 12.6V Li-ion Lithium Battery

Nominal Voltage - 11.1v, fully Charged voltage - 12.6v

Dimensions: 220mm W x 45mm H x 45mm D

Weight: 450g
