1pc 2S 7.4V 8.4V 8A Lithium Battery Protection Board BMS (10003496)

Name: 1pc 2S 7.4V 8.4V 8A Lithium Battery Protection Board BMS (10003496)
Brand: Temu
SKU: 10003496
Price: 25.0 ZAR
Availability: InStock

10003496

R 25.00 ZAR

Impuesto incluido. Envío calculado al finalizar la compra.

Local Stock - Usually Ships Out The Same Day

En stock

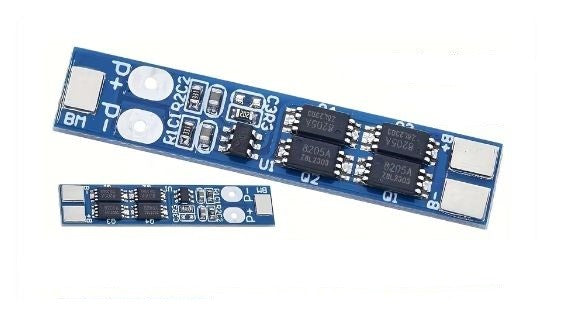

PCB Protection Board MOS 18650 Charger Module, for lithium-ion lithium battery, with nickel over-current and over-charge and discharge protection

Parameter:

Charging Voltage: 8.4V-9V;

Overcharge Voltage Range: 4.25V-4.35Vplus or minus 0.05V;

Overpressure Voltage Range: 2.3V-3.0V plus or minus 0.05V;

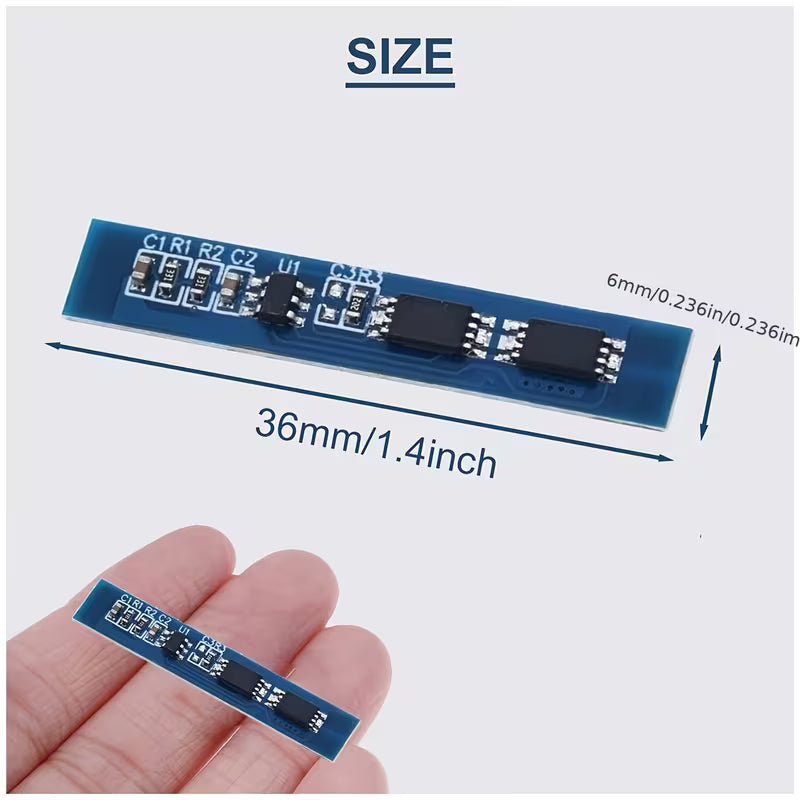

Upper Limit Operating Current: 8A Size: 41 x 8 x 2.2mm/ 1.61 × 0.31 ×0.09inch (L x W) Protection: Overcharge Protection;

Over discharge Protection;

Short Circuit Protection;

Overcurrent Protection.

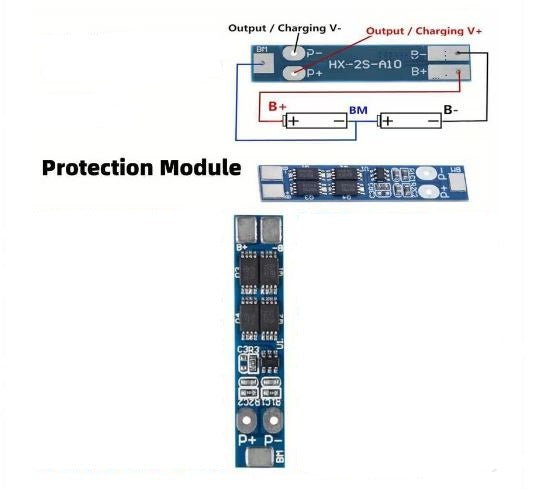

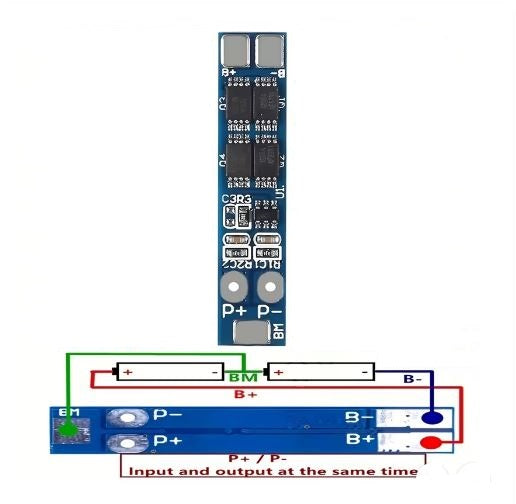

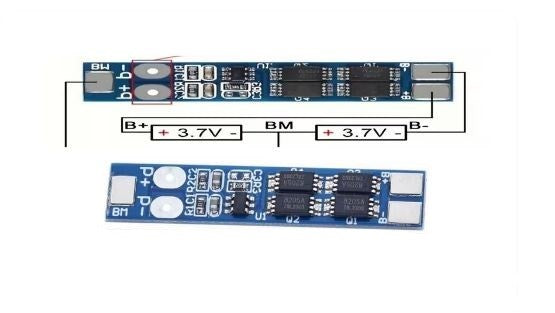

Wiring Instructions: B+: Connected to the battery positive; B-: Connected battery negative; P+: For the battery pack output input positive; P-: For the battery pack output input negative

Package Content:

1 x 2S 7.4V 8.4V 8A Lithium Battery Protection Board

Product Description Description:

Charging Voltage: 8.4V to 9V Overcharge Voltage Range: 4.25V to 4.35Vplus or minus 0.05V Overpressure Voltage Range: 2.3V to 3.0V plus or minus 0.05V Upper Limit Operating Current: 8A Upper Limit Instantaneous Current: 16A Quiesnt Current: less than 10uA Internal Resistance: less than 300m ohm Size: 41 x 8 x 2.2mm/ 1.61 × 0.31 ×0.09inch(L x W x H)
