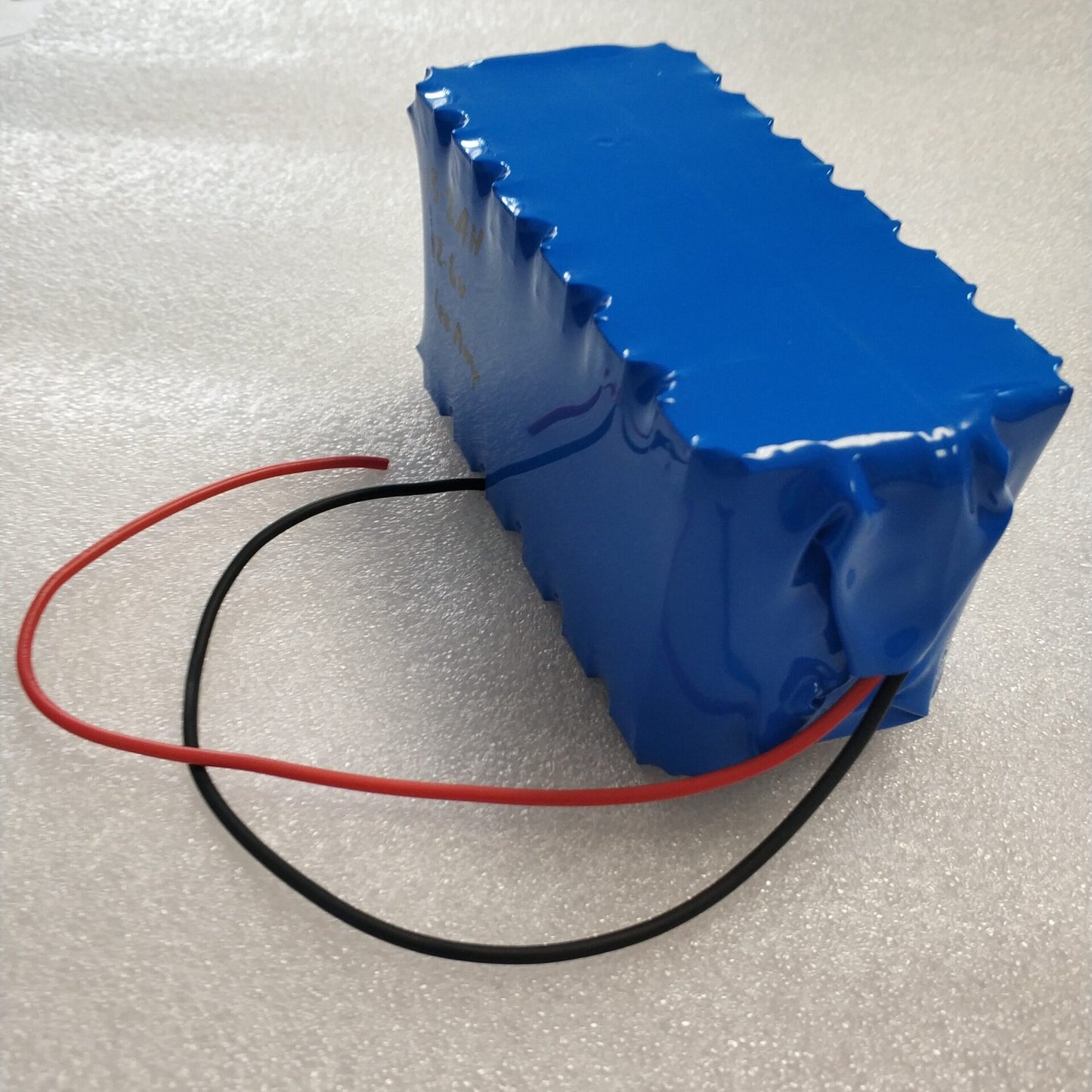

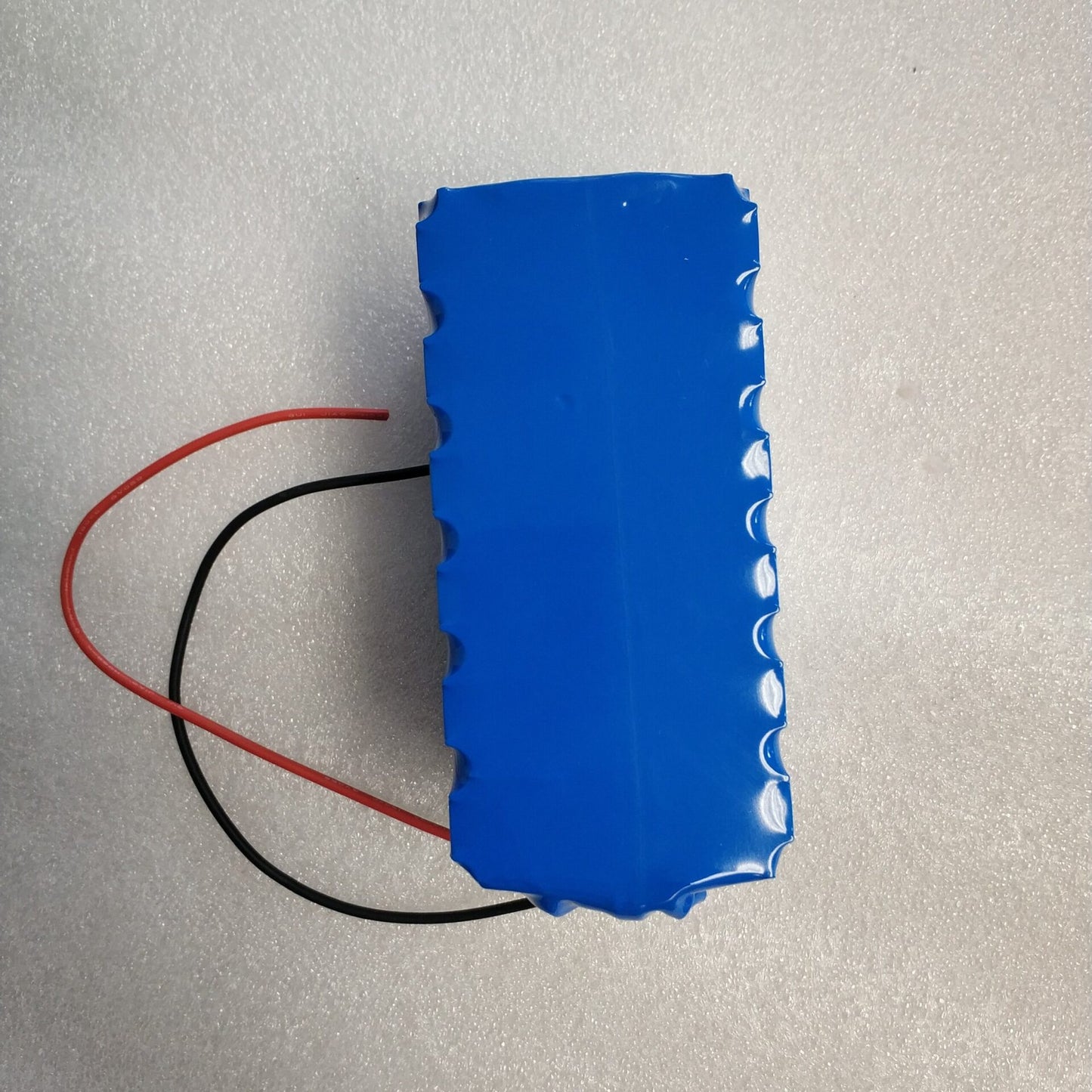

12.6v 13.2Ah Rechargeable Li-ion Battery Pack with 15Amp BMS (10004729)

PLEASE NOTE THAT THESE BATTERIES CAN NOT BE CONNECTED IN SERIES!!

Battery is made up of 18x 18650 Lithium cells in 3S 6P configuration

Specifications:

Single cell overcharge protect voltage: 4.23 - 4.28V

Single Cell overcharge protect recover voltage: 4.08 - 4.18

Overcharge protect delay: 0.5 - 1.5S

Single Cell over-discharge protect voltage: 2.72 - 2.88V

Single Cell over-discharge protect recover voltage: 2.9 - 3.1V

Overcharge protect current: 60A

Over-discharge protect current: 60A

Over-discharge protect delay: 0.5 - 1.5S

Temperature protect: No

Shortage delay: 100 - 600μS

Max Charging current: 15A

Max Discharging current: 15A

Max Charging voltage : 12.6V for 3S BMS board

Package Contents:

1 x 12.6V Li-ion Lithium Battery

Nominal Voltage - 11.1v, fully Charged voltage - 12.6v

Dimensions: 120mm W x 70mm H x 60mm D

Weight: 1.2kg
