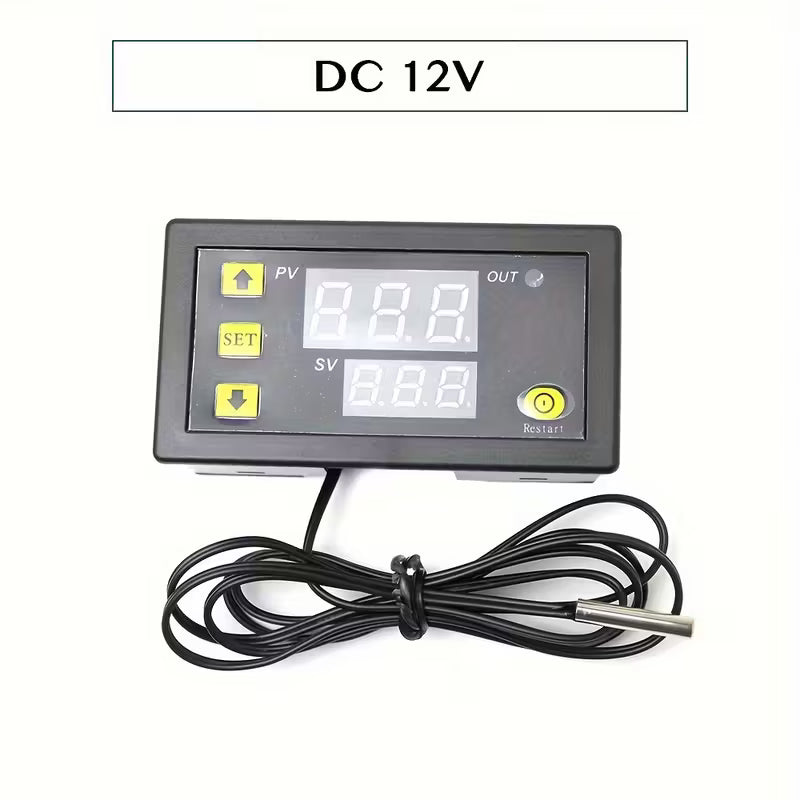

W3230 DC12V Probe Line 20A Digital Temperature Control LED Display Thermostat with Heat/Cooling Control Instrument Mini Regulator Heating Cooling Control regulator with Sensor

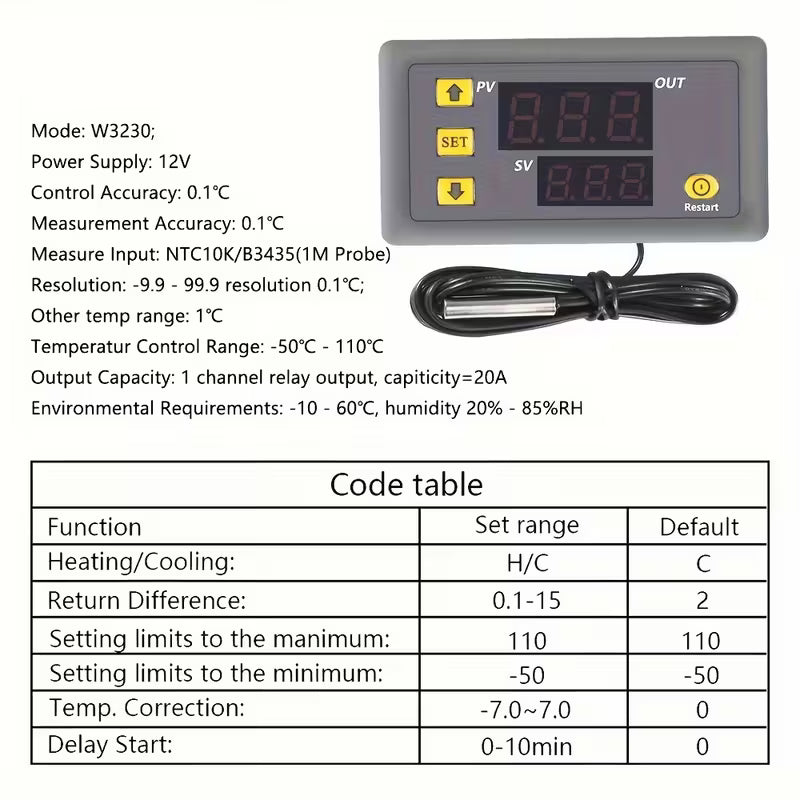

Model Number: W3230
Power supply: DC12v
Precision: -9.9~99.9 when 0.1 in other temperature ranges 1℃ Temperature regulation range: -50℃~110℃
Measurement precision: 0.1℃ Sensor: NTC waterproof probe 1m
Control precision: 0.1℃
Output capacity: single relay output capacity 20A
Environmental conditions: -10℃~60℃ Humidity 20%~85%
Size: 79mm*43mm*26mm
Characteristics:
1. Compact temperature controller for convenient measurement anytime.
2. The LED display allows for easy reading of measurements.
3. It has a broad temperature range from -50°C to 110°C.
4. Features heating or cooling controls to meet your temperature requirements.
5. Includes a data storage capability, allowing all parameter settings to be retained after a power interruption.
6. Equipped with relay output.
7. Provides precise temperature control to within 0.1°C. 8. Suitable for use in temperature regulation systems for home freezers, water tanks, refrigerators, industrial chillers, steamers, and other industrial machinery.

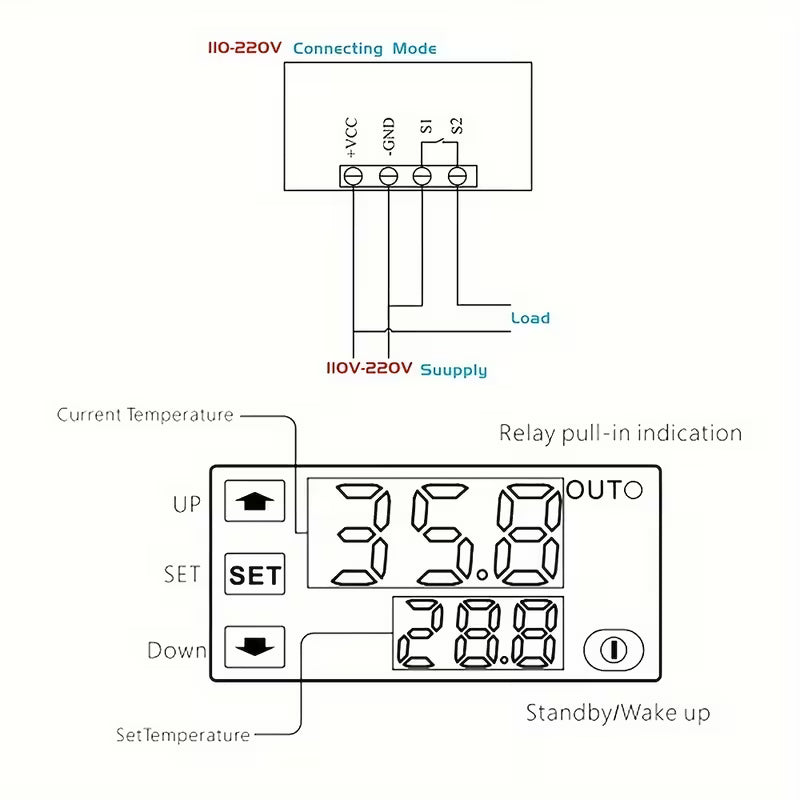

Instructions for use:
Once the power supply and equipment are connected, you can power up the controller. It will then show the current temperature. Press the SET button once, and the temperature reading will start to blink. Use the +- buttons to adjust the temperature to your preference (holding down the +- buttons will allow for rapid adjustments). After setting the desired temperature, press SET to confirm and exit. The controller will then automatically operate the relay based on your settings!
The thermostat features a 20A relay capable of handling various high-power loads. Once the control circuit is connected, the thermostat will receive power, and the display will indicate the surrounding temperature.
Included in the package:
1 * W3230 Digital Temperature Controller
