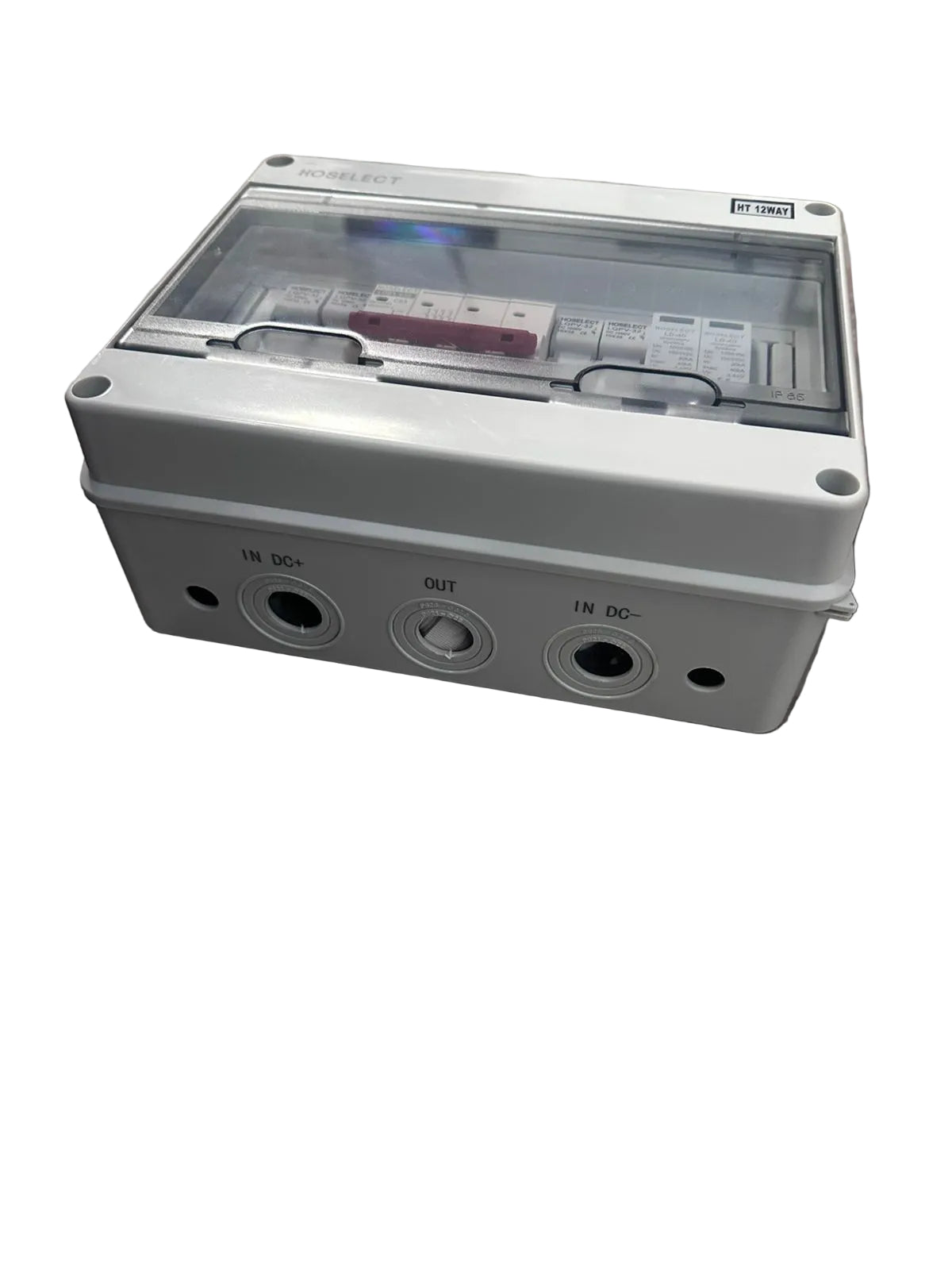

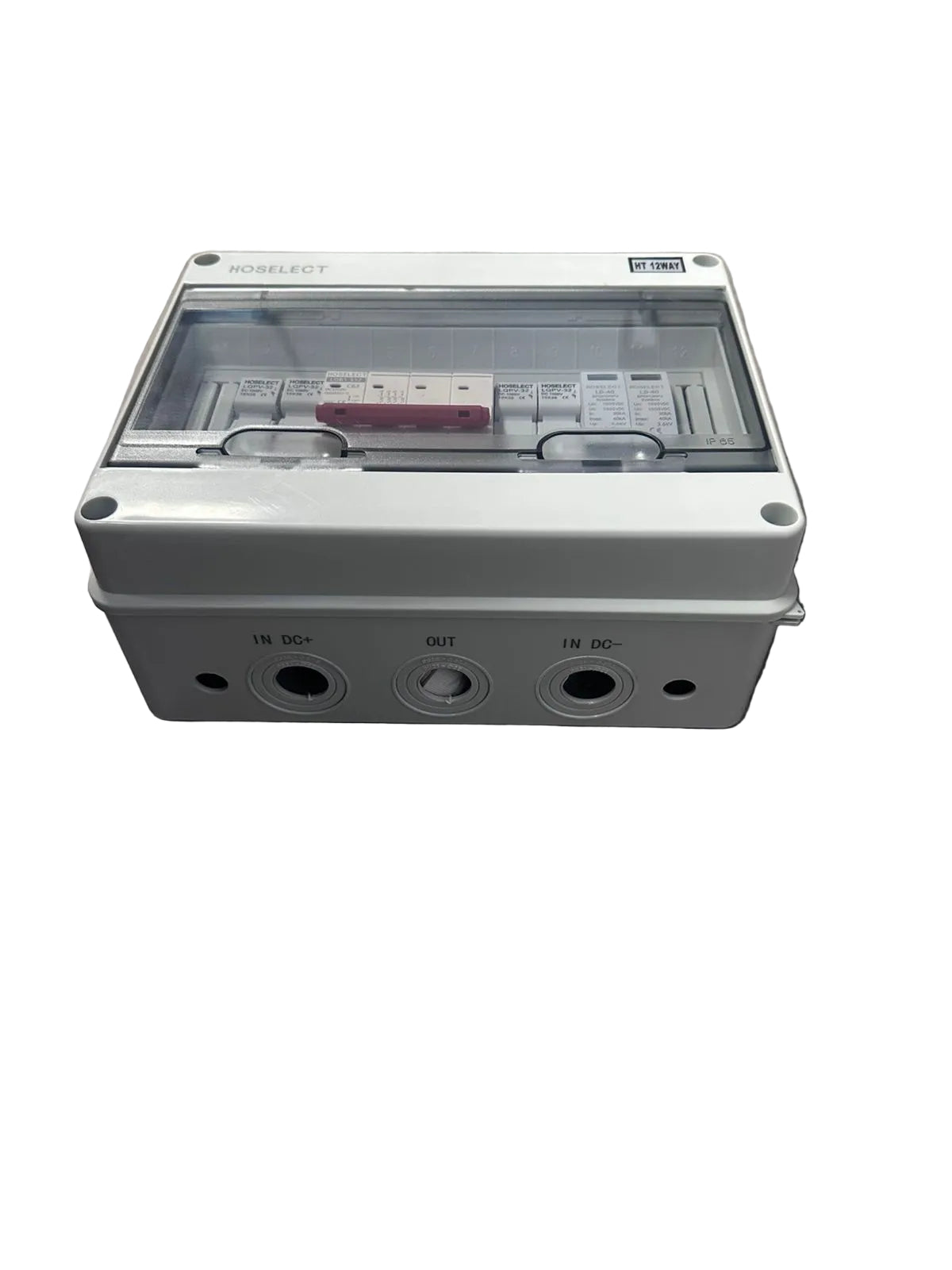

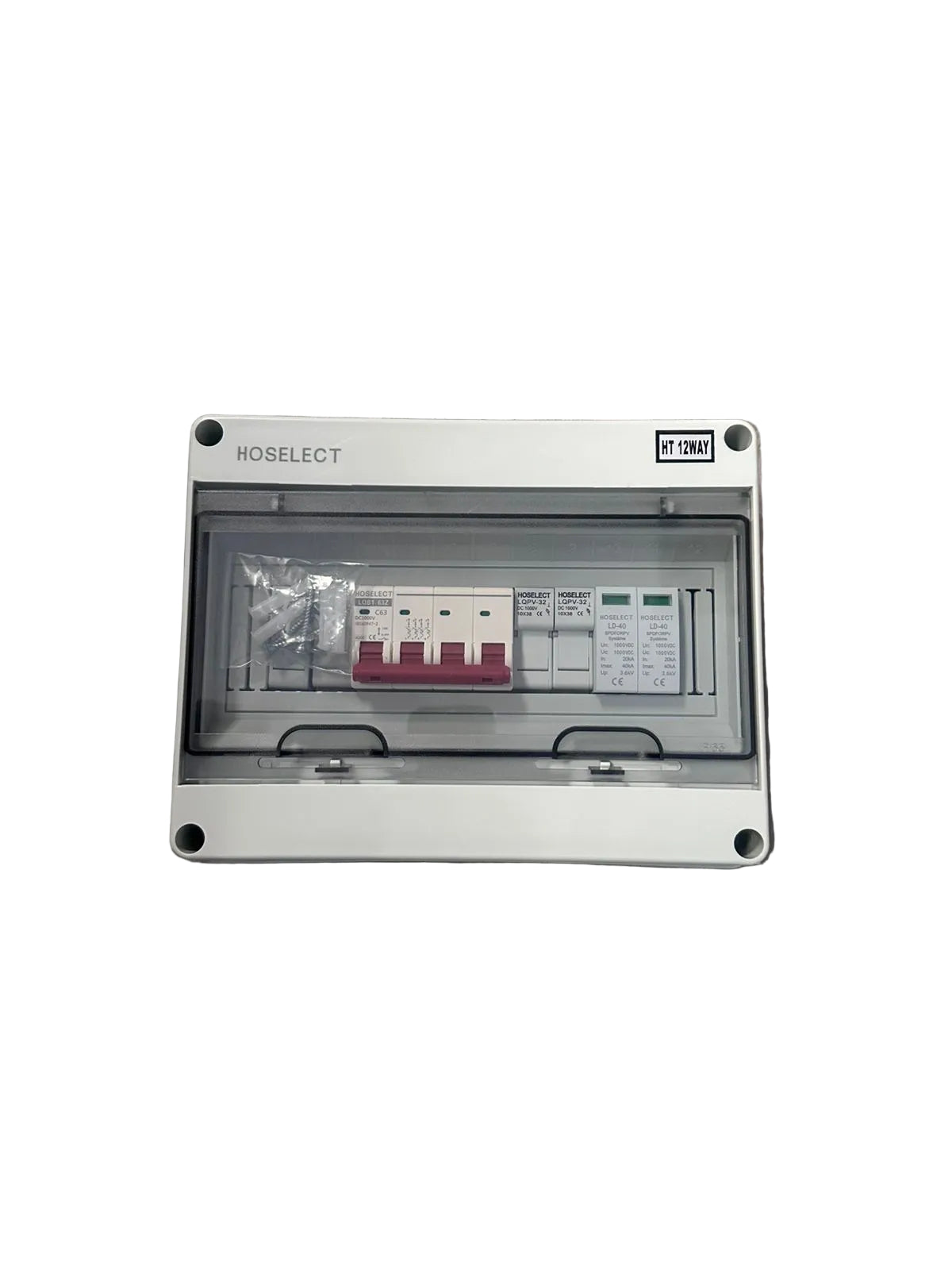

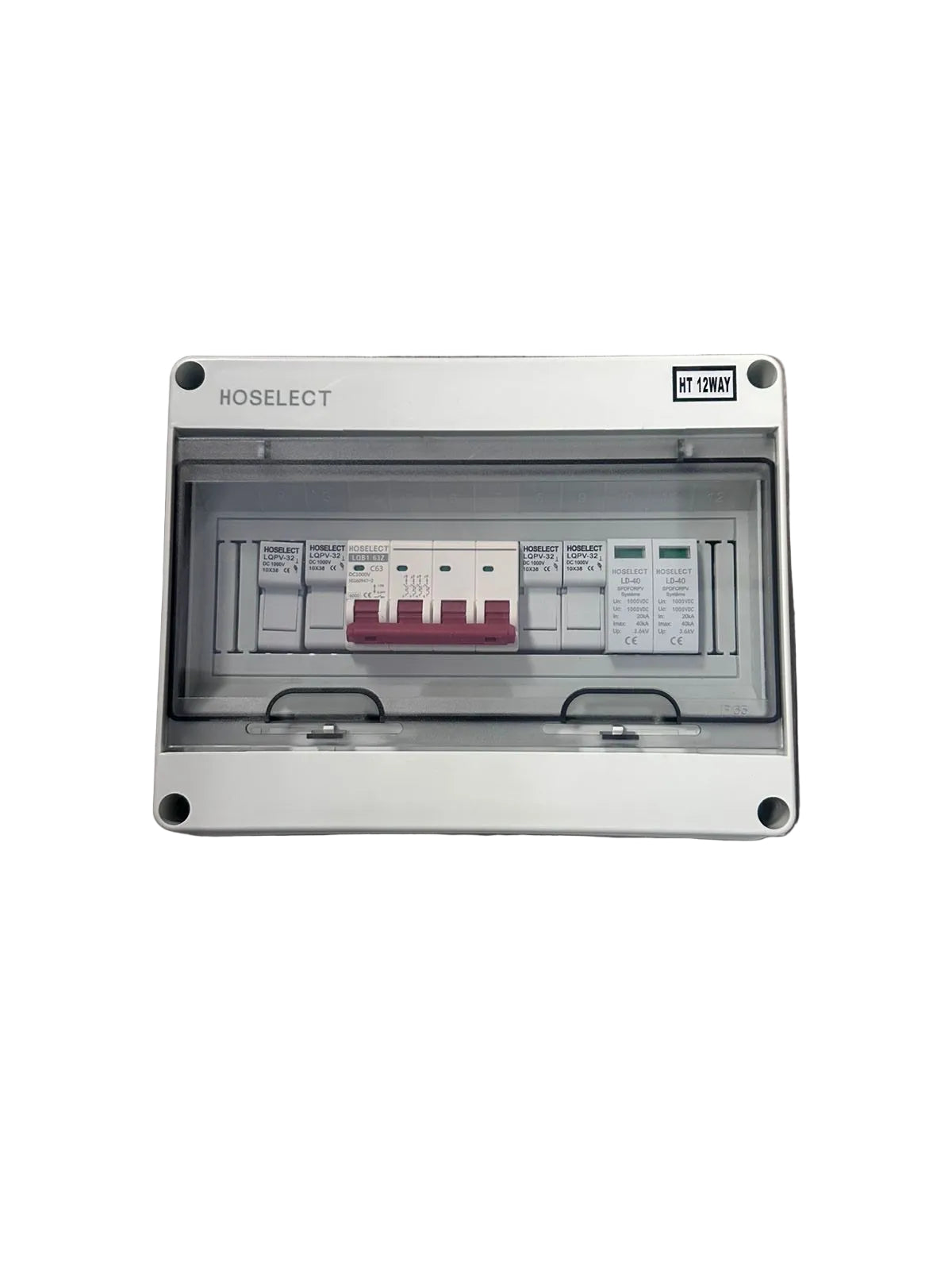

Solar photovoltaic PV DC Combiner Box Surge Lightning Protection 2 input 1 out DC 600V (10008167)

Solar PV DC 2 in 1 Out Combiner Box

Rated voltage of photovoltaic system

DC 600V

Max input amp for each string

15A

Input strings

2

output strings

1

Surge Lighting protection

Category of test

II grade protection

Nominal discharge amp

20KA

Max discharge amp

40KA

Volt protection level

3.2KV

SPD Max operation voltage

DC 600V

Poles

2P

Structure characteristic

Plug push module

System

Protection grade

IP65

Output switch

DC circuit breaker

Box material

PVC

Installation method

Wall mounting type

Operating temperature

-25℃-+60℃

Installation

indoors/outdoors

Mechanical Parameter

Width*Height*Depth(mm)

265mm x 195mm x 130mm
